200MA Medical Animal Digital X Ray Machine Cost, Veterinary X Ray Equipment
200MA Medical Animal Digital X Ray Machine Cost, Veterinary X Ray Equipment
200MA Medical Animal Digital X Ray Machine Cost, Veterinary X Ray Equipment
200MA Medical Animal Digital X Ray Machine Cost, Veterinary X Ray Equipment

200MA Medical Animal Digital X Ray Machine Cost, Veterinary X Ray Equipment

Model NO.:
MCX-200R
Price:
USD 14897.00-14897.00
Delivery:
FOB
Minimum order quantity:
1
  • Place of Origin:CN
  • Instrument classification:Class II
  • Brand Name:MeCan
  • Model Number:MCX-200R

200MA Medical Animal Digital X Ray Machine Cost, Veterinary X Ray Equipment MCX-200R

200MA-Medical-Anima (1).jpg200MA-Medical-Anima (2).jpg200MA-Medical-Anima (3).jpg

Product Configuration 200 mA veterinary x ray equipment



No.

Part Name

QTY

1

High frequency high voltage generator

1

2

Microcomputer console

1

3

X-ray tube

1

4

Beam defining clipper

1

5

Radiographic Table

1

6

Grid

1

7

High voltage cable

1





Technical parameters of main components



No.

Technical parameters

1

X-ray generator: 220V±22V, Work Frequency: ≥30kHz

2

Microcomputer console: current: 32mA-200mA, KV: 40kV-120k, adjustable

3

X-ray tube: focus: 0.6/1.2mm, Max tube voltage: 125KV

4

Beam defining clipper type: multi-leaf manual

5

Size of Radiographic Table: 1200*650*808mm



 digital x ray veterinary prices

MCX-300R 300 mA veterinary x ray equipment

Product Configuration 300 mA veterinary x ray equipment



No.

Part Name

QTY

1

High frequency high voltage generator

1

2

Microcomputer console

1

3

X-ray tube

1

4

Beam defining clipper

1

5

Radiographic Table

1

6

Grid

1

7

High voltage cable

1





Technical parameters of main components



No.

Technical parameters

1

X-ray generator: 220V±22V, Work Frequency: ≥40kHz

2

LCD console: current: 10mA~320mA, KV: 40kV~125k, Built-in APR

3

X-ray tube: focus: 0.6/1.2mm, Max tube voltage: 125KV

4

Beam defining clipper type: manual

5

Size of Radiographic Table: 1200*650*808mm

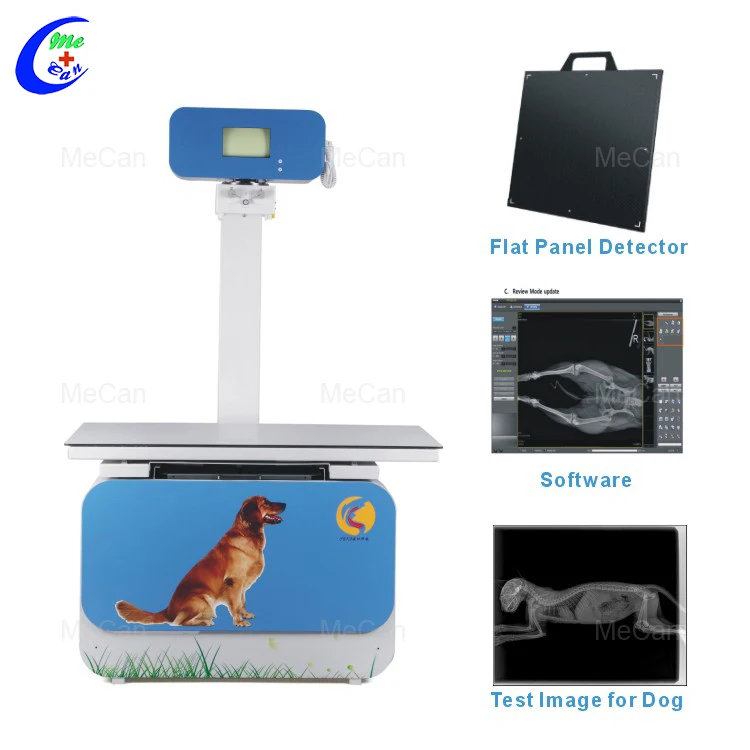

More pictures of 200 mA veterinary x ray equipment
