Digital Dental Panoramic X-ray
Digital Dental Panoramic X-ray
Digital Dental Panoramic X-ray
Digital Dental Panoramic X-ray

Digital Dental Panoramic X-ray

Model NO.:
MCX-D03 Digital Dental Panoramic X-ray
Price:
USD 1000.00-100000.00 / unit
Delivery:
FOB
Minimum order quantity:
1 unit
Supply Ability:
1000 unit / Month
Country of Origin:
Beijing, Shanghai, Guangzhou, Shenzhen, Hongkong
Stock Time:
5~7 working days for the Digital Panoramic Dental Days
  • Place of Origin:CN;GUA
  • Model Number:MCX-D03 Digital Dental Panoramic X-ray
  • Brand Name:MeCan
  • Properties:Medical X-ray Equipments & Accessories
  • Instrument classification:Class II

Digital Panoramic Dental X-ray Machine

Model:MCX-D03




Digital Panoramic Parameters of

Power Supply: 220V,50/60Hz,10A (can be adjusted as customer’s require)

Mains Resistance: <1.5ohm at 220 V

X-ray generator:High frequency dc at 20 kHz

Anodic Voltage:60-86 kV, Constant Potential   Anodic Current:4-10 mA,Direct Current

Focus size:0.5*0.5mm                     Inherent Filtration:2.5 mm Al

Column Height:230cm                     Displacement :90 cm,from 90 to 180 cm

Vertical Movement: Manual Adjustment

Patient Positioning: Manual Carriage Adjustment

Centering Light Lateral

Centering Chin rest

Reference with bite wing




Imaging Parameters of Digital Sensor ipan



    Color Depth

12bits(4096gray scale)

Pixel Size

96micrometer

            Resolution

4lp/mm

Scan Time

10–20sec        (depending on host machine)















Exposure time             19 s                      0.2 to 3.5s(12 steps) mAs from 2 to 35

Projections:             Adult(19 s)                 Antero Posterior

                       Children(16 s)

                       Half left(10 s)                    Latero lateral

                       Half Right(10 s )                with soft tissue filter

                       Frontal Teeth(12 s)

                       TMJ opened and closed

                       Mouth(4*3.2s)

                       Frontal Sinuses(18 s)



Cooling pause:     automatically controlled,       automatically controlled,

                                6 min max                                      60 s max

Cephalometric Function Parameters
(Film available)
Anodic Current: 10 MA
The Product of Anodic Current and Time is from 2mAs to 35mAs, divided into 12 block.
Size of Cassette: 18cm * 24cm

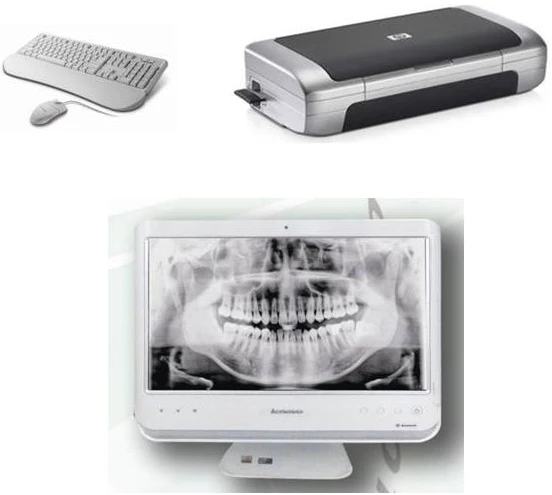

Accessories:







Package Information:
Items           Dimensions            G.W.
main part:   114×83×61cm        154kg
Side arm:     232×30×34cm       68kg
 Total:                                         222kg
