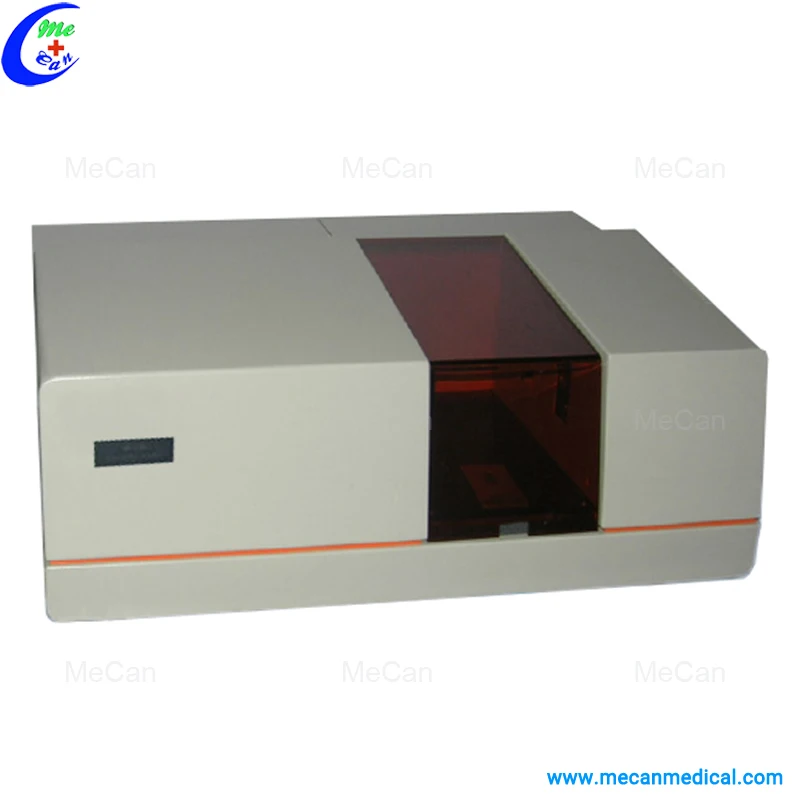

Dual Beam Infrared Spectrophotometer
Dual Beam Infrared Spectrophotometer
Dual Beam Infrared Spectrophotometer

Dual Beam Infrared Spectrophotometer

Model NO.:
USD 5000.00-14000.00 / set
Minimum order quantity:
1 set
Supply Ability:
1000 set / Month
Country of Origin:
  • Place of Origin:CN;GUA
  • Brand Name:MeCan
  • Model Number:MCL-SP06
  • Weight:80Kg
  • Wavelength Range:4000-400 cm-1
  • Measurement Range:4000-400 cm-1

Dual Beam Infrared Spectrophotometer


Product Description

What is feature of our Infrared Spectrophotometer?

Infrared spectroscopy is one of the most powerful techniques for identifying organic substances in organic and analytical chemistry. Infrared analysis can be both qualitative and quantitative. MCL-SP06 is an important tool in analytical laboratories.

MCL-SP06 Dual-Beam Infrared Spectrophotometer can be used to record the IR absorption and reflectance spectra of substances in the spectral range of 4000 ~ 400 cm-1. It is a powerful tool to analyze sample structures in the fields such as petroleum, chemical engineering, pharmacy, public health and environmental protection.

The application software provides a user-friendly interface for the control of the spectrophotometer, data acquisition, and spectral analysis with functions listed below:

-Spectral background baseline memory

-Spectral background baseline correction

-Spectral data smoothing operation

-Spectral baseline slope correction

-Spectral data differential operation

-Spectral data arithmetic operation

-Spectral data accumulating operation

-Conversion of %T and Abs

-Spectrum file management

-Spectral peak search

-Spectrum scale extension

-Spectral absorption expansion

What is specification of our Infrared Spectrophotometer?

Wavenumber Range

4000-400 cm-1

Transmittance (%)




Wave-number Accuracy

≤±4 (4000-2000cm-1)

≤±2 (2000-500 )

WN Repeatability

≤2 (4000-2000cm-1)

≤1 (2000-450cm-1)

Transmittance Accuracy

≤±0.5%(noise level not included)

Transmittance Repeatability

≤0.5%(1000-930cm-1 )

Line Flatness and Straightness


Resolution Capability

Polystyrene has six absorption peaks around 3000 ,with height of 1% at least; Ammonia gas's resolution is 2.5 around 1000 , with height of 1% at least.

Stray Lights

≤1%(4000-650cm-1 )≤2%(650-400cm-1 )

Infrared Spectrophotometer
