Multiparameter 6 Parameter Patient Monitor
Multiparameter 6 Parameter Patient Monitor
Multiparameter 6 Parameter Patient Monitor
Multiparameter 6 Parameter Patient Monitor
Multiparameter 6 Parameter Patient Monitor
Multiparameter 6 Parameter Patient Monitor
Multiparameter 6 Parameter Patient Monitor

Multiparameter 6 Parameter Patient Monitor

Model NO.:
MC-9000
Price:
USD 4450.00-4450.00
Delivery:
FOB
Minimum order quantity:
1
  • Place of Origin:CN;GUA
  • Instrument classification:Class II
  • Brand Name:Mecan
  • Model Number:MC-9000

Multiparameter 6 Parameter Patient Monitor

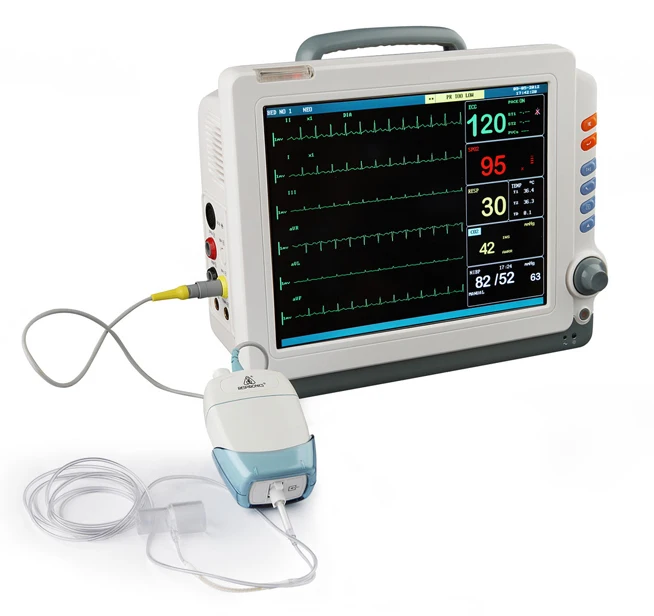

patient monitor OSEN9000-with CO2.jpg





Feature

12.1"color TFT screen

Multi-channel display

Big font interface

ST and arrhythmia analysis

Drug dose calculation and titration table

OxyCRG dynamic view display

Respiration monitoring with apnea alarms

Alarm review, arrhythmia review

Patient info. Input

Anti-defibrillation design

NIBP over pressure protection

Plug-in rechargeable battery, AC/DC available.

Supporting wire or wireless network.



Technical Specifications



ECG

Lead Mode                          5 Leads (R, L, F, N, C or RA, LA, LL, RL,V)

Lead selection                     I, II, III, avR, avL, avF, V

Wavef orm                        2 ch

Lead mode                         3 Leads ( R, L, F or RA, LA, LL)

Lead selection                    I, II, III,

Wave form                         1 ch

Gain                             2.5mm/mV, 5.0mm/mV, 10mm/mV,20mm/mV, auto



HR and Alarm Range               Adult   15 ~ 300 bpm

                                         Neo/Ped   15 ~ 350 bpm

Accuracy                           ±1% or±1bpm, which is greater

Resolution                        1 bpm

Sensitivity                       > 200 (uVp-p)

Differential Input Impedance       > 5 MΩ



CMRR                                 Monitor > 105 dB

                                           Operation > 105 dB

                                           Diagnosis > 85 dB

Electrode offset potential           ±300mV

Leakage Current                   < 10 uA

Baseline Recovery                 < 3 S After Defi.

ECG Signal Range                 ±8 m V ( Vp-p )



Bandwidth                           Surgery   1 ~ 20 Hz

                                     Monitor     0.5 ~ 40 Hz

                                     Diagnostic 0.05 ~ 130 Hz

Calibration Signal                    1 (mVp-p), Accuracy:5%

ST Segment Monitoring Range         Measure and Alarm -2.0 ~ +2.0 mV



ARR Detecting                       Type: ASYSTOLE, VFIB/VTAC, COUPLET, BIGEMINY, TRIGEMINY, R ON T, VT>2,BRADY, MISSED BEATS,

                                        PNP, PNC,Alarm Available,Review Available





Respiration

Method                            Impedance between R-F(RA-LL)

Differential Input Impedance       > 2.5 MΩ

Measuring Impedance Range       0.3~3 Ω

Base line Impedance Range         200~4 KΩ

Bandwidth                         0.1~2.5Hz

Resp. Rate                        Measuring and Alarm Range

                                   Adult 0 ~ 120 Brpm

                                   Neo/Ped 0 ~ 150 Brpm

                                  Resolution 1 Brpm

                                   Accuracy ±2 Brpm



Apnea Alarm                       10 ~ 40 S



NIBP



Method                           Oscillometric

Mode                             Manual, Auto, STAT

Measuring Interval in AUTO Mode 1, 2, 3, 4, 5, 10, 15, 30, 60, 90,120, 180, 240,480 (Min)

Measuring Period in STAT Mode     5 Min

Pulse Rate Range                        40 ~ 240 bpm

Alarm Type                         SYS, DIA, MEAN



Measuring and alarm range     Adult Mode

                                   SYS 40 ~ 270 mmHg

                                   DIA 10 ~ 215 mmHg

                                   MEAN 20 ~ 235 mmHg

                               Pediatric Mode

                                    SYS 40 ~ 200 mmHg

                                   DIA 10 ~ 150 mmHg

                                   MEAN 20 ~ 165 mmHg

                               Neonatal Mode

                                   SYS 40 ~ 135 mmHg

                                   DIA 10 ~ 100 mmHg

                                   MEAN 20 ~ 110 mmHg

Resolution                     1mmHg



Accuracy                       Maximum Mean error ±5mmHg

                               Maximum Standard deviation ±8mmHg

Overpressure Protection         Adult Mode 297±3 mmHg

                                 Pediatric Mode 240±3 mmHg

                                 Neonatal Mode 147±3 mmHg



SpO2

Measuring Range               0 ~ 100 %

Alarm Range                  0 ~ 100 %

Resolution                     1 %

Accuracy                       70% ~ 100% 2 %

                                 0% ~ 69% unspecified

Actualization intervalabout       1 Sec.

Alarm Delay                     10 Sec.

Pulse Rate                     Measuring and Alarm Range 20~300 bpm

                                 Resolution       1bpm

                               Accuracy ±3bpm



TEMP

Channel                         2

Measuring and Alarm Range        0 ~ 50 °C

Resolution                   0.1 °C

Accuracy                        ±0.2 °C

Actualization intervalabout       1 Sec.

Average Time Constant         < 10 Sec.





IBP



Label                         ART, PA, CVP, RAP, LAP, ICP, P1, P2

Measuring and alarm range       ART 0 ~ 300 mmHg

                               PA -6 ~ 120 mmHg

                               CVP/RAP/LAP/ICP-10 ~ 40 mmHg

                               P1 / P2-10 ~ 300 mmHg



Press Sensor          Sensitivity 5 uV/V/mmHg

                                Impedance 300-3000Ω



Resolution                     1 mmHg

Accuracy                       ±2% or 1mmHg which is greater

Actualization interval              about 1 secretary

Standard: ECG, Respiration, NIBP, SpO2, Pulse Rate, Temperature

Optional: Nellcor SpO2, EtCO 2, IBP, Thermal Recorder

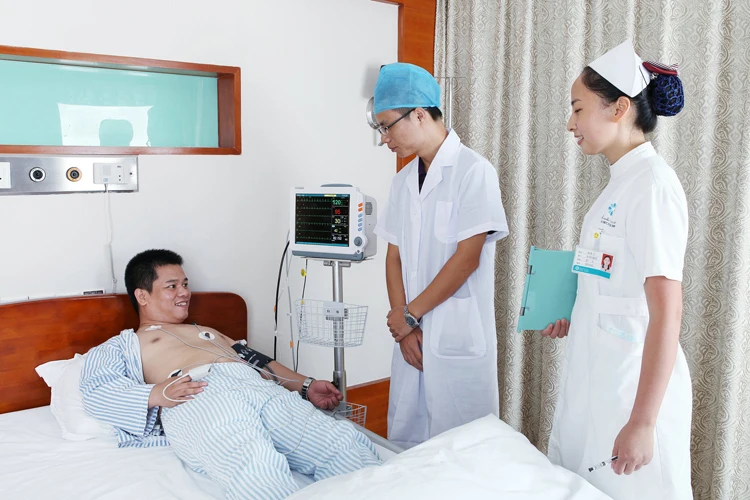

OSEN9000-in hospital-05.jpg
