High Pressure Industrial and Medical Oxygen Concentrator 10- 20 L
High Pressure Industrial and Medical Oxygen Concentrator 10- 20 L

High Pressure Industrial and Medical Oxygen Concentrator 10- 20 L

Model NO.:
MC-JAY-20-4.0
Price:
USD 2000.00-3000.00 / set
Delivery:
FOB
Minimum order quantity:
1 set
Supply Ability:
10000 set / Month
Country of Origin:
Guangzhou
Stock Time:
5~10 working days Days
  • Place of Origin:CN;GUA
  • Model Number:MC-JAY-20-4.0
  • Brand Name:MeCan
  • Instrument classification:Class II

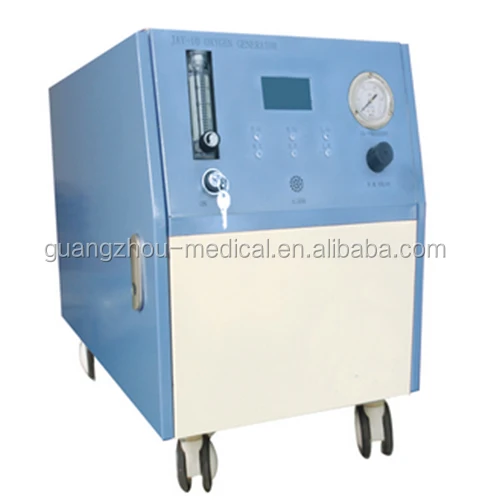

High Pressure Industrial and Medical Oxygen Concentrator 10- 20 L

Model:MC-JAY-20-4.0

QQ20170622160259

Product descripition

 Application

1. Medical use: connect withVentilator or anaesthesiamachine,etc


2. Industrial use:welding, glasscutting, etc


3. Fish farming,aquaculture


4. Veterinary use



Features

1. Our oxygen generating equipment adopts safe and economical PSA technology to produce oxygen.
2. The flow rare is adjustable in the range of 0-20L/min.
3. Our oxygen concentrator is equipped with OCSI (oxygen concentration status display) and the oxygen concentration is adjustable. The highest oxygen concentration can be about 90%.
4. Designed with timing function, the oxygen producing machine will stop working automatically when it reaches to the preset time.
5. Our industrial oxygen gas generator has a large digital LCD display which can indicate the operating pressure, internal operating time, present working time, accumulated working time and the preset time.
6. Configured with temperature alarm, high/low pressure alarm and power failure alarm, this oxygen generating machine is safe to use in industrial production.



Technical Parameters



Model

JAY-10G

JAY-15G

JAY-20G

Oxygen flow (L/min)

0- 10

0-15

0- 20

Oxygen concentration

93% (± 3%)                       93% (± 3%)              93% (± 3%)

Outlet pressure (Mpa)

0.04-0.07/0.14-0.4        0.04-0.07/0.14-0.4     0.04-0.07/0.14-0.4

Rated power (VA)

550/600/850W

1500/1550W

1100/1800W

Operation voltage (V/Hz)

AC230V, 50Hz;Optional: AC220V/110V (±10%), 50/60 (±1Hz)

Alarm

Power failure; low/high pressure; temperature (optional); low concentration (optional); maintenance reminding after 3000 hours' operation (optional)

Sound level (dB)

≤55

≤60

≤55/60

LCD display

Accumulated timing; present timing; timing

Large LCD display (optional)

Pressure indication (accuracy: 0.001MPa);
Accumulated working time (range: 0-10000hours);
Present working time (accuracy:1 minute);
Preset time (accuracy: 1 minute)
Optional:

 temperature indication (accuracy: 0.1);
Oxygen concentration indication;
Maintenance reminding

Net Weight (kg)

30/55/72

85/118

95/125

Dimension (mm)

365×375×600

(0.04-07mpa,plastic housing)

400×370×500

(0.04-0.07mpa steel housing)

920×420×600

(0.14-0.4mpa,steel housing)

740x400x530

(0.04-0.07mpa)

 860×590×660

(0.14-0.4mpa)

740x400×530

(0.04-0.07mpa) 860×660×660(0.4mpa)

740x400x590(0.14mpa)

Low concentration alarm (Optional)

When oxygen concentration is 82% or above, the blue lamp is on; when oxygen concentration is below 82%, the red lamp is on, indicating low concentration.

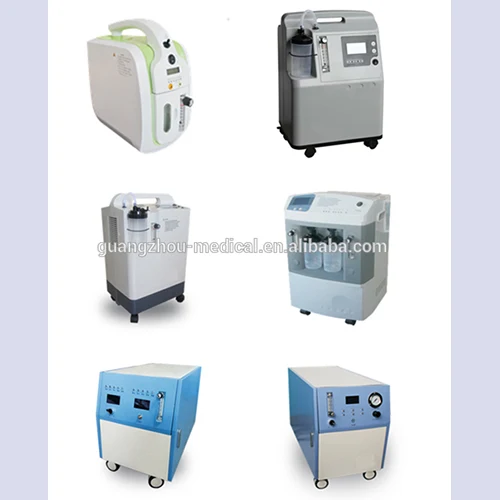

Other kinds of our Oxygen Concentrator
