Lab CLIA Chemiluminescence Immunoassay System MCL-M600

• Type:Immunoassay System
• Place of Origin:CN;GUA
• Instrument classification:Class II
• Brand Name:MeCan
• Model Number:MCL-M600

Lab CLIA Chemiluminescence Immunoassay System MCL-M600

Model:MCL-M600

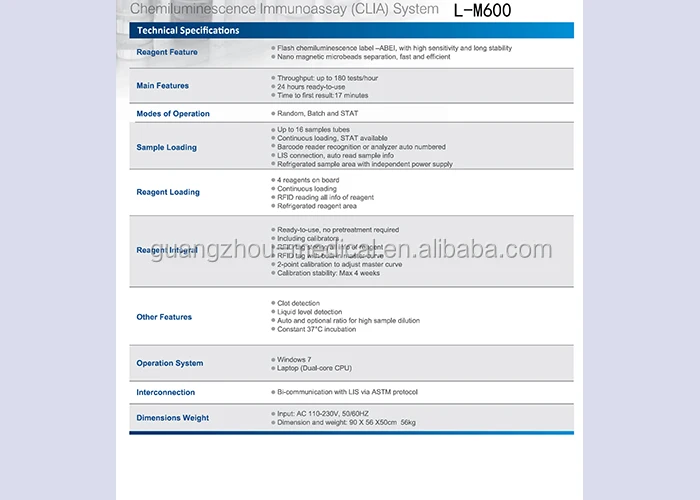

Product descripition

 Throughput: up to 180 tests/hour
 24 hours ready-to-use
 Time to first result:17 minutes

1.Principle of Luminescence
 Non-enzyme involved flash chemiluminescence, long stability of reagents
 ABEI label, stable in acid and alkaline solution

2.Modes of Operation
 Random, Batch and STAT

3.Sample Loading
 Up to 16 sample tubes
 Continuous loading, STAT available
 Analyzer auto numbered
 LIS connection
 Refrigerated sample area with independent power supply

4.Reagent Loading
 4 reagents on board
 Continuous loading
 RFID reading all info of reagents
 Refrigerated reagent area

5.Reagent Features
 Integrated kit, ready-to-use, no pretreatment required
 Integrated kit including calibrators
 Using superparamagnetic microbeads
 RFID tag storing all info of reagent
 RFID tag with built-in master curve
 2-point calibration to adjust master curve
 Calibration stability: Max 4 weeks

6.Other Features
 Clot detection
 Liquid level detection for reagent
 Optional ratio for sample dilution
 Auto dilution for high concentration sample
 Constant 37℃ incubation
 15-30℃ Operating Temperature

7.Operation System
 Windows 7
 HP compatible (Dual-core CPU), Color touch screen

8.Interconnection
 Connection to LIS via COM or network card
 Direct operation on LIS system to test

9.Dimensions Weight
 88x56x50cm, 56Kg

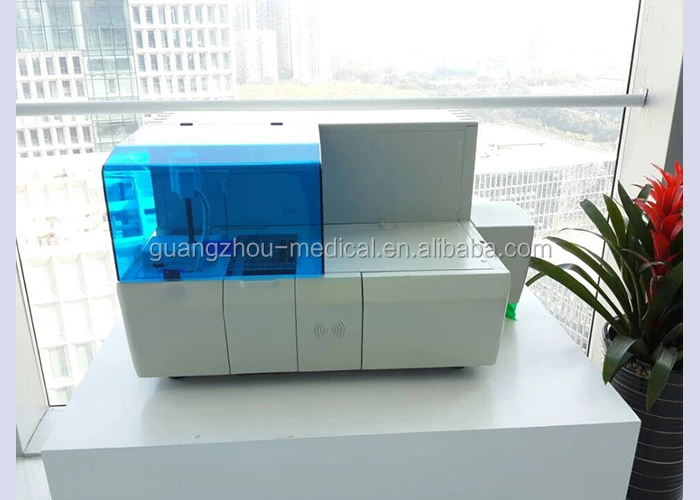

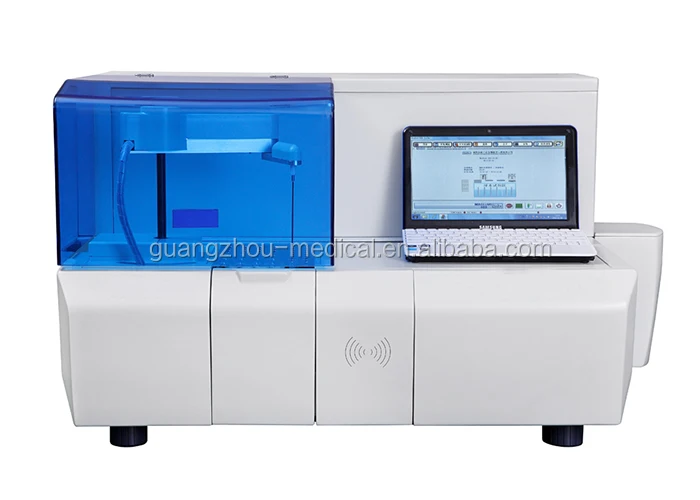

More pictures about CLIA analyzer
