LCD Display Air And Bone Conduction Diagnostic Audiometer
LCD Display Air And Bone Conduction Diagnostic Audiometer

LCD Display Air And Bone Conduction Diagnostic Audiometer

Model NO.:
MC-9083
Price:
USD 2600.00-2600.00
Delivery:
FOB
Minimum order quantity:
1
  • Type:Clinical Examination Aids
  • Place of Origin:CN;GUA
  • Instrument classification:Class II
  • Brand Name:MECAN
  • Model Number:MC-9083

LCD Display Air And Bone Conduction Diagnostic Audiometer



Model: MC-9083

Functions

  • 125-8000Hz,11 Sections
  • -10 to 110 dBHL,Attenuation Step 5dB
  • Audition Threshood & Test of Air/Bone-Conduction
  • Noises Masking of Narrow-Band

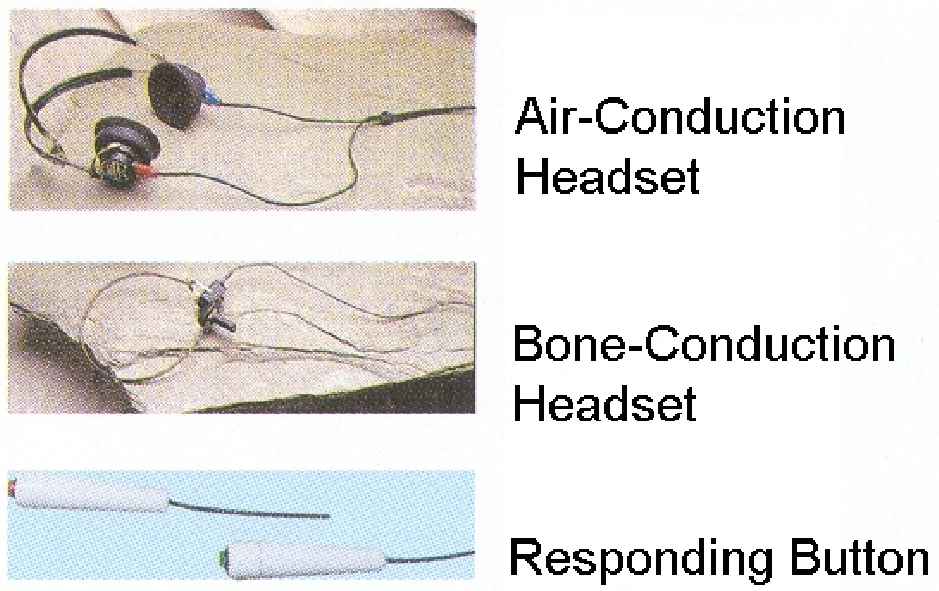

  • TDH39 & B71 Headsets(Standard ISO)
  • Auto Threshold Test
  • Save, Print
  • Interphone System



What are the features of our audiometer for hearing test?

  • Masking Mode: Narrow-band Noises, Attentuator Step 5 dB
  • Talk Forward Mode: Manual, Pusle, Continuous
  • AutoTest Threshold Mode: Standard Go-Up Method(down 1 0dB, up 5dB)
  • Save: 800 Persons-Times
  • Printing: Internal Printer
  • Precision of Frequency : <1% (T.H.D)
  • Precision of Attenuator: <±0.5 dB
  • Zero-level Deviation: <±0.5 dB
  • Working Circumstance: Temperature 15-35 ℃
  • Relative Humidity: 30% - 90%
  • Stroring and Transportation: Temperature -40 - 50 ℃
  • Power Supply: Voltage 220V AC±10%
  • Frequency 50HZ ±5%
  • Power: 30W
  • Dimension: 365*300*120mm
  • Weight: 5Kg

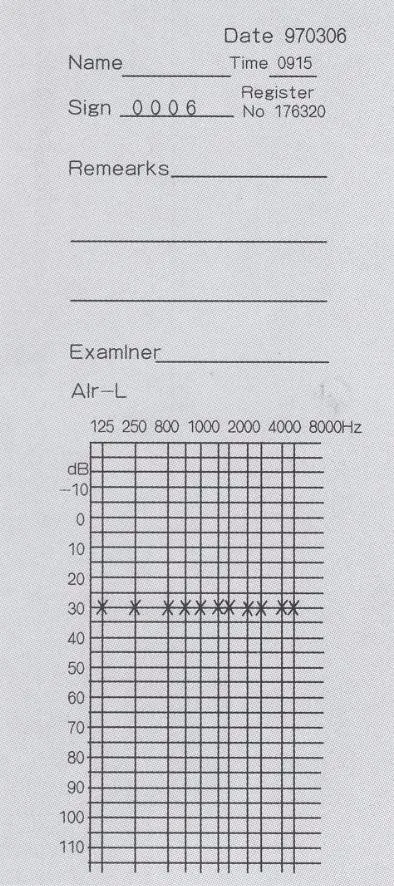

  • Output printed
  • Diagnostic Audiometer

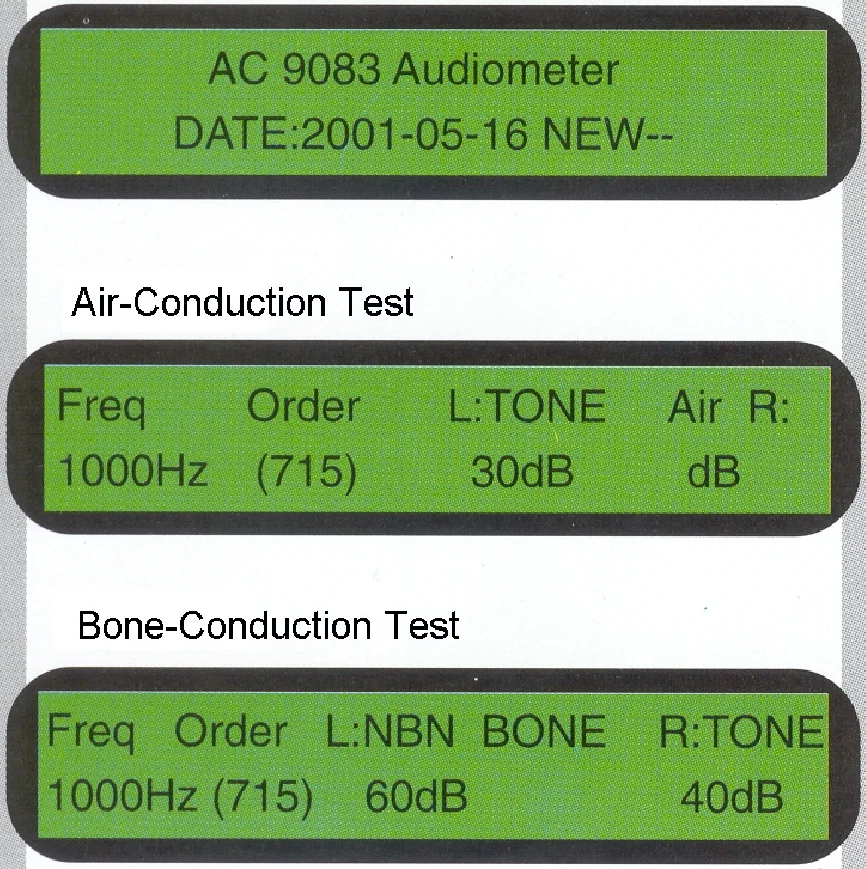

  • Display on LCD

Audiometer







Specification

Minimum levels of audition and masking for different frequency are -10dBHL.



Freq(Hz)Air(dBHL)Bone(dBHL)Masking(dB)
12570
250904090
50011060110
75011060110
100011070110
150011070110
200011070110
300011070110
400011060110
6000100
800090





Standard configuration



Diagnostic Audiometer

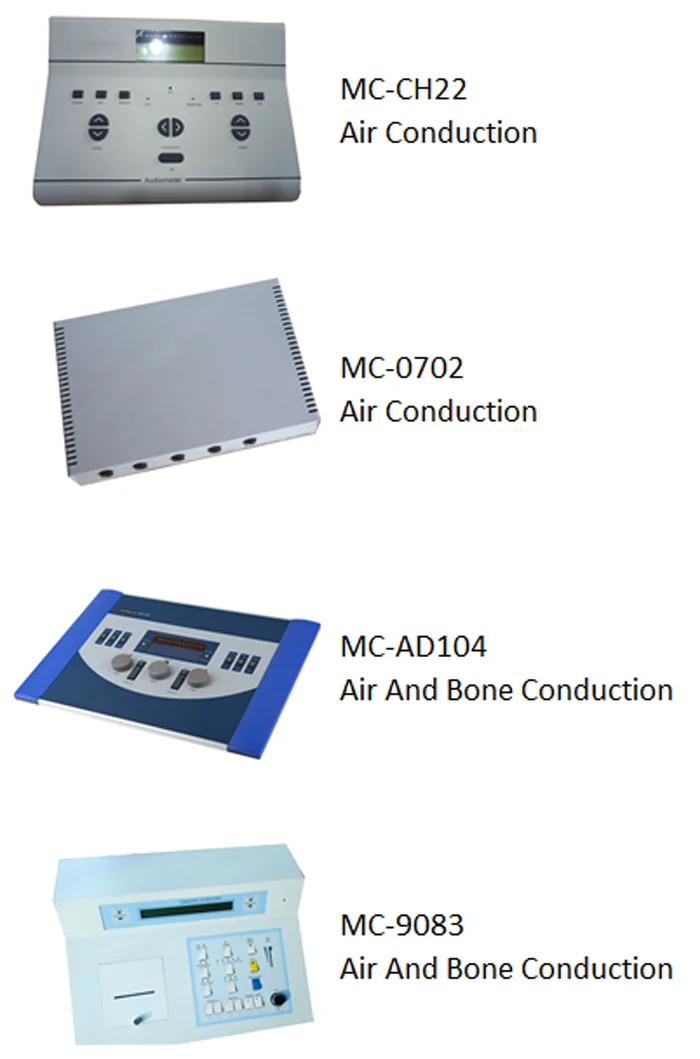

Related products
