You are here: Home » Products » Operation Equipment » Syringe Pump » Best MC-500III/IIIA/IIIB/IIIC Multi-channel Syringe Pump Company - MeCan Medical


Best MC-500III/IIIA/IIIB/IIIC Multi-channel Syringe Pump Company - MeCan Medical

MeCan Medical Best MC-500III/IIIA/IIIB/IIIC Multi-channelSyringe PumpCompany - MeCan Medical,MeCan Focus on medical equipments over 15 years since 2006. MeCan Medical with good price - MeCan Medical,OEM/ODM, customized according to your requirements.

  • Place of Origin:CN;GUA

  • Model Number:500III/IIIA/IIIB/IIIC

  • Brand Name:Mecan

  • Type:First-Aid Devices

  • Instrument classification:Class II

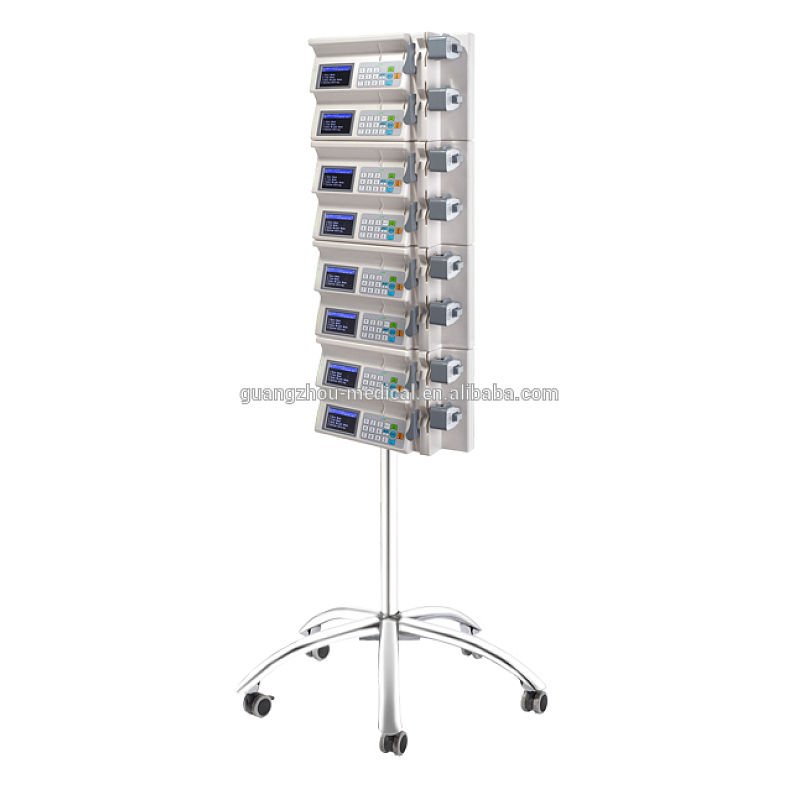

  MC500III/IIIA/IIIB/IIIC Multi-channel Syringe Pump




Four operating modes – Rate Mode, Time Mode, Body Weight Mode and Link Mode
Multiple modes for operators to choose
Multiple drugs can be injected sequentially under Link Mode
Multi-channel pumps with a wide range of flow rates
Applicable to both adults and children, in normal and emergency cases


Built-in double CPU
Each CPU can serve as backup for the other, guaranteeing the stability of the system and the safety of patients even when one CPU breaks down
Extreme flexibility in the use of syringes
Almost all brands of standard syringes can be applied and automatically recognized by the module to save your cost and time


Powerful alarm system with both audible and visible alarm signs

Embedded pressure sensor for occlusion detection
Multiple alarm signs to alert operators
Wireless linkage with infusion supervision system
Greatly reduces workload and turnaround time and ensures the safety of patients
Seven-item protection design
Water-proof, moisture-proof, anti-interference, anti-shock, anti-collision, anti-corrosion, anti-high & low temperature
Wide-input power supply
Suitable for a broad range of circumstances and countries




Technical Specifications
Technical Descriptions
Syringe Type 5, 10, 20, 30, 50 ml
Operating Mode

1) Flow rate mode, rate range: 0.1 - 1500.0 ml/h for 500III, maximum injection rate value depends on different modules

2) Time mode, time range: 1 - 2000 min

3) Body weight mode, weight range: 0.1 - 300.0 kg; drug limit: 0.1 - 999.9 mg; volume range: 0.1 - 999.9 ml

4) Link mode

Flow Rate Range 5 ml syringe : 0.1 ml/h - 100ml/h; 10 ml syringe : 0.1 ml/h - 200ml/h; 20 ml syringe : 0.1 ml/h - 400ml/h; 30 ml syringe : 0.1 ml/h - 600ml/h; 50 ml syringe : 0.1 ml/h - 1500ml/h

Accumulated Injection Volume 0.1 - 999.9 ml

Accuracy ± 5%

KVO Rate On/Off; On: 0.1 - 5.0 ml/h

Bolus Rate 5 ml syringe : 100 ml/h; 10 ml syringe : 200 ml/h; 20 ml syringe : 400 ml/h; 30 ml syringe : 400 - 600 ml/h; 50 ml syringe : 600 - 1500 ml/h



Screen 3.2 inch color TFT screen
Information Mode, Rate, Accumulated injection volume, Syringe size, Battery capacity, Bed No., AC power indicator, Battery charge indicator
Alarm Type
OVER, NEAR, Occlusion, Syringe disengaged, Pump stuck, No AC power supply, Low battery, Serious low battery, Abnormal 1/2/3/4
Type 7.4 V, 1600 mAh lithium polymer battery
Life More than 2 hours’ continuous running (5 ml/h); Rechargeable
Temperature 5 - 40 ℃ for operating; -40 - 50 ℃ for storage
Air Pressure 86 - 106 kPa for operating; 50 - 106 kPa for storage
Humidity 20 % - 80 % for operating; 10 % - 95 % for storage
Dimension320 mm(L) × 110 mm(D) × 200 mm(H) for SK-500III
Weight 3.4 kg for 500III; 7.0 kg for 500IIIA; 10.4 kg for 500IIIB; 14 kg for 500IIIC;
Power Supply 100 - 240 VAC, 50/60 Hz
Fuse T 2A 250 V
Shell Material ABS plastic
Software Language English


operation room equi.

We provide different kinds of operation room equipments. Some are shown in the following pictures. For more infomation, please refer to our webside:

operation room equipment.jpg



Our Advantage

1. One stop supplier for medical equipments and laboratory equipments in Guangzhou
2. More than 2000 hospitals have become our partners
3. Superior quality with factory price
4. Quick reply and considerate service
5. CE,ISO,FDA Certificate
6. Fast delivery by air, sea or in other ways
7. More than 10 years in medical machines supply business
8. Exported to more than 109 countries
9. Warranty time: AT LEAST 12 months and Over 8 years' technical and accessories-change support
10.Excellent and immediate after-sale service

Together with client

We have sold 50mA Mobile X-ray Machine MCX-L102 and other medical equipment to more than 109 countries and built long term partnerships with clients such as UK, US, Italy, South Africa, Nigeria, Ghana, Kenya, Turkey, Greece, Philippines, etc


Why choose us ?




1. From the Biomedical Engineer of Senegal.

hello, the installation of the RX unit was a success. all is ok and i have a very good picture.



2. From Dr. Salman Hasan, Doctor from Nigeria

Hello we have installed the radio and we are really satisfied with its operation.


3. From Dr. Emma Adapoe, Ghana, Africa.

 Mecan Medical Company Limited:

I have tried them for their honesty

I have tested their products for Good Quality

I have experienced their Good and and nice service and customer relations

I endorse Mecan because they stand the test of time.



Please contact us and let’s talk details for the  Multi-channel Syringe Pump


Guangzhou MeCan Medical Limited possess a genuine love for clients and a commitment to excellent customer service.


1.What is your after-sales service?
We provide technical support through operating manual and video; Once you have questions, you can get our engineer's prompt response by email,phone call,or training in factory. If it's hardware problem, within the warranty period, we will send you spare parts for free, or you send it back then we repair for you freely.
2.What is your lead time of the products?
40% of our products is in stock,50% of the products need 3-10 days to produce,10%of the products need 15-30 days to produce.
3.What is your payment term?
Our payment term is Telegraphic Transfer in advance,Western union, MoneyGram,Paypal, Trade Assurance,ect.


1.MeCan offer professional service,our team is well-tained
2.OEM/ODM, customized according to your requirements.
3.MeCan provide one-stop solutions for new hospitals,clinics,labs and universities,has helped 270 hospitals,540 clinics,190 vet clinics to set up in Malaysia,Africa,Europe,etc.we can save your time,energy and money.
4.More than 20000 customers choose MeCan.

About MeCan Medical

Guangzhou MeCan Medical Limited is a professional medical and laboratory equipment manufacturer and supplier. For more than ten years, we engage in supplying competitive price and quality products to many hospitals and clinics, research institutions and universities. We satisfy our customers by offering comprehensive support, purchase convenience and in time after sale service. Our main products include Ultrasound Machine, Hearing Aid, CPR Manikins, X-ray Machine and Accessories, Fiber and Video Endoscopy, ECG&EEG Machines, Anesthesia Machines, Ventilators, Hospital furniture, Electric Surgical Unit, Operating Table, Surgical Lights, Dental Chairs and Equipment, Ophthalmology and ENT Equipment, First Aid Equipment, Mortuary Refrigeration Units, Medical Veterinary Equipment.
