MC-ECG-3303W 5'' Color LCD Screen 12 Leads 3 Channels ECG Machine
MC-ECG-3303W 5'' Color LCD Screen 12 Leads 3 Channels ECG Machine
MC-ECG-3303W 5'' Color LCD Screen 12 Leads 3 Channels ECG Machine
MC-ECG-3303W 5'' Color LCD Screen 12 Leads 3 Channels ECG Machine
MC-ECG-3303W 5'' Color LCD Screen 12 Leads 3 Channels ECG Machine
MC-ECG-3303W 5'' Color LCD Screen 12 Leads 3 Channels ECG Machine
MC-ECG-3303W 5'' Color LCD Screen 12 Leads 3 Channels ECG Machine

MC-ECG-3303W 5'' Color LCD Screen 12 Leads 3 Channels ECG Machine

Model NO.:
MC-ECG-3303W
Price:
USD 1300.00-10000.00 / set
Delivery:
FOB
Minimum order quantity:
1 set
Supply Ability:
1000 set / Month
Country of Origin:
Beijing, Shanghai, Guangzhou, Shenzhen, Hongkong
Stock Time:
5~15 working days for the 12 Leads 3 Channels ECG Days
  • Place of Origin:CN;GUA
  • Model Number:MC-ECG-3303W
  • Brand Name:MeCan
  • Type:Pathological Analysis Equipments

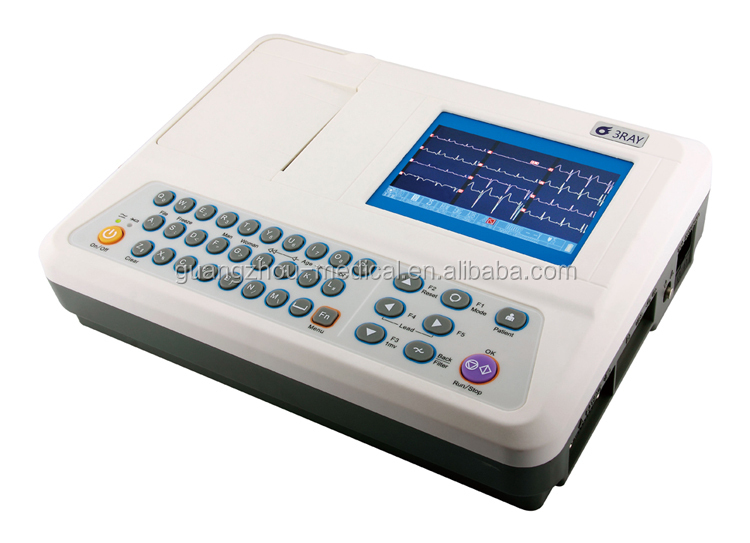

5'' Color LCD Screen 12 Leads 3 Channels ECG Machine

Model: MC-ECG-3303W

3R ECG-3303W 3ch 750.jpg

Features of  the 5'' Color LCD Screen 12 Leads 3 Channels ECG Machine:



Portable delicate design and soft alphanumeric keyboard operation, very convenient to use.

Accurate pulse pace identification function and excellent auto-interpretation function

High accuracy digital filter, auto baseline adjustment



12 leads synchronously acquisition and display; Record mode : 1ch+, 3ch, 3ch+

Working modes: Manual / Auto / R-R Rhythm / Storage

800×480 graphic, 5 inch color LCD to display detailed ECG information



250 cases storage and replay (SD card storage is optional)

Built-in rechargeable Li-ion battery supports continuous work for about 4 hours.

Real-time freeze function



80mm*20m high resolution thermal printing

Rs232 and USB interface ( USB disk storage,laser printer printing , PC ECG software are optional )

Language : English, Chinese, French, Italian, Spanish, Russian



Technical Specification of  the 5'' Color LCD Screen 12 Leads 3 Channels ECG Machine:

Lead

Standard 12 leads

Time constant

3.2s

Lead acquisition

12bit/1000Hz (synchronously 12 leads)

Frequency response

0.05~160Hz(-3db)

Work mode

Man / Auto/Analysis/Storage

Noise level

<15μVp-p

Filter

AC Filter : 50Hz / 60Hz

EMG Filter : 25Hz / 45Hz

Anti-Drift Filter : 0.15Hz (Adaptive)

Inter-channel Interference

0.5mm

CMMR

120dB (with AC FILTER)

Sensitivity

2.5,5,10,20, 40, Auto  (mm/mV)

Input circuit

Floating; Protection circuit against

Defibrillator effect

Recording mode

1ch+,3ch,3ch+

Default Man. Mode is  3ch  format

Default Auto. Mode is  3ch+ format

Input Impedance

50MΩ

Paper speed

6.25,12.5,25,50mm/s3%)

Input circuit current

0.05μA

Paper

80mm *20m Roll paper

Patient current leakage

<10μA

Communication

RS232/ USB port

Calibrating voltage

1mV±2%

Power Supply

AC 110-230V(±10%),50/60Hz1Hz),40VA

DC Built-in rechargeable battery,14.4V(2000mAh)

Voltage tolerance

≥±500mV

Dimension/Weight

300mm×230mm×75mm/2.8Kg

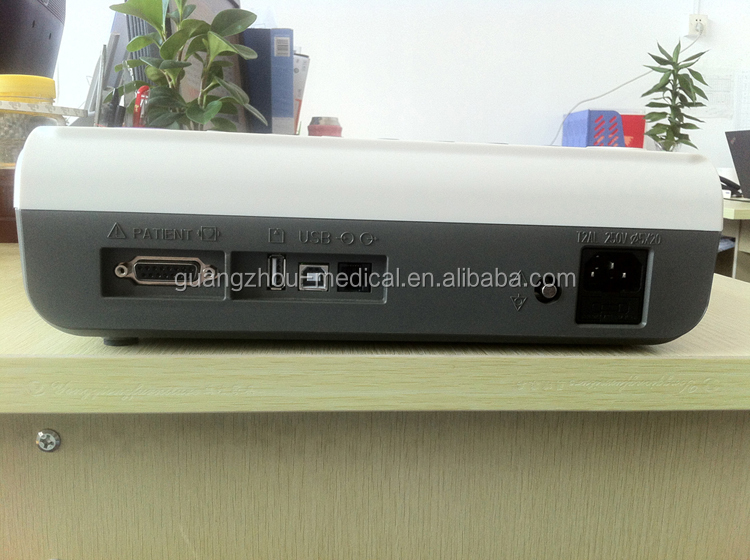

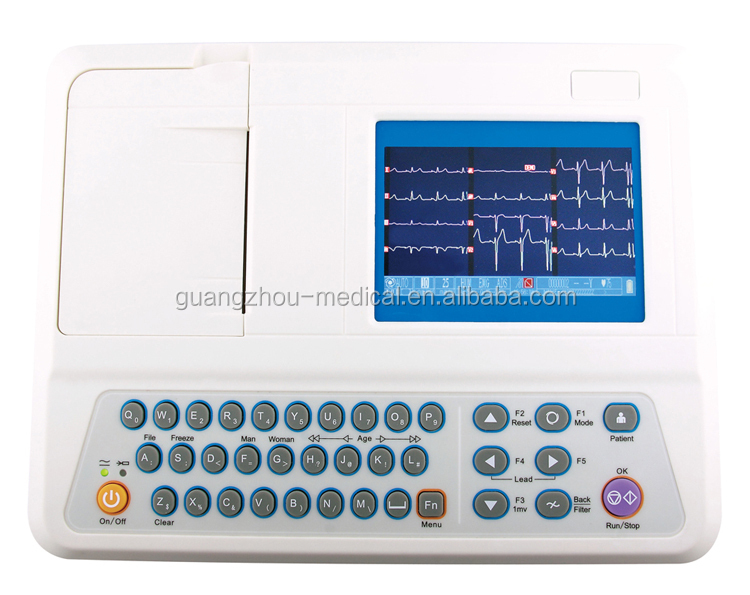

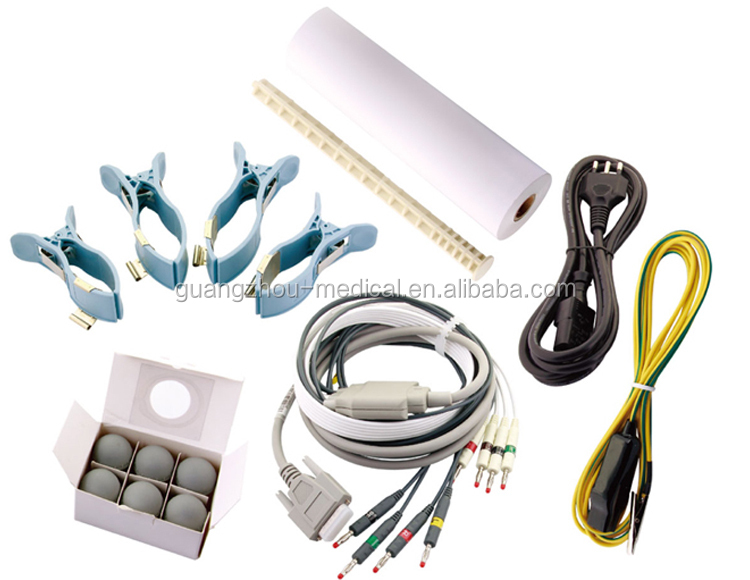

Details of the 5'' Color LCD Screen 12 Leads 3 Channels ECG Machine:

ECG-3303W-2 3ch 750.jpgIMG_3369 750.jpg

3R 3ch ECG-3303B G W 750.jpg
