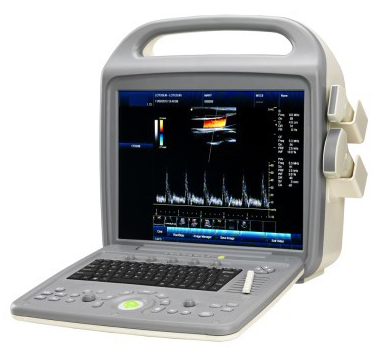

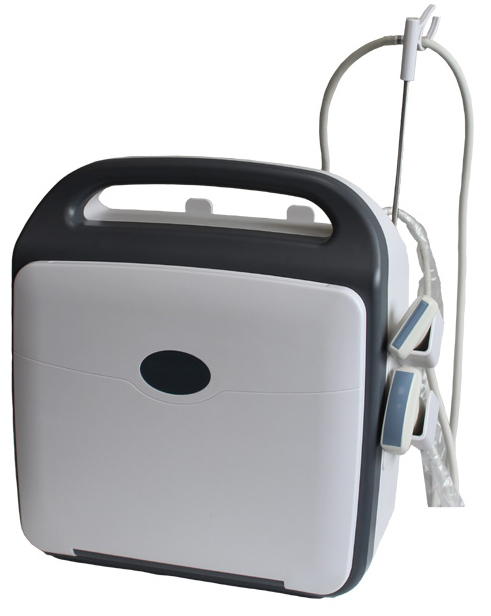

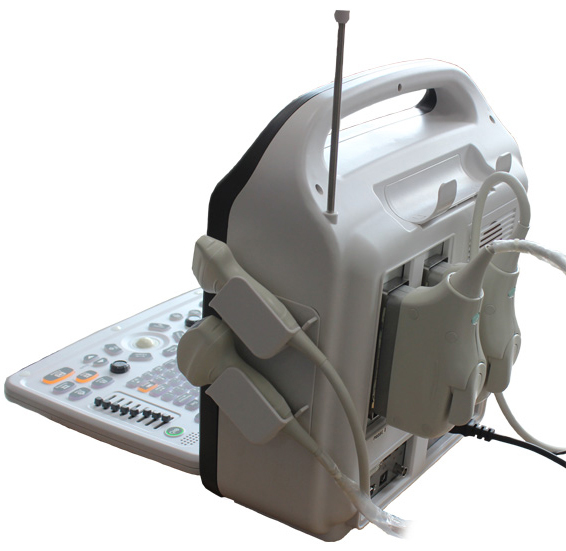

MC-SS-1000 Color Doppler System
MC-SS-1000 Color Doppler System

MC-SS-1000 Color Doppler System

Model NO.:
MC-SS-1000
Price:
USD 1000.00-9900.00 / unit
Delivery:
FOB
Minimum order quantity:
1 unit
Supply Ability:
5000 unit / Month
Country of Origin:
Guangzhou Shenzhen Shanghai Hong Kong
Stock Time:
5-12 Working Days of MC-SS-1000 Color Doppler Syst Days
  • Place of Origin:CN;GUA
  • Model Number:MC-SS-1000
  • Brand Name:Mecan
  • Type:Doppler Ultrasound Equipment

ME-SS-1000 Color Doppler System(ultrasound,ultrasoni,color doppler,scanner,3D,4D)






General Description:

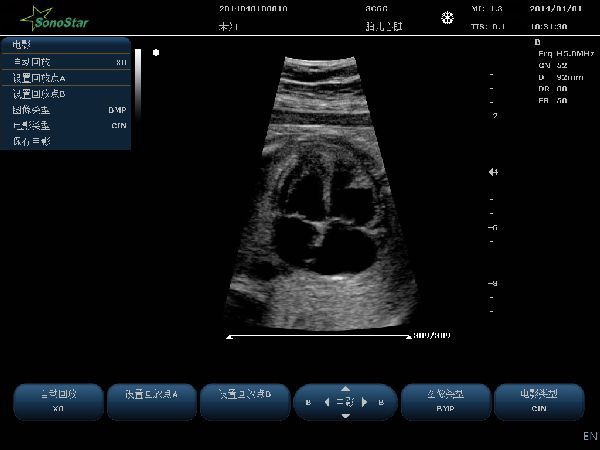

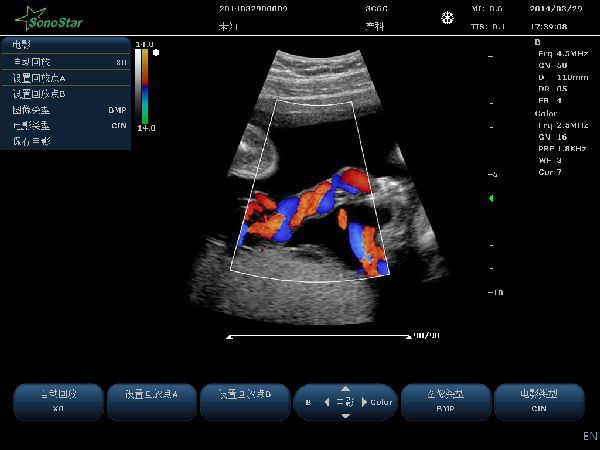

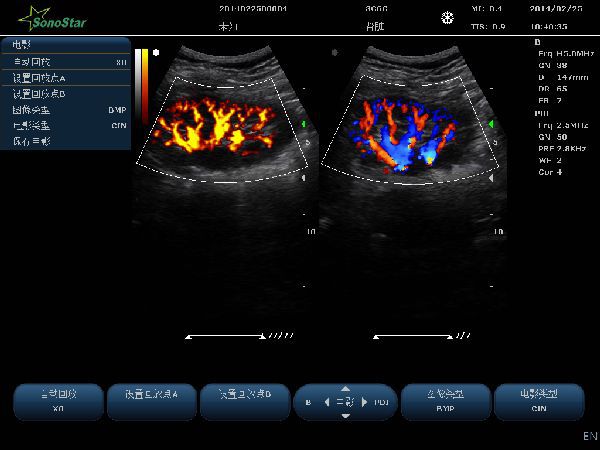

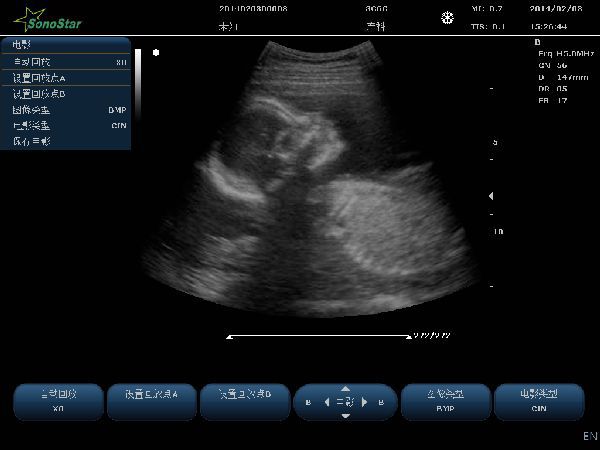

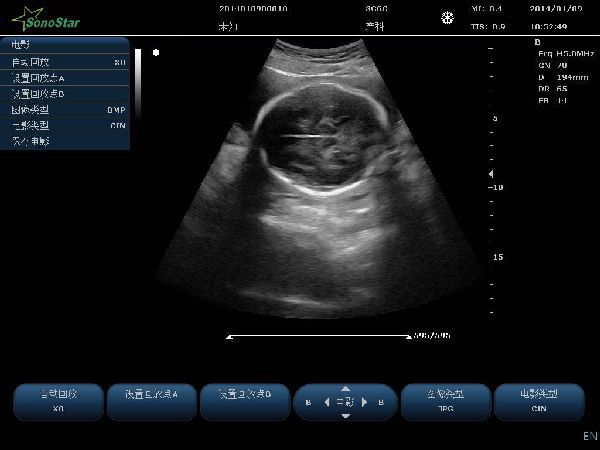

Imaging Modes: B, B/B, B/M, M, 4B, C, PDI, PW
Scanning mode: Convex, Linear, Endocavity
Gray scale levels:256
Display:15 ’’ high resolution LCD monitor
Transducer Connector:2 standard


Scanning depth: up to 351mm
Physical channels64
Transducer element128
Dynamic imaging technologies: Digital Beam-forming


Digital Frequency Scan
Dynamic Receiving focusing
Dynamic Receiving apodization
Real-time Dynamic Aperture




Imaging processing:
Pre-processing:8-segment TGC adjustment, Dynamic range (0-100), Frame correlation (0-7), Edge enhancement (0-7), Line density (High/Mid/Low)
Post-processing: Gray scale (0-14), Scan angle up to 150, left/right reverse, up/down reverse



Function:
Zoom: 10 times
Cine loop: up to 6400 frames
HDD 500GB

Software function:
General Measurement: distance, circumference, area, (trace/ellipse), volume, etc.
Calculation package: abdomen, cardiac, gynecology, obstetrics, urology, small parts (thyroid), etc.




Peripheral Ports:
Two Transducer Ports
Two USB Ports
DVI (to connect to external monitor or projector)
Remote
Video Output
S Video
LAN


Power Input Port
Foot switch

Standard Configuration:
15"high definition LED monitor
Two transducer connectors
Back lit control panel



8-segment TGC
982-frame cine loop
Integrated 500GB Hard disk
Internal lithium Battery Supporting normal diagnosis up to 1.5 hours


Inverted Harmonic Imaging
Pseudo color imaging mode
Annotation library for quick comment
Graph/text report function
DICOM storage SCU


User defined exam settings
User defined parameters capture (Acquire Set)
Intuitive soft key at the bottom of screen, clicking supported
Beam steering for better needle visualization
Patient information management system








Fetal trending--Fetal growth curve graph
Lithotripsy function supported
Biopsy function supported
Support polyembryony measurement up to six
Intuitive context dependent soft key
USB image transfer and software upgrade
Language of UI: Chinese, English
3C6C convex array transducer(2.5/3.5/4.5/H5.0/H6.0MHz)



Options:
3C6C convex array transducer (2.5/3.5/4.5/H5.0/H6.0MHz)
7L4C linear array transducer (6.5/7.5/8.5/H9.0/H10MHz)
6E1C endocavity transducer (5.0/6.5/8.0/H8.0/H9.0MHz)
8L4C high frequency linear probe
6C1C micro convex probe


6I7C rectal linear probe
Needle-guided brackets
Home charger and Cararger
Wireless data transfer function
USB water-resistant footswitch

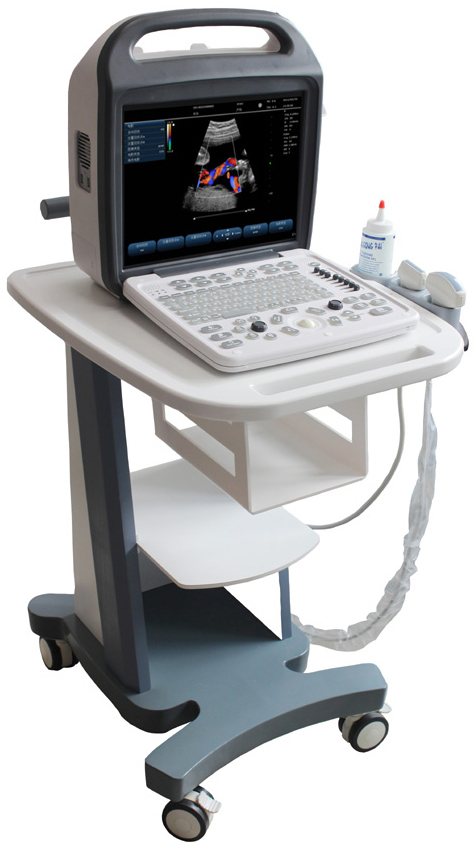

Mobile trolley
Wheeled transport case



Others:
Net weight: Approx.8.5 kg
Power supply: 100~240VAC, 50Hz/60Hz
Dimensions: 400mm×394mm×172mm
