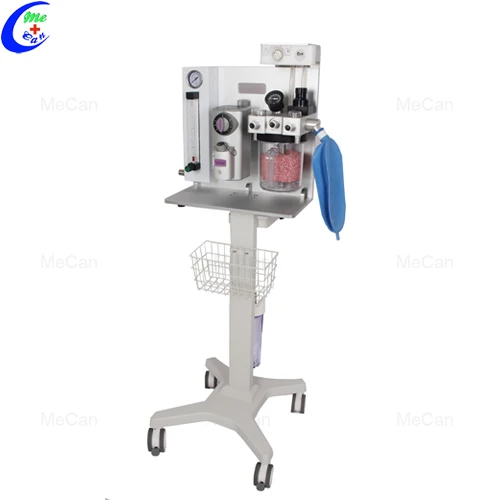

MCA-100MR Veterinary Instrument Portable Veterinary Anesthesia Machine
MCA-100MR Veterinary Instrument Portable Veterinary Anesthesia Machine
MCA-100MR Veterinary Instrument Portable Veterinary Anesthesia Machine
MCA-100MR Veterinary Instrument Portable Veterinary Anesthesia Machine

MCA-100MR Veterinary Instrument Portable Veterinary Anesthesia Machine

Model NO.:
MCA-100MR
Price:
USD 2854.00-2854.00
Delivery:
FOB
Minimum order quantity:
1
  • Type:Medical Gas Equipments
  • Place of Origin:CN;GUA
  • Instrument classification:Class II
  • Brand Name:Mecan
  • Model Number:MCA-100MR

Veterinary Instrument Portable Veterinary Anesthesia Machine

 Model:MCA-100MR

Product Description

What is detail of our Veterinary Anesthesia Machine?

Main features

1.Open and Close breathing circuit by a switch easy and fast.

2.Easy install CO2 absorbing canister, convenient for Sodalime exchange and canister cleansing.

3.Exclusive design for overall breathing circuit leakage test which is also for saving the circuit from contaminated after surgery.

4.Highly integrated breathing circuit anti leakage,lessen negative effects caused by circuit resistance and compliance securing a steady gas glow and accurate tidal volume output

5.Precise airway pressure control system,the adjust range is from(0-50cmH2O)which is easy to adjust manuaiiy

6.0-90 degree adjustable rebreathing bag connector which is cater to doctor habits.

7.Pressure regulating devices at gas inlets port assuring gas flow to vaporizer steady.

8.Highly precise vaporizer with high technology to assure the accurate pressure flow and temperature compensation. made in imported materia

9.International standard gas inlet device filters dust over 75um

10.Reusable anesthesia gas absorber for clean surgery room environment

 Veterinary Instrumen.jpg

Main technical parameters

Applicability:1kg to 100kg

Dimension(L*W*H): 480x450x1310(mm)

Operation mode:Closed, Semi-closed, and open breathing circuit for option.

Flow range: 0.1-4.0L/min

Plimit(APL):0-5.0Kpa

O2flus: 35-75L/min

Ventilation modes: Autonomous breathing ,Controlled manually

Tidal Volume:

Autonomous breathing: According to the strength of the animal s spontaneous respiration

Controlled manually: 10ml—2000ml

Rate:

Autonomous breathing: according to the animal s spontaneous breathing frequency Controlled manually: according to the frequency of anesthetist operation

IE:

Autonomous breathing: According to the breathing rate of the animals

Controlled manually: According to the breathing ratio of the anesthesiologist's operation



With CO2 absorber, circulatory anesthesia is available

Anesthetic gas absorber is optional and can ensure clean air in the operating room and laboratory room
