Portable AB Scanner: Ophthalmic Ultrasound Imaging

MeCan Medical Professional MCE-6000AB Portable AB Scanner Ophthalmic Ultrasound manufacturers,MeCan provide one-stop solutions for new hospitals,clinics,labs and universities,has helped 270 hospitals,540 clinics,190 vet clinics to set up in Malaysia,Africa,Europe,etc.we can save your time,energy and money.



Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • Type:Ophthalmic Optical Equipments

  • Place of Origin:CN;GUA

  • Instrument classification:Class II

  • Brand Name:MeCan

  • Model Number:MCE-6000AB

Portable AB Scanner Ophthalmic  Ultrasound

Model: MCE-6000AB



Features of the Portable AB Scanner Ophthalmic Ultrasound:



Built-in Workstation                                                    Detailed Resolution, Color TFT Display

Mass images Storage                                                Multiple Display and Continuous Zoom

Real Time Images, Cine-Loop                                   Turn-up Keyboard, Fully PortableCustom VelocitySettings

User and Patient information Entry                            Document Management, Search and Statistic

Clinical Reports with Images Print Out                       Trackball for Easy Measurement and Operation



Physical Dimension & Weight



Dimensions: 240 (H) × 255 (W) × 160( D)mm

                    9.5( H)× 10 (W) × 6.3 (D)inches

Weight: 3.0kg ( 6.6lbs)



Operating Environment of the AB Scanner Ophthalmic Ultrasound:



Power Supply: AC100-240V 50/60Hz 80VA Max

Temperature: 10-35

Humidity: 10 - 80%



Performance Specifications of the AB Scanner Ophthalmic Ultrasound:



Mouse Port

Resolution: 800×600

External Large SVGA monitor

Display: 8.4"Color TFT (Diagonal)



USB 2.0 Ports for Memory Sticks and Peripherals

Image Output (optional): Video Printer/Laser Printer/Color Inkjet Printer/Workstation

Report Print Out: Patients Information, Clinical Situation Description of Images



A-SCAN of the AB Scanner Ophthalmic Ultrasound:



Frequency: 10MHz  Fixation LED

Clinical Accuracy: 0.04mm

Vitreous Length, Axial Length

Minimum Indicated Unit: 0.01mm



Measuring Range (AL): 15-40mm

Measuring Mode: Immersion /Contact

Measuring Method: Manual/Automatic (for Phakic, Aphakic, Cataract, Pseudophakic)

Measuring Value: Cornea Thickness (Immersion Mode),Anterior Chamber Depth, Lens Thickness,



B-SCAN of the AB Scanner Ophthalmic Ultrasound:



Color: 15 color codes

Gray Scale: 256 Levels

Gain Control: 20-99 dB

Detecting Depth: ≤60mm



Scanning Scope: 53 degrees

Frequency: 10MHz Sealed probe

Zoom: 6 steps selectable (31-60mm)

Display Method: B,B+A,B+B,B+B+B+B,A



IOL Types: PMMA, Acrylic, Silicone

Thousand Patient Images Internal Storage

Resolution: Lateral ≤0.4mm, Axial≤ 0.2mm

Cineloop: 12 sec/128 images, single or circle



Statistics: Average and Standard Deviation

Scanning Method: Digital High Resolution Sector Scanning

Post Processing: Distance, Area Measurement, Annotation

IOL Formula: SRK-II,SRK-T,BINKHORST-II, HOLLADAY,HOFFER-Q,HAIGIS

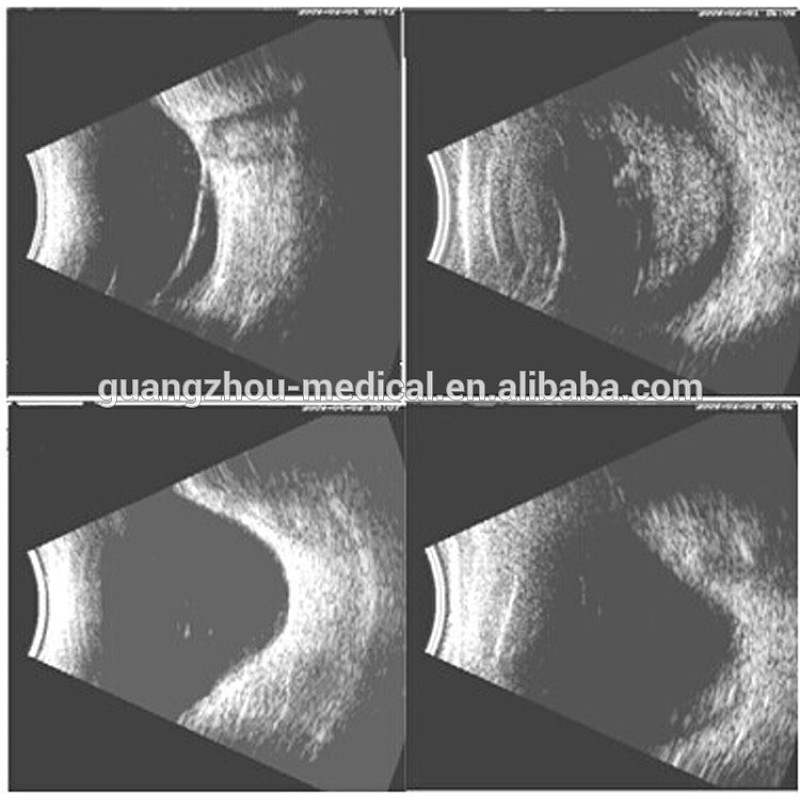

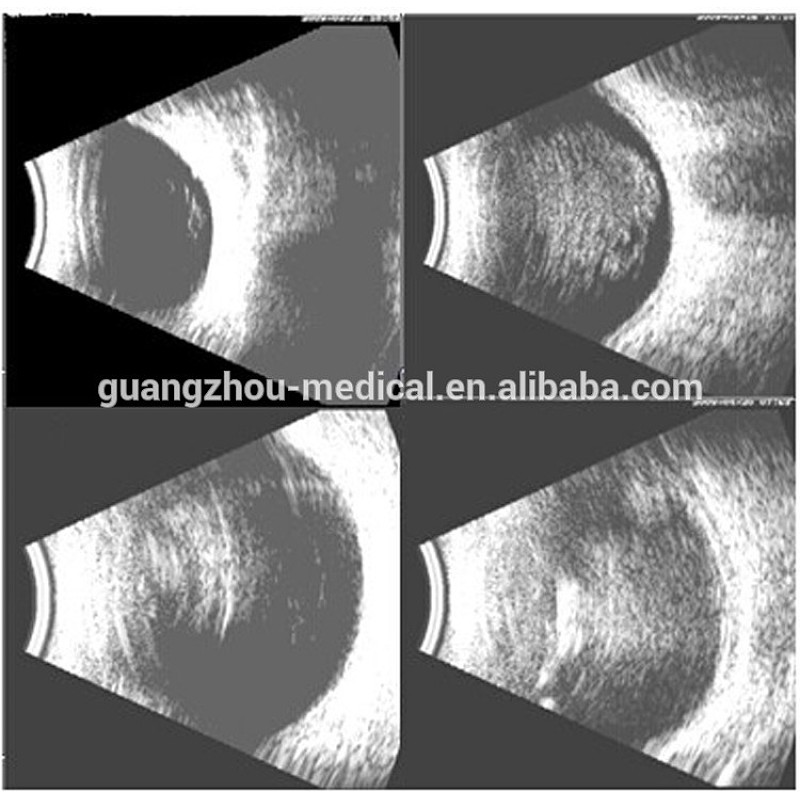

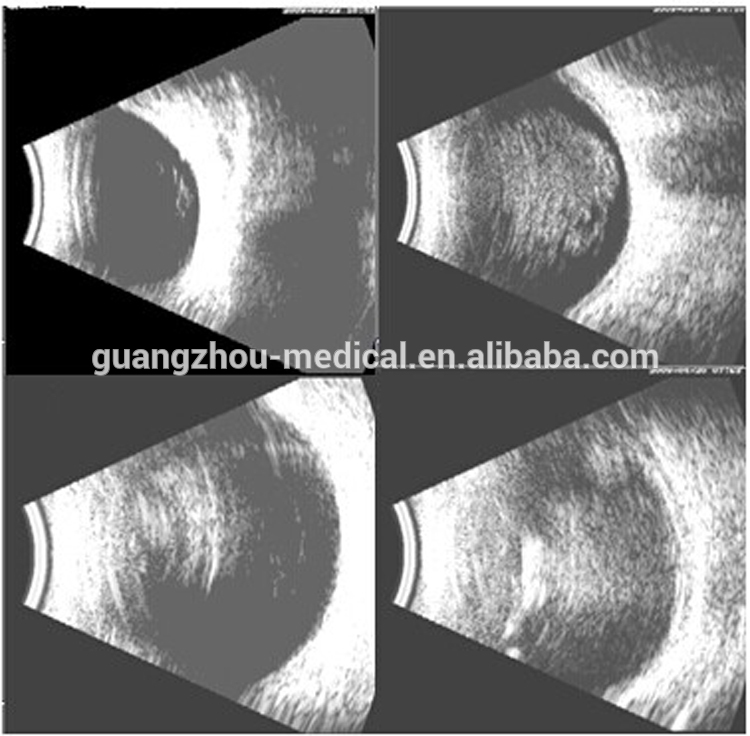

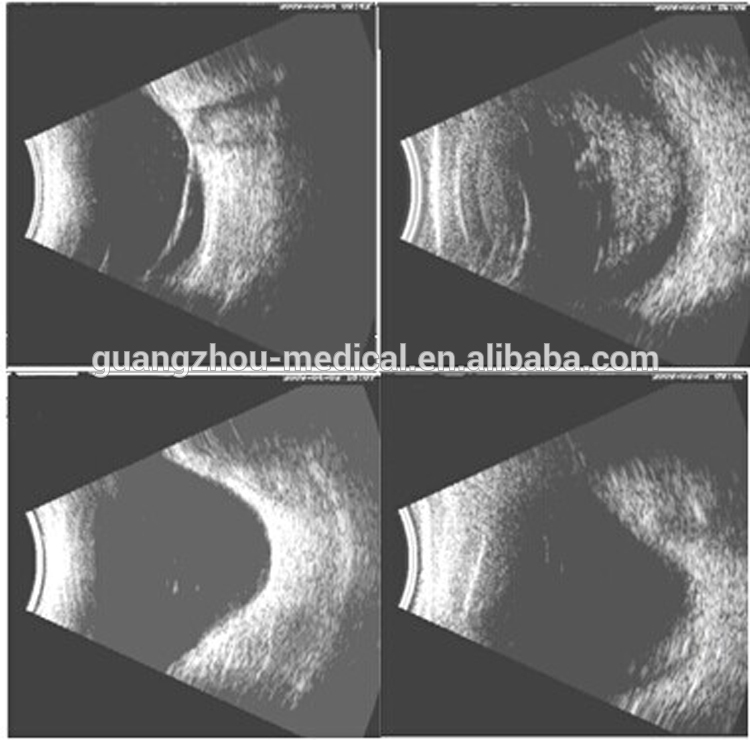

Portable Ophthalmic AB Ultrasound Scanner photos1.jpg Portable Ophthalmic AB Ultrasound Scanner photos2.jpg
