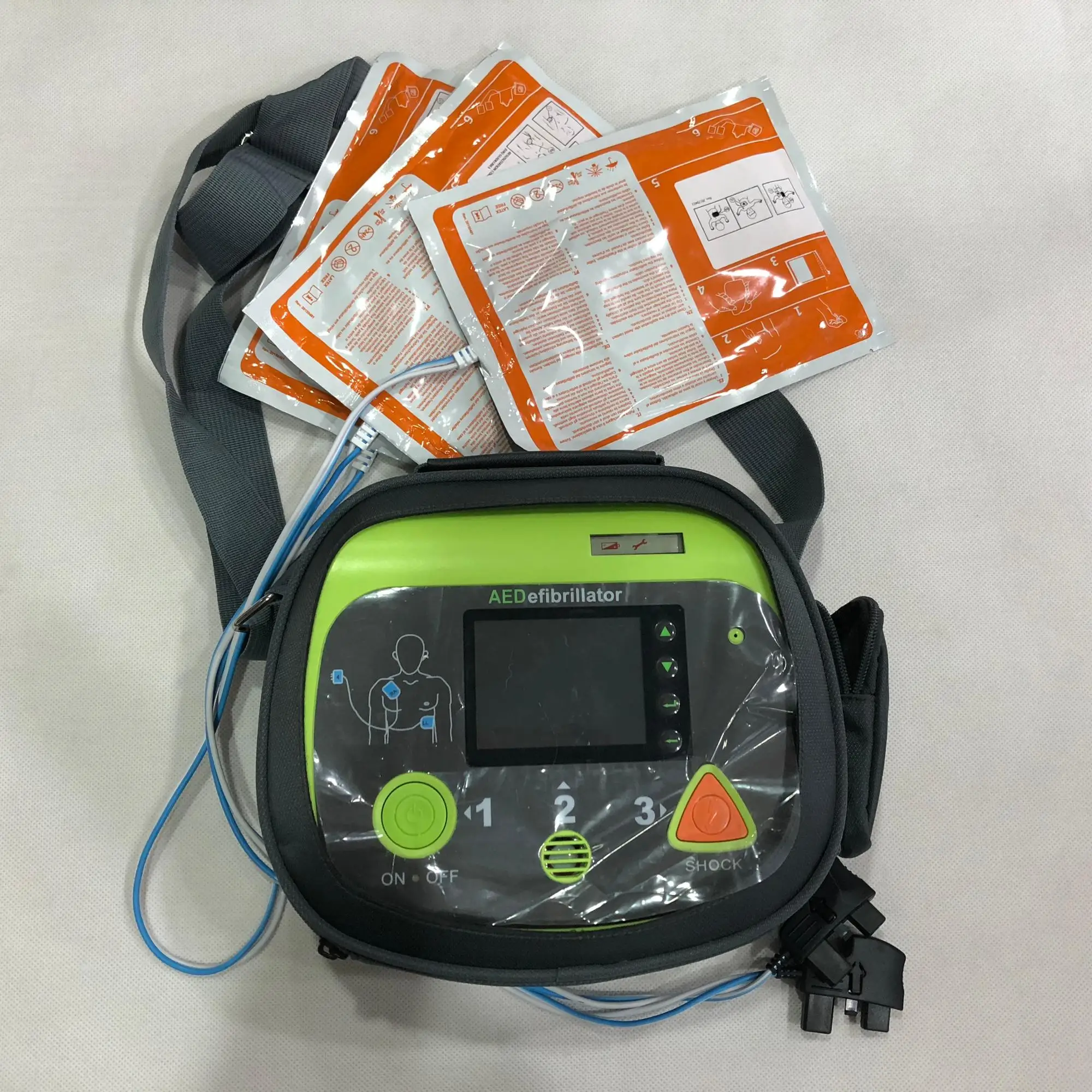

MCS-AED7000-Plus CE Approved Portable Biphasic AED Defibrillator

Category

Specification

Output

Biphasic Truncated exponential

Energy Sequence(adult )

150/150/200(Default)

150/200/200

200/200/200

Note: the Energy sequence can be changed using the computer  IR port.

Energy Sequence(Pediatric)

50/70/85(Default)

70/70/85

70/85/85

85/85/85

Note: the Energy sequence can be changed using the computer  IR port.

Charge Time

10 sec. to 200 J

Analysis Time

9 sec.

The maximum time from the initiation of rhythm analysis to readiness for maximum Energy discharge after 15 shocks.

Less than 30 seconds

The maximum time from initially switching power on to readiness for maximum Energy discharge after 15 shocks..

Less than 35seconds

Audible Prompts

19 audible prompts

Visual Prompts

LED/LCD

Controls

six buttons - On/Off, Shock, and 4 software-configurable buttons

Output Energy Accuracy

±15% into any impedance from 25 to 175Ω

The Maximum Voltage

1800±20V

Output disabled when the  PATIENT impedance is outside limits

20Ω to 200Ω

Recovery of the ECG input after defibrillation

<10s
