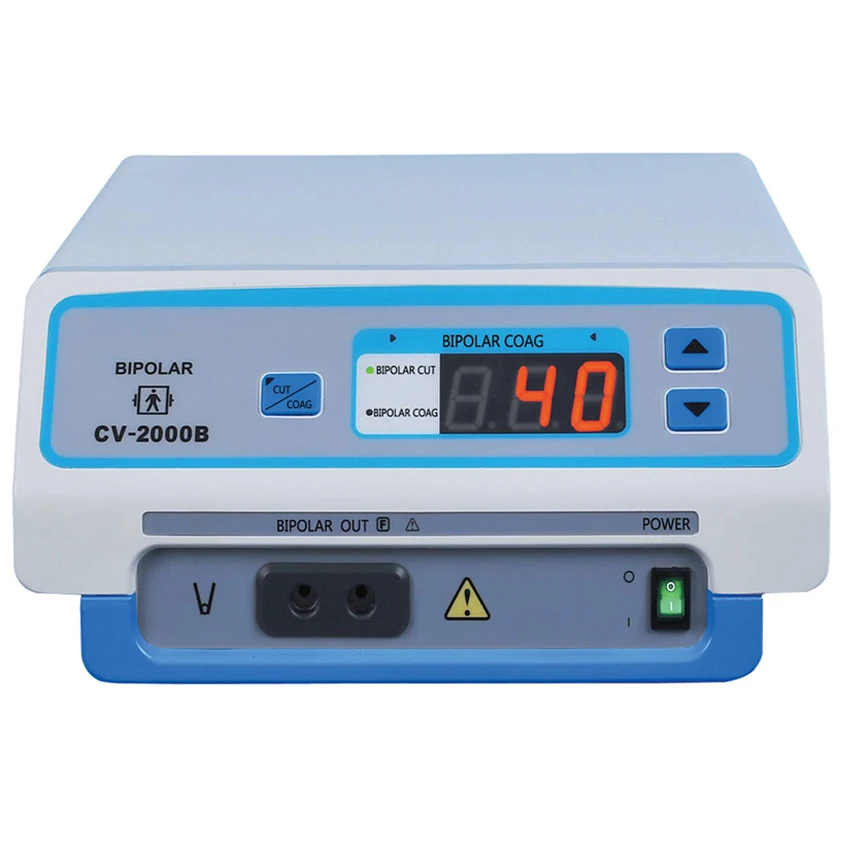

MCS-Bip-2000B Surgical Electric Bipolar Coagulator

• Place of Origin:CN;GUA
• Type:Knife
• Model Number:MCS-Bip-2000B
• Brand Name:MeCan (electrosurgical)
• Properties:The Basis of Surgical Instruments
• Instrument classification:Class II

Surgical Electric Bipolar Coagulator

Model: MCS-Bip-2000B

Main Description of the MCS-Bip-2000BSurgical Electric Bipolar Coagulator:

1. Deep hemostasis, foot control outputs, mild hemostasis.

2. According to the depth of hemostasis, the output mode stops automatically. The output power will not reduce when operating in dry and bleeding spot.

3. Foot control mode: When the tissue reach the coagulation effects, the output power declines slowly.

4. Auto mode: when the tissue or blood vessel was coagulated, output power drops off sharply, to keep the forceps from sticking and over burnt for tissues.

5.Low voltage effectively reduces forming of the sparking of forceps, stimulating for the neuromuscular, to increase the security.

6. Microcontroller system allows this unit can be used in many delicate surgery.

7. Bipolar cut: macro bipolar.

Technical Parameters of the MCS-Bip-2000B Surgical Electric Bipolar Coagulator:

Two working modes: bipolar coag, bipolar cut

Power: 220V±22V(110V±11V) 50Hz±1Hz

Working frequency: 1024KHz

Output power of the MCS-Bip-2000B Surgical Electric Bipolar Coagulator:

1. bipolar coag: 0-120W(load 100Ω)

2. bipolar cut: 0-120W(load 200Ω)

Configuration Sheet:

Footswitch                         1set

None sticky bipolar Forceps and cable  1set

Optional:

The function of bipolar cut and bipolar cut pencil, pen type bipolar coagulation.

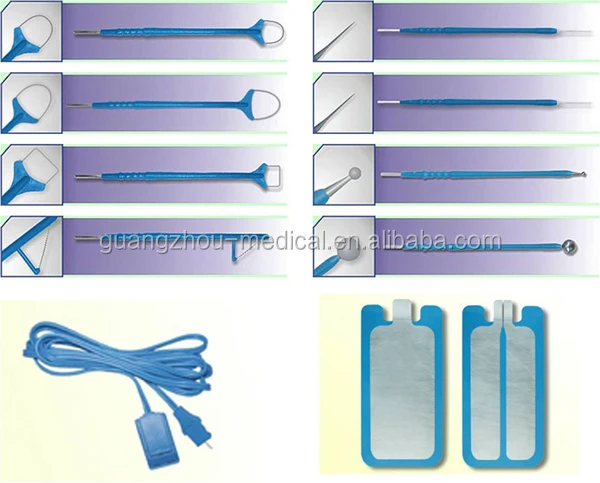

Accessoriesof the MCS-Bip-2000B Surgical Electric Bipolar Coagulator:
