MCS-ESU34 Surgical LEEP Electrosurgical Generator
MCS-ESU34 Surgical LEEP Electrosurgical Generator
MCS-ESU34 Surgical LEEP Electrosurgical Generator
MCS-ESU34 Surgical LEEP Electrosurgical Generator
MCS-ESU34 Surgical LEEP Electrosurgical Generator

MCS-ESU34 Surgical LEEP Electrosurgical Generator

Model NO.:
MCS-ESU34
Price:
USD 2676.00-2676.00
Delivery:
FOB
Minimum order quantity:
1
  • Place of Origin:CN;GUA
  • Properties:The Basis of Surgical Instruments
  • Instrument classification:Class II
  • Type:Electrosurgical Generator
  • Brand Name:MeCan (cautery machine)
  • Model Number:MCS-ESU34

Surgical LEEP Electrosurgical Generator

(Seven working modes)



Model: MCS-ECU34

Parameters of the MCS-ECU34 Surgical LEEP Electrosurgical Generator:

1. Highest power: 200W



2. Seven working modes: pure cut, blend1, blend2, blend3, spray coag, forced coag, bipolar coag.



3. Microcomputer control, three-way power output, with different audible and visual indication during the process of outputting.



4. 2000(LEEP) generator adopts LEEP which specializing in gynecological intrauterine event, increasing the accuracy, controllability, security of the surgery.







5. Dealing with some kinds of pathological changes in obstetric and gynecology,   for example, cutting, electrocoagulation, cervical erosion, and some kinds of surgery that fit in peritoneoscope.



6. Different electrodes have different effects in coagulation.



7. An optional smoke evacuation system is available.



8. Particular illuminating ESU pencil can increase the clarity of wound healing.







Technical Specifications of the MCS-ECU34 Surgical LEEP Electrosurgical Generator:





Power: 220V±22V, 50Hz±1Hz(110V±11V,50/60Hz)



Operating frequency: 512KHz



Power rating: 880VA±10%





Seven working modes of the Surgical LEEP Electrosurgical Generator:



Monopolar Cut:



a) Cut1 (pure cut): 1W~200W( Load 800Ω)



b) Cut2 (Blend1): 1W~150W(Load 800Ω)



c) Cut3 (Blend2): 1W~100W (Load 800Ω)



d) Cut4 (Blend3): 1W~80W(Load 800Ω)



Monopolar Coag:



d) Coagulation1(Spray Coag): 1W~120W( Load 800Ω)



e) Coagulation2(Forced Coag): 1W~80W( Load 800Ω)



Bipolar:



f) Bipolar coagulation: 1W~50W ( Load 100Ω)







Power Consumption of the Surgical LEEP Electrosurgical Generator:

Less than 880VA(Cutting function 200W)







Surgical Smoke Evacuation  Parameter





blowing rate: 100 l/min @ 6mm tube



Noise:<60dB(A)



Start Control: Manus/Foot/Synchronize



Suction Adjust: 10%-100%



Stop delay time: 0-60s



AC Power: AC90~250V, 50Hz



Power consumption: < 350W



Filter Characteristics: 99.999% @ 0.1-0.2μm



Active Carbon: 97% @ 1 year







Packing List



Illuminating ESU Pencil:          5pcs



Electrosurgical Pad:               10pcs



Electrosurgical pad cable:      1pc



Footswitch:                             1set



Bipolar Forceps and cable:     1set



Vaginaldilator:                         1pc



Electrodes:                              10pcs

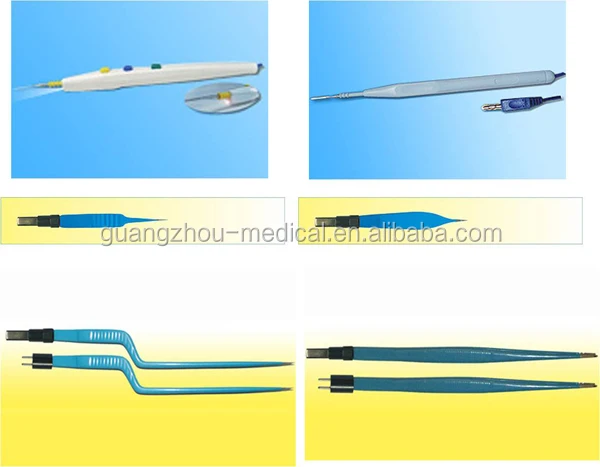

Accessories of the MCS-LEEP-7 Surgical LEEP Electrosurgical Generator:



Surgical Cautery Diathermy Electrocautery Machine.jpgHigh Frequency Bipolar Electrosurgical Unit.jpgLEEP Surgery Equipment Generator.jpg



Electrosurgical unit

We provide different kinds of electrosurical unit. Some are shown in the following pictures. For more infomation, please refer to our webside: guangzhou-medical.en.alibaba.com.

Electrosurgical Unit 750.jpg





Our Advantage

1. One stop supplier for medical equipments and laboratory equipments in Guangzhou
2. More than 2000 hospitals have become our partners
3. Superior quality with factory price
4. Quick reply and considerate service
5. CE,ISO,FDA Certificate
6. Fast delivery by air, sea or in other ways
7. More than 10 years in medical machines supply business
8. Exported to more than 109 countries
9. Warranty time: AT LEAST 12 months and Over 8 years' technical and accessories-change support
10.Excellent and immediate after-sale service



Testimonials

1. From the Biomedical Engineer of Senegal.

hello, the installation of the RX unit was a success. all is ok and i have a very good picture.

 THANK YOU



2. From Dr. Salman Hasan, Doctor from Nigeria

Hello we have installed the radio and we are really satisfied with its operation.



3. From Dr. Emma Adapoe, Ghana, Africa.

 Mecan Medical Company Limited:

I have tried them for their honesty

I have tested their products for Good Quality

I have experienced their Good and and nice service and customer relations

I endorse Mecan because they stand the test of time.



Please contact us and let’s talk details for the MCS-LEEP-7 Surgical LEEP Electrosurgical Generator.
