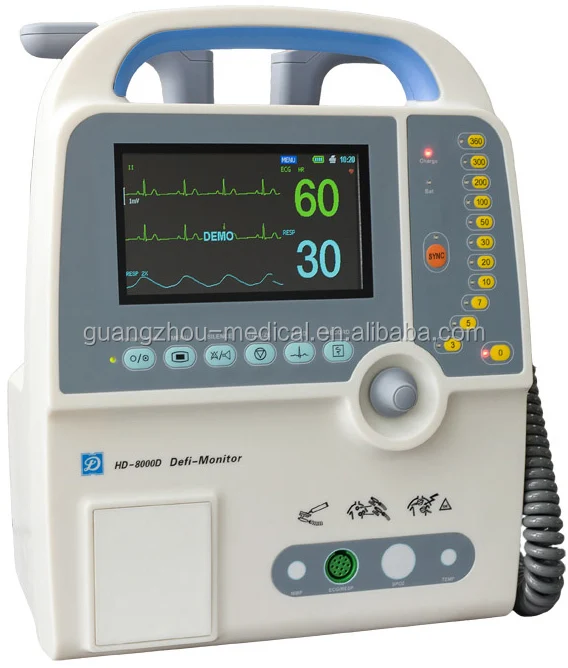

MCS-HD-8000D Emergency medical Monitor EMS Biphasic Defibrillator

• Place of Origin:CN;GUA
• Model Number:MCS-HD-8000D
• Brand Name:MeCan
• Type:First-Aid Devices
• Instrument classification:Class II

Emergency medical Monitor EMS Biphasic Defibrillator

Model: MCS-HD-8000D

Standard parameter & configuration of the Emergency medical Monitor EMS Biphasic Defibrillator:

ECG, RESP, DEFIBRILLATOR

Physical characteristics of the MCS-HD-8000D Emergency medical Monitor EMS Biphasic Defibrillator:

Main unit: Portable

Dimensions:L320xW205xH410 mm

Weight:9.5kg

Technical specifications of the Emergency medical Monitor EMS Biphasic Defibrillator:

DEFIBRILLATOR.

(1) Defibrillator type: Manual, Synchronized, Asynchronized,

(2) Out put waveform: Biphasic technology

(3) Energy accuracy: ∠+1%

(4) Energy selection: 0, 3, 5, 7, 10, 20,30, 50,100,200,300,360 joule(nominal at a resistance of 50)

(5) Charging time: Maximum 8 seconds to 360 Joules

(6) Standard Adult/Pediatric Paddles   Reusable external adult paddles(pediatric paddles integrated)

Power requirements.

(a) AC Power supply: 110V, 60 Hz /220V,50 Hz

(b) Vehicle Voltage(Option): DC 12V

Internal Battery Backup of the Emergency medical Monitor EMS Biphasic Defibrillator:

(1) Battery type: Rechargeable lead-acid battery(Li-ion is option)

(2) Charging time: Time-Minimum of 4 hours for full charging

(3) Battery charging: During AC Power Supply operation of the device.

(4) Charging /Low Battery Indication: Red LED

(5) Battery Capacity: 100% of the battery will provide 120 mins of monitoring and 30 discharges at 360 joules.

Display

LED Dimensions:       7’diagonal {155mm*88mm}

Type:                         High resolution true-color graphic LED

Resolution:                480X234

ECG

ECG lead: Ⅰ, Ⅱ, Ⅲ, AVR, AVL, AVF, V1~V6, GND

S-T segment analysis: -2.0~2.0mv

Arrhythmia analysis: yes

Protection: With stand 4000vAc/50Hz voltage in isolation and work against electrosurgical knife and defibrillation

Respiration

Measurement method: Thoracic impedance

Standard parameter & configuration

ECG, RESP, DEFIBRILLATOR

Optional parameter

1. Recorder

2. Change be change to lithium battery.

Packingof the Emergency medical Monitor EMS Biphasic Defibrillator:

1. Each one is packed

2. Individually in a carton

3. Package size:56×46×47cm

4. G.W.: 16.0Kg

5. N.W.: 11.5Kg

*For the same product, we can offer you monophasic technology
