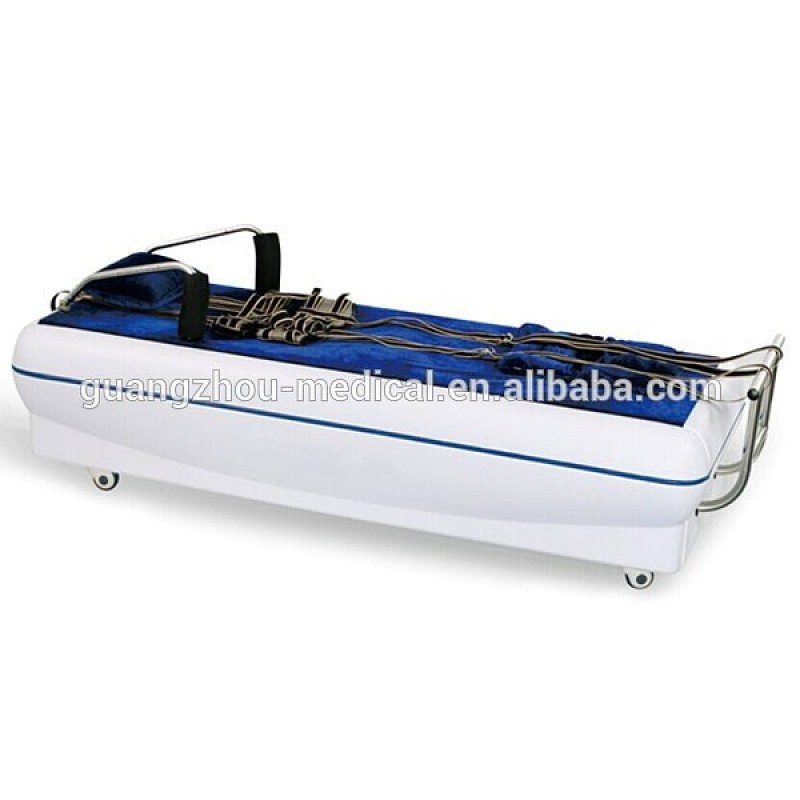

Far Infrared Massage bed/Lumbar Vertebra Traction Bed
Specifications of lumbar vertebra traction bed
1. It can carry out systematic massage or partial massage
2. It has far infrared thermal therapy function.
Massage technological parameters:
1. Distance of motor-driven device: ≥800mm.
2. Rolling massage scope (L×W): ≥1600mm×380mm.
3. Rolling massage period: 40s±5s.
Rolling massage timing:
1. Timing scope: 1min~60min (Adjustable). Timing step: 1min.
2. Timing error: ±5%.
1. Vibratory massage scope (L×W): ≥800×200mm.
2. Vibration load: the bed will not stop vibrating when being evenly loaded 135Kg.
3 Vibration frequency : 50Hz±3Hz.
Thermal therapy technological parameters:
1. Range of temperature control: 30°C~48°C.
2. Temperature control error: -5°C~+8°C.
3. Heating-up time: it needs less than 20 min to reach 23°C~25°C.
4. Temperature homogeneity: the temperature homogeneity is less than 6°C in the range of 1600mm×380mm.
5. Overtemperature alarm: when the central point of the bed reaches 48°C±3°C, the machine shall cut off the powers of heating device and massage and stop working. An alarm will be given in 1~20s.
6. Total noise of the device shall be no more than 65dB (A).
Traction technological parameters:
1. Input voltage: 220V.
2. Input power: 80W.
3. Distance of traction: 200mm.
4. Control mode: click.
It has separate far-infrared massage function:
1. It can carry out systematic massage or partial massage (e. g. upper body, neck, waist, and lower body).
2. It has vibration massage function.
3. It has far infrared thermal therapy function.
It has separate lumbar vertebra traction function:
It is electrically controlled with an inching switch. Both the doctor and the patient can control the value of traction force. A hand switch can help you achieve artificial automatic intermittent traction, continuous traction, repetitive traction and automatic traction force compensation. The traction force shall be endurable to the patient. The motive power is straight extendable conveyor belt and the apparatus has electronic display for traction force and touch key.
1. Prolapse of lumbar intervertebral disc, hyperosteogeny, cervical vertebra disease.
2. Stubborn pains of shoulder, waist, and leg, sciatica.
3. Acute or chronic lumbar muscle strain, lumbar degenerative diseases.
4. Waist, back, leg muscles and soft tissue sprain and bruise.
5. Fatigue syndrome from strenuous work.
6. It can improve sleeping and get rid of or guard against weariness.
7. It can dredge the whole body’s meridian and help to prolong life.
8. It promotes recovery of sequelae of apoplexy.
