MCX-112 High Frequency Mobile C-arm System
MCX-112 High Frequency Mobile C-arm System
MCX-112 High Frequency Mobile C-arm System
MCX-112 High Frequency Mobile C-arm System
MCX-112 High Frequency Mobile C-arm System

MCX-112 High Frequency Mobile C-arm System

Model NO.:
MCX-112
Price:
USD 100.00-10000.00 / set
Delivery:
FOB
Minimum order quantity:
1 set
Supply Ability:
3000 set / Month
Country of Origin:
Beijing, Shanghai, Guangzhou, Shenzhen, Hongkong
Stock Time:
5~15 working days for the High Frequency Mobile C- Days
  • Place of Origin:CN;GUA
  • Model Number:MCX-112
  • Brand Name:MeCan
  • Properties:Medical X-ray Equipments & Accessories

High Frequency Mobile C-arm System

Model: MCX-112

                        PLX112 550.jpg

Features of the High Frequency Mobile C-arm System:



1. With unique base electric auxiliary support arm design, so it’s safer.

2. A unique hand-held controller design, which can control parameter set, equipment movement and radiation field, so the operation is more convenient

3. With high-quality Combination high frequency high-voltage X-ray generator, it can greatly reduce the amount of X-ray irradiation.

4. With a perspective KV, MA automatic tracking feature, so that the image brightness, sharpness automatically in the best condition

5. Adopting imported image intensifier, the quality is stable and reliable, and the image is of good clarity.

6. With medical progressive output high-resolution television system, it can store 8 images, the image is clearer, and easier to use,

7. With installation of dense grain grids, further enhance image definition.

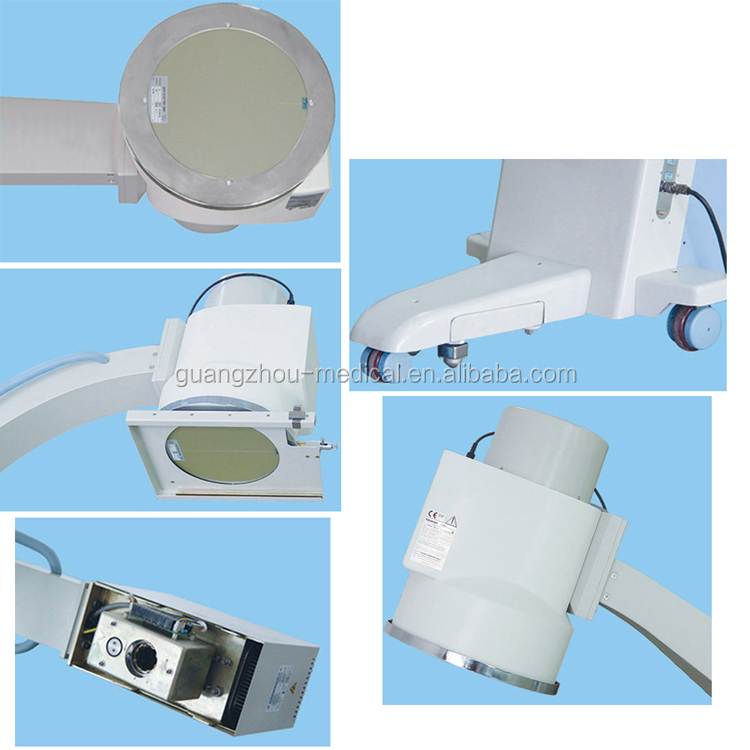

.jpg



Usage of the High Frequency Mobile C-arm System:



Orthopedics: restore bone translocation, reset, fixing

Surgery: taking foreign bodies out of the body, cardiac catheterization, implantable pacemakers, interventional treatment, some of angiography and local photography etc



Basic configurations:



1. C-arm mainframe                                                                                                                     one set

2. Combined high-frequency high-voltage X-ray generator and high-frequency power supply    one set

3. imported 9 inch image intensifier                                                                                              one set

4. Imported medical ultra-low illumination CCD radiography                                                        one set

5. Imported dense grain grids                                                                                                       one set

6. Electrical adjustable beam limiting device                                                                                 one set

7. High-definition progressive output CCU control system                                                            one set

8.14-inch high-definition medical dedicated monitor                                                                     two sets

9. Unique hand-held controller                                                                                                      one set

10. New TV trolley                                                                                                                         one set

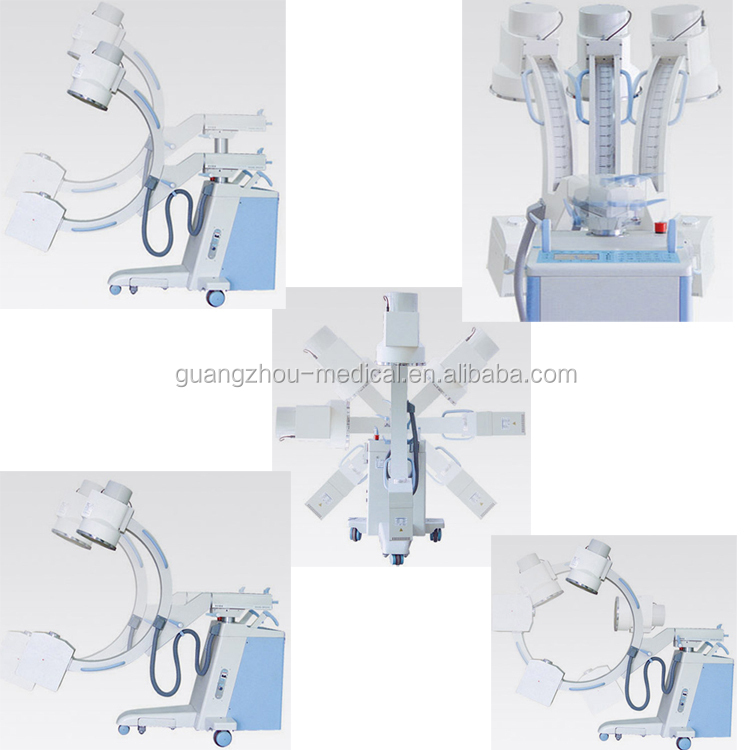

.jpg

Performance and Parameter  of the High Frequency Mobile C-arm System:

Category

Items

Content

Electrical performance

High frequency inverter power supply

Power:3.5KW  Main inverter frequency: 40 kHz

Perspective max rated capacity

Tube current 4 mA    Tube voltage 110 kv

Automatic fluoroscopy

tube voltage 40 kv~110kv,adjust automatically

tube current : 0.3mA~~4mA adjust automatically

Manual fluoroscopy

tube voltage 40 kv~110kv, continuous

tube current : 0.3mA~~4mA continuous

Pulse fluoroscopy

tube voltage 40 kv~110kv, continuous

tube current : 4.1mA~~8mA continuous

Photography tube voltage, tube current mAs

40KV~110KV, 20~63mA , 1~125 mAs

Plate holder size

200mmx250mm(8”x10”) or 250mmx300mm(10”x12”)

X-ray tube

X-ray tube special for high frequency

large focus:1.5,    mall focus :0.6

thermal capacity: 460kJ (613 kHu)

Imaging

system

Image intensifier

Imported 9 inch image intensifier

CCD photography

Imported medical ultra-low illumination CCD radiography

Monitor

Center definition is 1000 lines and frequency for picture refresh is 75Hz.

CCU (central control)

HD progressive output, continuous adjustable recursion, many images storage, upright image, horizontal image, positive & negative image, image patching, LIH(last image freeze), OSD (monitor display).

Structure and performance

Direction wheel and main wheel

Direction wheel can rotate in any direction, and main wheel can rotate in ±90°.

C-arm

The up and down electrical stroke of pillar is 400mm.

Forward and backward movement:200mm; Revolution around horizontal axis : ±180°; Revolution around vertical axis: ±15°, distance from focus to screen: 960 mm; C-arm open distance: 760mm  C-arm arc depth: 640mm; Slipping on orbit : 120°(+90°~-30°)
