MCX-FR30-III 30mA Fluoroscopy & x-ray equipment 30MA
MCX-FR30-III 30mA Fluoroscopy & x-ray equipment 30MA

MCX-FR30-III 30mA Fluoroscopy & x-ray equipment 30MA

Model NO.:
USD 1000.00-9999.00 / set
Minimum order quantity:
1 set
Supply Ability:
3000 set / Month
Country of Origin:
Beijing, Shanghai, Shenzhen, Guangzhou,Hongkong
  • Properties:Medical X-ray Equipments & Accessories
  • Place of Origin:CN;GUA
  • Instrument classification:Class II
  • Brand Name:MeCan
  • Model Number:MCX-FR30

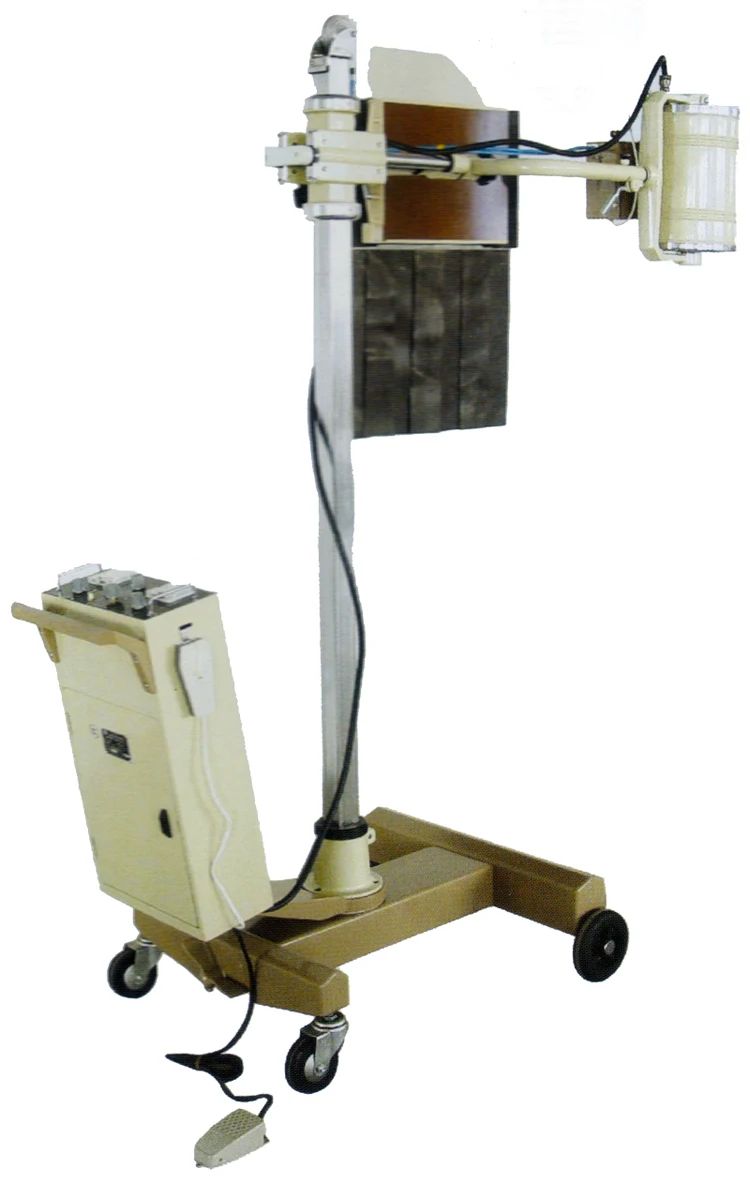

MCX-FR30-III 30mA Fluoroscopy & x-ray equipment 30MA

Model: MCX-FR30-III





Feature of Mobile X-ray machine


1.Can be used in ward and emergency treatment
room for fluoroscopy and radiography.
2.X-ray generator is combined.
3.Single focus, bridge rectification.
4. It is precise, safe, reliable and flexible.
5. A wireless remote control device (control range≥5 m) is used.


Main technical parameter of 30mA x-ray unit


X-ray generator

Stationary anode, single focus, and bridge silicon rectification,
The X-ray generator is an oil-immersed self-cooled unit.

Max rated capability


Power supply

Voltage: 180~240V

Frequency: 50Hz

Power: not lower than 3kVA

Resistance: not larger than 0.7Ω

Voltage adjustment range of x-ray tube

divided into 8 steps 50~85kVp

Range of the timer

0.2~10 s

Fluorescent screen size

280 mm×350 mm

Distance between the focus to the screen

700 mm

Tube head carriage movement range

vertical: 1100 mm

horizontal: 160 mm

The rotation angle of tube head carriage


The rotation angle of the controller and the accessory case


Specification of X-ray tube

 Model XD 1-3/100 fixed anode, single focus 2.3mm

Transport dimension

1650×880×600 mm

Net weight, Gross weight

NET 98kg/ GROSS 164kg
