Medical Laboratory Equipment Clinical Blood Chemistry Analyzer
Medical Laboratory Equipment Clinical Blood Chemistry Analyzer
Medical Laboratory Equipment Clinical Blood Chemistry Analyzer
Medical Laboratory Equipment Clinical Blood Chemistry Analyzer
Medical Laboratory Equipment Clinical Blood Chemistry Analyzer
Medical Laboratory Equipment Clinical Blood Chemistry Analyzer

Medical Laboratory Equipment Clinical Blood Chemistry Analyzer

Model NO.:
MCL-1020 Chemistry Analyzer
Price:
USD 100.00-99999.00 / set
Delivery:
FOB
Minimum order quantity:
1 set
Supply Ability:
800 set / Month
Country of Origin:
Guangzhou Shenzhen Hongkong Shanghai Yiwu Ningbo
Stock Time:
5 - 15 days Days
  • Place of Origin:CN;GUA
  • Model Number:MCL-1020 Chemistry Analyzer
  • Brand Name:MeCan
  • Properties:Diagnosis & Injection

Medical Laboratory Equipment Clinical Blood Chemistry Analyzer



We offer serial medical lab equipment for clinics and hospitals, welcome to contact us and we will send you the list, such as

chemistry analyzer, hematology analyzer, Elisa reader, coagulomer, urine analyzer, centrufuge, microscope, lab incubators , autoclave, etc.

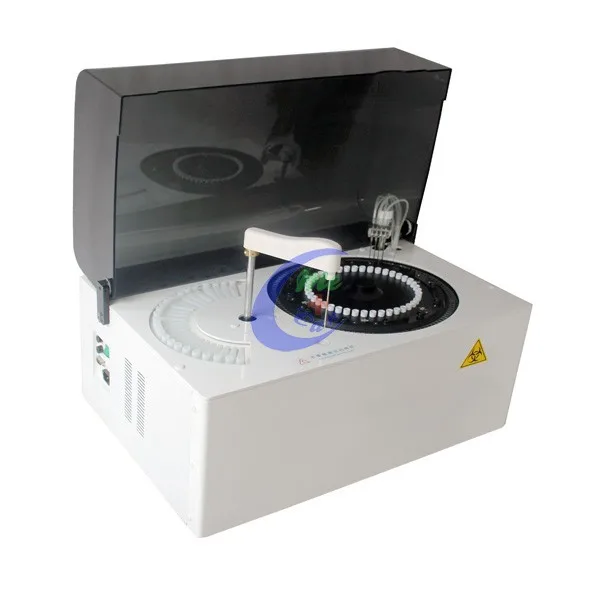

160Test /Hour Fully automatic Chemistry analyzer



Model: MCL-1020


Overall Performance of the Chemistry analyzer
Equipment type Fully automatic discrete, STAT priority
Analysis rate Constant speed 160T/H (without ISE)
Test principle Colorimetry, turbidimetry
Analysis method End-point, 2 kinetics, fixed-time, etc. support single/double wavelength, linear and non-linear calibration



Sample System
Sample Tray 42 sample positions, random access of all samples
Sample Volume 2-50ul, 0.1ul increment
Sample probe Liquid level detection, the remaining detection, collision protection etc.
Sample Containers Sample cups, Micro tube, Original blood-collection tube, etc.



Reagent System
Reagent Tray 25 reagent positions
Reagent Volume R1:25-300ul, R2:10-150ul, 0.1ul increment
Reagent Probe Liquid level detection, the remaining detection, collision protection etc.
Reagent Refrigeration 4-15℃, independent power supply, 24-hour non-stop refrigeration



Reaction System
Reaction Tray Rotating tray, 120 cuvettes
Cuvette Reusable high quality cuvette, Optical diameter 6mm
Reaction Volume 180-500ul
Incubation system Bi-directional liquid-air device
Temperature 37℃±0.1℃ with real-time display



Optical System
Light source 12V35W halogen lamps, over 2000 hours
Photoelectron road after spectrophotometry
Wavelength 340,405,450,510,546,578,630,700nm
Absorbance range 0-3.500Abs
Resolution 0.0001Abs



Operating System
PC operating system Windows XP or above
Analysis control software English version graphical operating software
Report printing Report formats support the user-defined mode, QC and state information etc.
System connection RS-232



Working Conditions
Power supply AC 220V±22V, 50Hz±1Hz, power 1.5KVA
Ambient Temperature 15-30 ℃
Humidity 35-80%
Water consumption 5L/Hour
Dimension Bench top: 750mm*520mm*600mm
Weight 45KG

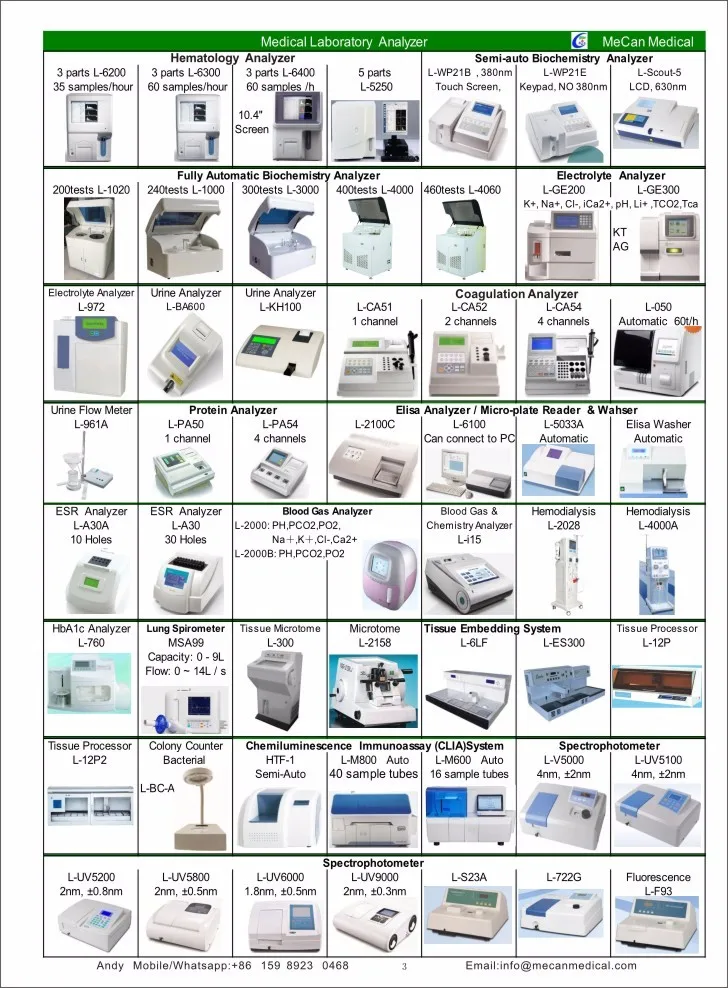

We offer below medical laboratory equipment beside the Chemistry analyzer:

Automated Chemistry Analyzer.jpg
