MCX-100BY X-ray machine 100mA,maquina de rayos x
MCX-100BY X-ray machine 100mA,maquina de rayos x

MCX-100BY X-ray machine 100mA,maquina de rayos x

Model NO.:
MCX-100BY
Price:
USD 1000.00-9999.00 / set
Delivery:
FOB
Minimum order quantity:
1 set
Supply Ability:
3000 set / Month
Country of Origin:
Beijing, Shanghai, Shenzhen, Guangzhou,Hongkong
Stock Time:
5-10 working days of Mobile X-ray Machine Days
  • Place of Origin:CN;GUA
  • Model Number:MCX-100BY
  • Brand Name:MeCan
  • Properties:Medical X-ray Equipments & Accessories
  • Instrument classification:Class II

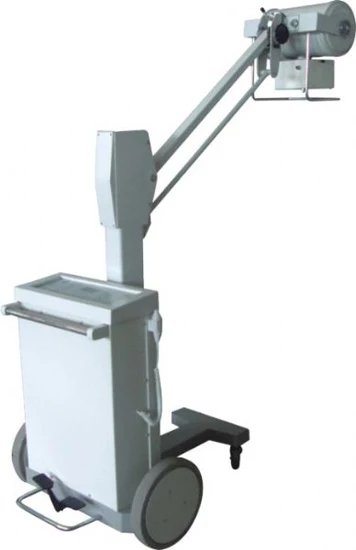

MCX-100BY X-ray machine 100mA,maquina de rayos x

SF100BY 550.jpg



USAGE:

Take x-ray photography of the head,extremities,

chest cavity and other parts of human

Can be used in the ward or in operation room.



 Main features Mobile Medical X-ray Machine

1. Single focus, full-wave rectifier, combined X-ray generator

2. SCM control (easy to maintain and repair)

3. High visual and operational console with LCD monitor

4. Prestore 8 kinds of photography parameters and select,

modify, store the parameters under the condition of choice

5. Power voltage (V), photograph kilovolt (KV) infinitely variable control

6. Premier high voltage with high power SCR zero control circuit

7. Function of load chains, exposure time control, auto alarm, preheat filament,      subassemblies’ temperature control, and so on

8. Cantilever structure makes the small volume and easily moving


Main technical indexes of Mobile Medical X-ray Machine

1.Power supply

Voltage: 180-240 V

Frequency: 50HZ

Internal resistivity <1.0Ω

Current 35A instant

Rating ≥7k VA



2.Photography:

Voltage: 50-100 kV

current 16ma. 32ma 63ma 100ma

time 0.08s ~6.3s

X-ray tube focus 4.3mm X4.3mm



3.Maximum remote control distance: 7m

4.Maximum height of focal spot from floor>1880 mm

Minimum height of focal spot from floor <520 mm

5.Columns turning angle:±45



6.Collimator: maximum film size at 650mm focal distance: 350 mm X 350 mm

7.The net weight of the unit: 150kg  Gross Weight: 240kg

8.Shipping volume: 150cm X 100cm X 150cm



Focus of

X-ray tube

Photograph Current

 (mA)

Max photograph voltage

(kvp)

Max allowable

exposure time

Big focus

16

90

6.3

32

90

6.3

63

85

4.2

100

80

3.0






Operation/Emergency
