Portable Fluoroscopy
Portable Fluoroscopy

Portable Fluoroscopy

Model NO.:
MCX-P10 Portable Fluoroscopy
USD 1000.00-10000.00 / set
Minimum order quantity:
1 set
Supply Ability:
1000 set / Month
Country of Origin:
Guangzhou, Shenzhen, Shanghai, Beijing, Hongkong
  • Properties:Medical X-ray Equipments & Accessories
  • Place of Origin:CN;GUA
  • Instrument classification:Class II
  • Brand Name:MeCan(portable x ray)
  • Model Number:MCX-P10 Portable Fluoroscopy

Portable Fluoroscopy


10mA Portable Diagnostic X-ray Machine

Model: MCX-P10

                         10 mA.jpg


Profile & Features of the 10mA Portable Diagnostic X-ray Machine:

The product is an anti-shock, anti-scattering, single-focus, half-wave rectification and portable diagnostic X-ray machine. It can be used in medical X-ray Radiography and fluoroscopy for the oral cavity, orthopedic, heart and lung, head, contraceptive ring and the impurities in the body.


Main Technical Specification of the 10mA Portable Diagnostic X-ray Machine:

Max rated capability Fluoroscopy: 75kVp3-5mA (uncontinuous use)


Common Fluoroscopy: 65kVp3mA


Max rated capability Radiography75kVp,10mA,6s(Intermittent 3 minutes)
CurrentFluoroscopy(uncontinuous), Radiography(instantaneous)


Power Supply: AC220V±10% ,50Hz,1kvA
Moving Range of X-ray Tube:Vertical 220mm,Horizontal 130mm

Head rotation angle of 360 degrees vertical


Size of Screen203 mm*254 mm
Size500 mm*310 mm*180 mm
Weight: 25 KG

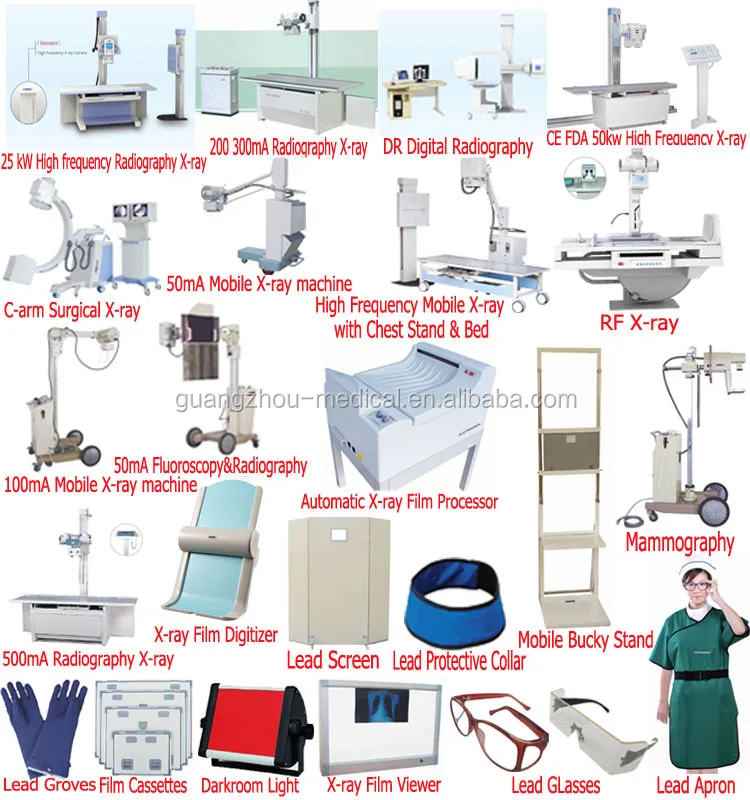

X-ray Machine Series

We provide different kinds of X-ray machines and accessories of X-ray machines. Some are shown in the following pictures. For more infomation, please refer to our webside:

X-ray machine series.jpg

X-ray .jpg

X-ray .jpg


Our Advantage

1. One stop supplier for medical equipments and laboratory equipments in Guangzhou
2. More than 2000 hospitals have become our partners
3. Superior quality with factory price
4. Quick reply and considerate service
5. CE,ISO,FDA Certificate
6. Fast delivery by air, sea or in other ways
7. More than 10 years in medical machines supply business
8. Exported to more than 109 countries
9. Warranty time: AT LEAST 12 months and Over 8 years' technical and accessories-change support
10.Excellent and immediate after-sale service


Why choose us ?



1. From the Biomedical Engineer of Senegal.

hello, the installation of the RX unit was a success. all is ok and i have a very good picture.



2. From Dr. Salman Hasan, Doctor from Nigeria

Hello we have installed the radio and we are really satisfied with its operation.


3. From Dr. Emma Adapoe, Ghana, Africa.

 Mecan Medical Company Limited:

I have tried them for their honesty

I have tested their products for Good Quality

I have experienced their Good and and nice service and customer relations

I endorse Mecan because they stand the test of time.


Please contact us and let’s talk details for the 10mA Portable Diagnostic X-ray Machine.
