Model NO.:
dental X ray viewer
Price:
USD 1000.00-9900.00 / set
Delivery:
FOB
Minimum order quantity:
1 set
Supply Ability:
500 set / Month
Country of Origin:
GuangZhou
  • Place of Origin:CN;GUA
  • Model Number:dental X ray viewer
  • Brand Name:MeCan
  • Type:dental X ray viewer

Medical LED x-ray film viewer,medical x ray film view box,medical negatoscope and x ray film illuminator




This product is used in diagnostic imaging for viewing most types of x-rays as panoramic, cephalograms, periapical, interproximal, occlusal, carpal, sinuses and TMD among others. Follow the instructions presented in this manual regarding the proper use, precautions, care and storage.

USE INSTRUCTIONS

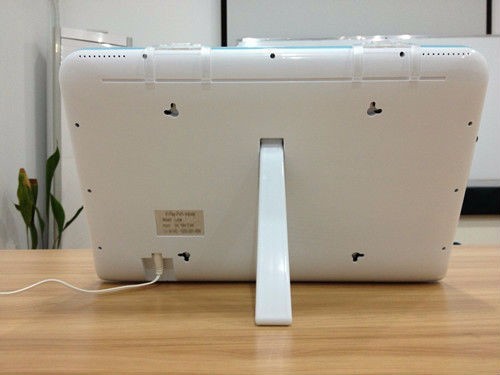

1). The X-Ray Viewer may be used on the table, where it offers three leaning angle adjustments or hanging on the wall through the back orifices in a vertical or horizontal position (Fig. 2, page 2);

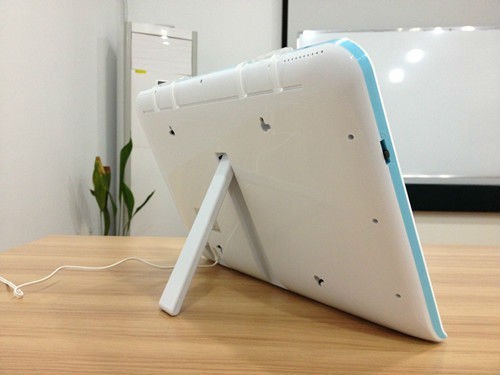

- Flat Surface Use: Use the built-in holder in the back of the plastic housing, there are three angle adjustments, choose the best viewing position;
- Wall Mounting: After defining the desired wall spot, mark the holes with a pen and drill them on the wall. To hang it horizontally leave a distance of 16,5 cm between holes or 14,5 cm to hang it vertically. Hang the viewer on the screws fixed to the wall. Note: Use 4 mm plugs and 2,5 x 25 mm screws;
2). Fit both plastic clips on the upper side of the screen. The side with only one central holder facing forward (Fig. 1, page 2);
3). Connect the power cable to the connector located in the back of the equipment and the other end (adapter) to the wall socket (Figs. 5 and 6, page 2);
4). Turn the Luna on through the On/Off switch located at the left side of the viewer (Fig. 4, page. 2);
5). Use the plastic clips at the top of the viewing area to hold the x-ray in place for visualization (Fig. 1, page 2);
6). When the diagnose is done, turn the Luna off through the On/Off switch again. At the end of the work day, disconnect the adapter from the wall socket.

SPECIFICATIONS TECHNICAL DATA
ADAPTER:
Input ............................................................. 100 - 240 V AC
Output ........................................................... 15 V DC - 0,8 A
FREQUENCY .................................................... 50/60 Hz
POWER ........................................................... 10W
LED/LIFESPAN ................................................. 2 LED bars (51 LEDs per bar)/100.000hours
TEMPERATURE ................................................ 6.500K
*ILLUMINANCE ................................................ 6.000 Lux
LIGHT ............................................................. Cold, polarized light with no flickering
STABILITY ....................................................... .2%
UNIFORMITY ................................................... 0.7
GROSS WEIGHT ............................................... 1,5 kg
NET WEIGHT .................................................... 1,1 kg
SCREEN DIMENSIONS (W x H) ............................ 30 x 20 cm
EQUIPMENT DIMENSIONS (W x H x D) ................ 35,7 x 24,3 x 3,5 cm

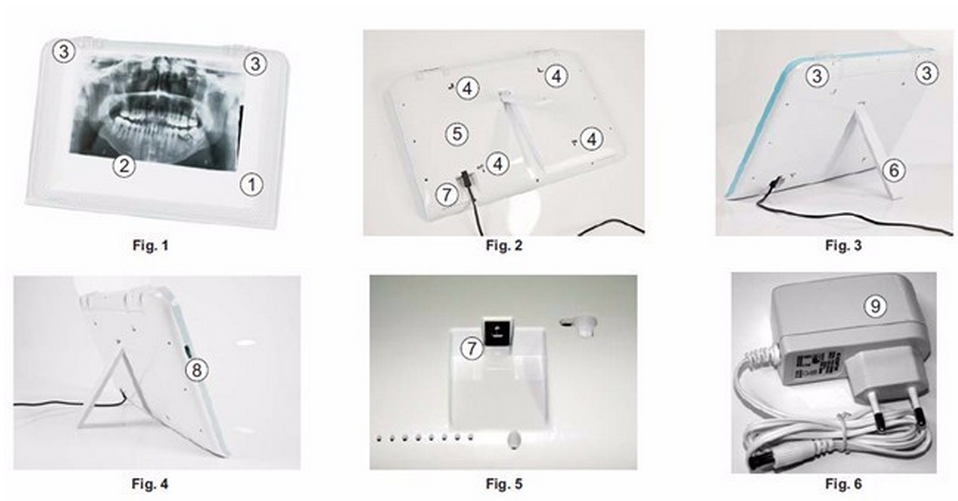

COMPONENTS DESCRIPTION
1 - Plastic housing 2 - Viewing screen 3 - Plastic holders 4 - Wall mounting orifices 5 - Identification Label
6 - Retractable support 7 - Power connector 8 - On/off switch 9 - Power adapter
