MCS-2000I-6 Six surgical electrocautery,High Frequency Electrocautery,electric cautery machine
MCS-2000I-6 Six surgical electrocautery,High Frequency Electrocautery,electric cautery machine

MCS-2000I-6 Six surgical electrocautery,High Frequency Electrocautery,electric cautery machine

Model NO.:
MCS-2000I-6
Price:
USD 1200.00-1200.00
Delivery:
FOB
Minimum order quantity:
1
  • Place of Origin:CN;GUA
  • Properties:The Basis of Surgical Instruments
  • Instrument classification:Class II
  • Type:Electrosurgical Unit
  • Brand Name:MeCan
  • Model Number:MCS-2000I-6

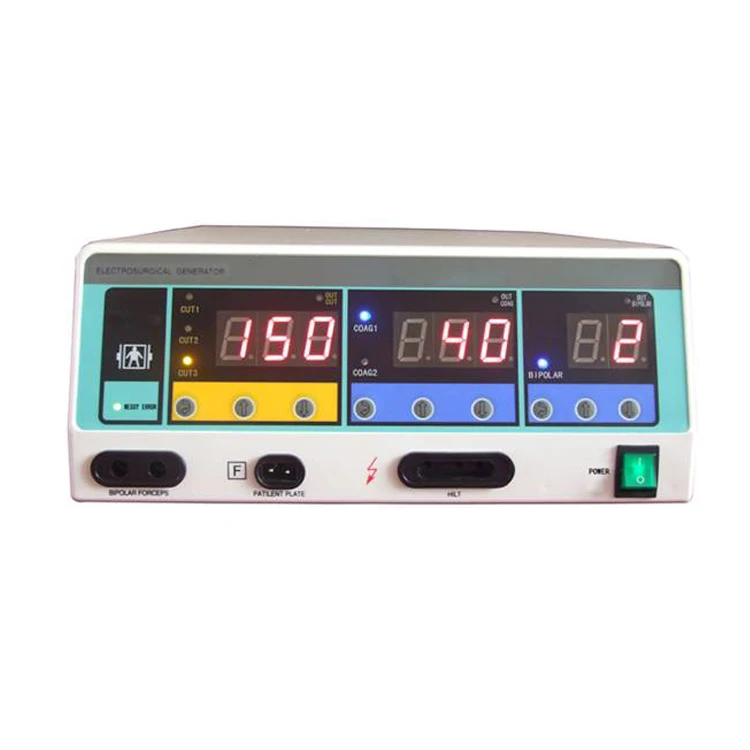

Six surgical electrocautery,High Frequency Electrocautery,electric cautery machine

Model: MCS-2000I-6




Features of the Six working modes Electrosurgical Unit | Electric Surgical Unit:





1. Microcomputer control.



2. Both monopolar and bipolar. Monopolar can be controlled by hand or foot. Bipolar can be controlled by foot only.



3. Precise power control, can be used for all general surgical procedures.



4. Touch control panel, three-way power output, with different audible and visual indication during the process of outputting.







5. Automatic performance check during startup and Polar plate test.



6. Power Peak System provides surgeons with improved performance at Lower power settings, minimizing the risk of tissue damage.



7. Full floating output system protects patient from tissue damage caused by low frequency current.



8. Automatic compensation system ensures the stable output and minimizes power consumption. Suitable for underwater surgery, including fibrin-rich tissue cutting.







9. CVREM contact quality monitoring system which substantially reduces the risk of burns under the patient return electrode. When patient plate and skin are not well contacted, the system will automatically stop the output and sound alarm.



10. Pencil Remoting Output. Surgeon can change the power output by remoting control electrosurgical pencil.







Technical Specifications of the MCS-2000I-6 Six surgical electrocautery,High Frequency Electrocautery,electric cautery machine





Power: 220V±22V(110V±11V), 50Hz±1Hz



Operating frequency: 360~460kHz



Power rating: 880VA±10%







Six working modes of the MCS-2000I-6 Six surgical electrocautery,High Frequency Electrocautery,electric cautery machine







Monopolar Cut:



a)Cut (pure cut):



  1W~300W( Load 500Ω),  apply to the operation of any tissue.



b) Bloodless cut (Blend1):



 1W~250W(Load 500Ω), apply to the surgery of any tissue, proving a good coagulation effect while cutting.



c) Fulguration (Blend2):



 1W~150W(Load 500Ω), apply to endoscopic surgery, providing a good homeostasis effect while cutting.







Monopolar Coag:



d) Coagulation1(Forced coag):



 1W~150W( Load 500Ω), apply to ordinary open surgery, deep tissue coagulation layer, has excellent homeostasis effect.



e) Coagulation2(Soft Coag):



 1W~120W( Load 500Ω), suitable for endoscopic and other fine tissue surgery with fast contact coagulation.







Bipolar:



f) Bipolar coagulation:



  1W~50W(70W)( Load 100Ω), when tissue reach a good coagulation effect, output power slow down, making a good homeostasis effect.







Power Consumption:

Less than 880VA(Cutting function 300W, Bipolar coagulation function 50W output).







Packing list:







Name

Quantity

Mainframe

1set

Remoting control pencil

1piece

Electrosurgical pencil

5pieces

Electrosurgical pad

10 pieces

Electrosurgical pad cable

1piece

Foot switch

1set

Tip clean sponge

1piece

Bipolar forceps and its cable

1set

Fuse

3pieces

Power cord

1piece

Operating manual

1book







Dimension:



  G.t 14kg



  Size: 59*49*34cm

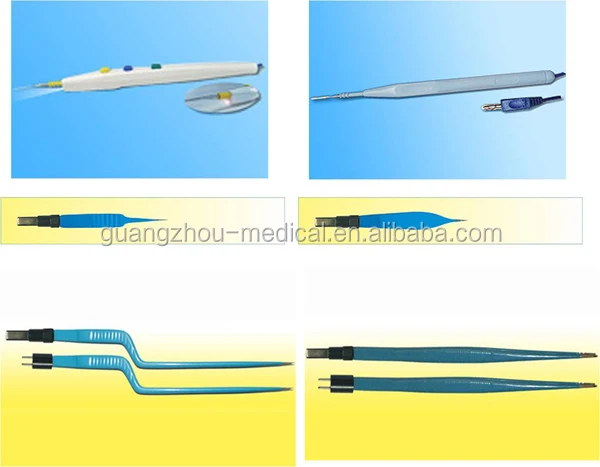

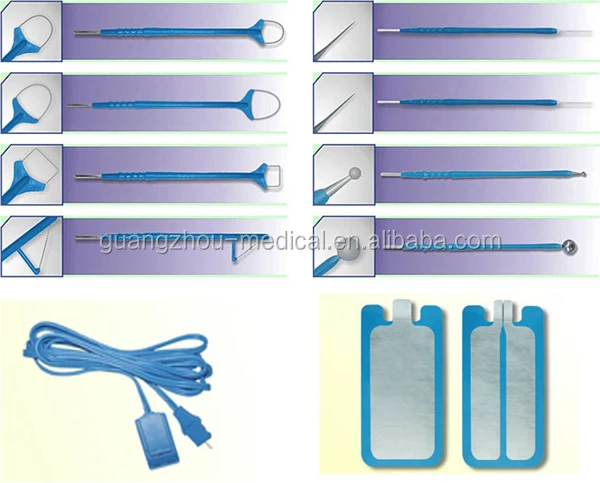

Accessories of the MCS-2000I-6 Six surgical electrocautery,High Frequency Electrocautery,electric cautery machine :

Surgical Cautery Diathermy Electrocautery Machine.jpgHigh Frequency Bipolar Electrosurgical Unit.jpgLEEP Surgery Equipment Generator.jpg



Electrosurgical unit

We provide different kinds of electrosurical unit. Some are shown in the following pictures. For more infomation, please refer to our webside: guangzhou-medical.en.alibaba.com.

Electrosurgical Unit 750.jpg
