MCS-2000AI LCD High Frequency Bipolar electrobisturi para cirugia monopolar,monopolar surgical elecrocautery
MCS-2000AI LCD High Frequency Bipolar electrobisturi para cirugia monopolar,monopolar surgical elecrocautery
MCS-2000AI LCD High Frequency Bipolar electrobisturi para cirugia monopolar,monopolar surgical elecrocautery

MCS-2000AI LCD High Frequency Bipolar electrobisturi para cirugia monopolar,monopolar surgical elecrocautery

Model NO.:
MCS-2000AI LCD
Price:
USD 100.00-10000.00 / set
Delivery:
FOB
Minimum order quantity:
1 set
Supply Ability:
1000 set / Month
Country of Origin:
Beijing, Shanghai, Guangzhou, Shenzhen, Hongkong
Stock Time:
5~7 working days for the bipolar electrosurgical u Days
  • Place of Origin:CN;GUA
  • Properties:The Basis of Surgical Instruments
  • Brand Name:MeCan (Electrosurgical Unit)
  • Instrument classification:Class II
  • Model Number:MCS-2000AI LCD
  • Type:Electrosurgical Unit

MCS-2000AI LCD High Frequency Bipolar electrobisturi para cirugia monopolar,monopolar surgical elecrocautery  Electrosurgical Unit

Model:  MCS-2000AI(LCD)

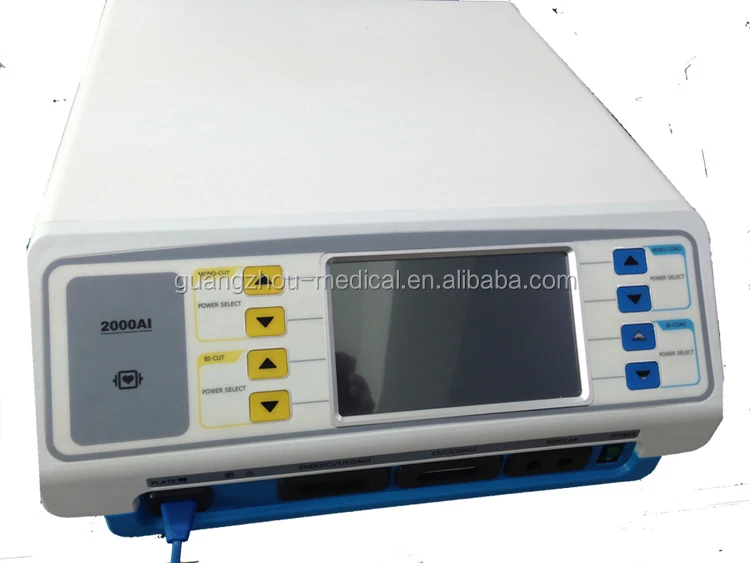

2000A (LCD) Electrosurgical Generator.jpg

Main Features of the Electrosurgical Unit:



1. Max 400W Electrosurgical Generator, with mono-polar and bipolar function.

2. Nine working modes: pure cut, blend1, blend2, blend3, contact coag, forced coag, soft coag, bipolar coag, bipolar cut.

3. Wide clinical applications, such as the general surgery, thoracic surgery, orthopedic surgery, cardiology, gynecology, urology(under water TUR), oncology, neurosurgery, etc.



4. Microprocessor controlled, LCD touch screen display. With audible and visual indicators and errors codes during the process of outputting.

5. Return Electrode Monitoring system and Power Peak System, minimizing the risk of tissue damage.

6. Both hand and foot controlled.



7. Separate power display and outlet socket for mono-polar cut, mono-polar coag, bipolar cut and bipolar coag, each output can be individually configured.

8. The unit always remember the last setting when it turned off.

9. Remote control function. The surgeon can adjust the outputs by power control ESU pencil.



10.The ESU unit can be connected with laparoscope and endoscope, etc.

11. Protection against over-voltage and over-current.

12. Defibrillation protected.



13. Convection refrigeration without ventilator.

14. Mounted on a 4 wheels cart(optional).

15. Meets the requirements of international safety standards EN60601-1 and EN60601-2.

2000A (LCD) Electrosurgical Generator.jpg

Technical Specifications of the Electrosurgical Instruments:

Power: 220V±22V, 50Hz±1Hz(110V±11V, 60Hz)

Operating frequency: a)Monopolar:512KHz  b) Bipolar:1024KHz

Power rating: 1100VA±10%



Nine working modes of the Electrosurgical Generator:

Mono-polar Cut

1. Pure cut:1W~400W( Load 800Ω)

2. Blend1:1W~300W(Load 800Ω)

3. Blend2:1W~200W(Load 800Ω)

4. Blend3:1W~150W(Load 800Ω)



Mono-polar Coagulation

1. Spray Coagulation:1W~80W( Load 800Ω)

2. Forced Coagulation:1W~120W( Load 800Ω)

3. Soft Coagulation:1W~120W( Load 800Ω)



Bipolar

1. Bipolar Coagulation: 1W~70W( Load 200Ω)

2. Bipolar Cut: 1W~120W( Load 200Ω)

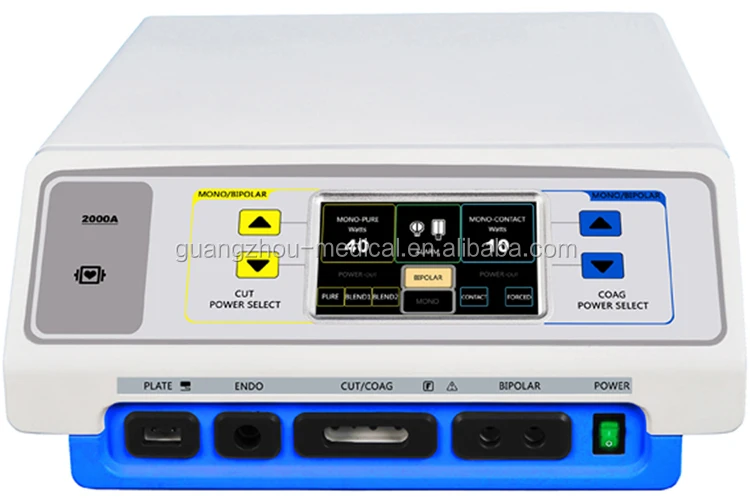

2000A (LCD) Electrosurgical Generator front.jpg

Power Consumption: ≤1100VA



Configuration Sheet of the Bipolar Electrosurgical Unit:



Electrosurgical Pencil          5pcs

Electrosurgical Pad             10pcs

Electrosurgical pad cable    1pcs

Footswitch                           1set

Bipolar Forceps                   1pcs

Bipolar forceps cable           1pcs

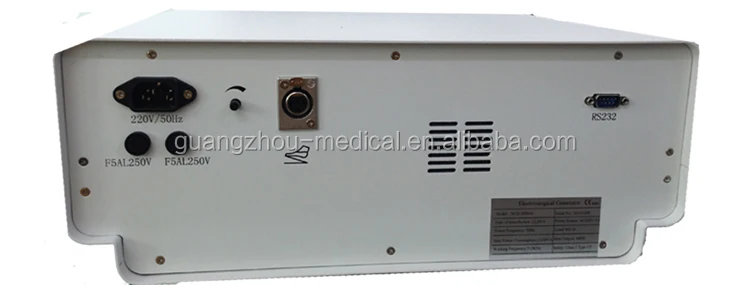

2000A (LCD) Electrosurgical Generator whole back.jpg

Accessories of the MCS-2000AI(LCD) Electrosurgical Unit:


Electrosurgical unit

We provide different kinds of electrosurical unit. Some are shown in the following pictures. For more infomation, please refer to our webside: guangzhou-medical.en.alibaba.com.

Electrosurgical Unit 750.jpg
