Sonoscape S40 Echo cardiovascular ultrasound
Sonoscape S40 Echo cardiovascular ultrasound
Sonoscape S40 Echo cardiovascular ultrasound
Sonoscape S40 Echo cardiovascular ultrasound

Sonoscape S40 Echo cardiovascular ultrasound

Model NO.:
S40
Price:
USD 100.00-10000.00 / set
Delivery:
FOB
Minimum order quantity:
1 set
Supply Ability:
100 set / Month
Country of Origin:
Beijing, Shanghai, Guangzhou, Shenzhen, Hongkong
Stock Time:
5~15 Working Days for Good Price ultrasound Days
  • Place of Origin:CN;GUA
  • Model Number:S40
  • Brand Name:MeCan
  • Type:Doppler Ultrasound Equipment

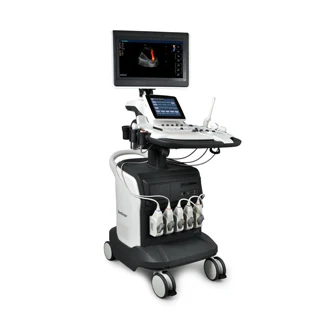

Sonoscape S40 Echo cardiovascular ultrasound

moidel:S40



FEATURES




Through years of continuous innovation, development, and by giving priority to our customers’ requirements, is proud to release its new generation, high-level ultrasound product, S40. Based on  a revolutionary new platform, combining SonoScape's core imaging technologies and sleek ergonomic design, the S40 represents the new standard of SonoScape S series products.  This elevates imaging performance to a record level and satisfies even the most demanding clinical requirements, significantly expanding the value of ultrasound.

19 inch widescreen
10 inch smart interactive graphical Touch Screen
High Resolution Monitor

          -- High definition 1024*768
          --Wide viewing angle for 170°

Four-way Articulated Arm with lock, vertical and horizontal rotation
Fully adjustable and rotating Control Panel
User-oriented multinational language input keyboard
Gel Warmer and Endocavity Probe Holder
5 Transducer Sockets plus one special connector for Pencil Probe
Full range of Transducers configured with latest technologies
Patient-oriented File Management System.
Flexible user-defined functions
Customized one button functions
Optional Wi-Fi and Blue Tooth functions
Full patient database solution:DICOM3.0, AVI/JPG, USB2.0, HDD,DVD,PDF report
Premium Platform with Perfect Work Flow


S40 is committed to providing doctors with exceptional imaging quality in both near and far fields, greatly improving resolution and penetration for greater diagnostic confidence.

u-Scan
u-Scan Technology uses real-time image processing algorithms to eliminate speckle and noise artifacts, enhancing tissue margins and borders by correcting discontinuity between different regions. Thus allowing improved visualization of real tissue information. It can also automatically adapt the acoustic velocity in different regions to improve the resolution and contrast.

Spatial Compound Imaging
Spatial Compound Imaging utilizes several lines of sight for optimal contrast resolution, speckle reduction and border detection. Configured with SCI technology, the S40 is ideal for superficial and abdominal imaging with better clarity and improved continuity of structures.

Pulse Inversion Harmonic Imaging

The harmonic signals are fully preserved without degradation of the acoustic information. Makeing it possible for the S40 to take high-level detailed images and improve contrast resolution by reducing noise and clutter in the visualization of subtle lesions, small parts, vascular and so on.

Auto-Adaptive Imaging Processing
This technology used in the S40 can automatically adapt the acoustic velocity in different regions to improve the resolution and contrast.

Powerful, professional measurement tools allow you to give an accurate and quick diagnosis. The measurement packages of the S40 are comprehensively applicable to  cardiology,OB/GYN,radiology,anesthesiology,musculoskeletal department etc. The high-level ultrasound diagnosis systems provide excellent solutions for both adults and pediatrics. You can make clinical decisions with greater confidence and  expand your practice in new directions.
Cardiology Application
Professional cardiac transducers
--TEE Probe (adults and pediatrics)
--High Frequency Phased Array
--Low Frequency Phased Array
--Micro-convex
Powerful cardiac software

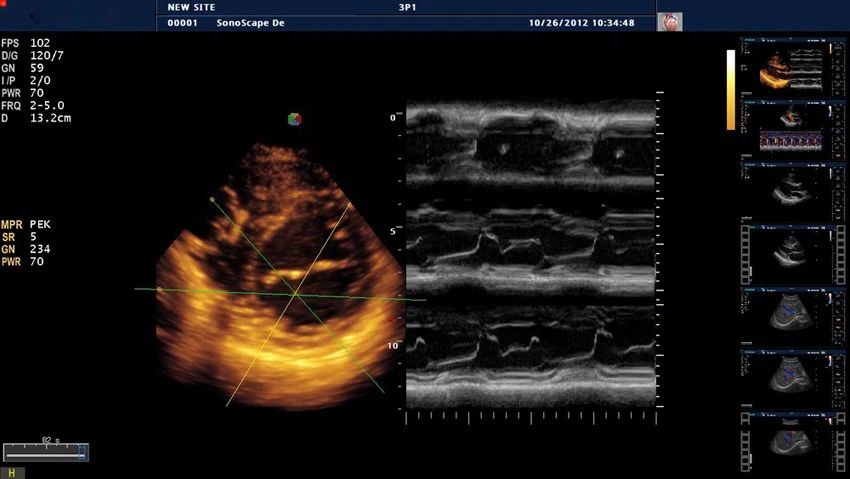

Anatomic M Mode



This advanced cardiac technology features three cursors which can be set at any position and angle simultaneously. The S40 offers the best approach to reducing time-per-patient, while maintaining diagnostic precision in addition to the standard cardiac features, acquiring all information even in hard-to-scan situations with difficult heart positioning.

Stress Echo
Stress echo is the combination of 2D echocardiography with a physical or pharmacological stress, which can determine how the heart muscles respond to stress and is mainly used to diagnose and evaluate coronary artery disease. The S40’s stress echo package comes with a fully integrated and easily programmable interface that can be customized to fit your needs. These features are to help deliver a streamlined workflow for wall motion scoring and reporting.

Tissue Doppler Imaging(TDI)
TheTissue Doppler Imaging in the S40 can provide velocities and other clinical information on myocardial functions. Facilitating clinical doctors when analyzing with recorded motions in different parts of the patient’s hear for comparison.




Intima-Media Thickness (IMT)
Automated measurement of the Intima-Media Thickness of the carotid artery wall is a widely-used function. What distinguishes the S40 is that it provides instant and accurate Mean and Max index at the touch of a single button.


The S40 provides superior endovaginal imaging as well as excellent fetal imaging for both 2D and 4D acquisitions. The S40 is a comprehensive imaging system engineered to meet today's most demanding needs, from deep abdominal, vascular to superficial small parts.
Obstetrics & Gynecology Application

Real-time 3D (4D)

Thanks to increased physical channels, high frame rate and advance technologies, the 4D imaging of the S40 delivers smooth movement of fetus and offers comprehensive 4D acquisition, data rendering, and post-processing functionality.

C-Xlasto elastography
provides the S40 with a new method to support the physician in assessing tissue elasticity. The differences in tissue response are detected and visualized in real-time by the elastography algorithms through different graphical representations, which can be particularly helpful in analyzing breast, thyroid and musculoskeletal structures.

Panoramic Imaging
The S40 provides real-time panoramic imaging for bulky organs and masses for ease of measurement and diagnostic efficiency. Rapidly generating accurate information on the position of lesions.

Trapezoid Imaging
Enlarging the field of view by 30%, trapezoidal imaging can enhance the scanning capability for large lesions.
Radiology Application


Full range of transducers
Including Convex, Linear, Endocavity, L-shape intraoperative probe,etc.
A wide frequency range

Complete imaging technology

The vision that drives your constant development and provides excellent care to patients is the same vision that goes into the S40
