One-Stop Medical Equipment Supplier
Sterilization of Surgical Instruments
Sterilization of Surgical Instruments
Sterilization of Surgical Instruments
Sterilization of Surgical Instruments
Sterilization of Surgical Instruments

Sterilization of Surgical Instruments

Model NO.:
MCS-150
Price:
USD 100.00-99999.00 / unit
Delivery:
FOB
Minimum order quantity:
1 unit
Supply Ability:
3000 unit / Month
Country of Origin:
Guangzhou, Shenzhen, Shanghai, Hong Kong
  • Type:Pressure Steam Sterilization Equipments
  • Place of Origin:CN;GUA
  • Instrument classification:Class II
  • Brand Name:MeCan
  • Model Number:MCS-150

Sterilization of Surgical Instruments



Horizontal Cylindrical Pressure Steam Sterilizer Autoclave

Model:MCS-150YDA (150L)

            MCS-200YDA (200L)

            MCS-280YDA (280L)

           MCS-400YDA (400L)

           MCS-500YDA (500L)


Technical data:

 Model

MCS-150YDA

MCS-200YDA

MCS-280YDA

MCS-400YDA

MCS-500YDA

Sterilizing chamber  volume

150L           φ480×850mm

200L             φ515×1000mm

280L             φ600×1000mm

400L                 Φ700×1100mm

500L             Φ700×1300mm

working pressure

0.22MPa

working  temperature

134℃

Adjustment of temperature

40℃ - 134

Time of sterilization

0-60 min

Time of drying

0-60 min

Heat average

≤± 2℃

Power

9KW/380V 50Hz

9KW/380V 50Hz

12KW/380V 50Hz

18KW/380V 50Hz

18KW/380V 50Hz

Dimension (mm)

1400×600×1300

1400×670×1650

1400×770×1780

1430×880×1830

1800×900×1820

Transport dimension (mm)

1550×750×1850

1560×820×1850

1680×920×2100

1800×1050×2100

1850×1050×2100

 G.W/N.W

320/240 KG

350/260 KG

465/365 KG

530/420 KG

580/470 KG



Characteristics ot the 500L Autoclave:

1. Sterilizing course automatic sterilization controlled, easy to operate.

2.With drying function, suitable dressing drying.

3. With over-temperature, over-pressure auto-protectdevice.

4. The door opening mechanism cannot be operated until the pressure in the chamber is reduced to 0.027MPa.It can't be start on if the door doesn't close well.

5.The safety value will be open automatically when the inner pressure over 0.24MPa,and the steam be exhausting to the water     tank.

6. The power will be cut-off automatically, cut-off the water and alarm when the machine lacking water.

7. The chamber of the sterilizer is made of stainless steel.



Aplication of Horizontal Autoclave:

The horizontal autoclave, which adopted the way of gravity exchange to releasing the cold air from the chamber more completely to ensure the reliable sterilization.



The control system automatically adjust the steam inlet and outlet according to chamber temperature during sterilizing.



This unit is ideal equipment for hospitals, chemical, food, scientific research institutes and other organizations to sterilize surgical instruments, dressings, medicines, culture medium, food, fabric glassed etc.



More detail photos for 500L Autoclave:

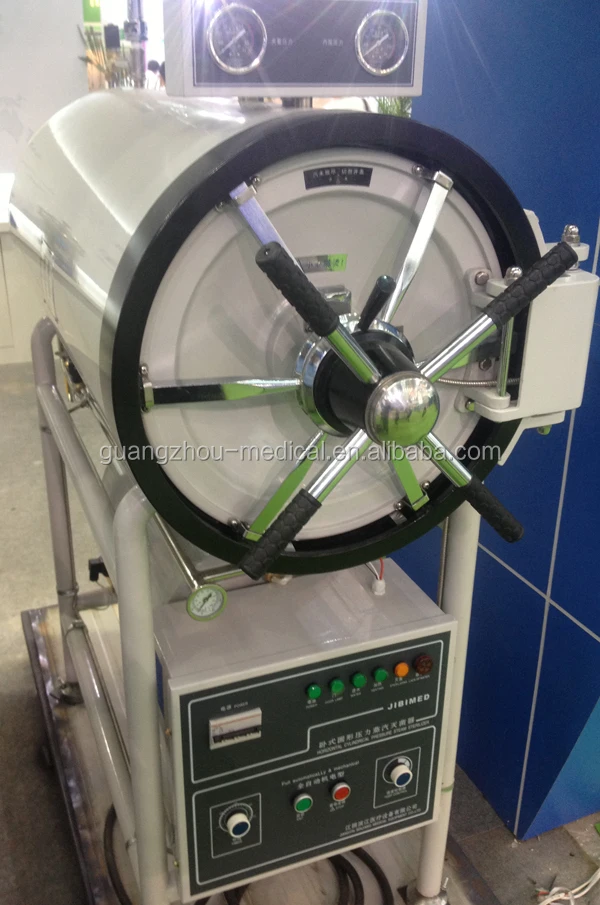

Strainless Steel Chamber and Control Panel:

China Horizontal Laboratory Steam Autoclave Sterilizer.JPG



Strainless Steel Chamber:

Horizontal Laboratory Steam Autoclave Sterilizer.JPG



Steam Generator:

500L China Horizontal Laboratory Steam Autoclave Sterilizer.JPG





Beside  Horizontal High pressure Hospital Sterilizing Large Autoclave Machine for sale,we offer series Autoclave Sterilizer Equipment.

Autoclave Sterilizer





Together with client

We have sold 50mA Mobile X-ray Machine MCX-L102 and other medical equipment to more than 109 countries and built long term partnerships with clients such as UK, US, Italy, South Africa, Nigeria, Ghana, Kenya, Turkey, Greece, Philippines, etc



Why choose us ?


Testimonials

1. From the Biomedical Engineer of Senegal.

hello, the installation of the RX unit was a success. all is ok and i have a very good picture.

 THANK YOU



2. From Dr. Salman Hasan, Doctor from Nigeria

Hello we have installed the radio and we are really satisfied with its operation.



3. From Dr. Emma Adapoe, Ghana, Africa.

 Mecan Medical Company Limited:

I have tried them for their honesty

I have tested their products for Good Quality

I have experienced their Good and and nice service and customer relations

I endorse Mecan because they stand the test of time.



Please contact us and let’s talk details for the  150L 200L 300L 400L 500L Horizontal High pressure Hospital Sterilizing Large Autoclave Machine for sale
