One-Stop Medical Equipment Supplier
Surgical Electric Orthopedic Drill With Battery, Veterinary Medical Orthopedic Drill Bits
Surgical Electric Orthopedic Drill With Battery, Veterinary Medical Orthopedic Drill Bits
Surgical Electric Orthopedic Drill With Battery, Veterinary Medical Orthopedic Drill Bits
Surgical Electric Orthopedic Drill With Battery, Veterinary Medical Orthopedic Drill Bits
Surgical Electric Orthopedic Drill With Battery, Veterinary Medical Orthopedic Drill Bits
Surgical Electric Orthopedic Drill With Battery, Veterinary Medical Orthopedic Drill Bits
Surgical Electric Orthopedic Drill With Battery, Veterinary Medical Orthopedic Drill Bits

Surgical Electric Orthopedic Drill With Battery, Veterinary Medical Orthopedic Drill Bits

Model NO.:
MC-DZ01
Price:
USD 2000.00-2000.00
Delivery:
FOB
Minimum order quantity:
1
  • Place of Origin:CN;GUA
  • Properties:Anatomy Appliances
  • Brand Name:Mecan
  • Model Number:MC-DZ01

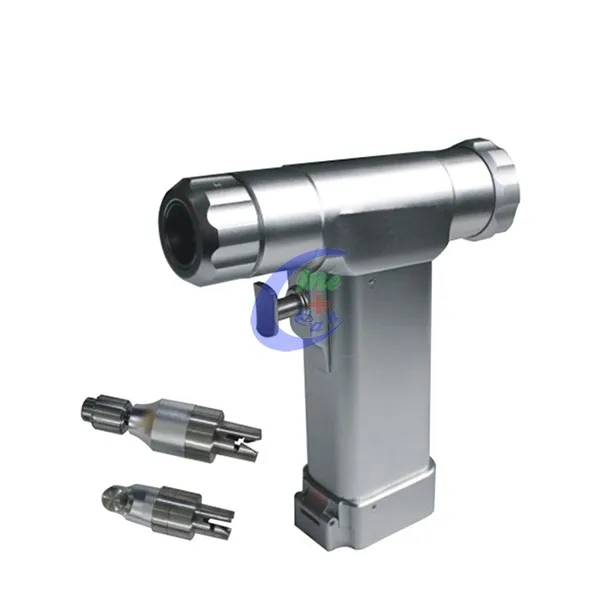

Surgical Electric Orthopedic Drill With Battery, Veterinary Medical Orthopedic Drill Bits



Model: MC-DZ01

 orthopedic drill bits

Hand multifunctional main unit
weight: 0. 6kg, it is can be connected with bone drill, oscillating saw and AO drill, safe, efficient, autoclavable up to 135°C



Application:
Plastic surgery for human and most of surgery for animal.



Technical data:



Hand PieceWorking Voltage7.2V
Output Power≥50W
Unit rise in temperature≤20°C
ChargerInput VoltageAC110- 220V,50Hz
Output Power7.2V
Input Power30VA
BatteryVoltage7.2V
Charging timeAbout 30 minutes
Bone drillnon-load speed0-1100rpm
non-load noise≤40dB
diametre run-out≤0.05mm
output power50W
twist drillΦ 0-4
K-Wire drillΦ 0-2.5
AO drillimported drill chuck,Speed: 0-1100rpm
AO drillΦ 0-2.5
Oscillating sawfrequency0-18000rpm,
Standard sawsmall, middle, big







orthopedic drill





 orthopedic drill bits

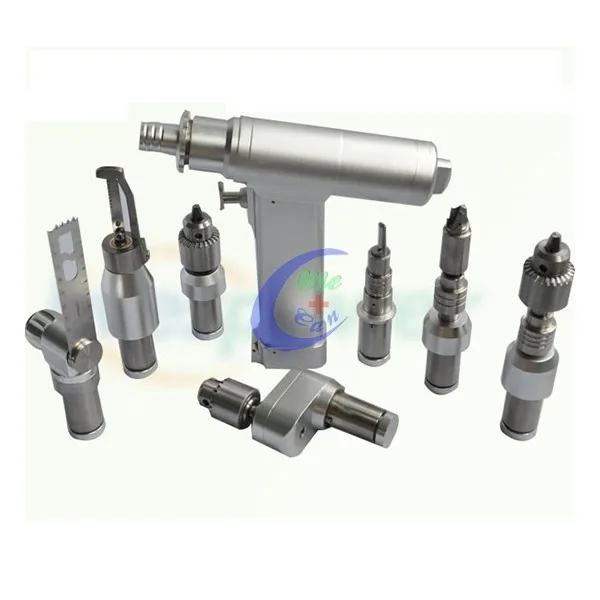

Specifications of  seven functions veterinary drill saw

Model: MC-DZ02

orthopedic drill



Technical Data

Charger input voltage AC220V/50HZ

Unit rise in temperature < 25°

Frequency >15000rpm

Speed (drill) >600rpm

Speed (acetabulum burnishing drill) >130rpm

Torque (quick chuck) >7500G/C

Torque (reamer) >33000G/C

Torque (HOLLOW DRILL) >11200G/C

Weight: 3100g



Compositions



ComponentsFunction & featureQuantity (pcs)
Multifunctional handpieceweight: 1.02kg,can connected with seven adapters below, safe, efficient, autoclavable up to 135 degree Celsius1
cranial drillspeed: 0-900 rpm,stop automatically, no damage for soft tissue to ensure the safety in operation1
cranial mill0-40000rpm1
sternum sawrotate 360,no damage for sternal soft tissue1
canulate drillspeed:0-600rpm, can connect all kinds of canal reamer, hollow diametre being 4.0mm, suitable for different K-wire & pin chuck1
bone drillspeed>1300rpm,imported drill chuck, high Coaxiality, suitable for trauma surgeries1
oscillating sawfrequency:18000rpm, used for joint surgeries1
acetabular drillspeed:0-450rpm, can connect kinds of acetabular reamer & hip cavity reamer1
batteryweight:0.36kg, could last for 30 minutes after fully charged2
charger110-220V, plug could be made European & American type1
saw bladesimported material, could be used repeated2
sterilizing channelthe battery could not be sterilized, it could be sterilized by this1
high temperature coverblock up the connetor part of handpiece while sterilizing1
aluminiun carrying boxPackage of the above items1
Optionalsterilization caseit has cover, the components need to be placed in order during sterilizing1





Remark: components & accessories could be changed according to requirement, the standard configuration: one hand piece, one charger, two batteries, seven adapters, two oscillating saw blades, two sternum saw blades, one high temperature cover, one sterilizing channels



Technical features

1. Main frame is made of stainless steel, durable, long working hours, the accessories can be selected freely for different operation.

2. Quick chuck: Imported chuck ensures outstanding performance during operation.

3. Sternum saw: Both 360° rotating head and blade guard can protect soft tissue around sternum.

4. Craniotomy mill: 40000r.p.m rate ensures fast, efficient and safe process in craniotomy.

5. Oscillating saw: 360°rotating head can be applied to any surgical area. Wrench-free device allows easy, fast and safe loading and unloading blades.

6. Reamer: Hi-torque, ideal for acetabulum or medullary operation, available to various mills.

7. Wire and pin chuck: A canula with diameter 4.0mm applies to various intramedullary pin or kirschner pin fixing operation easily and conveniently.

8. Cranial drill: Auto-pause after perforation ensures safety in neurosurgery.

9. Highest quality

10. Perfect ergonomic design

11. Applicable to different kinds of surgery options.

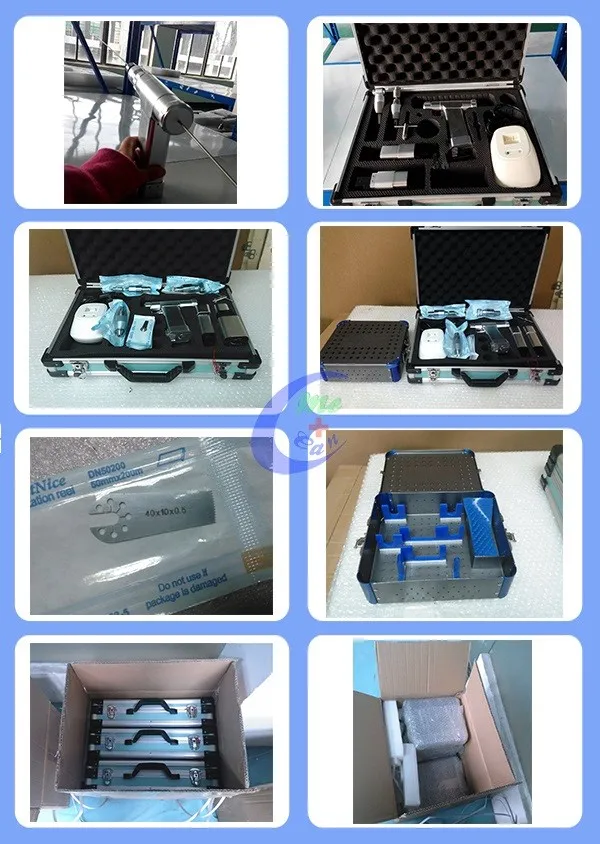

More detail of our seven functions veterinary drill saw

orthopedic drill bits
