Used Portable X-ray Machine
Used Portable X-ray Machine

Used Portable X-ray Machine

Model NO.:
MCX-L102 Used Portable X-ray Machine
USD 1000.00-9999.00 / set
Minimum order quantity:
1 set
Supply Ability:
3000 set / Month
Country of Origin:
Beijing, Shanghai, Shenzhen, Guangzhou,Hongkong
  • Properties:Medical X-ray Equipments & Accessories
  • Place of Origin:CN;GUA
  • Instrument classification:Class II
  • Brand Name:MeCan
  • Model Number:MCX-L102 Used Portable X-ray Machine

50mA Mobile X-ray Machine

Model: MCX-L102


Specifications Of  MCX-L102 Mobile 50mA Medical X-ray Machine:

Output power


X-ray tube

Fixed anode

Max height:1750mm, Min height:500mm

Rotate around horizontal axis 180°

Rotate around vertical axis ±90°

Rectifier method

Full-wave rectifier

Tube voltage

40~90kV 9steps

Tube current

50~90kV 15mA

50~90kV 30mA

40~80kV 50mA

Photography time

50~90kV 15mA   0.1~6.3s

50~90kV 30mA   0.1~6.3s

40~80kV 50mA   0.1~1.5s

Power supply

220V±10%  50Hz  Inner resistance1.0Ω

Operation methods

Wire control/wireless control (10m)


Features Of  MCX-L102 Mobile 50mA Medical X-ray Machine:

1. Using ergonomic design, the structure is of compact appearance, convenient operation.

2. It adopts high pressure-resistant electrical tube with enough kV and mA, so the definition and contrast of the machine are good.

3. With combined X-ray generator, the tube and rocker can move up and down freely. So the patient can take photography in a wider range of direction.

4. Because of symmetrical adjustable beam limiting device with light source, the x-ray beam can be adjusted according to demands.

5. X-ray generator is matched with protective stereotype inside, and 10 meters wireless remote control exposure is adopted, so it causes less hurt to the operators and environment.

6. The current has three gears (15mA, 30mA, 50mA), different current can be selected according to different photography requirements, thus using range of machine is wider.

7. Anti-electric shock, anti scattering and full-wave rectifier

8. The electric performance is stable and reliable. Multi-protections are adopted to prevent over-voltage, over-current and output overload etc., so it’s safer.

9. Telescopic vertical rotating angle is larger than 60°.



The machine is mobile X-ray radiography medical diagnostic equipment. It can be used in wards, operation rooms and emergency rooms etc., and it can satisfy the radiography requirements of human body such as head, chest and limbs.


More Details of  MCX-L102 Mobile 50mA Medical X-ray Machine:

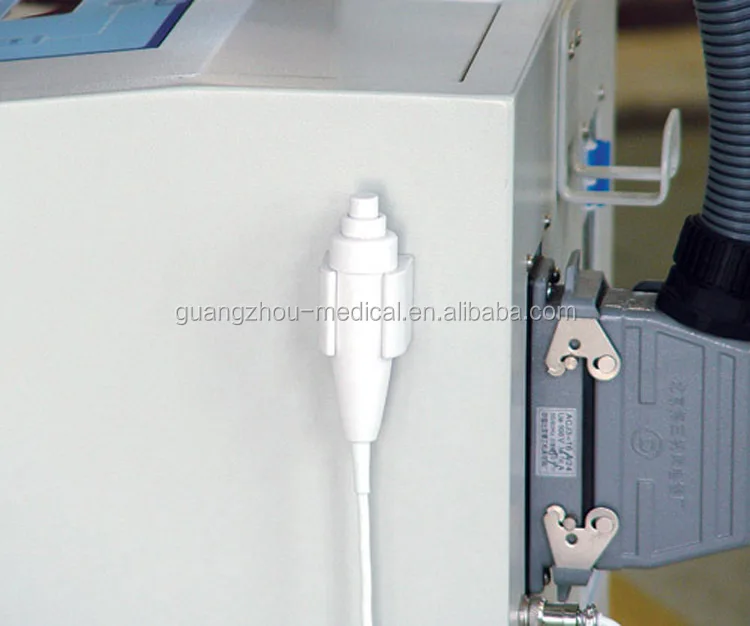

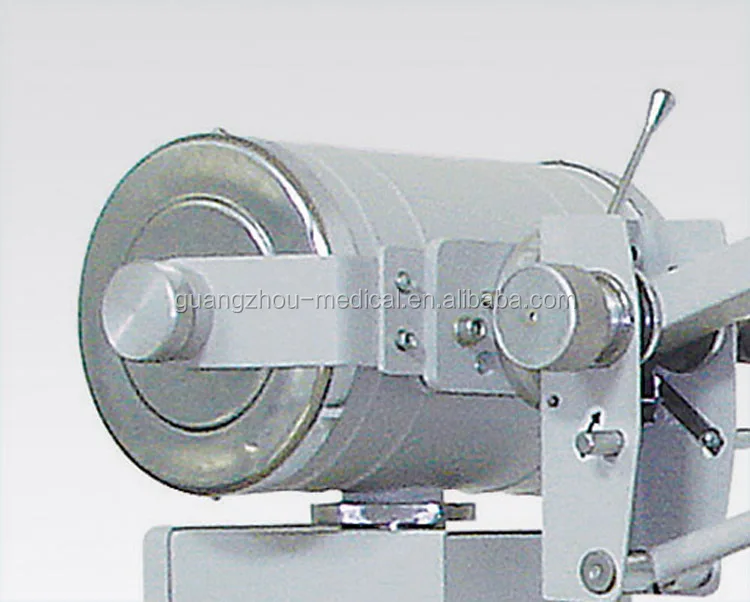

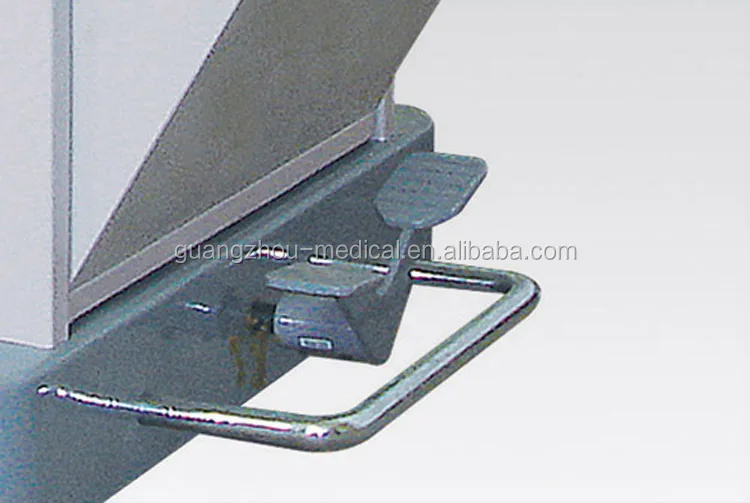

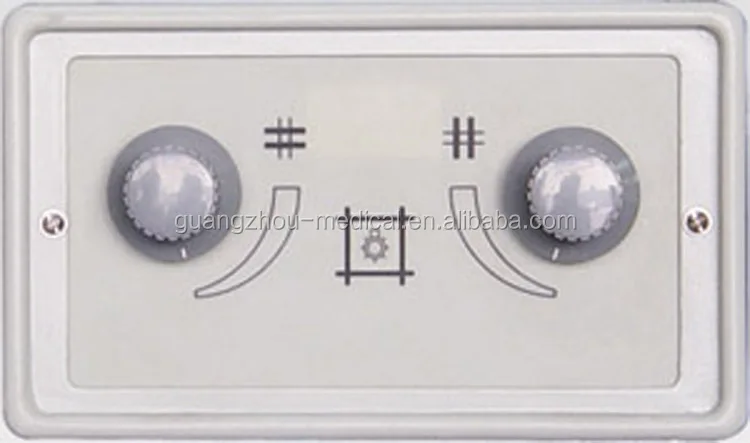

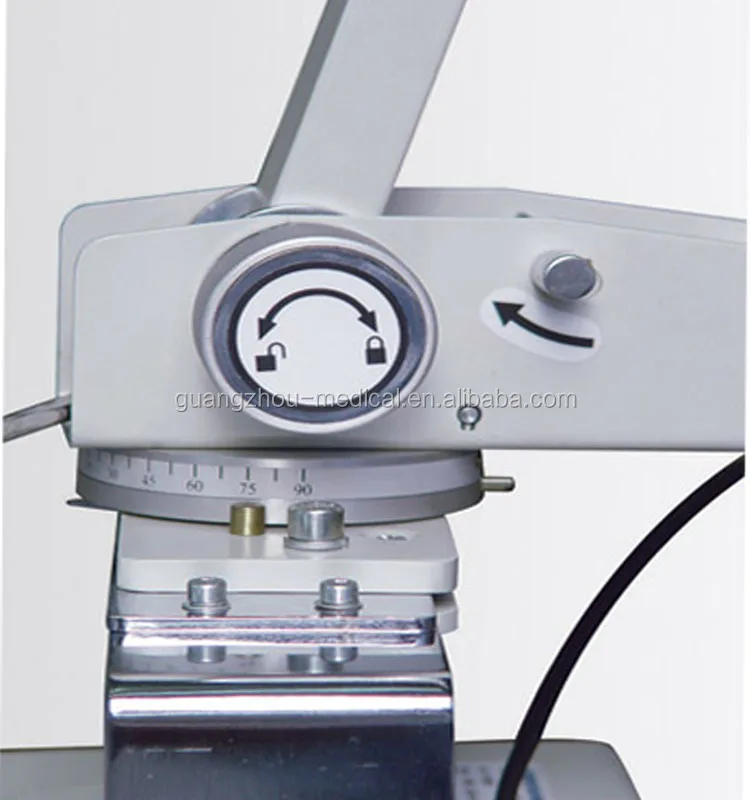

specific 1 of MCX-L102 50mA Mobile X-ray Machine.jpg


specific 2 of MCX-L102 50mA Mobile X-ray Machine.jpg


specific 3 of MCX-L102 50mA Mobile X-ray Machine.jpg


specific 4 of MCX-L102 50mA Mobile X-ray Machine.jpg


specific 6 of MCX-L102 50mA Mobile X-ray Machine.jpg


specific 7 of MCX-L102 50mA Mobile X-ray Machine.jpg
