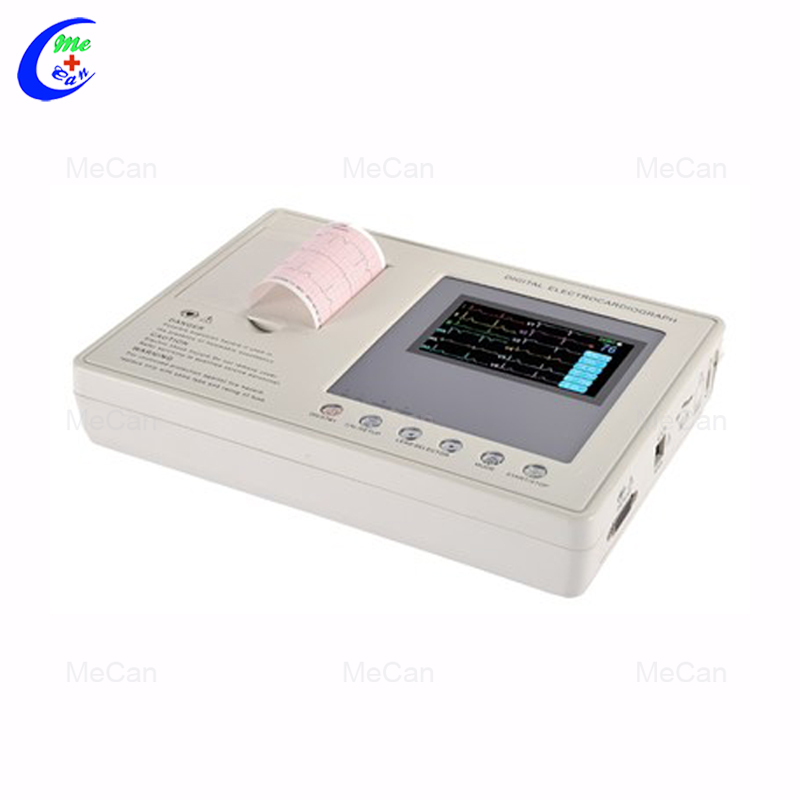

Cheap 4.3 Inch Color Screen 3 Channel ECG Machine

MCS-ECG18 is a three channel digital ECG instrument featuring simultaneous 12-lead signal acquisition. Its features include high-resolution thermal array printing system, high performance single-chip computer and large memory capacity. The advanced features make it ideal for the ECG examination in clinic and hospitals.

Quantity:
Availability:





Inquire Add to Basket

Product Description

Product Details

Company Profile

Cheap 4.3 Inch Color Screen 3 Channel ECG Machine

Model: MCS-ECG001 / MCS-ECG18

Features

1.4.3inch 480*272 color LCD display

2.12 lead simultaneous acquisition and display on the ECG screen

3.Multiple operation mode Auto/Manual/Arrhythmia analysis mode

4.80mm thermal paper recording with a rhythm lead

5.ECG reports with auto interpretation

6.Digital filter elimination of muscles tremors and baseline drift

7.Built-in rechargeable Li-poly battery with 3 hours continuous printing

8.Built-in memory for 250 reports and support external 4GB SD card

9.Built-in USB/RS232 interface

10.Adapt to 110-240V,50/60Hz AC power supply

Specification

Lead	12 leads, Standard or Cabrera, 12 leads simultaneously acquisition
Input circuit	Floating, Defibrillation protection
LCD display	480*272 4.3 inch color screen LCD display ECG waveform, operation conditions, Times, Heart-rate, etc
Sampling rate	8000 samples/sec
Input dynamics	±500mV
Operation Mode	Automatic, manual, single channel 60s compressed record, Rhythm analysis (R-R histogram and trend chart)
Filter	AC(50Hz or 60Hz, -20dB)
	EMG (25Hz/35Hz/45Hz/75Hz/100Hz,-3dB)
	Drift (0.5Hz,-3dB)
CMRR	>100dB(with AC filter)
Input circuit current	≤0.1μA
Input Impedance	≥50Mohm
Times constant	≥ 3.2 Sec
Frequency Response	0.05--150Hz,-3dB
Noise Level	≤15μVp-p
Sensitivity	1.25; 2.5; 5; 10;20; 40mm/mV±2%
Calibration Voltage	1mV±2%
Patient Current Leakage	<10uA
Protection	Protect from defibrillation and pace-making
Printing system	Thermal printer; ≥8dot/mm(Vertical), ≥40 dot/mm (Horizontal),printing speed at 25mm/s
Printing Speed	5; 6.25; 10; 12.5; 25; 50mm/s±3%
Printing Output	3/2 channel; 3/2+1 channel; 3/3channel; 3/3+1 channel
Paper size	80mm*20m roll type or Z-fold thermal paper
Patient Cable	standard 10 core
Report storage	200 reports in built-in memory, support external SD card
Report storage	report presentation, review and re-printing.
Indicator	Lead-off detection
Power Supply	12.6V 1500mA Li-poly rechargeable battery pack
Power Supply	220V±10%, 50Hz±2%, 75VA (AC)
Fuse Specification	2Φ5x20mm 3.15A 250V
Machine Dimension	285(W)200(D)55mm(H)
Machine weight	2.0 kg (machine only)
Gross weight	3.8 kg (including accessories)
