MX-VDR056A13
MeCan Medical

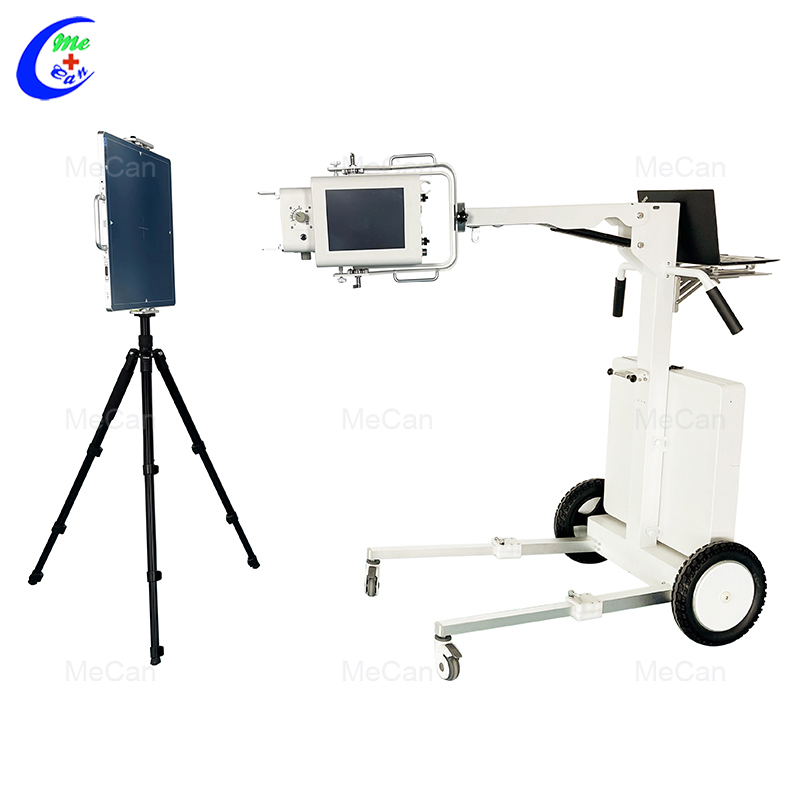

5.6kW Vet Portable Mobile DR with Touch Screen
Model: MX-VDR056A13
MX-VDR056A13 5.6kW Vet Portable Mobile DR can be used for dog, cat, horse, tortoise, pig, and other animals:
Use for the body parts of dog and cat:
Preseted parameters for Head, Neck, Back, Loin, Pelvis, Hip, Tibia, Knee, L-belly, U-belly,
Thoracic, Jaw, Shouler, Upper-arm, Forearm, Feet...
Use for the body parts of horse:
Preseted parameters for Skull, Spine, Shoulder, Elbow, Carpus, Metacarpus, Thorax CrD,
Thorax CdD, Belly, Knee, Metatarsus, Tarsus, Sacrum, Lumbar, Thorax, Withers...
Use for the body parts of tortoise:
Preseted parameters for Head, Leg, Body, Belly, ...
Application:
Ambulance, Animal hospitals, animal clinics, pet hospitals, zoos, animal medical colleges,
animal laboratories, animal research institutes, pet centers, horse farms, pastures, farms...

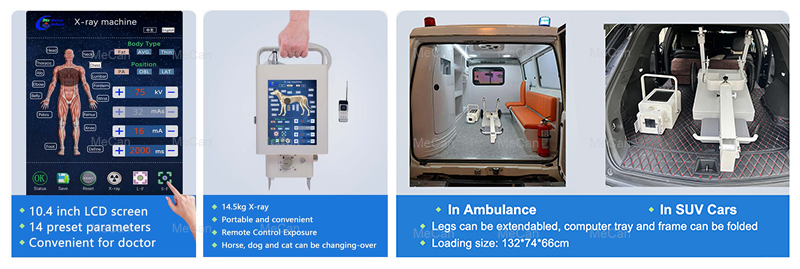

Features of 5.6kW Vet Portable Mobile DR with Touch Screen:
1. 10.4 inch LCD screen
2. 16 preset parameters
3. Support 5.6kW and 320mAs exposure.
4. Support remote monitor with wireless communication integrated.
5. Power density up to 275W/L.
6. High degree of software intelligence:filament automatic calibration, dual-filament automatic selection and complete fault diagnosis.
7. Horse, dog,cat, tortoise can be changing-over
8. Convenient for operation
9. Remote Control Exposure
10. Operator panel seperated as human and veterinary according to different purpose.
11. Portable and convenient, 14.5kg of the x ray unit, legs can be extendabled, computer tray and frame can be folded, loading size: 132* 74*66cm, it can be loaded into an ambulance and SUV car.
Specification of our 5.6kW Vet Portable Mobile DR with Touch Screen:
Power | 5.6KW |
Power Supply | Single-phase 220V 50/60Hz (wire diameter>4mm2,internal resistance<0.5Ω), |
Working Frequency | 80-200KHz |
mA | 32-100mA |
mAs | 0.1-320mAs |
KV | 40-125kv |
Exposure time | 2ms-10000ms |
Tube focus | 1.8*1.8mm |
Anode heat capacity | 42kHU |
Mobile x ray stand | MX-MS3 |
Flat Panel Detector | |
Image size | 17*17 inch (14*17 for option) |
Pixels Matrix | 140μm |
A/D Conversion | 16bits |
Spatial Resolution | 3.6 Lp/mm |
Software | Professional Software |
Computer | R5-5500U/8G/256G |

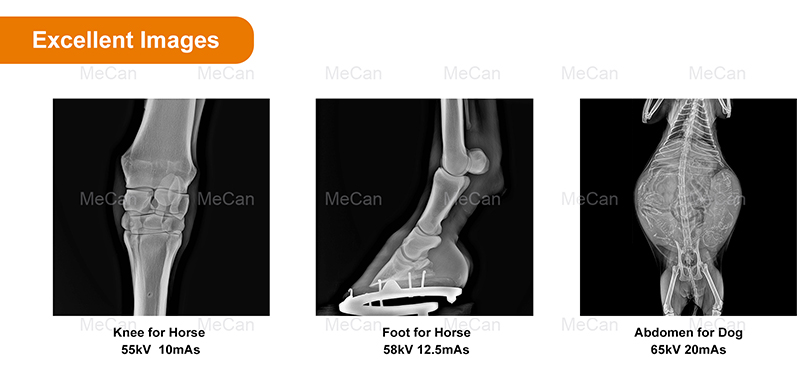

Excellent Test Image of MX-VDR056A13 5.6kW Vet Portable Mobile DR with Touch Screen
