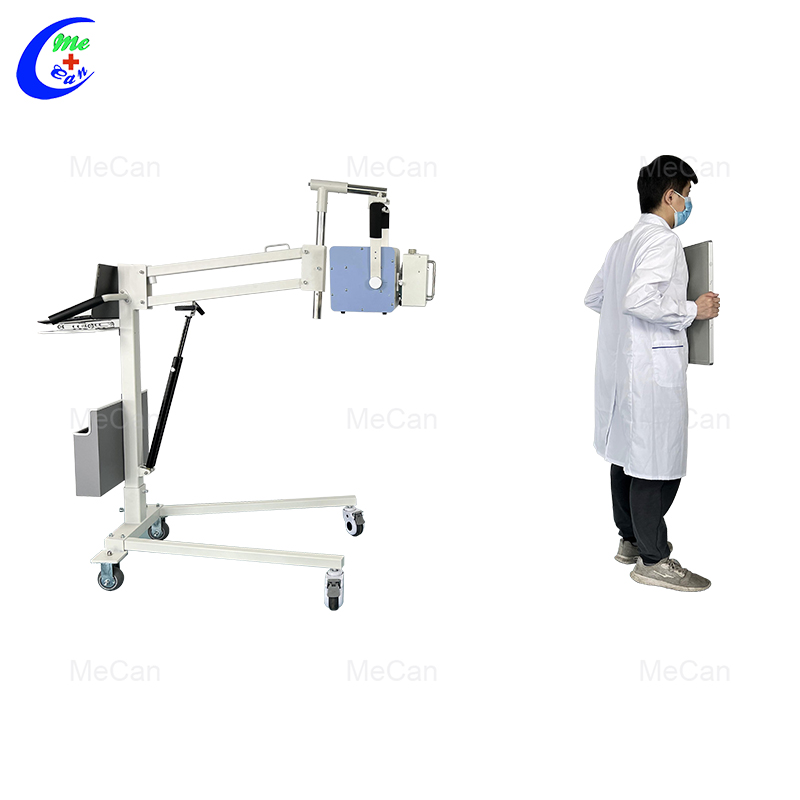

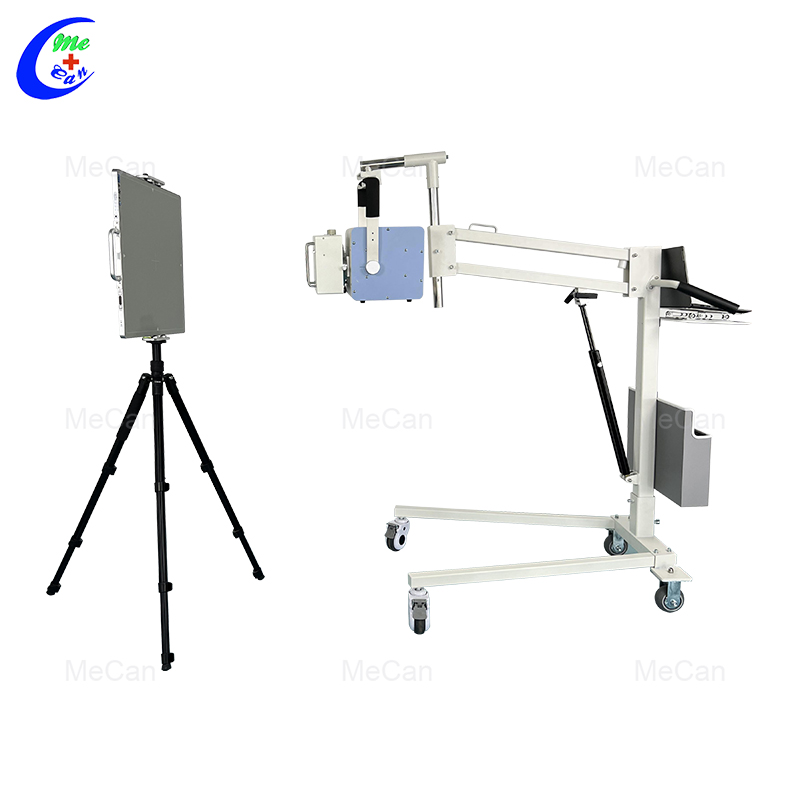

5kW Portable DR With Touch Screen - Fast, Convenient, Efficient

5kW Portable DR With Touch Screen - Fast, Convenient, Efficient

Model Number: MX-DR050B12

Features of our Portable DR With Touch Screen：

1.10.4 inch LCD screen

2.14 preset parameters

3.Convenient for doctor

4.Light weight

5.Easy to move

6.Safe with foot brake

7.15CM distance to ground, better trafficability

8. X-ray tube rotation and movement:  Y-axis: 120°,X-axis: 360°, Z-axis: 670mm--1 690mm

9. OEM/ODM supporting

10. Support 5.6kW and 320mAs exposure.

11. Operator panel seperated as human and veterinary according to different purpose.

Portable Digital X Ray Machine Specification:

Power	5KW
Power Supply	Single-phase 220V 50/60Hz (wire diameter>4mm2,internal resistance<0.5Ω)
Working Frequency	30kHz
mA	32-100mA
mAs	0.32-315mAs
KV	40-110kv
Exposure time	0.01-6.3s
Tube focus	1.8*1.8mm
Anode heat capacity	42kHU
Mobile stand	MX-MS2
Flat Panel Detector
Image size	17*17 inch (14*17 for (option)
Pixels Matrix	140μm
A/D Conversion	16bits
Spatial Resolution	3.6 Lp/mm
Software	Professional Software
Computer	R5-5500U/8G/256G

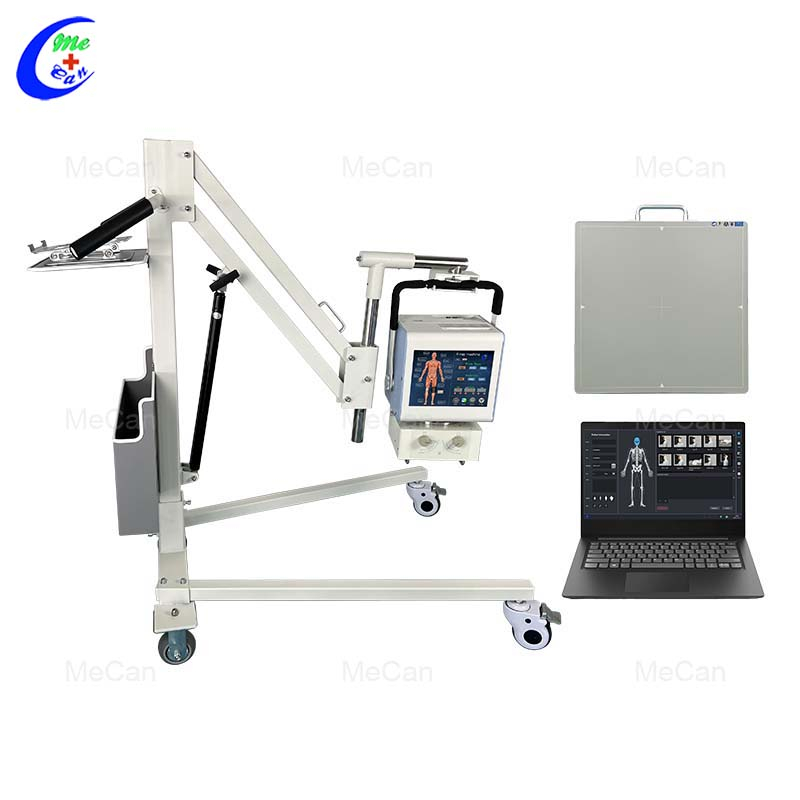

DR system for portable x ray machine

Test image of our Portable X Ray Machine

Size of our Portable Digital X Ray Machine
