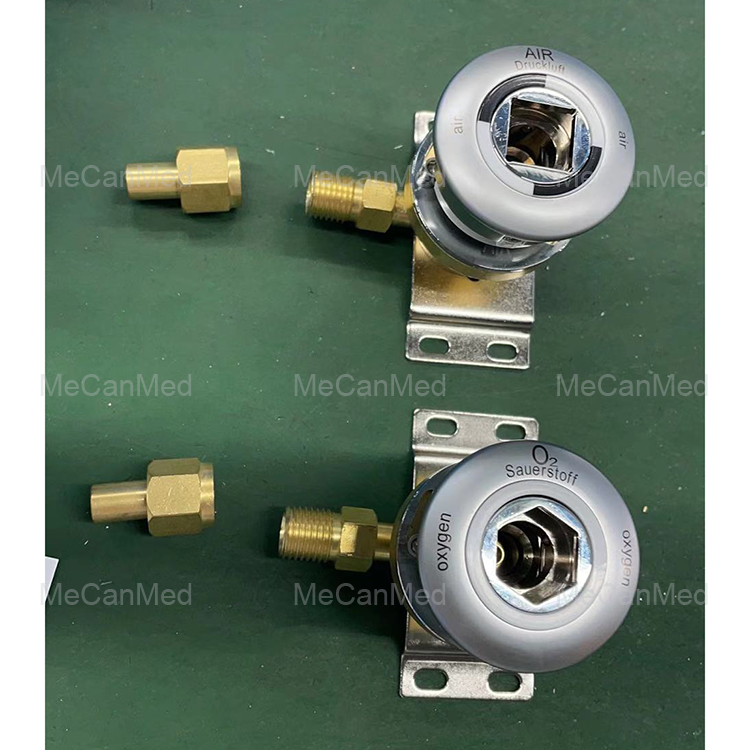

DIN standard Medical Gas Outlet
Model:MCF0422
DIN standard Medical Gas Outlet:
The DIN Standard Medical Gas Outlet is designed to provide a reliable and efficient connection for various medical gases in healthcare settings. Compliance with stringent regulatory standards ensures optimal patient safety and adaptability in diverse clinical environments.
Features:
Standards Compliance:Our medical gas outlet is fully compliant with EN 737-1:1998, DIN 13260-2, ISO 9170-1, ISO 9170-2, and bears the CE mark, ensuring it meets the highest quality standards in the industry.
Color-Coded Identification:For easy gas identification, the outlets are color-coded according to ISO 32 standards, helping medical staff quickly and accurately identify the gas in use.
Distinctive Sock Design:The socks in medical gas outlet for different gases are different shapes so that the supply of gases can not be confused.
Repairable Under Gas Supply:Designed with functionality in mind, this outlet can be repaired while the gas supply is still operational, minimizing disruption to medical services.
Safety Design:Equipped with a second put-out design, this outlet minimizes the risk of accidental disconnection of the adapter, enhancing safety during use.
Versatile Installation Options: The outlet can be installed in various configurations, including:
- Wall concealed installation
- Medical bridge pendant installation
- Bed head unit installation
Removable Protection Cover: Featuring a protection cover that can be easily disassembled, this outlet ensures that maintenance and inspection can be performed with minimal hassle.
Specifications:
Compliant Standard | EN 737-1:1998, DIN 13260-2, ISO9170-1, ISO9170-2, CE |
Gas Leakage Test | 100% tested |
Swap Fatigue Test | 10000 times |
Connection Type | Welding of 8mm copper tube, Hose tube connection, Thread connection |
Gas Type | O2, VAC, AIR, N2, N2O, CO2, AGSS, etc. |
Material | Brass body, medical silicone rubber sealing ring |
Installation | Wall concealed, medical bridge pendant, bed head unit, etc. |
The DIN Standard Medical Gas Outlet combines safety, functionality, and ease of use, making it an essential component in any medical facility. With its numerous compliance certifications, durability testing, and thoughtful design features, this medical gas outlet is crafted to meet the demanding needs of healthcare professionals. Ensure your medical gas supply system is safe and efficient with our high-quality medical gas outlets.
