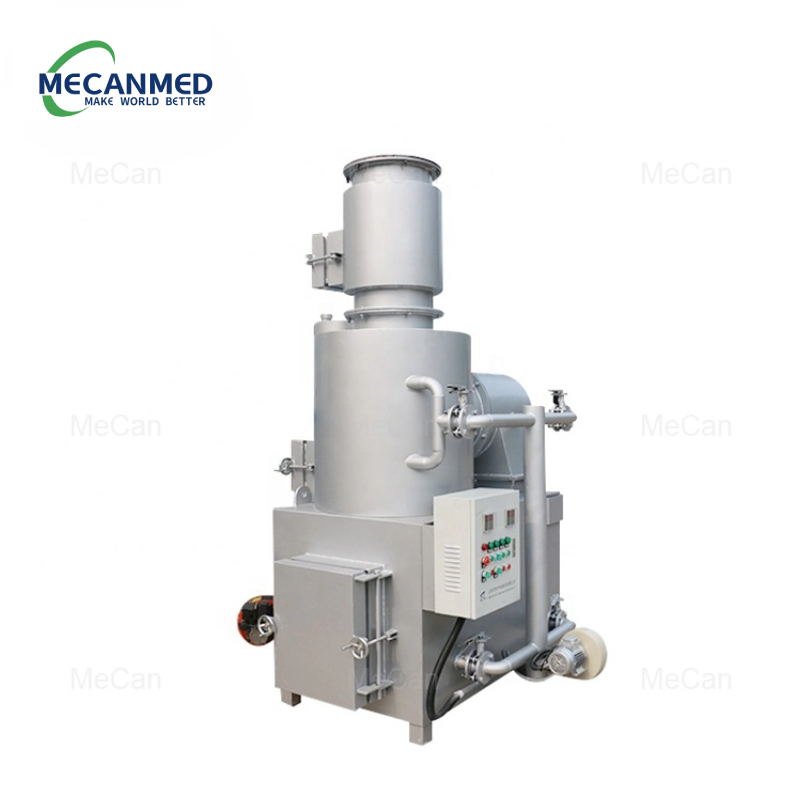

Dry exhaust gas treatment series Medical Waste Incinerator | Hospital Incinerator
Model: MCFS-500
1. Specifications
1).Smokeless and no harmful to environment.
2).Continuously and fully burning.
3).Simple operation.
2. Advantage
1) Long lifetime
2) Totally enclosed operation
3) Suitable for treating infectious waste
4) Avoid secondary pollution
5) Simple operation
3. Main features
1) Both gas-motivated and oil-motivated are all can be preferred according to customers` needs.
2) Gasified incineration is used for burning syringe, paper waste, bandage, absorbent cotton and other medical wastes.
3) Daily waste can be burned once by gasified incineration.
4)Gasified incineration, mixed incineration and burnout treatment ensures low emission standard of dust (lower than International standard).
5) Totally enclosed operation is suitable for treating infectious waste to avoid secondary pollution.
4. Application
1) Hospitals
2) Hotels
3) Stations
4) Industries
Detail Information of our Medical Waste Incinerator
Applicable hospital size (number of beds) | 600-800beds |
Burning Ability | 500kg/time (daily incineration 3-6 times) |
Size of the Burner | 3m*2m*4.8m |
Volume of the Burner | Gasification room 3.5m3, secondary buming room 1.5m3, drift a long buming room 0.3m3 |
Third Burner | Optional |
Size of the filling entrance | 1080mm*1280mm |
Chimney | Height 14m out-radius￠460mm |
Blower | Power 1.1kw 0.55kw |
Combustion-support combustion machines | Power 0.22kw,fuel consumption 7-14kg/h |
Re-burning machine | Power 0.37kw,fuel consumption 15-26kg/h |
Running voltage | 220V or 380V |
Standard Configuration of our MCFS-500 Medical Waste Incinerator
No | Name | Amount | Specifications | Notes |
1 | Incinerator | 1 | A3 steel refractories | Main part |
2 | The 2 combustion chamber and the combustion chamber mixed | 1 | A3 steel refractories | Installed in the main body |
3 | Electric box | 1 |
| The main body |
4 | Fluegas purification system | 1 | A3 steel refractories | Installed in the main body |
5 | Combustion burner | 1 | BTL-14 | The main body |
6 | Reburning burner | 1 | BTL-28G | The main body |
7 | blower | 1 | 1650W/220V/380V | The main body |
8 | Ash rake | 1 | ￠200mm×4000mm | MeCan Medical |
9 | Pump | 1 |
| The main body |
10 | fuel tank | 1 |
| The main body |
11 | fuel tank bracket | 1 | ￠600mm*2200mm | MeCan Medical |
12 | Chimney | 2 | ￠460mm*10000mm ￠460mm*5000mm | MeCan Medical |
13 | Filter switch | 5 |
| The main body |
14 | Thermocouple | 2 | 1200℃ | The main body |
15 | Operational procedures | 1 |
| The main body |

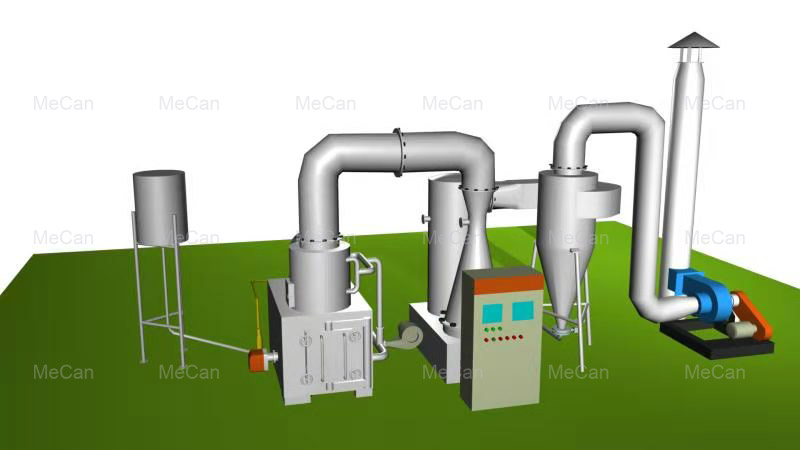

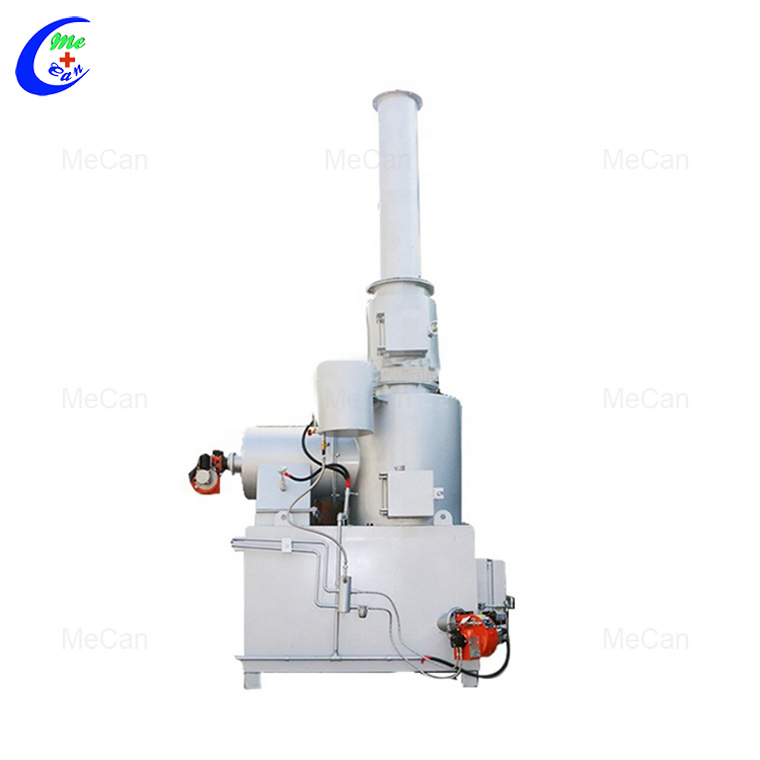

More detail of Dry type Medical Waste Incinerator

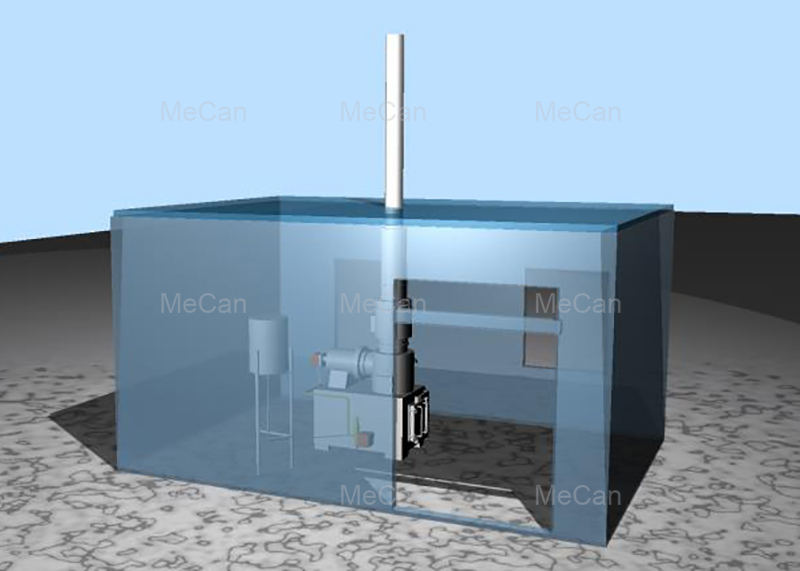

Layout of Dry type Medical Waste Incinerator in Room

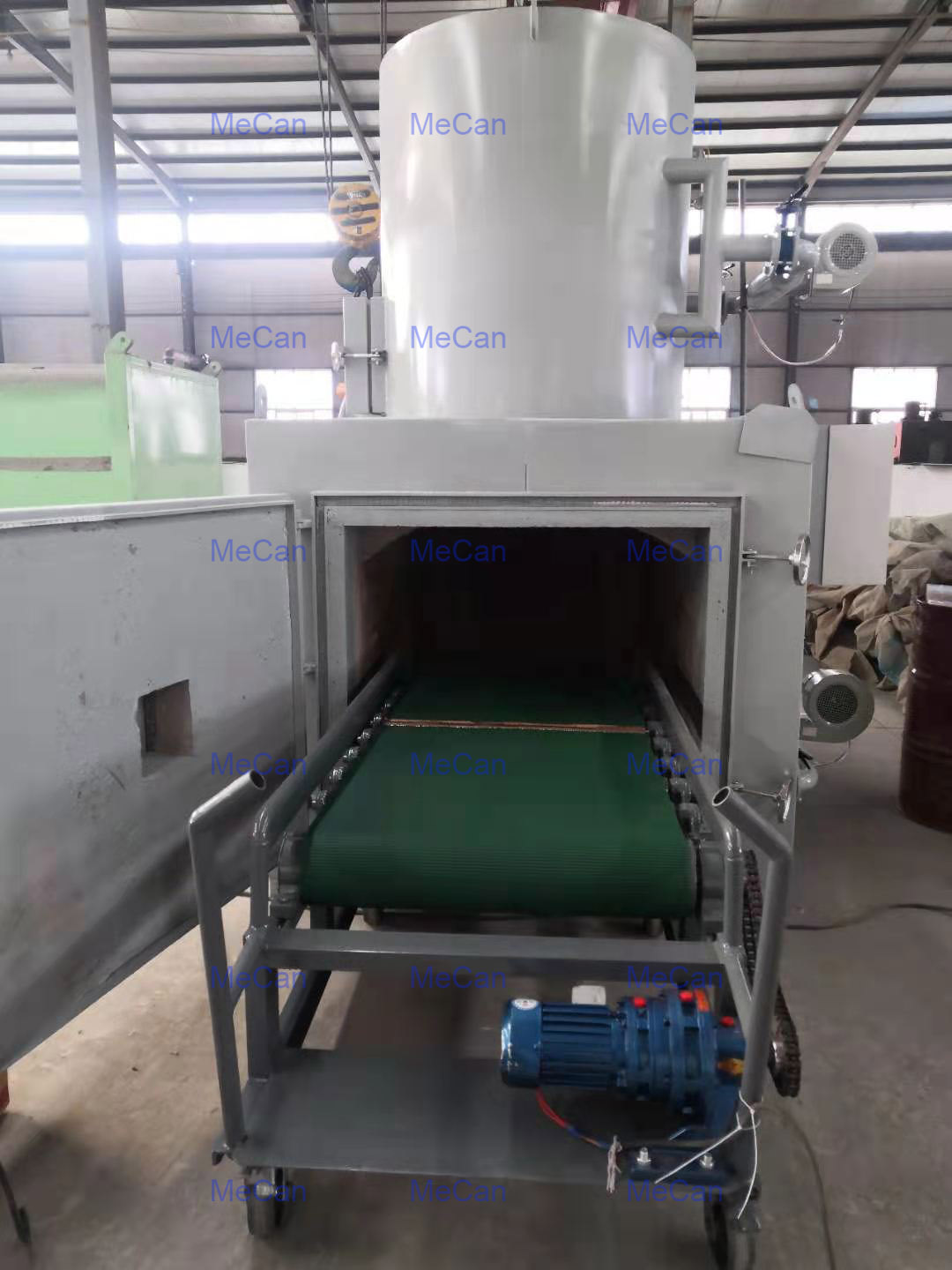

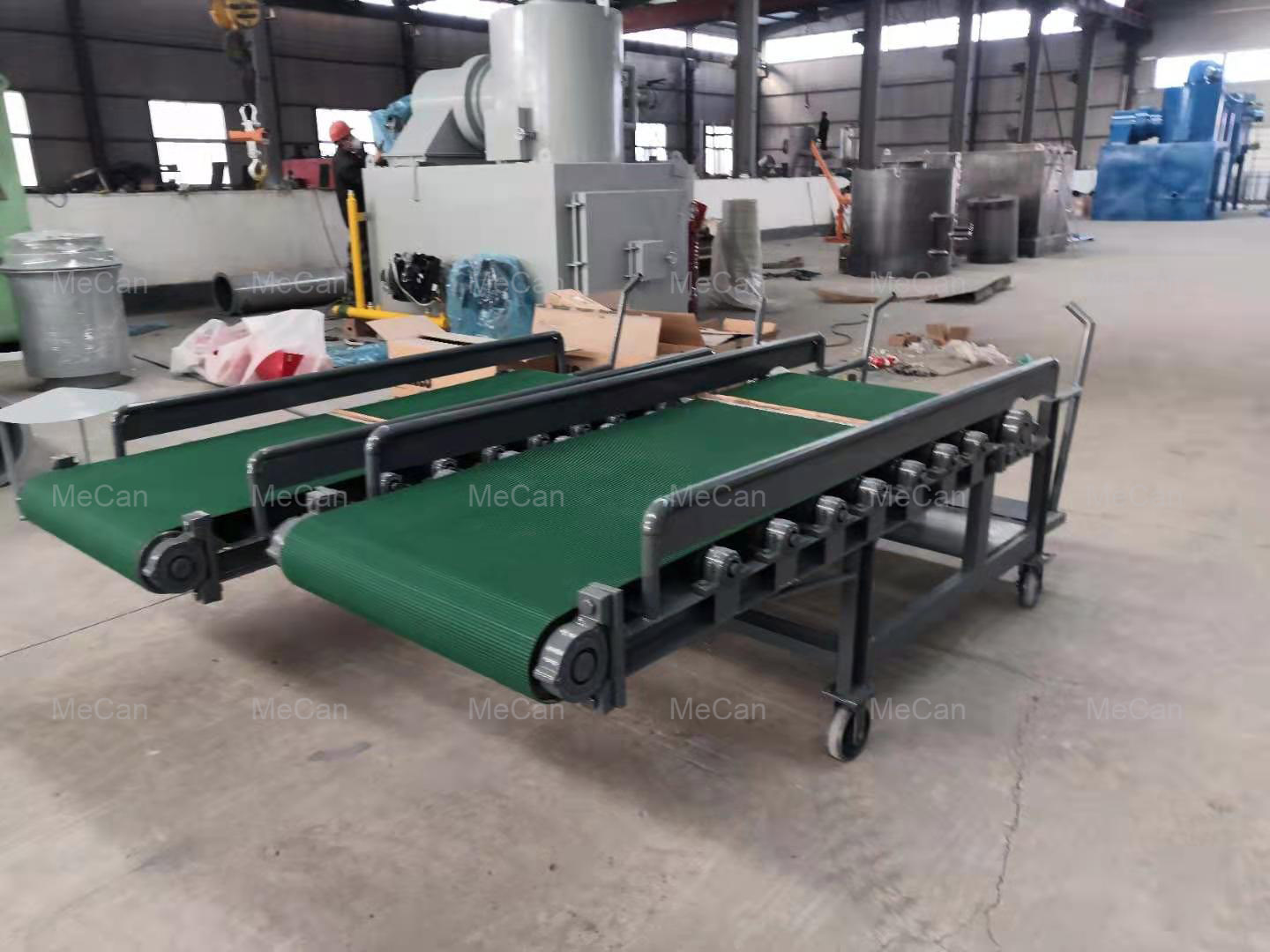

Automatic feeding cart of Medical Waste Incinerator (Optional)

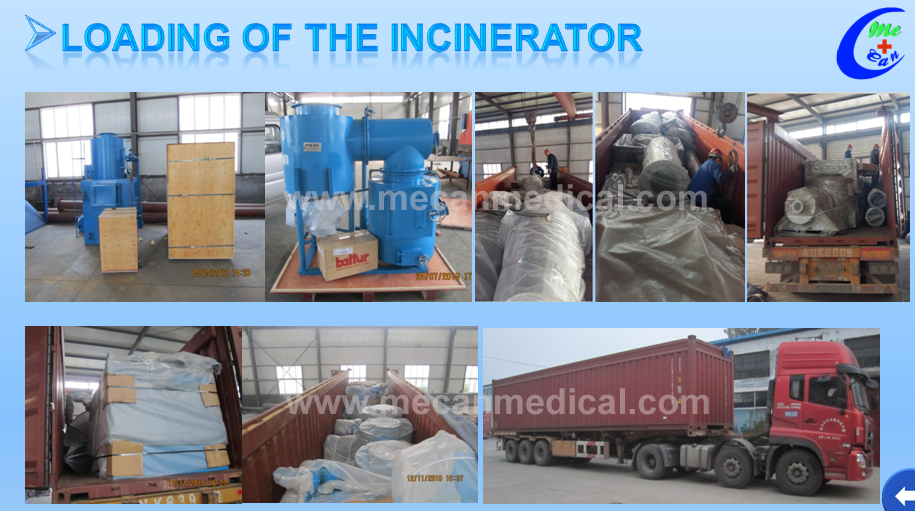

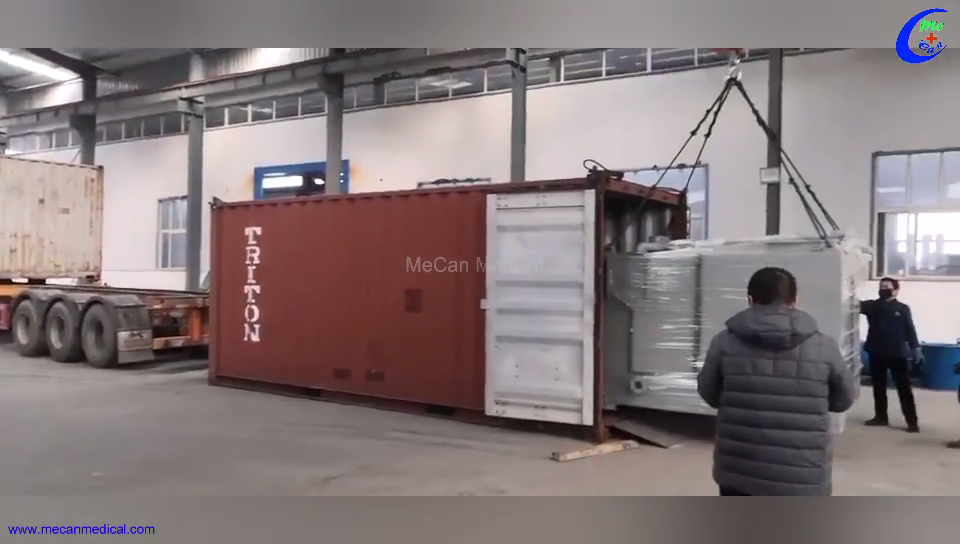

Lading the Medical Waste Incinerator in the container (Please click the picture to visit the video)

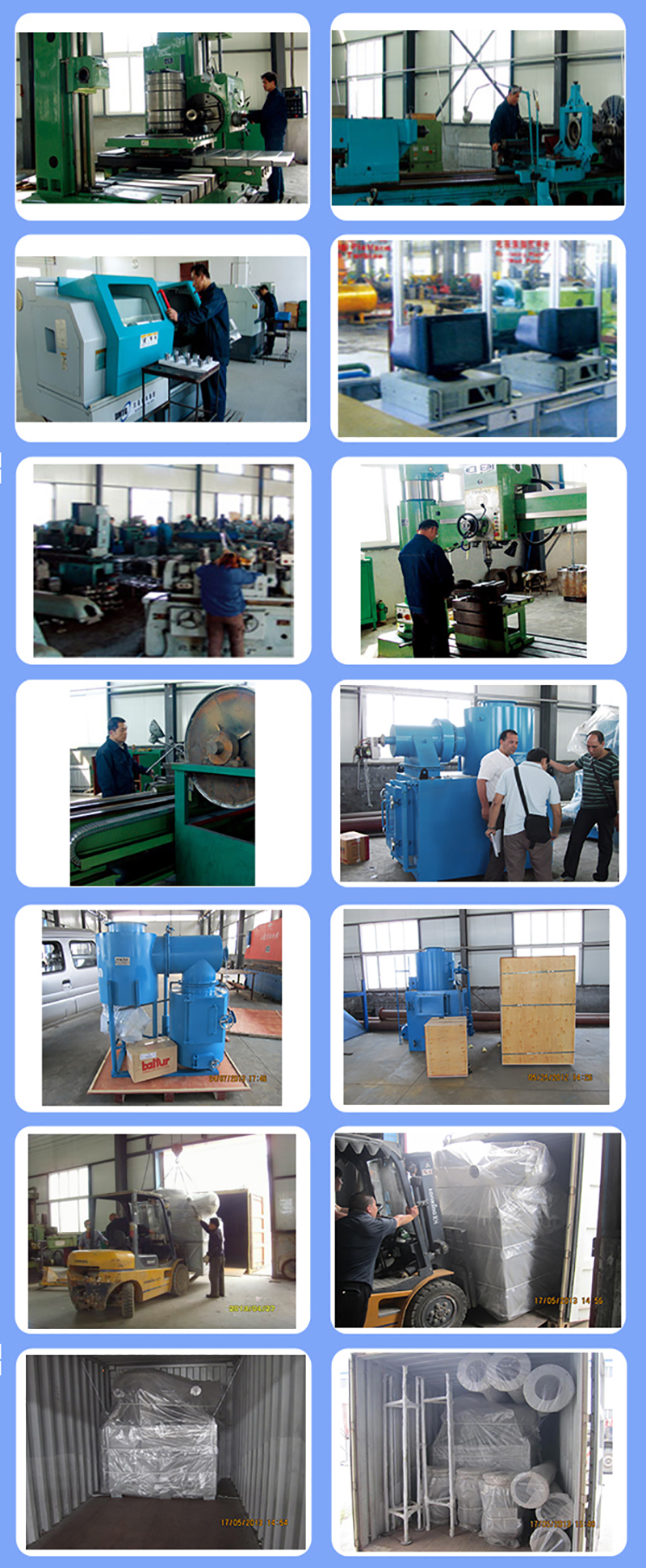

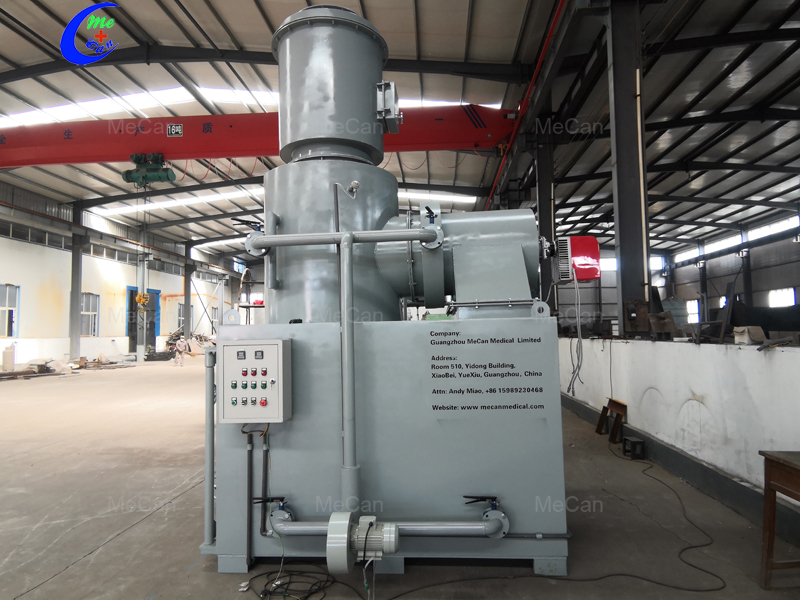

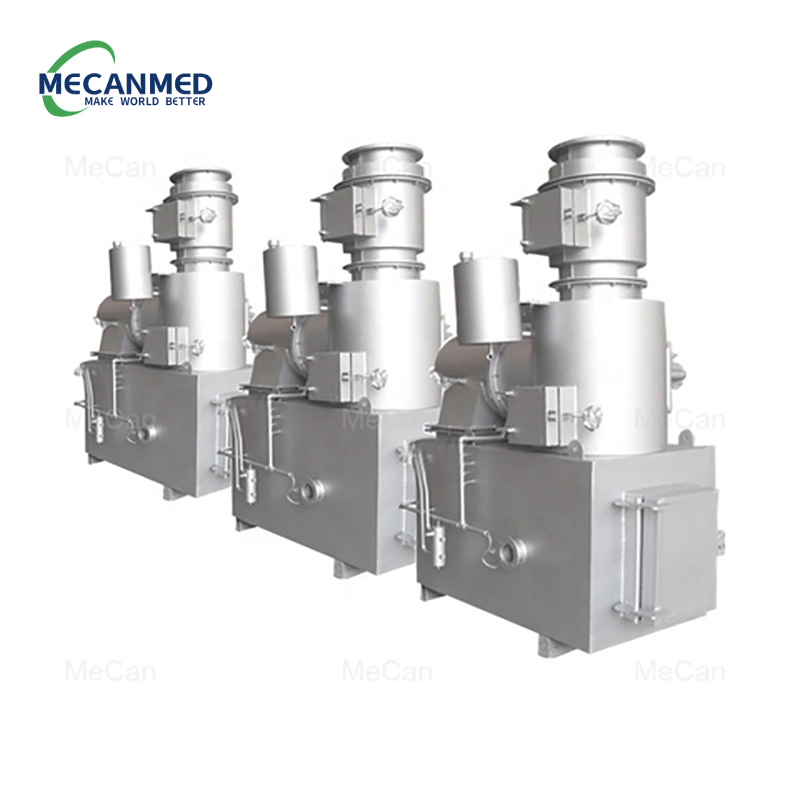

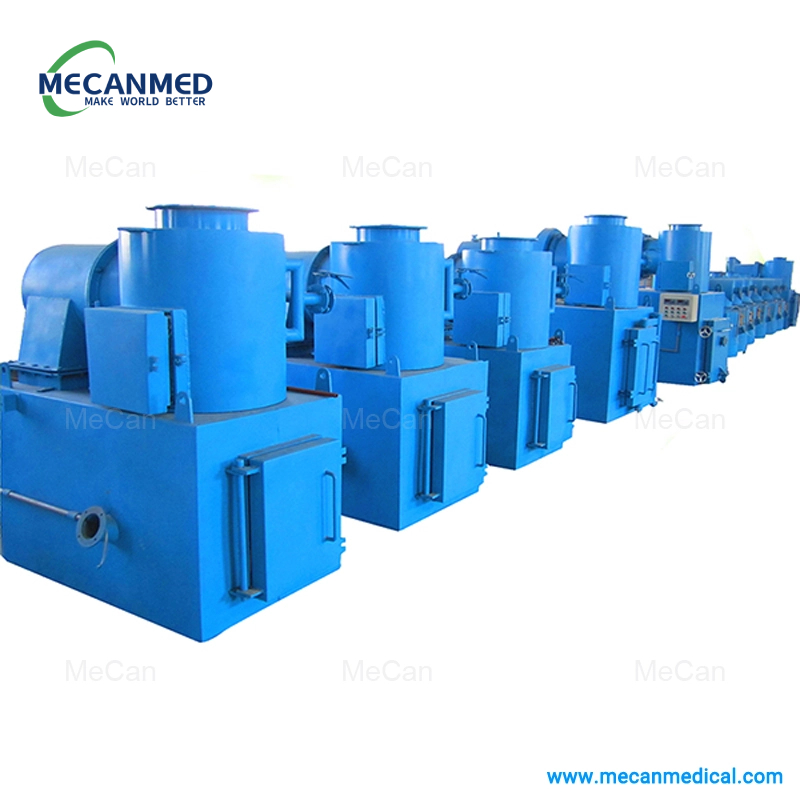

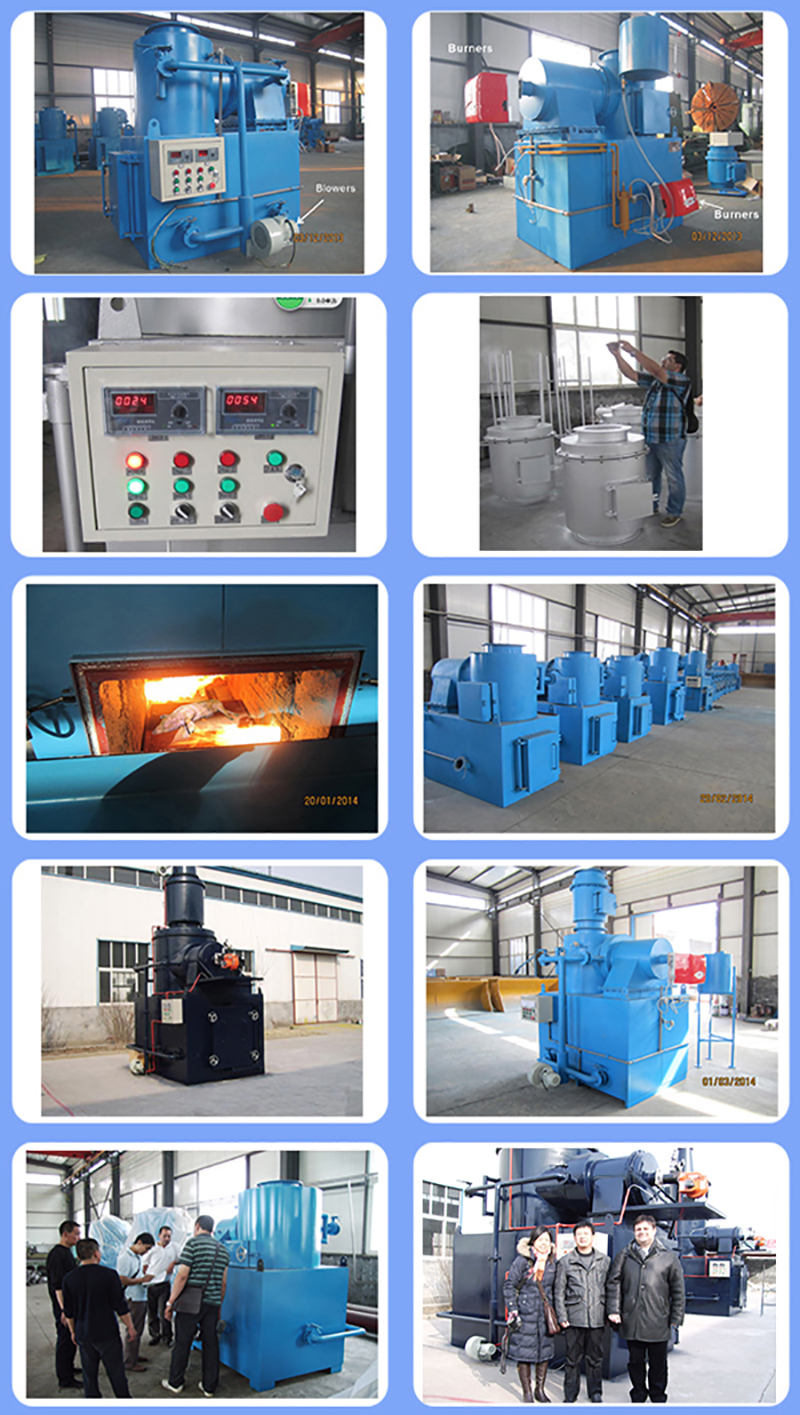

Real products' pictures of our medical waste incinerator

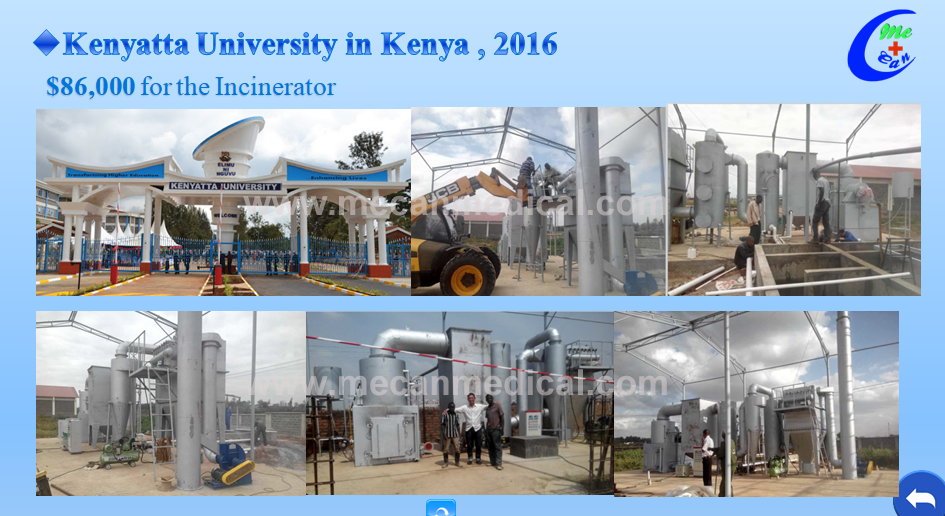

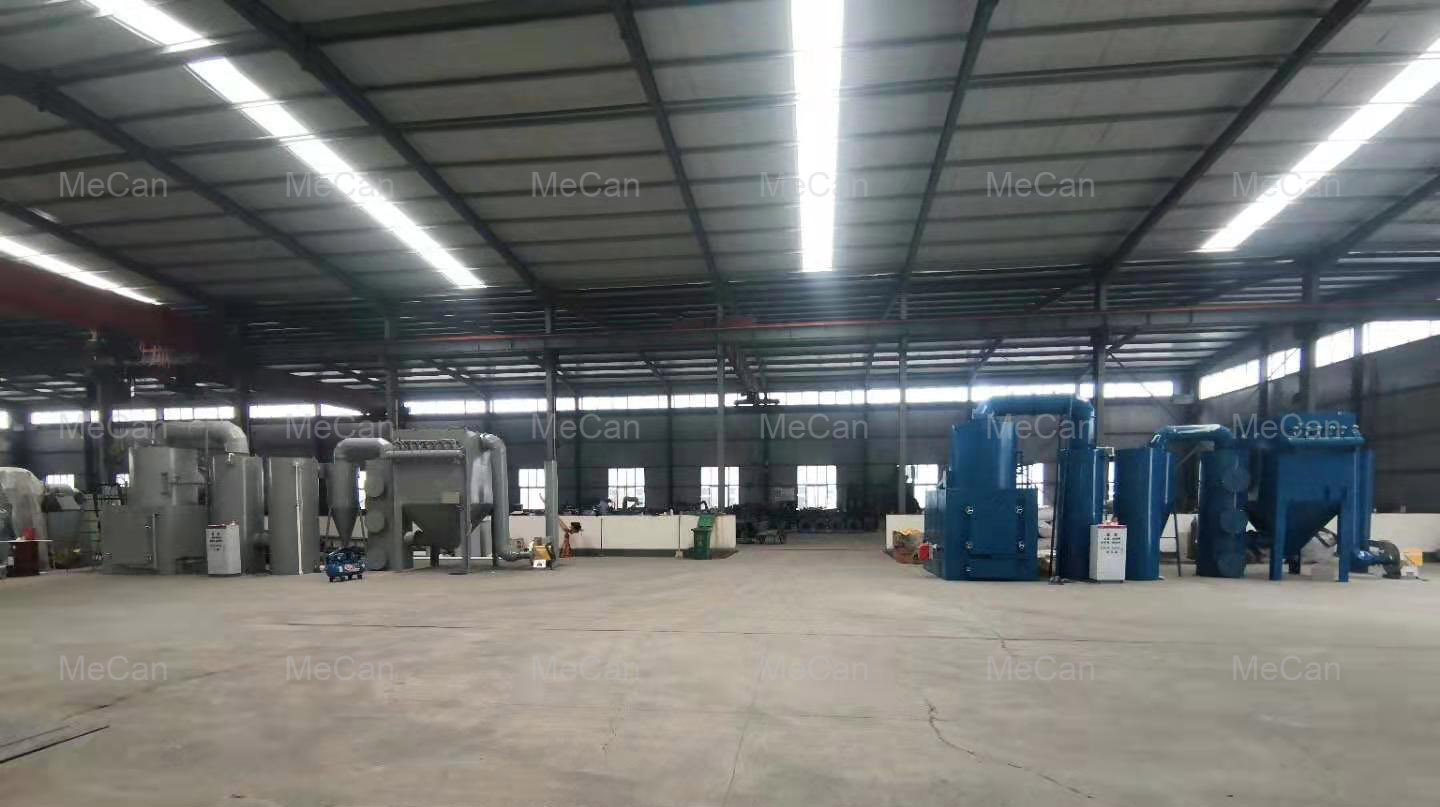

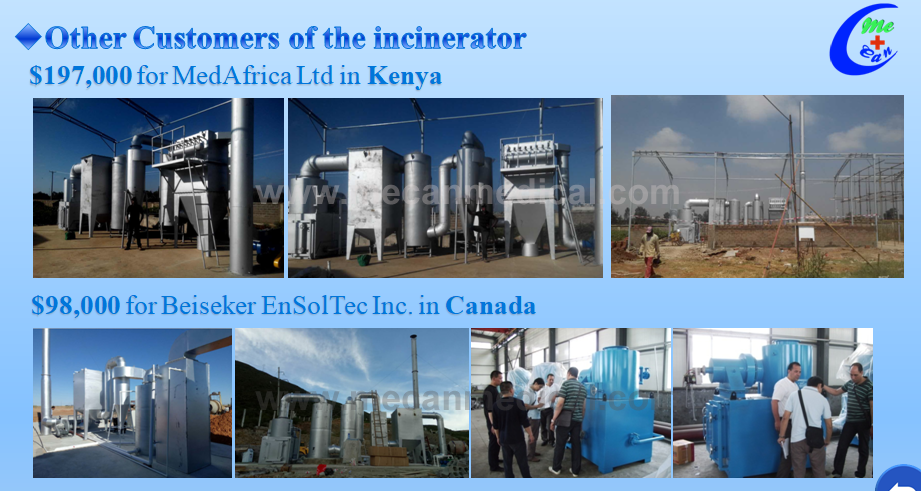

Some Case of our Medical Waste Incinerator

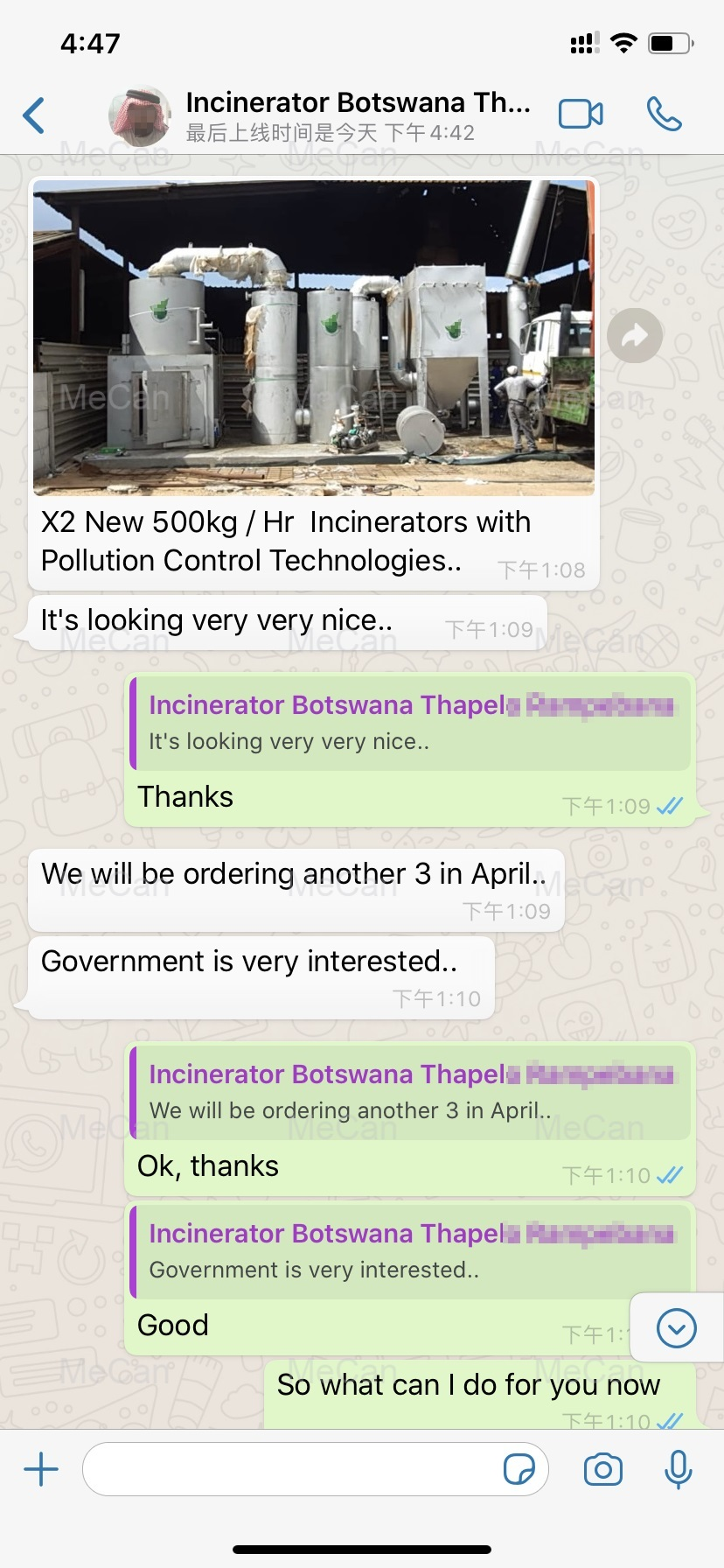

Feedback of our Medical Waste Incinerator from Botswana
Other types of our Medical Waste Incinerator G Series and H series:

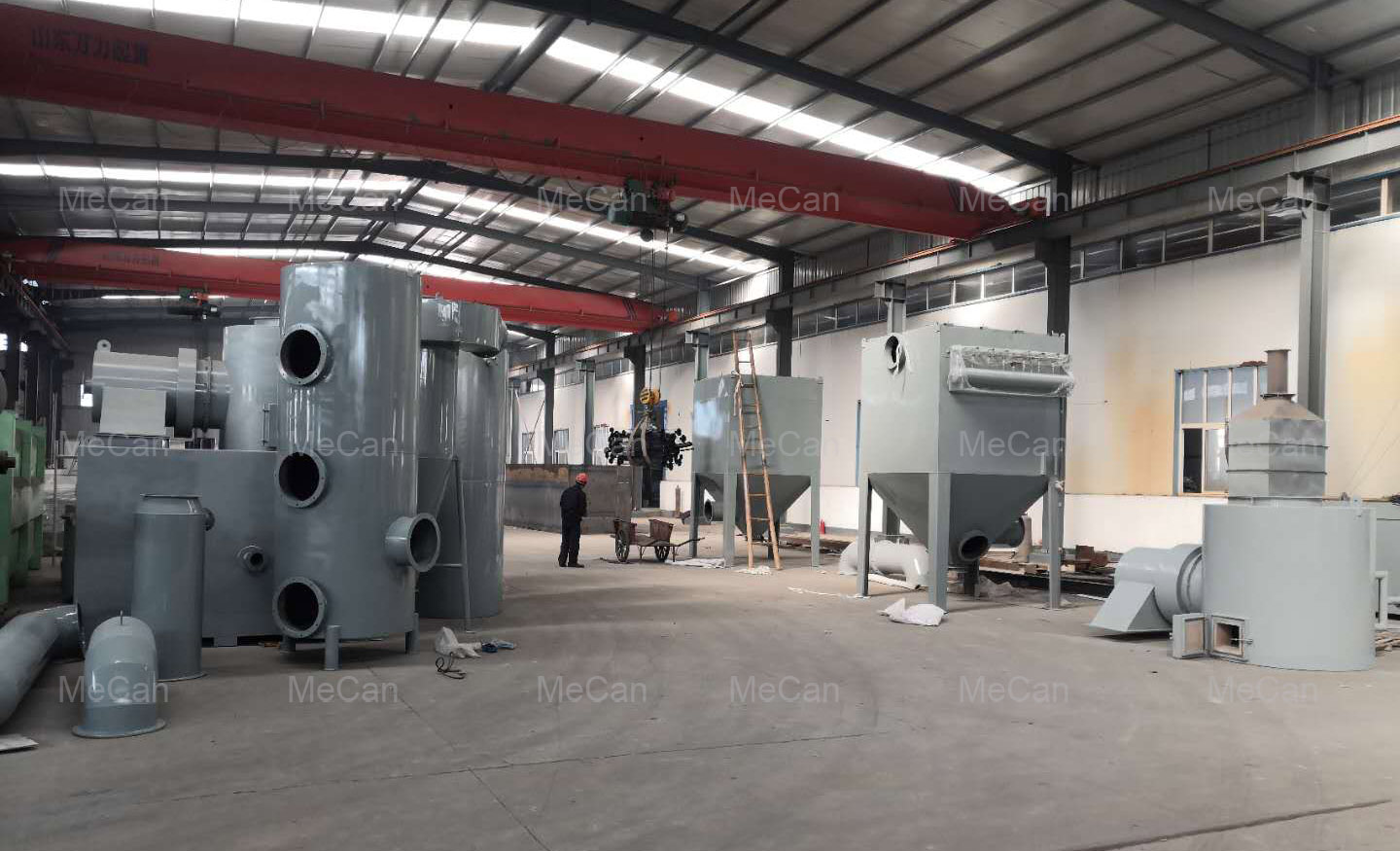

G Series Medical Waste Incinerator with Wet Gas Treatment System, including the spray tower, deacidification tower, cyclone dust collector, bag filter and activated carbon adsorption.
H series Medical Waste Incinerator including the Venturi processor (Quick cooling tower), cyclone dust collector,etc.

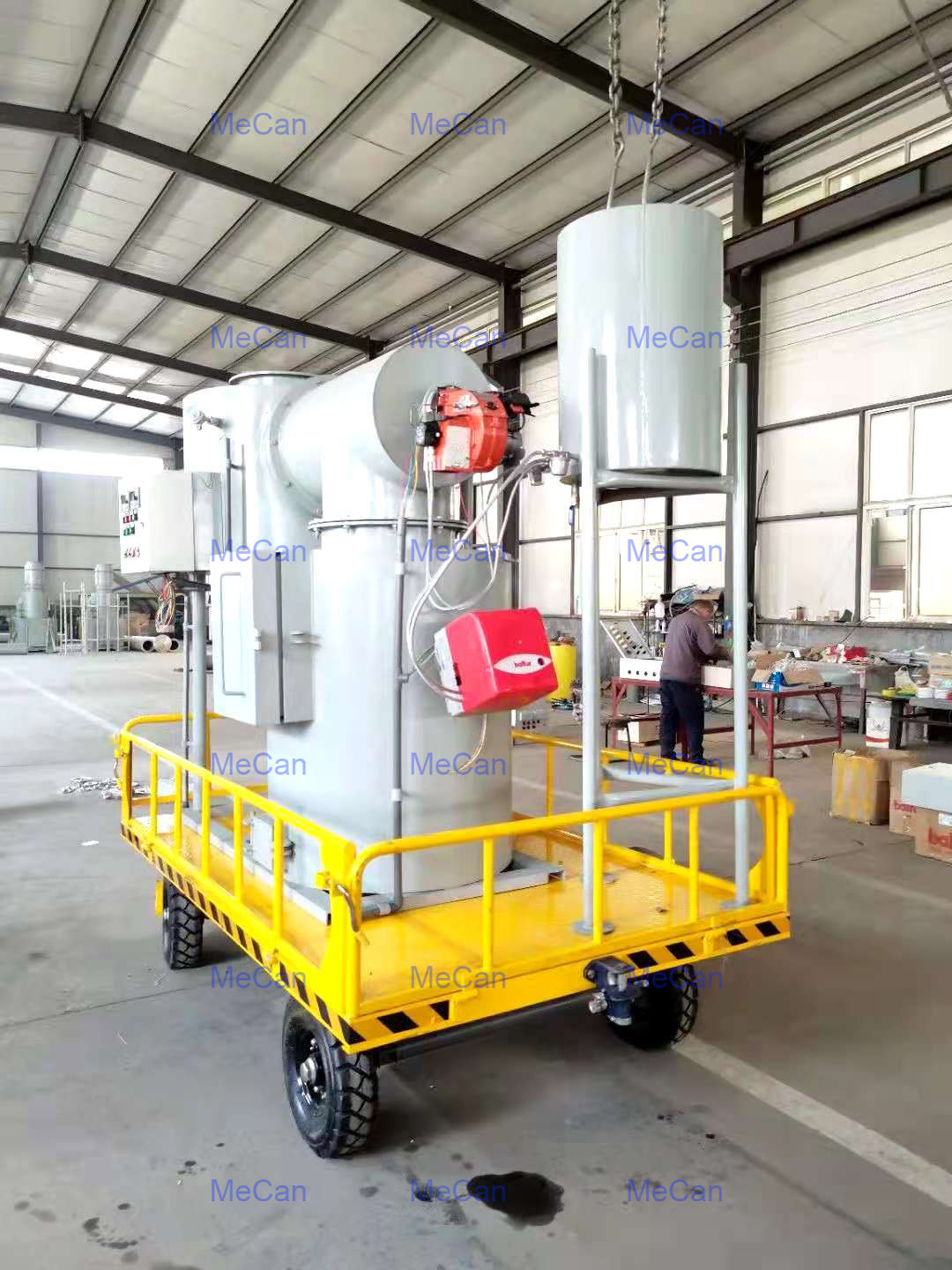

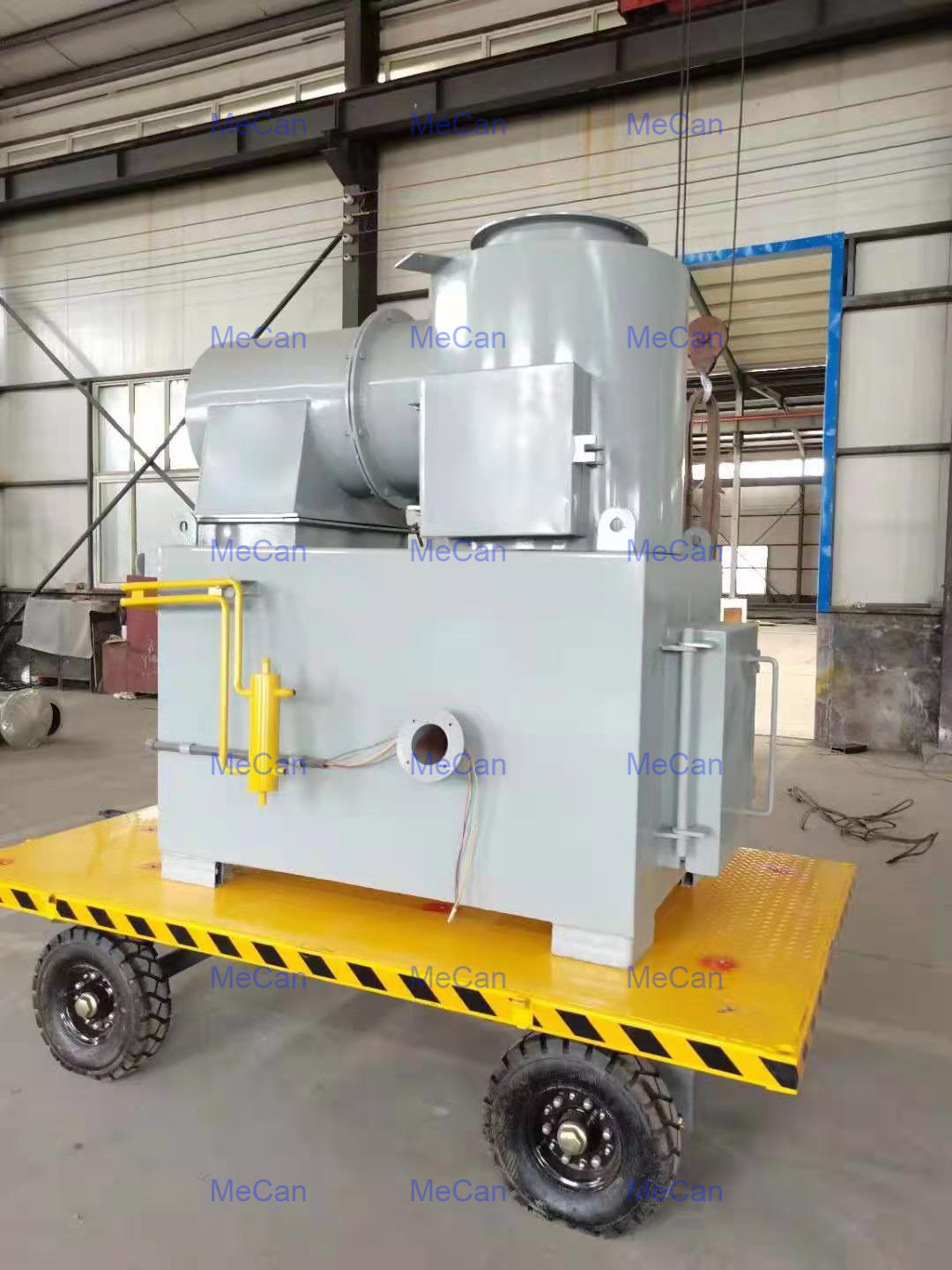

Mobile Medical Waste Incinerator 20kg/hour or 30kg/hour
MCFS-20M 20kg/hour
MCFS-30M 30kg/hour
By the way, we have many kinds of incinerators, such as waste incinerator sterilization system, industrial incinerator and its components, if you interested in it, please contact us now.
The product has a clean surface. It is constructed with antibacterial materials that effectively repel and destroy infectious organisms.
FAQ
1.What is your lead time of the products?
40% of our products is in stock,50% of the products need 3-10 days to produce,10% of the products need 15-30 days to produce.
2.What is your payment term?
Our payment term is Telegraphic Transfer in advance,Western union, MoneyGram,Paypal, Trade Assurance,ect.
3.Quality Control (QC)
we have a professional quality control team to ensure that the final pass rate is 100%.
