MCRO Series Reverse Osmosis Water Purification Plant RO Water System
Product Information:
What is Reverse Osmosis (RO)?
Reverse Osmosis (RO) Purifying water through pressure-driven separation. reverse osmosis (RO) is a pressure-driven separation process that employs a semipermeable membrane and the principles of cross flow filtration.Reverse osmosis water treatment provides the finest level of filtration. The RO membrane acts as a barrier to all salts and inorganic molecules, as well as organic molecules with a molecular weight greater than approximately 100 It is therefore a highly effective process for removing contaminants.
What is 5 Stages RO Water System?
First stage pretreatment.(Sand filter)
Second stage pretreatment (Carbon filter)
Third stage pretreatment (Resin softener)
Fourth stage pretreatment (Micron filter)
Fifth stage (RO system)

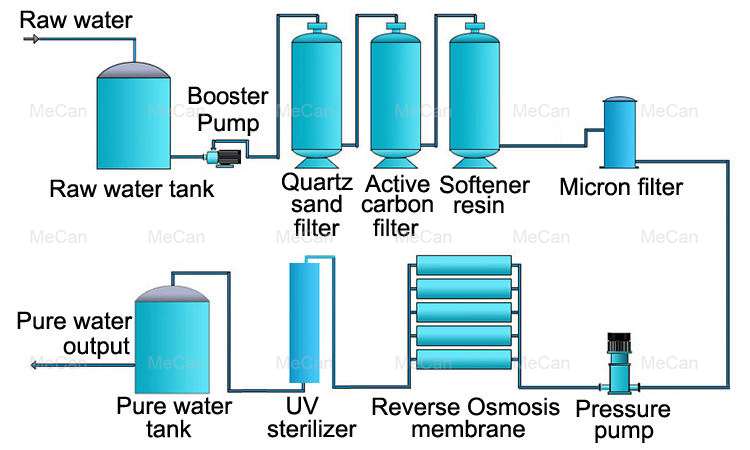

Working Process:
1. Raw water pump-- provide the pressure to quartz sand filter/active carbon filter.
2. Quartz sand filter--get rid of turbidity, suspended matter, organic matter, colloid, ect.
3. Active carbon filter--Remove the color, free chloride, organic matter, harmful matter, ect.
4. Softener resin --exchange "ions" of calcium and magnesium with the most common and easiest method.
5. Micron filter--prevent large particles, bacteria, viruses into RO membrane, accuracy is 5um,
6. High pressure pump--Provide the high pressure to RO membrane ro.
7.RO system-- main part of the plant. The RO membrane's desalting rate can reach 99%, removing over 99% ions.
8.UV sterilizer-In the UV disinfection process, water is purified as it runs through a stainless steel chamber that contains a special UV- producing lamp.
Application fields of water treatment:
1.Pure water, mineral water. (Bottled water, Barrel water)
2.Water for food and beverage production. (Ice maker)
3.Water for chemical industry, electronic industry, such as Hotel, Schools, Hospital, Restaurant, Boiler, Factory.
4.Water for medical use, high purity water for electronics industry.
Our advantages:
1. Rate of desalination up to 98%~99%
2. Pure water obtaining rate is up to 75%
3. Continuously purifying water for 24 hours
4. PLC control automatic flushing function.
5. Optional UV sterlilizer & Ozone generator
6. Low operating cost and long life span.
RO Water Treatment Plant
Functions:
1.RO membranes auto wash and manual wash
2.RO membranes manual wash with medicine
3.Pure water high water level auto stop, low waterlevel auto start
4.Multi-phases pump protected without water
5.Protected when no power, poor power, larger electrical current, short circuit, creepage of electricity.

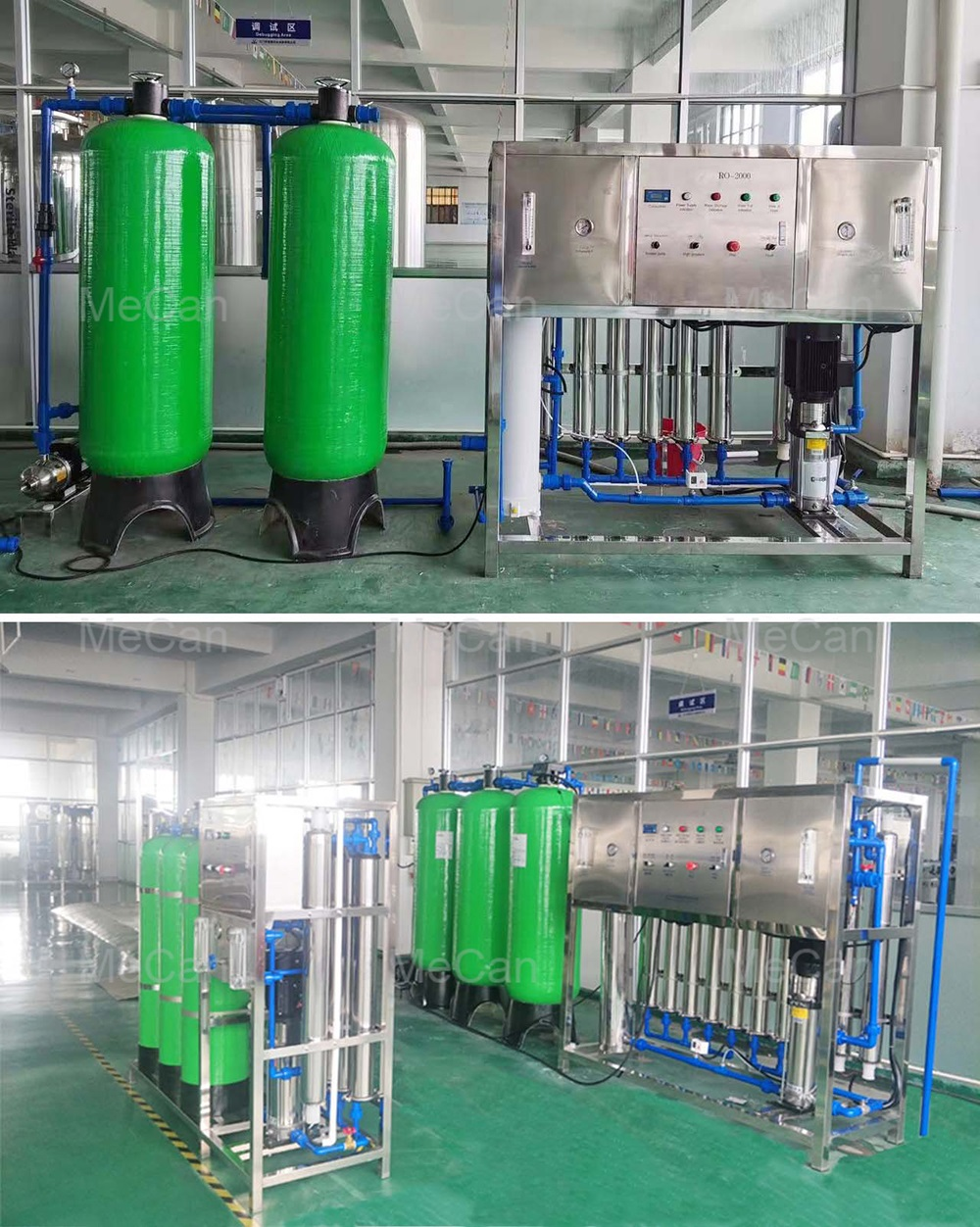

Details Images

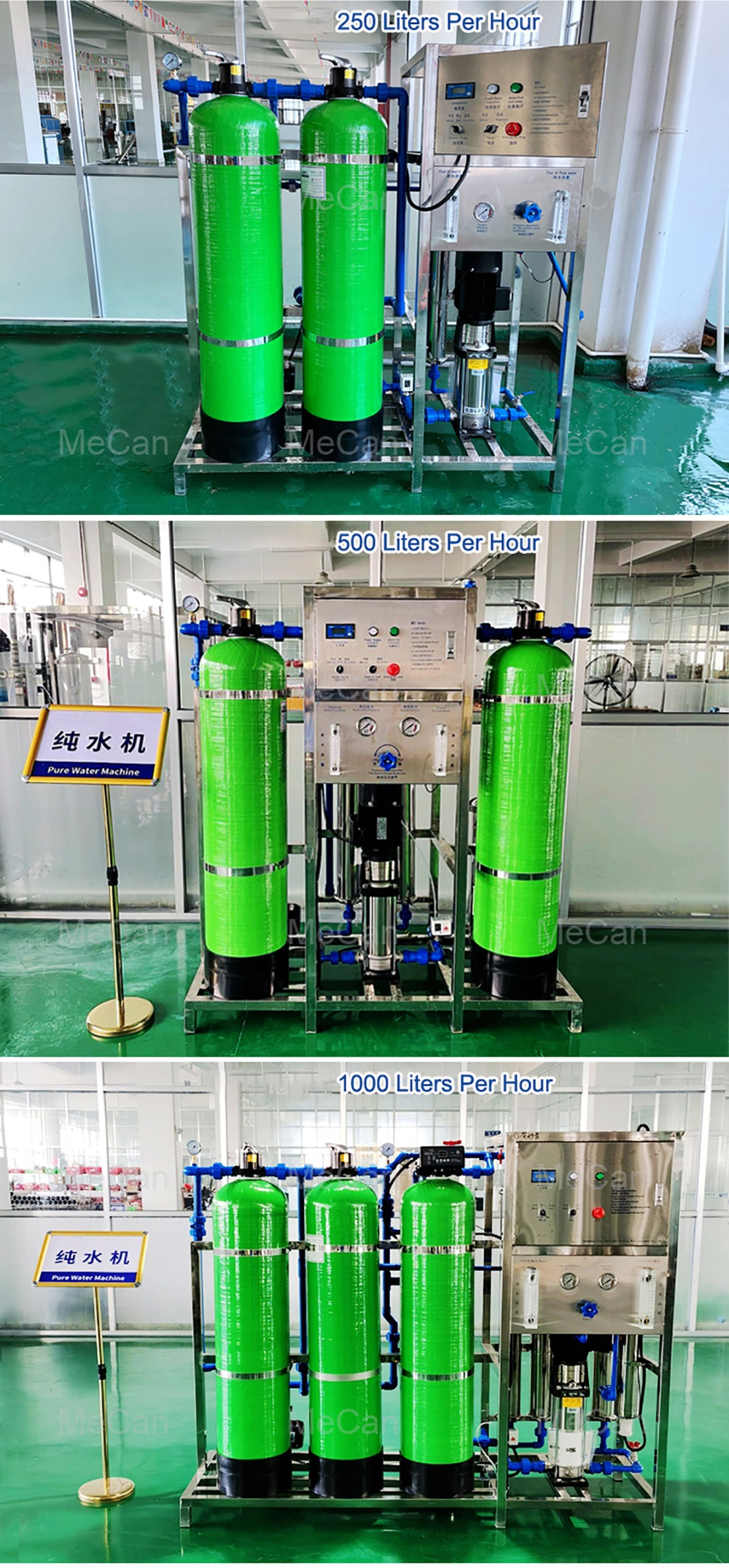

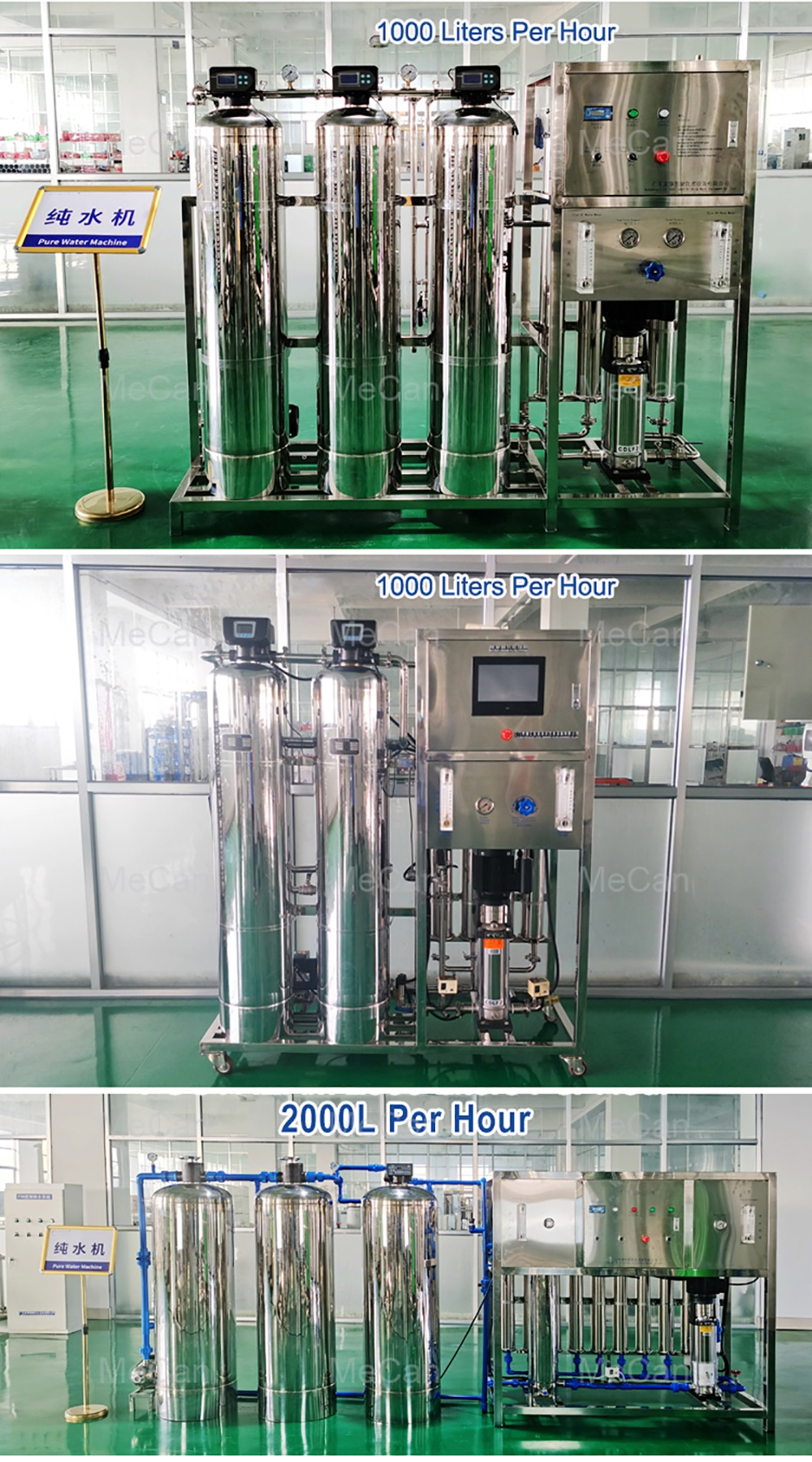

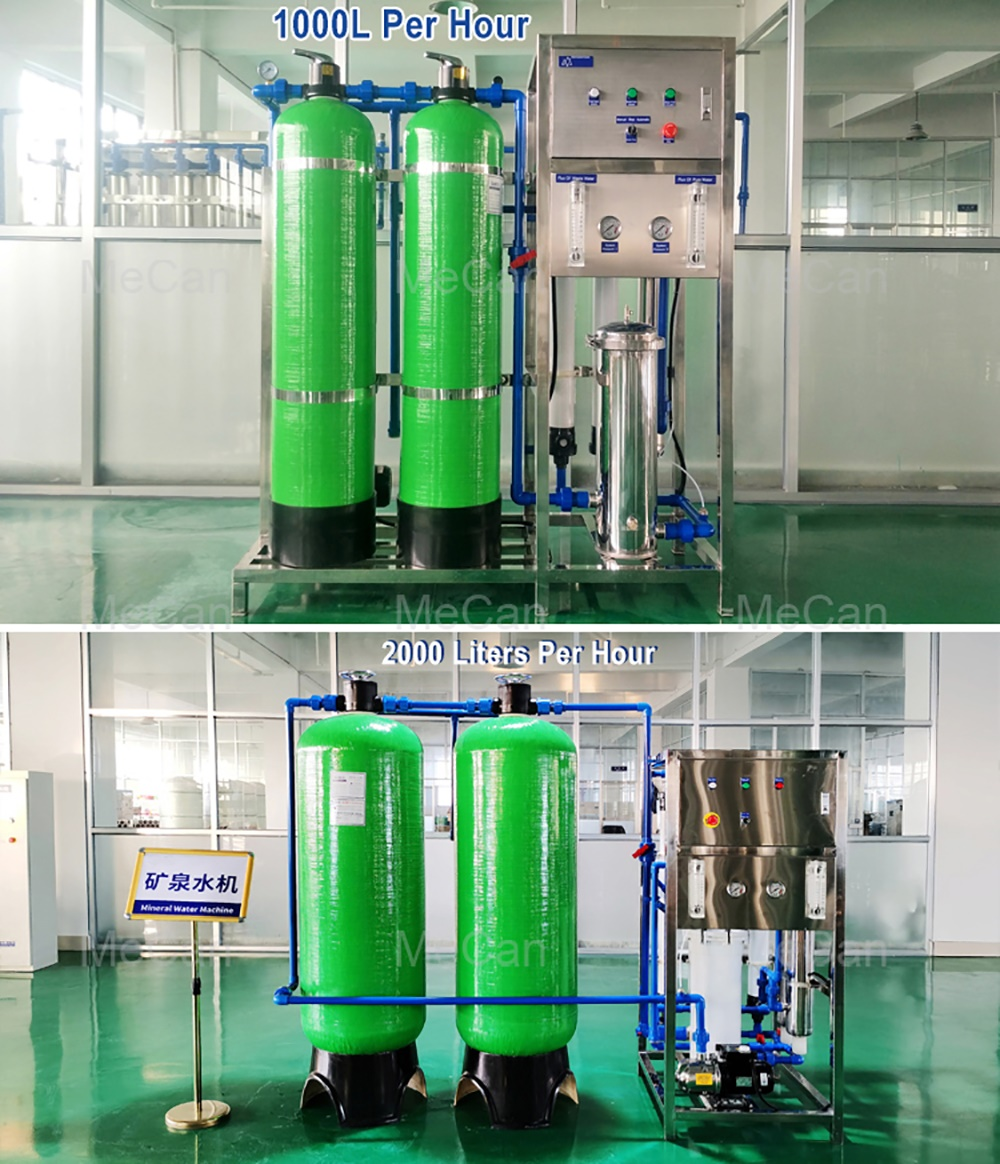

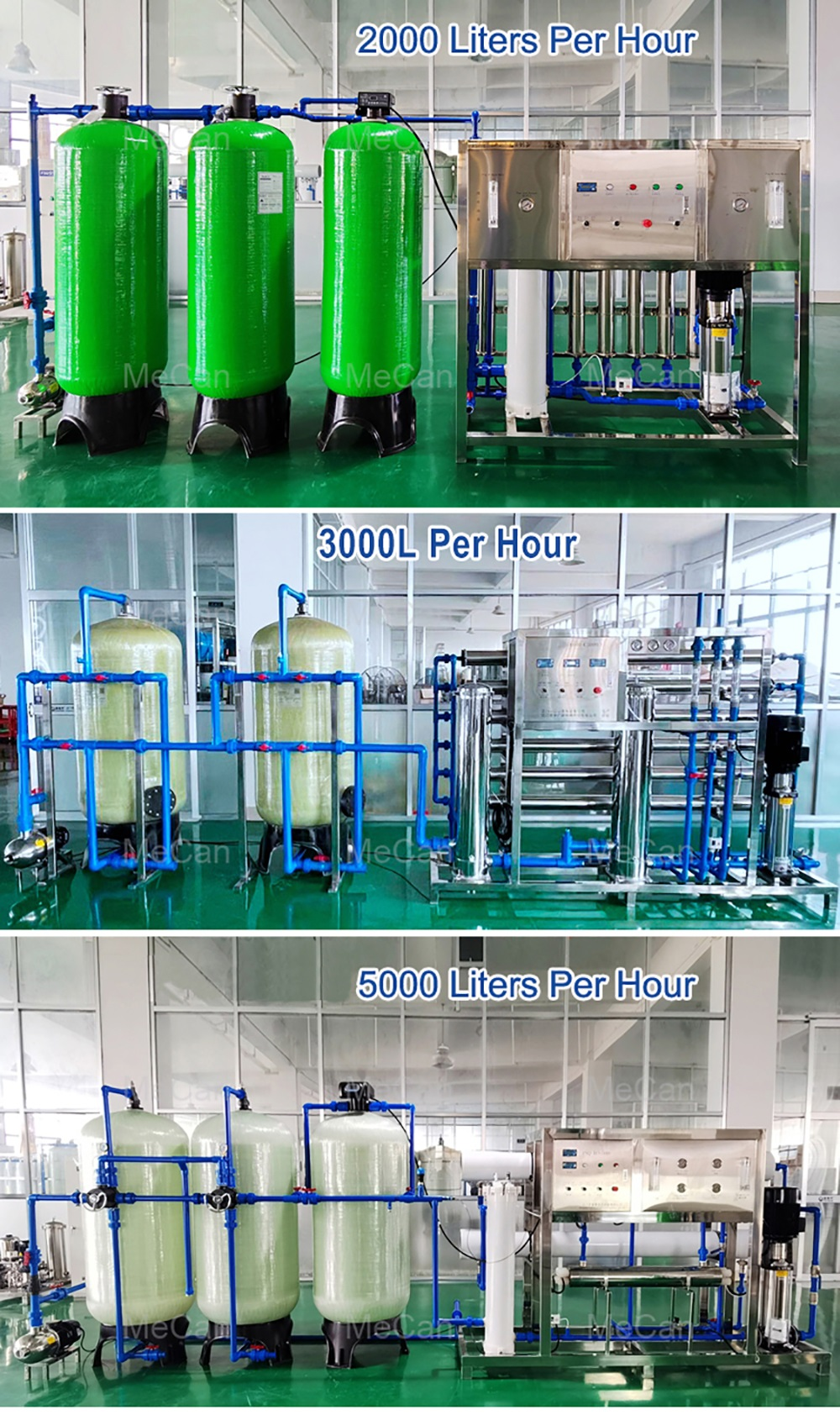

RO (Reverse Osmosis) for pure water
Production Capacity: 250 Liters Per Hour - 50,000 Liters Per Hour
Which machine should I choose?
It depends on your raw water quality ,pure water or mineral water requirement and the water production you need.
UF (Hollow Fiber Ultrafiltration System for mineral water)
Production Capacity: 1000 Liters Per Hour - 50,000 Liters Per Hour

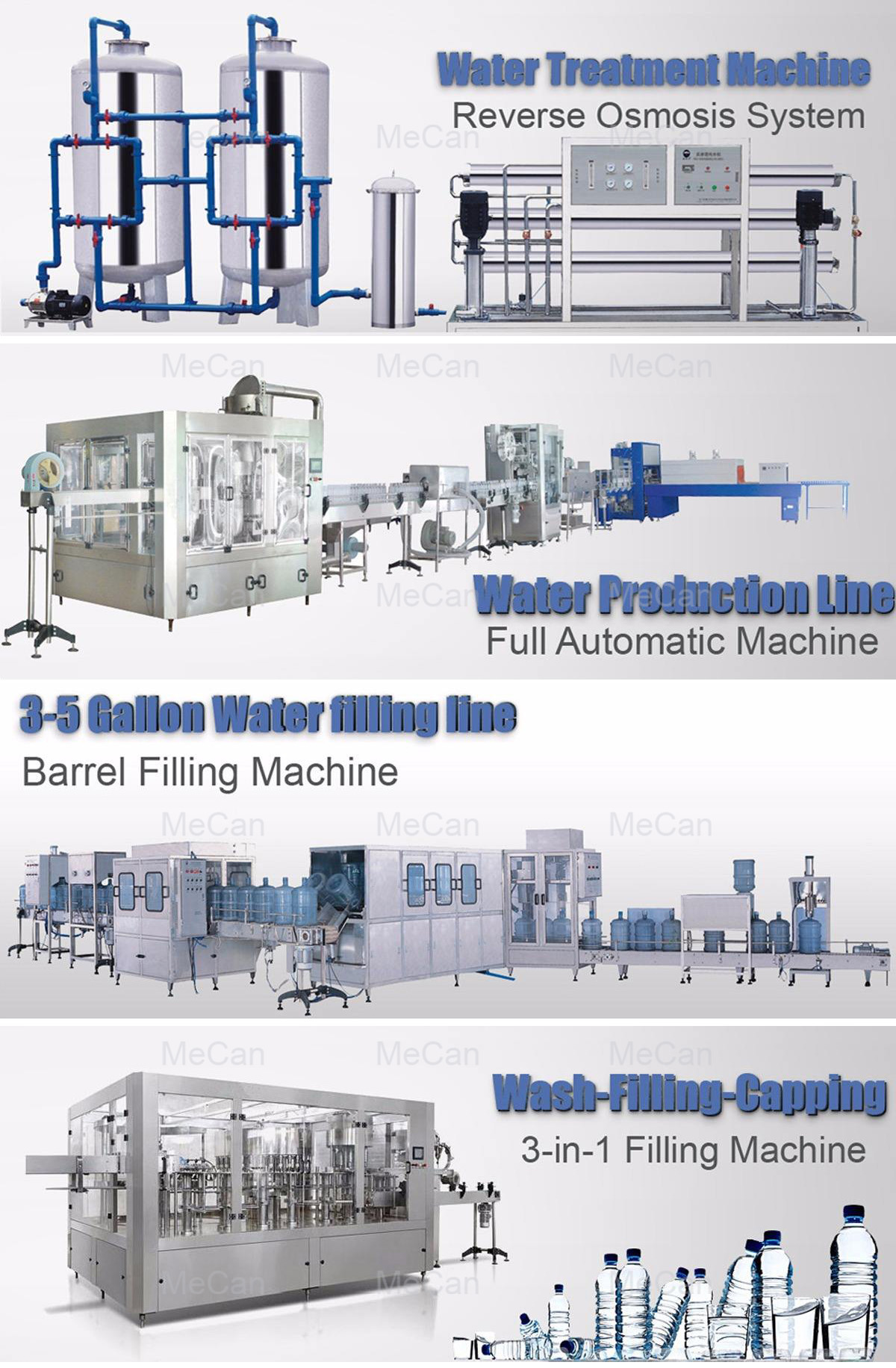

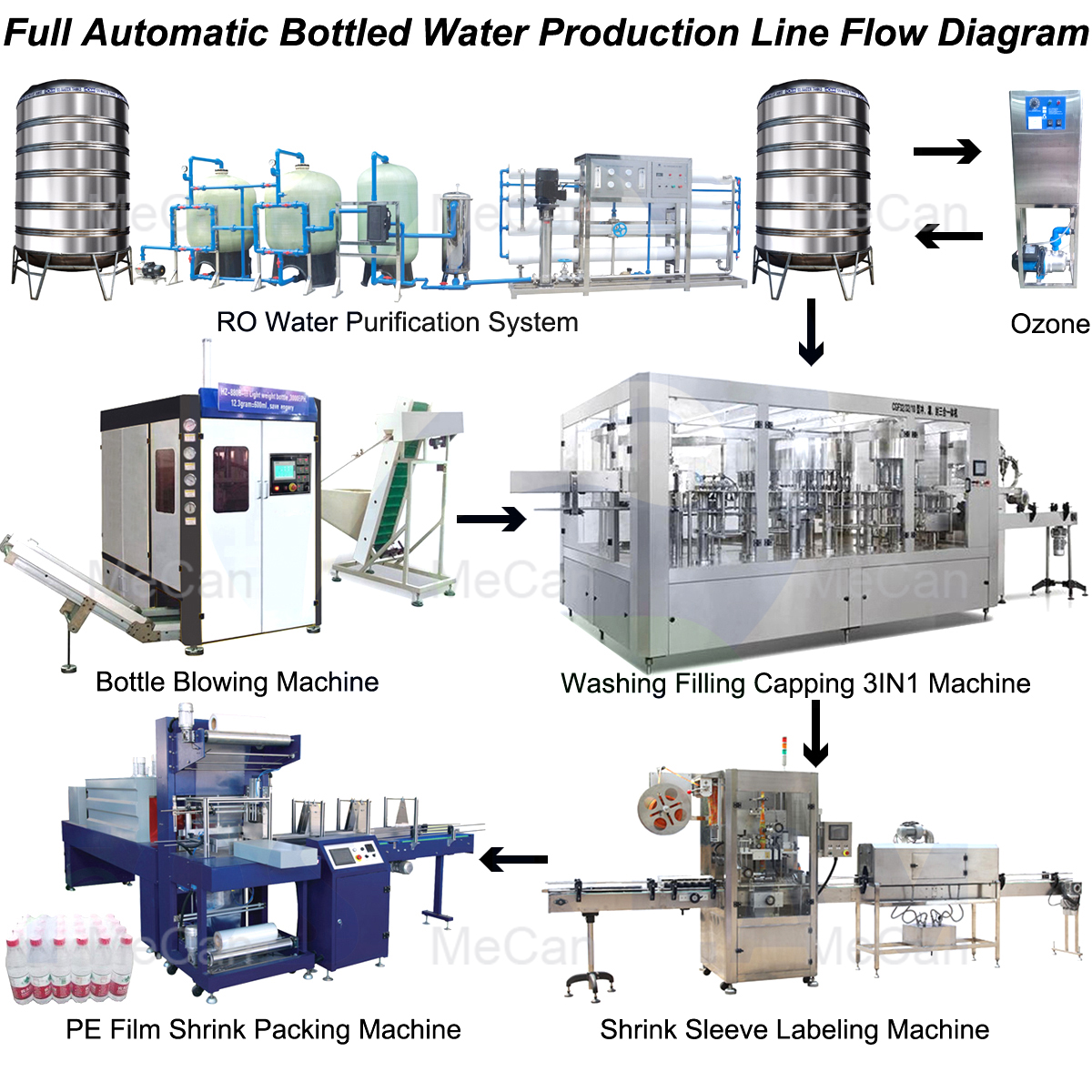

Other Water Production Line:

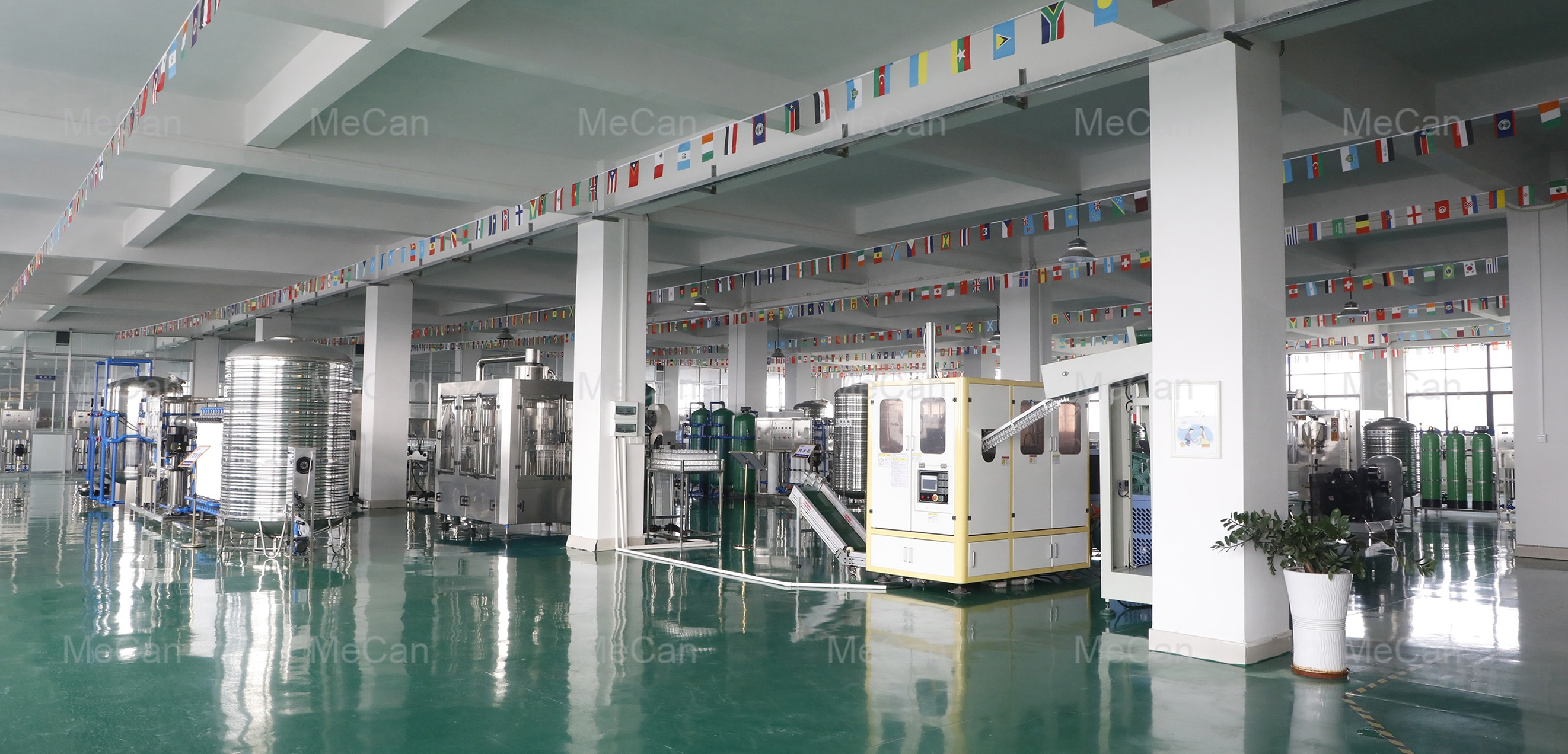

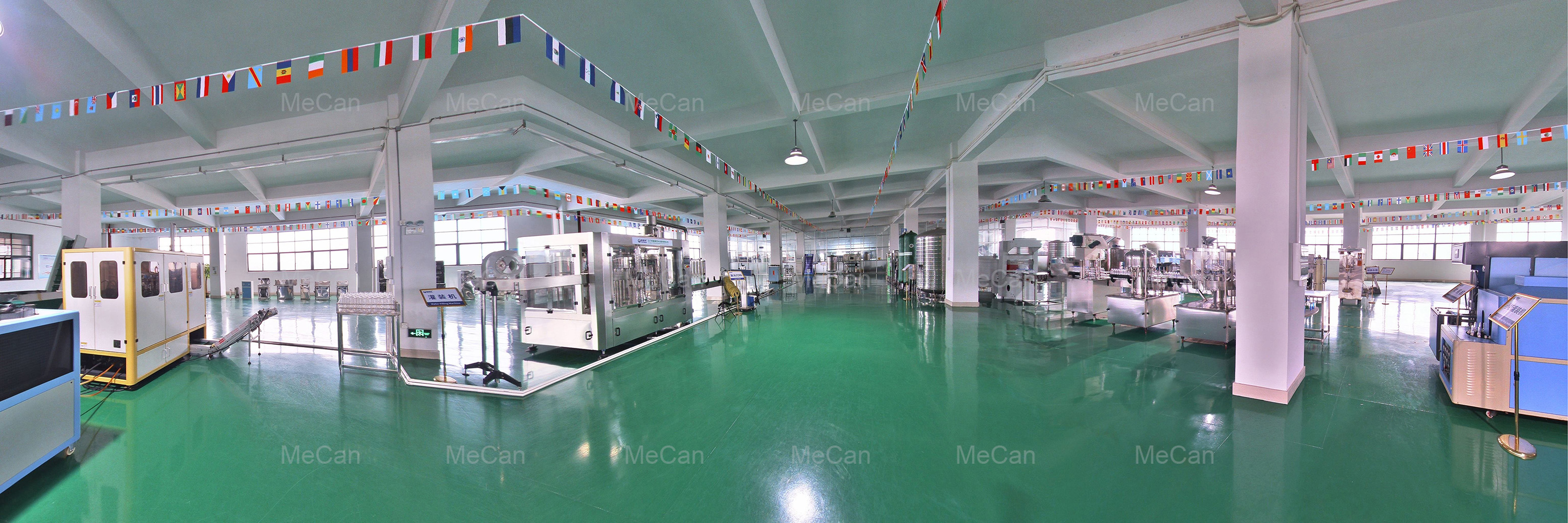

Showroom of our RO Machine:
Company Advantages
Every equipments from MeCan gets passed strict quality inspection,and final passed yield is 100%.
MeCan offer professional service,our team is well-tained
More than 20000 customers choose MeCan.
OEM/ODM, customized according to your requirements.
