150W Radiofrequency Electrosurgical Unit

MeCan Medical Bes150 W Radiofrequency surgical Unit Company - MeCan Medical,MeCan Focus on medical equipments over 15 years since 2006. MeCan Medical Factory,Every equipments from MeCan gets passed strict quality inspection,and final passed yield is 100%.

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

150 W Radiofrequency surgical Unit

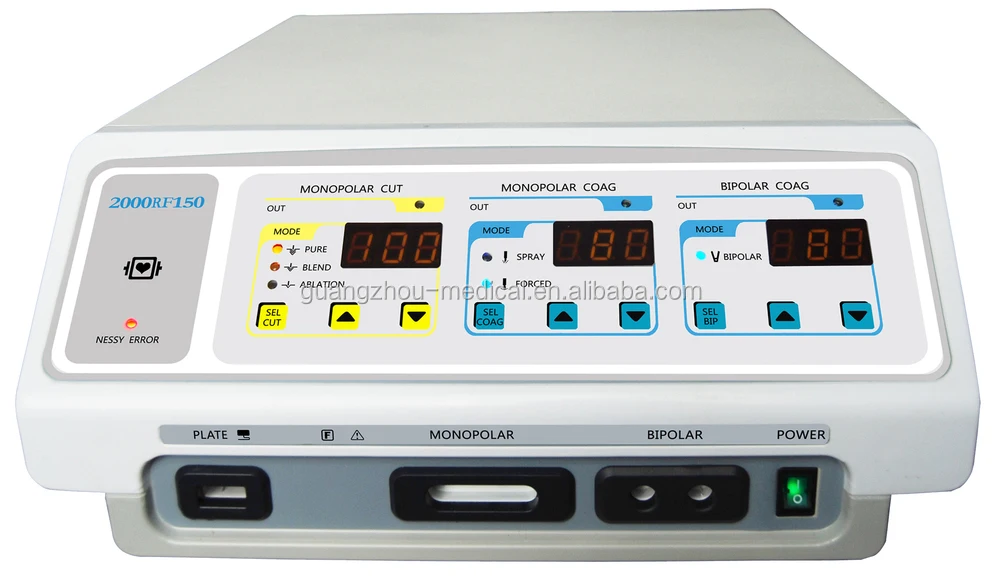

150W Radiofrequency Electrosurgical Unit

Main Features of the 150 W Radiofrequency surgical Unit:

1. Max 150W Radiofrequency Surgical Unit, with mono-polar and bipolar function.

2. Six working modes: pure cut, blend, ablation, spray coag, forced coag, bipolar coag.

3. Wide clinical applications, such as the general surgery, dermatology, orthopedic surgery, cardiology, gynecology, , oncology, neurosurgery, ophthalmology, ENT,  Stomatology, etc.

4. Microprocessor controlled, digital display. With audible and visual indicators and errors codes during the process of outputting.

5. Both hand and foot controlled.

6. Separate power display and outlet socket for mono-polar cut, mono-polar coag,and bipolar coag, each output can be individually configured.

7. It redefines the surgical results with 4MHz radio wave technology, minimizes heat dissipation and cellular alteration while cutting and coagulation soft tissues.

8. Low temperature, non-carbide, no adhesion, Less bleeding, quick recover.

9. Protection against over-voltage and over-current.

10. Convection refrigeration without ventilator.

11. Mounted on a 4 wheels cart(optional).


Technical Specifications of the 150 W Radiofrequency surgical Unit:

Power: 220V±22V, 50Hz±1Hz(110V±11V, 60Hz)

Operating frequency: a)Monopolar:4MHz  b) Bipolar:1MHz

Power rating: 1100VA±10%


Six working modes of the 150 W Radiofrequency surgical Unit:

1. Mono-polar Cut

a) Pure cut:1W~150W( Load 700Ω)

b) Blend:1W~100W(Load 700Ω)

c) ablation:1W~100W(Load700Ω)


2. Mono-polar Coag

d) Spray Coag:1W~80W( Load 700Ω)

e) Forced Coag:1W~100W( Load 700Ω)


3. Bipolar

f) Bipolar Coagulation: 1W~120W( Load 200Ω)


4. Power Consumption: ≤1100VA


Configuration Sheet of the 150 W Radiofrequency surgical Unit:


Electrosurgical Pencil        5pcs

Neutral Electrode              1pcs

Neutral Electrode cable    1pcs

Footswitch                        1set

Bipolar Forceps                1pcs

Bipolar forceps cable       1pcs

Electrodes                        10pcs

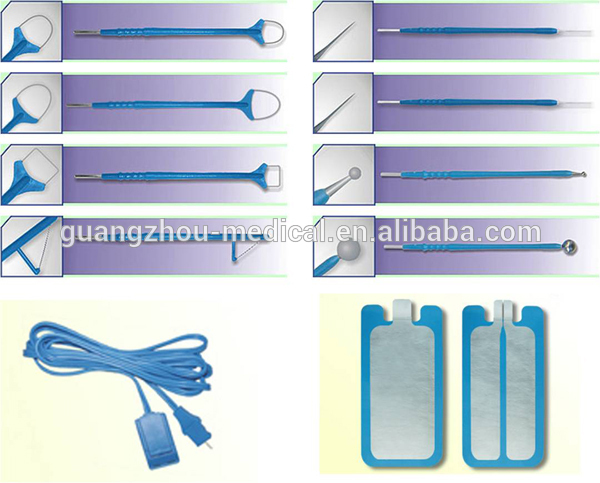

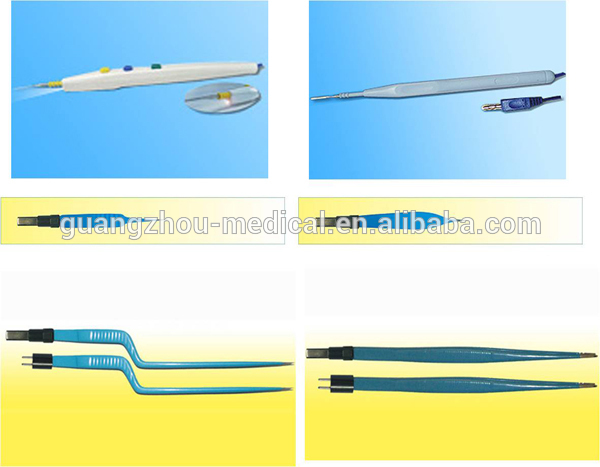

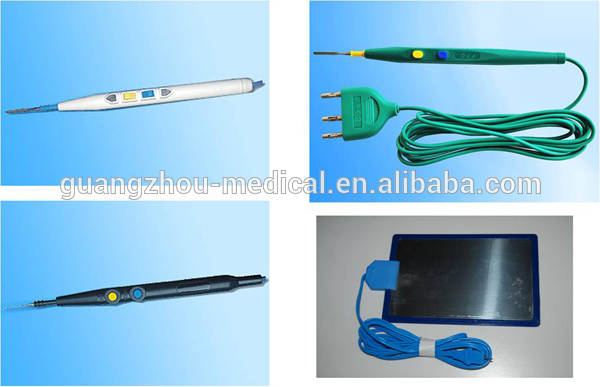

Accessories of the 150 W Radiofrequency surgical Unit:

Accessories of the 150 W Radiofrequency surgical Unit:Accessories of the 150 W Radiofrequency surgical Unit:Accessories of the 150 W Radiofrequency surgical Unit:

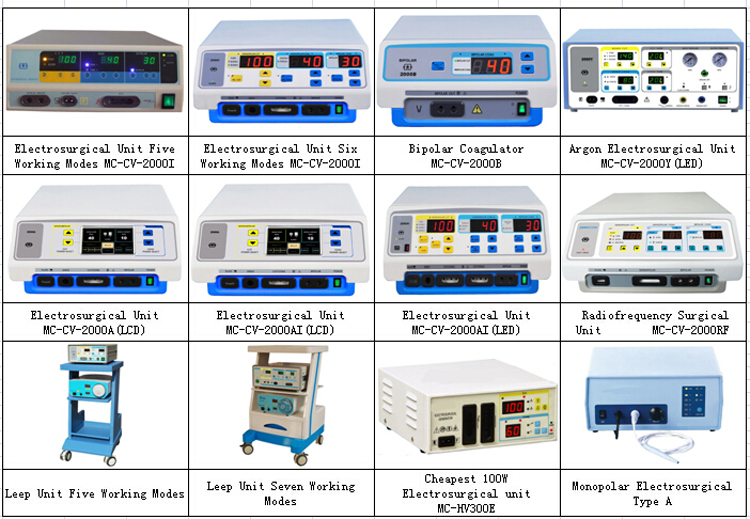

We provide different kinds of electrosurical unit. Some are shown in the following pictures. For more infomation, please refer to our webside:

Electrosurgical Unit 750.jpg
