Professional 50mA/63mA/100mA High Frequency Mobile X-ray Machine for Medical Diagnosis manufacturers

MeCan Medical Professional 50mA/63mA/100mA High Frequency Mobile X-ray Machine for Medical Diagnosis manufacturers,OEM/ODM, customized according to your requirements. The machine is combined high-frequency X-ray photography diagnostic equipment, which is used in radiology, orthopedics, wards, emergency rooms, operating rooms, and ICU, etc. It is mobile diagnostic equipment which can make radiography on human body, such as head, limbs, chest and spine. If you are interested in the X-ray Machine, please contact us anytime.


Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

50mA/63mA/100mA High Frequency Mobile X-ray Machine for Medical Diagnosis

Model:MCX-H100



Introduction:

The machine is combined high-frequency X-ray photography diagnostic equipment, which is used in radiology, orthopedics, wards, emergency rooms, operating rooms, and ICU, etc. It is mobile diagnostic equipment which can make radiography on human body, such as head, limbs, chest and spine.


Features:

1. Using ergonomic design, the structure is of compact appearance, convenient operation,

2. With high frequency inverter to emit high quality X-ray and low dose on skin, and ensure excellent definition and contrast of pictures

3. With techniques of KV analog closed loop control, mAs digital closed loop control and micro-processing real-time control to ensure precision and repeatability of the dose

4. With kv, mAs two button adjustment, LCD display, multifunction of safety guard

5. With 50 preset exposure programs, and can be modified and stored by the user for convenient operation

6. With a high-quality knockdown X-ray generator to reduce irradiation, it is much safer to environment and operators.

7. With a symmetrical beam applicator to adjust the X-ray field, and a collimator lamp to locate the field, so that accurate radiograph can be ensured.

8. Manual control and remote control are used to expose. Wireless remote exposure control can penetrate barriers, which makes operation more convenient.


Specification:

Power Output
2.5KW
Main Inverter frequency
25 KHz
X-ray Tube
fixed anode focus:
1.5 (X-ray tube for high frequency)
Tube Voltage
40~~100KV (interval 1KV)


Tube Current
40-49KV 50mA 1~~160mAs
50-59KV 42mA 1~~160mAs
60-69KV 36mA 1~~140mAs
70-79KV 31mA 1~~125mAs
80-89KV 28mA 1~~100mAs
90-100KV 25mA 1~~80mAs
mAs
1.0~~160mAs (45Steps)
Power Supply
220V±10% 50HZ Inner-resistance ≤1.0Ω
Operation Method
Wire/wireless control

Standard configurations
Combined high-frequency high-voltage X-ray generator and high-frequency inverter power supply (2.5kW, 100kW, 50mA, 25 kHz)
1 Set
New mobile X-ray photography mainframe
1 Set
obile X-ray photography control system
1 Set
Symmetrical adjustable beam limiting device with light source
1 Set
 Remote control
1 Set
Spare parts (See spare parts list for detail information)
1 Set

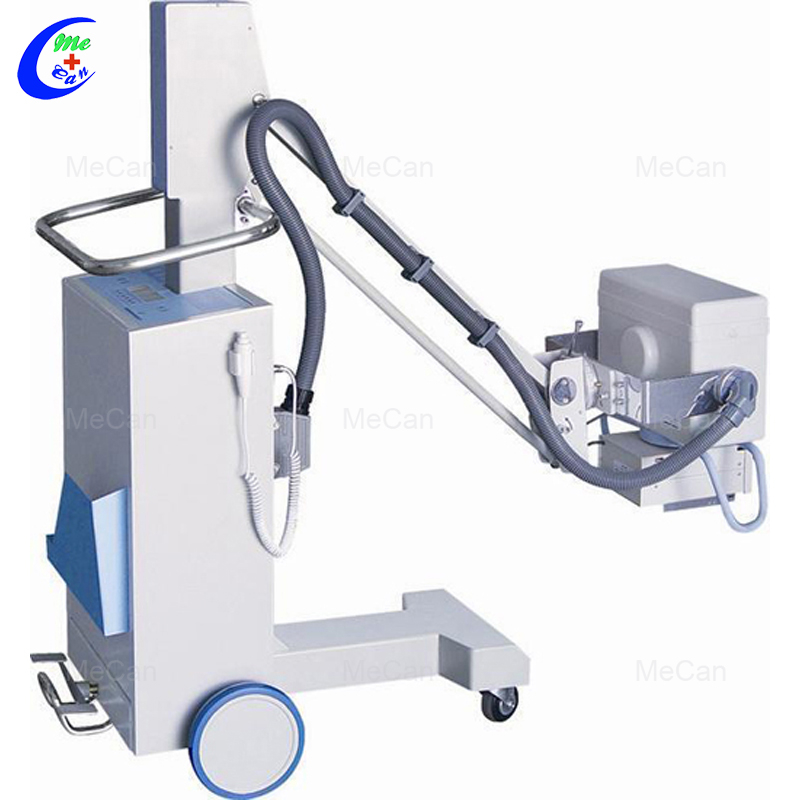

More pictures of the MCX-H100 High Frequency X-ray Machine:
