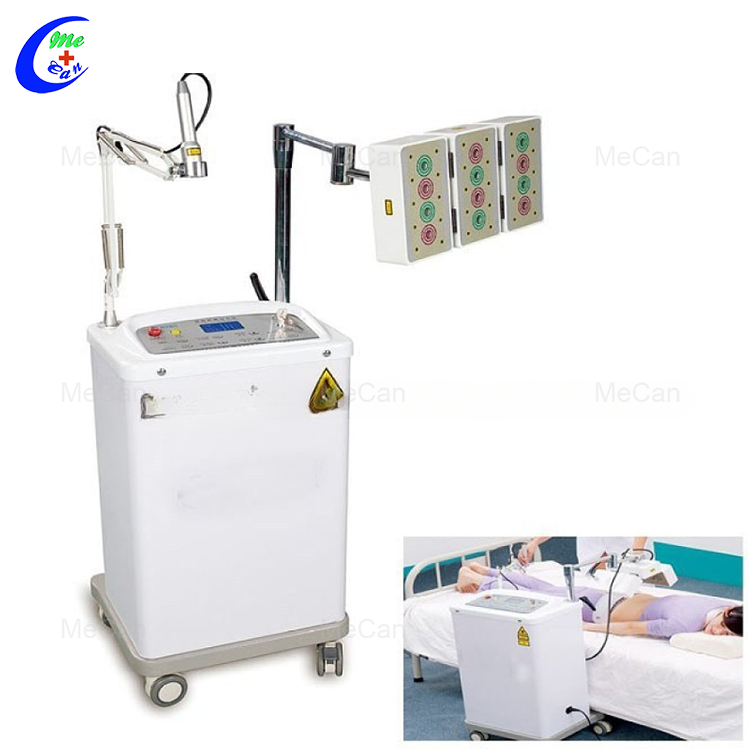

Intelligent Pain Therapeutic Apparatus

MeCan Medical Best Quality MCT-XYG-500 IVB Intelligent pain Therapeutic Apparatus Factory,OEM/ODM, customized according to your requirements. Every equipments from MeCan gets passed strict quality inspection,and final passed yield is over 99.9%.

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Intelligent pain Therapeutic Apparatus


Intelligent Pain Therapeutic Apparatus


Technical parameters

  • Rated input power is 45 VA

  • One channel of triple array output, one channel of point-like output

  • the length of point-like radiator: 160mm,outside diameter: 22mm

  • the wavelength of point-like radiator: 810nm+5%

  • the point-like radiator output power: 0-500mw

  • triple array radiator: 375mm x 205mm x 60mm

  • Stair-shaped wavelength: 980/810nm±5%

  • Area array output power:

        Wavelength 980nm the output power:0~200mw(adjustable)

        Wavelength: 810nm the output power:0-500mw (adjustable)

  • treatment time: 0-99min (adjustable)

Product performance

  • The stair-shaped wave treatment meets the treatment requirement.

  • The triple array radiator is easy to operate,it can treat multiple body parts;

  • It is applied to treat large area skin disease

  • The point-like radiator is used for acupuncture point treatment.

  • Multi section movable arm, which can make the radiator more flexible and easy to use.

  • The machine has a key switch,when you turn the key switch 90 clockwise, the treatment will start.

  • The machine has emergency switch.
