MCE-KP-B Fundus camera & FFA /Retina camera& FFA
MCE-KP-B Fundus camera & FFA /Retina camera& FFA

MCE-KP-B Fundus camera & FFA /Retina camera& FFA

Model NO.:
USD 999.00-7999.00 / unit
Minimum order quantity:
1 unit
Supply Ability:
6000 unit / Month
Country of Origin:
Guangzhou Shenzhen Hongkong Shanghai Yiwu Ningbo
  • Type:Ophthalmic Optical Equipments
  • Place of Origin:CN;GUA
  • Instrument classification:Class II
  • Brand Name:Mecan
  • Model Number:MCE-KP-B

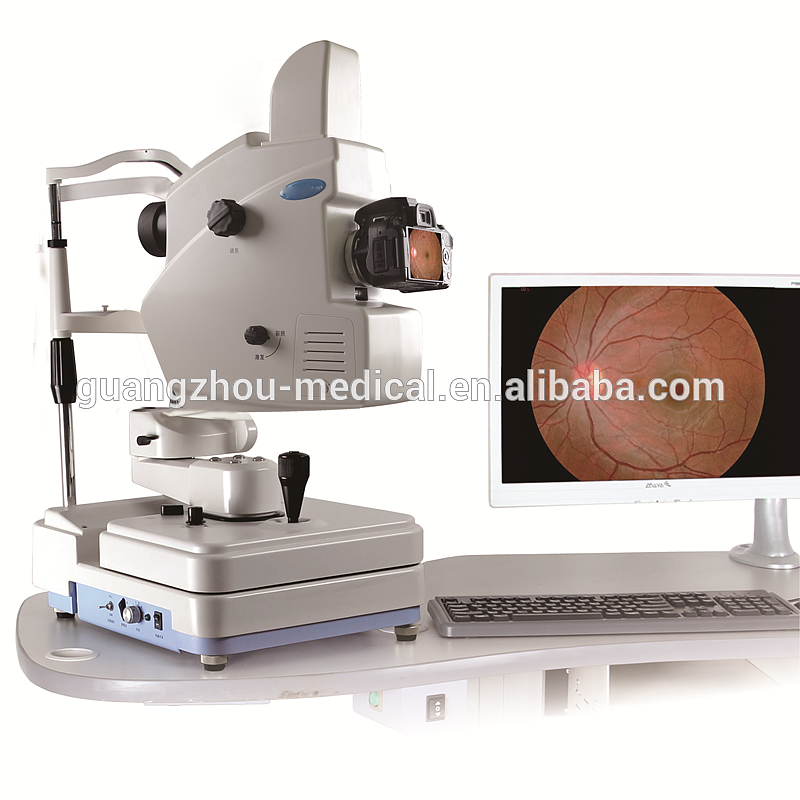

Fundus camera & FFA /Retina camera& FFA

Model: MCE-KP-B


Technical Specifications
Working Distance: The distance from cornea is 40mm, Errors: ±2mm
Field of Vision Scope: 45°
Horizontal Angle: ±30°
Up and down Angle: ±12.5°
The Size of Outer Ring: φ7.4mm;
The Size of Inner Ring: φ4mm
Filters: Stimulating Filter (red&blue);
Depth of field contraction distance: ≥5mm
Refractive compensation:+15D
Seat movement scope:
The moving distance between the front and back: 60mm;
The moving distance between right and left: 120mm;
The moving distance between up and down: 30mm.
Working Environment
Temperature: -5℃--40℃;
Relative Humidity: ≤85%;
Atmospheric Pressure: 700hPa--1060 hPa;
Power: AV 220V±22V;
Frequency: 50Hz±1Hz;
Input Power: ≤300W.
Auto detected the eye position
Pupil size: 3mm
Illumination source: infrared
Auto /manual focus
Auto adjust flash intensity /illumination intensity according patient pupil size
Five internal fixation lamp/external fixation lamp
Nine internal fixation lamp: option
Image resolution: 10Mega
Fundus fluorescein angiography
Picture FFA image:FFA Video FFA image: FFA


Together with client

We have sold Fundus camera & FFA /Retina camera& FFA and other medical equipment to more than 109 countries and built long term partnerships with clients such as UK, US, Italy, South Africa, Nigeria, Ghana, Kenya, Turkey, Greece, Philippines, etc

MeCan Medical equipment.jpg Please Send inquiry to us for the Fundus camera & FFA /Retina camera& FFA
