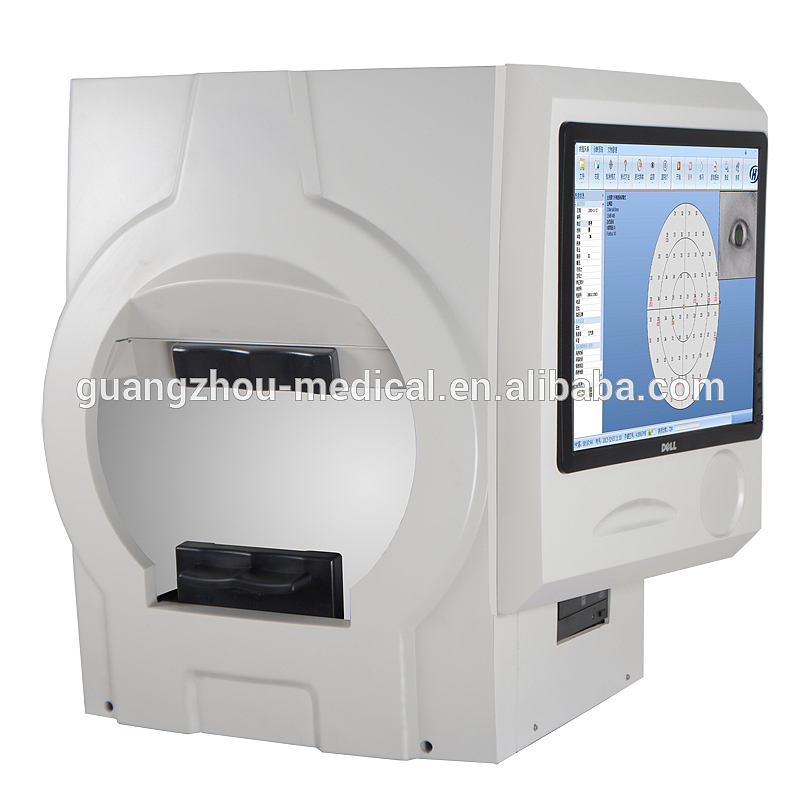

MeCan Medical China MCE-KP-T00 Projection Perimeter manufacturers - MeCan Medical,Every equipments from MeCan gets passed strict quality inspection,and final passed yield is 100%, we are in it more than 15 years, we are very professional and we will provide the best service to you.
Availability: | |
---|---|
Quantity: | |
Place of Origin:CN;GUA
Model Number:MCE-KP-T00
Brand Name:Mecan
Type:Ophthalmic Optical Equipments
Model: MCE-KP-T00
Technical Specifications
1 Spherical radius: 175mm ± 5mm
2 Stimulus light intensity: 0-10000asb (± 10%)
3 Projection light: red, blue, white (wideband visible light).
4 Dynamic Range: 0-51DB
5 Background light: yellow and white
6 Background light intensity:
a) Background light: White, light intensity 31.5asb (± 10%)
b) Background light: yellow light used OG530 lenses; backlight intensity 315asb (± 10%)
7 Spot size:
a) Class Ⅰ: the angle of 0.11 ° (± 10%); stimulus as the standard size (30 cm Bowl) 1/4mm2 ± (± 10%)
b) Class Ⅱ: Diagonal 0.22 ° (± 10%) to; stimulus as the standard size (30 cm Bowl) 1mm2 ± (± 10%)
c) Class Ⅲ: the angle of 0.43 ° (± 10%); stimulus as the standard size (30 cm Bowl) 4mm2 ± (± 10%)
d) Class IV: the angle of 0.86 ° (± 10%); stimulus as the standard size (30 cm Bowl) 16mm2 ± (± 10%)
e) Class V: the angle 1.72 ° (± 10%); stimulus as the standard size (30 cm Bowl) 64mm2 ± (± 10%)
8 Stimulation points number and stimulation time
a) stimulation point: not fixed
b) Stimulus duration: adjustable from 0.1s to 2.0s program (± 5%)
c) Interval: adjustable from 0.1s to 2.0s program (± 5%)
9 eye position monitoring window: CCD camera, directly monitor the eyes
10 chinrest stroke: down ≥ 50mm (± 5%) around ≥ 28mm (± 5%)
11 eye tracking: eye movements or eye blinking, the system will alarm (monitoring the"Start eye movement detection"Open)

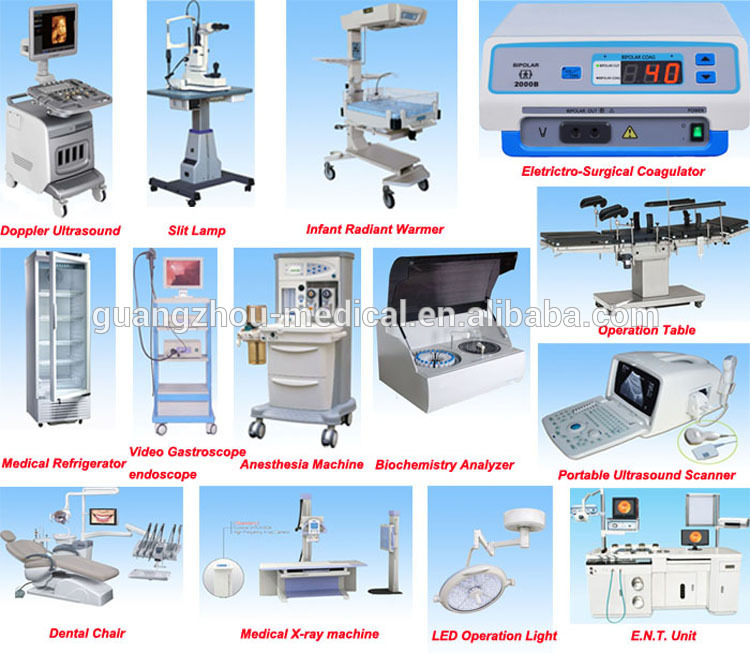

Anesthesia Machine | Autoclave | Ultrasound Machine |Color Doppler Ultrasound | Defibrillator | Medical Refrigerator | Centrifuge | Dental Chair | E.N.T Unit | ECG Machine | Patient Monitor | Endoscope | Video Gastroscope Colonoscope | Hospital Furniture | Infant Incubator | Infant Radiant Warmer | Clinical Laboratory Equipment | Biochemistry Analyzer | Hematology Analyzer | Coagulometer | ESR Analyzer |Dialysis Machine | Lab Incubator |Water Bath | Water Distiller | Microscope | Physiotherapy Equipment | OB/GYN Equipment | Colposcope | Slit Lamp | Ophthamoc Equipment | Surgical Power Drill | Operation Table | Operation Light | Ventilator | X-ray Machine | Film Processor | Veterinary Equipment ... ...
We have sold Projection Perimeter and other medical equipment to more than 109 countries and built long term partnerships with clients such as UK, US, Italy, South Africa, Nigeria, Ghana, Kenya, Turkey, Greece, Philippines, etc
Please Send inquiry to us for the Projection Perimeter
