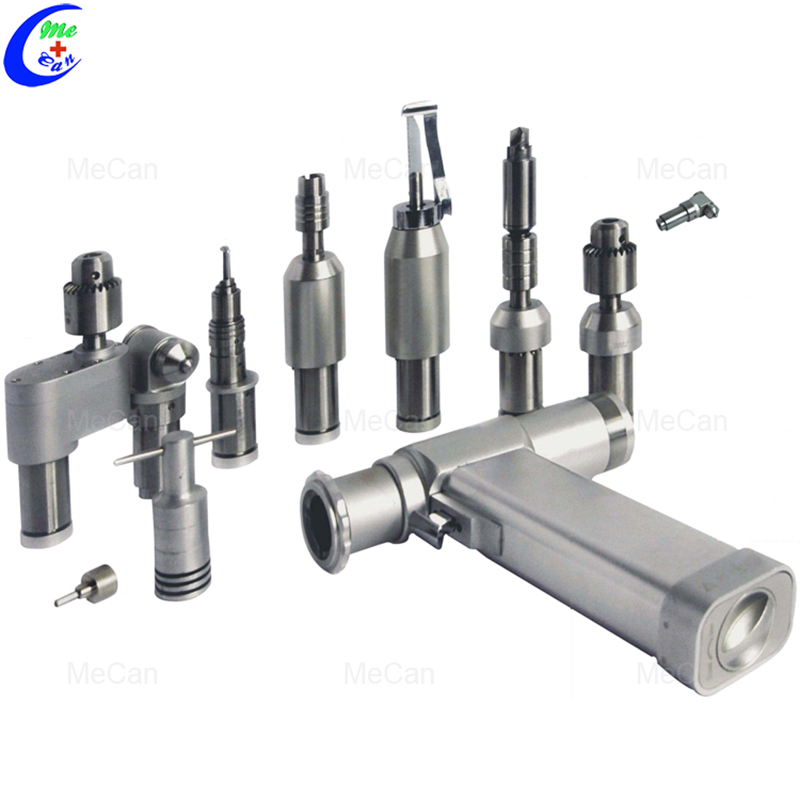

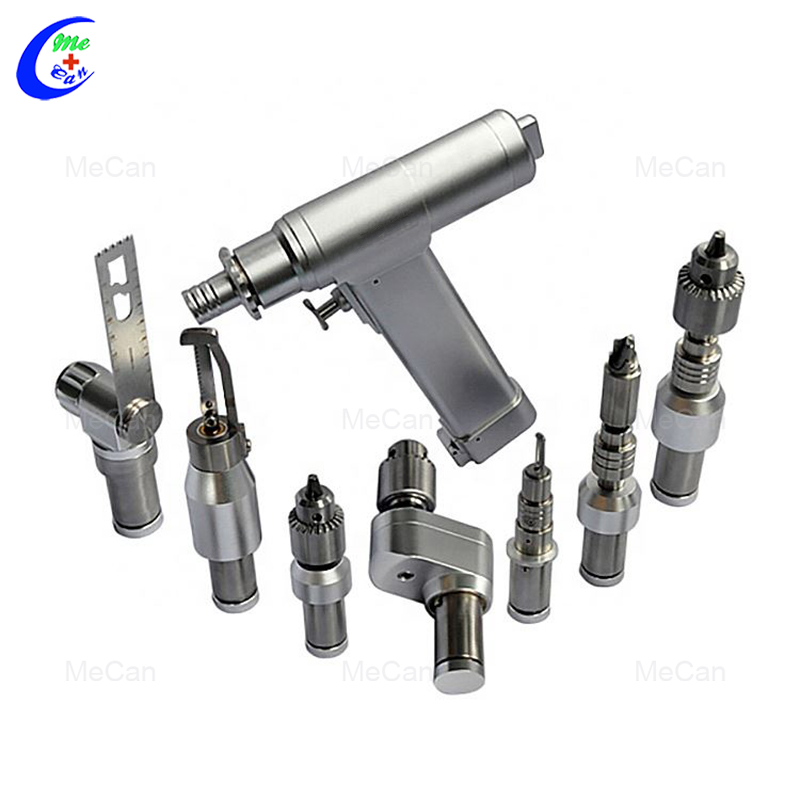

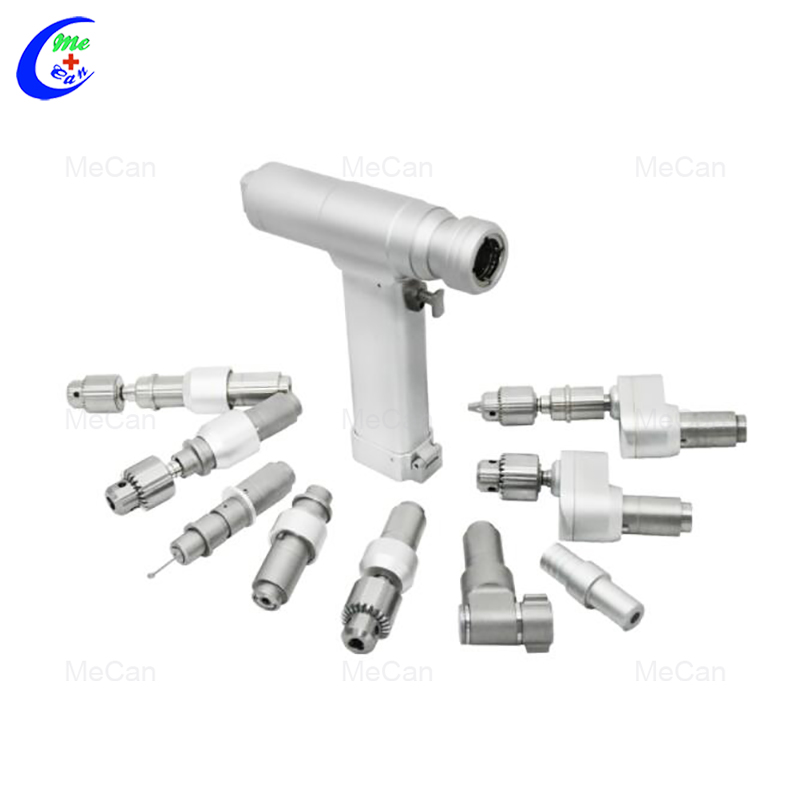

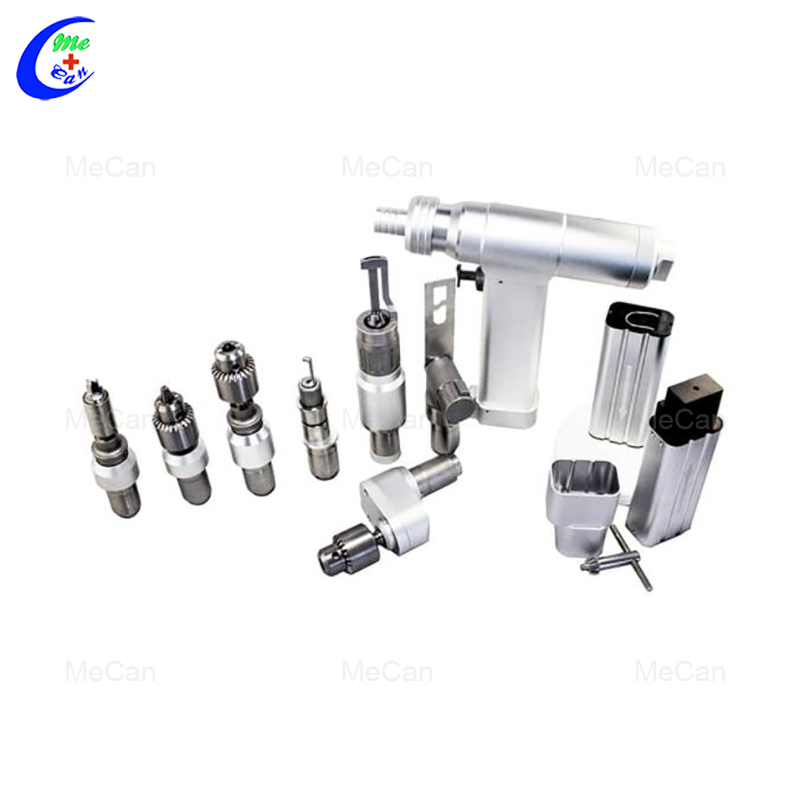

Multifunction Power Medical Saw Medical Drill

Model: MC-DZ02


1. Main frame is made of stainless steel, durable, long working hours, the accessories can be selected freely for different operation.

2. Quick chuck: Imported chuck ensures outstanding performance during operation.

3. Sternum saw: Both 360° rotating head and blade guard can protect soft tissue around sternum.

4. Craniotomy mill: 40000r.p.m rate ensures fast, efficient and safe process in craniotomy.

5. Oscillating saw: 360°rotating head can be applied to any surgical area. Wrench-free device allows easy, fast and safe loading and unloading blades.

6. Reamer: Hi-torque, ideal for acetabulum or medullary operation, available to various mills.

7. Wire and pin chuck: A canula with diameter 4.0mm applies to various intramedullary pin or kirschner pin fixing operation easily and conveniently.

8. Cranial drill: Auto-pause after perforation ensures safety in neurosurgery.

9. Highest quality

10. Perfect ergonomic design

11. Applicable to different kinds of surgery options.

Technical of multifunction medical drill and saw:

Charger input voltage AC220V/50HZ

Unit rise in temperature < 25°

Frequency > 15000rpm

Speed (drill) >600rpm

Speed (acetabulum burnishing drill) >130rpm

Torque (quick chuck) >7500G/C

Torque (reamer) >33000G/C

Torque (HOLLOW DRILL) > 11200G/C

Weight: 3100g

Compositions of medical drill and saw:

Components Function & feature Quantity
Multifunctional handpiece weight: 1.02kg,can connected with seven adapters below, safe, efficient, autoclavable up to 135 degree Celsius 1
cranial drill speed: 0-900 rpm,stop automatically, no damage for soft tissue to ensure the safety in operation 1
cranial mill 0-40000rpm 1
sternum saw rotate 360,no damage for sternal soft tissue 1
canulate drill speed:0-600rpm, can connect all kinds of canal reamer, hollow diametre being 4.0mm, suitable for different K-wire & pin chuck 1
bone drill speed>1300rpm,imported drill chuck, high Coaxiality, suitable for trauma surgeries 1
oscillating saw frequency:18000rpm, used for joint surgeries 1
acetabular drill speed:0-450rpm, can connect kinds of acetabular reamer & hip cavity reamer 1
battery weight:0.36kg, could last for 30 minutes after fully charged 2
charger 110-220V, plug could be made European & American type 1
saw blades imported material, could be used repeated 2
sterilizing channel the battery could not be sterilized, it could be sterilized by this 1
high temperature cover block up the connetor part of handpiece while sterilizing 1
aluminiun carrying box Package of the above items 1
sterilization case
it has cover, the components need to be placed in order during sterilizing 1

Remark: components & accessories could be changed according to requirement, the standard configuration: one hand piece, one charger, two batteries, seven adapters, two oscillating saw blades, two sternum saw blades, one high temperature cover, one sterilizing channels
