The product with the new design has good repetition and adjustable frequency, which overcomes the limitations and shortage of traditional Xenon lamps. It ensures that the glaring strength not affected by the stimulating frequency and has the monochromatic lights (red, green, blue, yellow) being sensitive to a bright and dark system of the retina.
Detailed profile
Characteristics:
·The light source of the glaring stimulator is LED, which has the following features:
Proportion by glare and various colors (e.g. white, red, green, blue and yellow) on the principle basis of tricolor.
Good repetition ensures that the flash strength will not be affected by frequency and provide glaring stimulation up to 50 Hz.
Without any harmful light source (infrared ray, UV). Wavelength is strictly controlled and could be provided according to the customer’s requirement.
Customized glaring pulse with 2-3s and detection of C wave.
A precise light source provides reliable diagnosis results.
·Anti-jamming.
·More steady machine system ensures objective and real diagnosis result.
·Powerful analyzing software and convenient case inquiring management system.
·Automatically eliminate the false trace.
·Reasonable system connecting.
·Host computer and other equipment are connected by USB wire.
·Designed conforming to international standards.
Main Functions:
F-ERG, EOG, P-ERG, P-VEP, F-VEP, scanning VEP and dual light ERG.
Clinic application
The product is used to provide an objective foundation for various diseases: e.g. fundus disease, glaucoma, amblyopia, and color barrier, by the record and description of the poles.

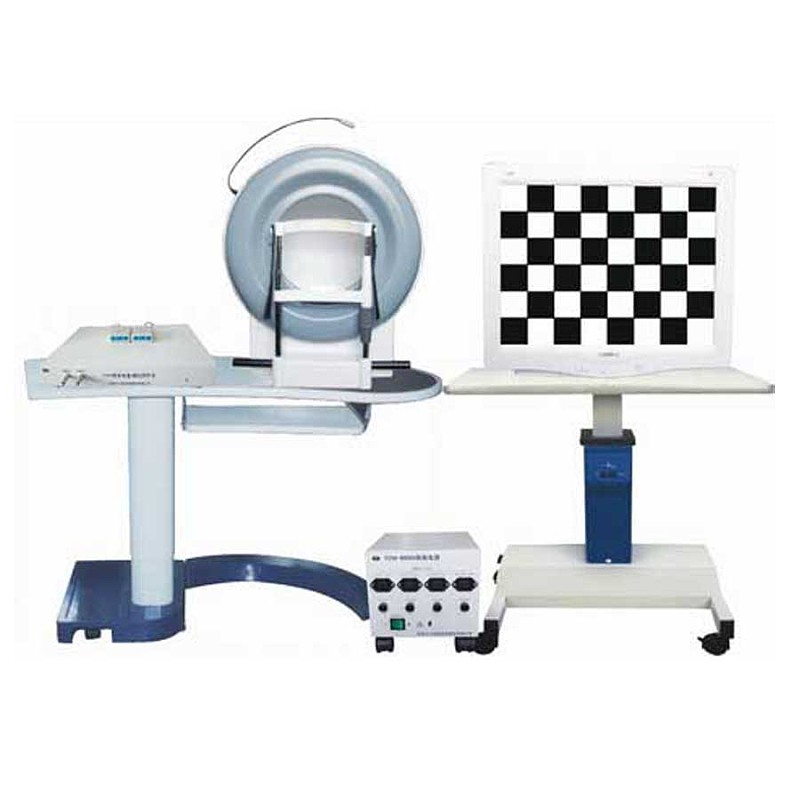

System configuration
A set of the host computer
System governing computer case
Program control Ganzfeld stimulator
Color image stimulator
A set of detection system software
A printer
Recording pole
Power supply box
Specifications:
·Magnifier
Common mode rejection ratio: >=100dB
Input impedance: >=10MΩ
Mean square yawp:<=3μV
Plus:1K,10K
Frequency Strip: 0.01-500Hz
High-pass:0.01Hz,0.1Hz,1Hz,70Hz
Low-pass:500Hz,200Hz,100Hz,20Hz
·Image stimulator
Stimulating color: black-white, red-black, blue-black, green-black
Stimulating image: chessboard grid; vertical strip, level strip
Stimulating field: full screen, half screen, 1/4 screen,1/8 screen,center screen
Space frequency: 4x3,8x6,16x12,…128x96
Contrast:3%,10%,40%,70%,90%,99%
·Glaring stimulator:
Stimulating spectrum: red, yellow, blue, green, white
Glaring frequency: 0.2~50Hz
EOG angle: ±15°,±30°red light
Working style: stand seat
Glaring intension: 0.005cd·s/m ~5.12cd·s/m 11 steps are optional
Brightness for background light: ERG 1cd/m ~64cd/m
EOG enlarged pupil 128cd/m natural pupil 512cd/m
