China Surgical High Frequency Electrosurgical Unit Portable Diathermy Machine manufacturers - MeCan Medical

MeCan Medical China Surgical High Frequency Electrosurgical Unit Portable Diathermy Machine manufacturers - MeCan Medical,Every equipments from MeCan gets passed strict quality inspection,and final passed yield is 100%.

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • Place of Origin:CN;GUA

  • Properties:The Basis of Surgical Instruments

  • Instrument classification:Class II

  • Type:Electrosurgical Unit

  • Brand Name:MeCan

  • Model Number:MCS-ESU01

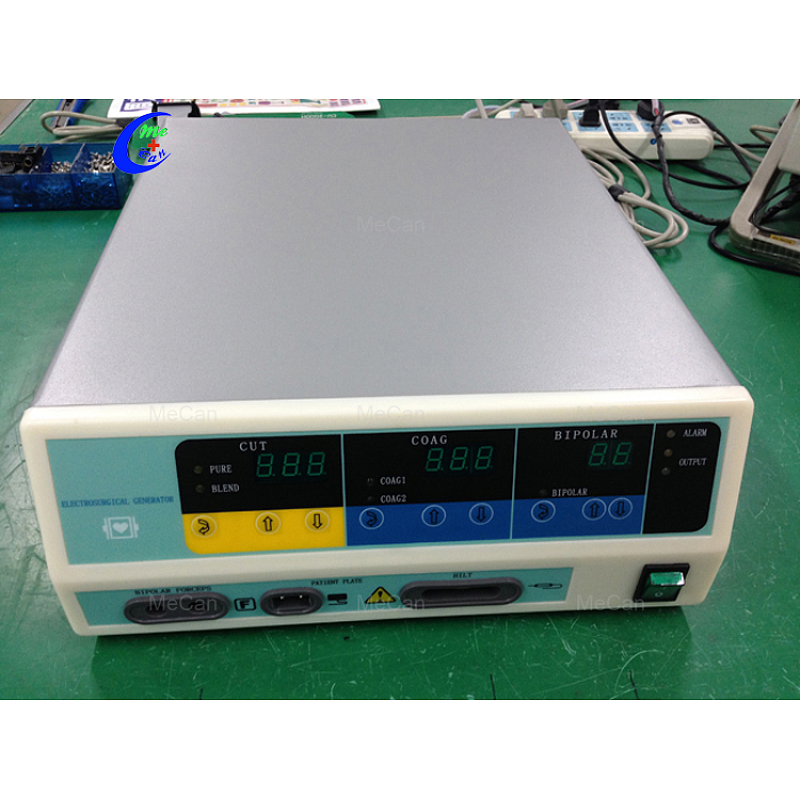

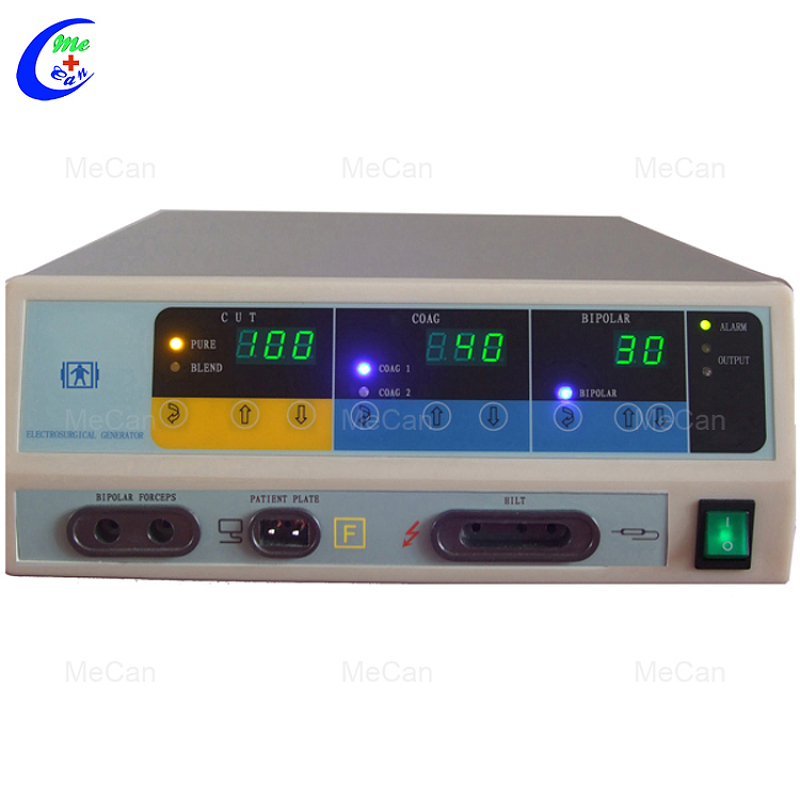

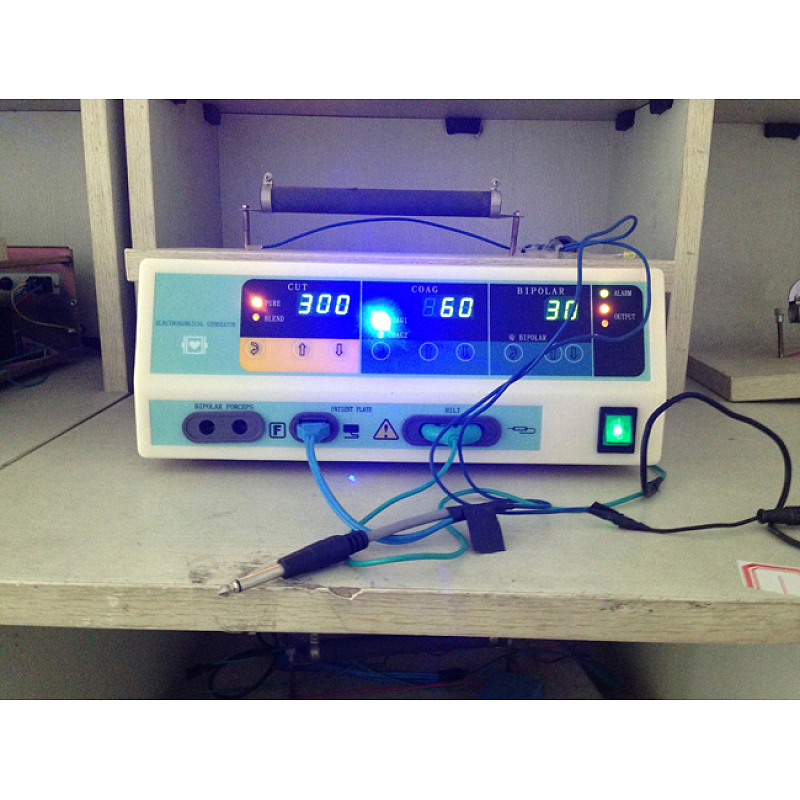

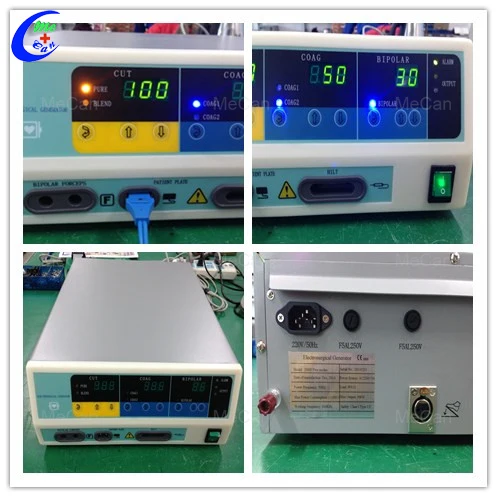

Surgical High Frequency Electrosurgical Unit , Portable Diathermy Machine

Model: MCS-2000I-5


Diathermy machine

What is the features of our bipolar electrosurgical unit?

1.Max 300W Electrosurgical Generator, with mono-polar and bipolar function.

2.Five working modes: pure cut, blend, spray coag, forced coag, bipolar coag.

3.Wide clinical applications, such as the general surgery, thoracic surgery, orthopedic surgery, cardiology, gynecology, urology(under water TUR), oncology, neurosurgery, etc.

4.Microprocessor controlled, digital display. With audible and visual indicators and errors codes during the process of outputting.

5.Return Electrode Monitoring system and Power Peak System, minimizing the risk of tissue damage.

6.Both hand and foot controlled.

7.Separate power display and outlet socket for mono-polar cut, mono-polar coag, bipolar cut and bipolar coag, each output can be individually configured.

8.Memory for at least 10 freqfrequently used programs.

9.Remote control function. The surgeon can adjust the outputs by power control ESU pencil.

10.The ESU unit can be connected with laparoscope and endoscope, etc.

11.Protection against over-voltage and over-current.

12.Defibrillation protected.

13.Mounted on a 4 wheels cart(optional).

14.Meets the requirements of international safety standards EN60601-1 and EN60601-2.

What is the the specification?

Mono-polar Cut

Pure cut:1W~300W( Load 800Ω)

Blend:1W~200W(Load 800Ω)

Mono-polar Coag

Spray Coag:1W~80W( Load 800Ω)

Forced Coag:1W~120W( Load 800Ω)


Bipolar Coagulation: 1W~50W( Load 200Ω)

Power Consumption



220V±22V, 50Hz±1Hz(110V±11V, 60Hz)

Operating frequency


Power rating


 Electrosurgical generator

What is the the standard configuration included?

Main unit

1 set

Electrosurgical Pencil

5 pcs

Electrosurgical Pad

10 pcs

Electrosurgical pad cable

1 pc


1 set

Bipolar Forceps

1 pc

Bipolar forceps cable

1 pc

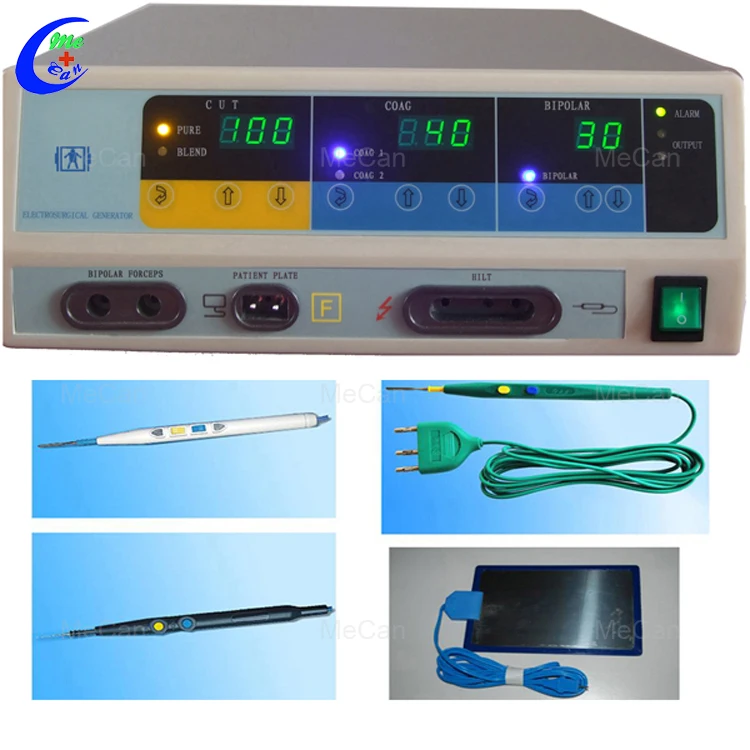

Accessories of the electrosurgical cautery unit


Surgical Cautery Diathermy Electrocautery Machine.jpgHigh Frequency Bipolar Electrosurgical Unit.jpgLEEP Surgery Equipment Generator.jpg




More Products


Why choose us ?


How to contact us ?
Click5.jpg to contact us now !!!



Independently designed and manufactured by ,  is applicable to .


1.What is your lead time of the products?
40% of our products is in stock,50% of the products need 3-10 days to produce,10%of the products need 15-30 days to produce.
2.What is your warranty for the products?
One year for free
3.What is your after-sales service?
We provide technical support through operating manual and video; Once you have questions, you can get our engineer's prompt response by email,phone call,or training in factory. If it's hardware problem, within the warranty period, we will send you spare parts for free, or you send it back then we repair for you freely.


1.MeCan Focus on medical equipments over 15 years since 2006.
2.More than 20000 customers choose MeCan.
3.MeCan provide one-stop solutions for new hospitals,clinics,labs and universities,has helped 270 hospitals,540 clinics,190 vet clinics to set up in Malaysia,Africa,Europe,etc.we can save your time,energy and money.
4.MeCan offer professional service,our team is well-tained
