Best Quality High Frequency Digital Radiology System X-ray Machine Factory

MeCan Medical Best Quality High Frequency Radiology System X-ray Machine Factory,MeCan Focus on medical equipments over 15 years since 2006.high frequency digital x-ray equipment can meet different parts radiography, such as head, chest, abdomen, waist, lumber, thoracic, pelvis, limbs etc. And meet different positions radiography, such as lay decubitus, side position etc. it is fixed digital x-ray machine and we can use it at bus and truck. If you would like more X-ray Machine, please send us an inquiry!


facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • MX-DR320A10

  • MeCan Medical

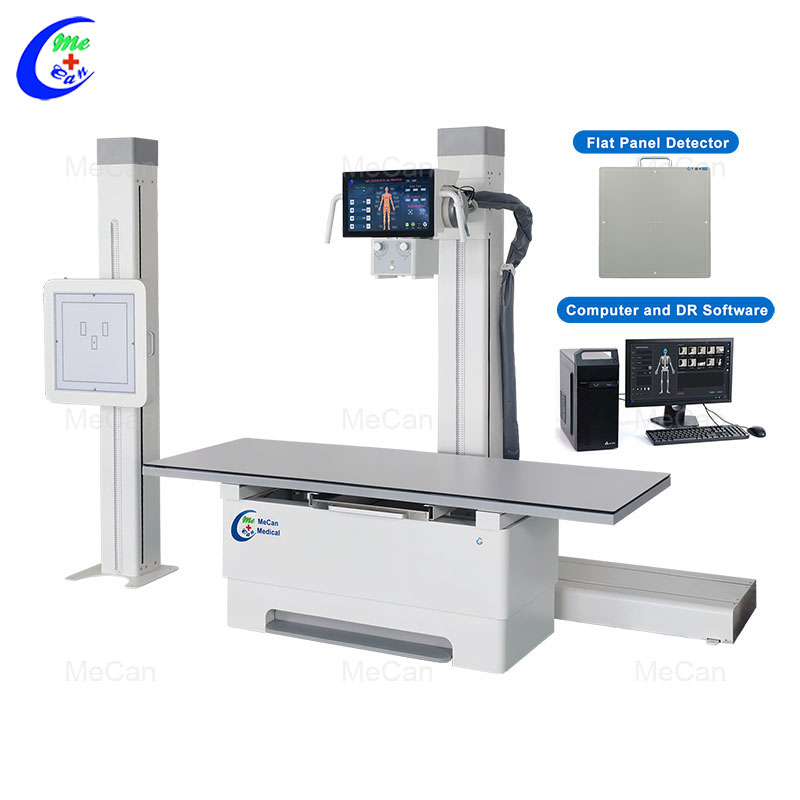

High Frequency Digital Radiology System X-ray Machine


Digital Fixed X-Ray Machine

Features of our Medical X-Ray Machine:

1.15.4 inch HQ LCD touch screen, real-time display for the tube rotation angle

2.Preseted parameters for 14 human body parts

3.KV, mA, S adjustable on the screen

4.OEM/ODM supported

5.Tube angle: 360° rotable

6.Up & down tube movement available

7.Left & right movement for both the column and the bucky

8.Extra long floor rail of 2.1M long, mobile tube column & table board to get easier examination for lower limbs

9.Only 5.5 cm between the table board and the detector for better image

10.Mobile table board in 4 directions controlled by foot switch

11.Separable column and bucky

12.Adjustable SID from 180cm for adults to 150cm for children

13.Space-saving design for installation in rooms of only 3M wide

14.Easy to install, only 3 hours needed for installing the whole machine

15.Manual brake system for adjusting the chest stand and the tube to any height needed

16.Only 2 minutes needed to exam 1 patient

17.Remote service 7*24 hours

Features of 32-65KW medical x ray machine

Specification of Digital Medical X-Ray Machine:

Model MX-320A10 MX-500A10 MX-650B10 MX-800A10
Power 32kW 50kW 65kW 80kW
Power supply 50HZ,60HZ, wire diameter >4mm2, internal resistance<0.5Ω; 20/32/50kW(single phase 220V /two-phase 380V available),  65kW(only 380V), 80kW(only 380V)
mA 10-400mA 10-630mA 10-800mA 10-1000mA
mAs 0.4-320mAs 0.4-1000mAs
KV 40-125kV 1kV step 40-150kV 1kV step
Exposure time 1ms~10000ms
Focus size Default 0.6*0.6mm/1.2*1.2mm dual focus, toshiba (option)
Anode rotating speed/Anode heat capacity 2800prm/ 1300kHU 8400prm/1300kHU
Generator frequency 30kHZ/200kHZ(option) 80kHz-300kHz
Radiography table(W*L cm) 73cm(W)*200cm(L), Move 74cm left and right, 20cm back and front
Flat Panel Detector
Image size 17*17 inch (14*17 for option)
Pixels Matrix 140μm
A/D Conversion 16bits
Spatial Resolution 3.6 Lp/mm
Software Professional Software
Computer CPU: I5, 8G memory, 1T solid state drive, 2 pcs Gigabit network card

Flat panel detector, DR software and computer

Flat panel detector, DR software and computer

Test image of our digital medical x ray machine:

Excellent Images of 32-65KW medical x ray machine

More pictures of our 32kW-80kW medical x ray machine:

32KW-65KW digital chest x ray radiography machine


1.Technology R & D
We have a professional R&D team that continuously upgrades and innovates products.
2.Quality Control (QC)
we have a professional quality control team to ensure that the final pass rate is 100%.
3.What is your payment term?
Our payment term is Telegraphic Transfer in advance,Western union, MoneyGram,Paypal, Trade Assurance,ect.


1.MeCan Focus on medical equipments over 15 years since 2006.
2.MeCan offer professional service,our team is well-tained
3.MeCan provide one-stop solutions for new hospitals,clinics,labs and universities,has helped 270 hospitals,540 clinics,190 vet clinics to set up in Malaysia,Africa,Europe,etc.we can save your time,energy and money.
4.More than 20000 customers choose MeCan.
