Professional Conventional RT PCR Machine DNA Extraction Machine DNA Test manufacturers

MeCan Medical Professional Conventional PCR Machine DNA Extraction Machine DNA Test manufacturers,MeCan Focus on medical equipments over 15 years since 2006.  It supports the application of all common QPCR detection testing, and forensic applications. If you are interested in the PCR Machine, please contact us in time.


facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Conventional RT PCR Machine DNA Extraction Machine DNA Test


Product Description:

It is based on global vision of product design concepts and manufacturing processes. It creatively combines Fresnel lens optical signal acquisition technology, time-resolved signal separation technology and unique temperature control technology. And it reaches international advanced level in sensitivity, multicolor crosstalk, temperature uniformity and accuracy. It supports the application of all common QPCR detection testing, and forensic applications.

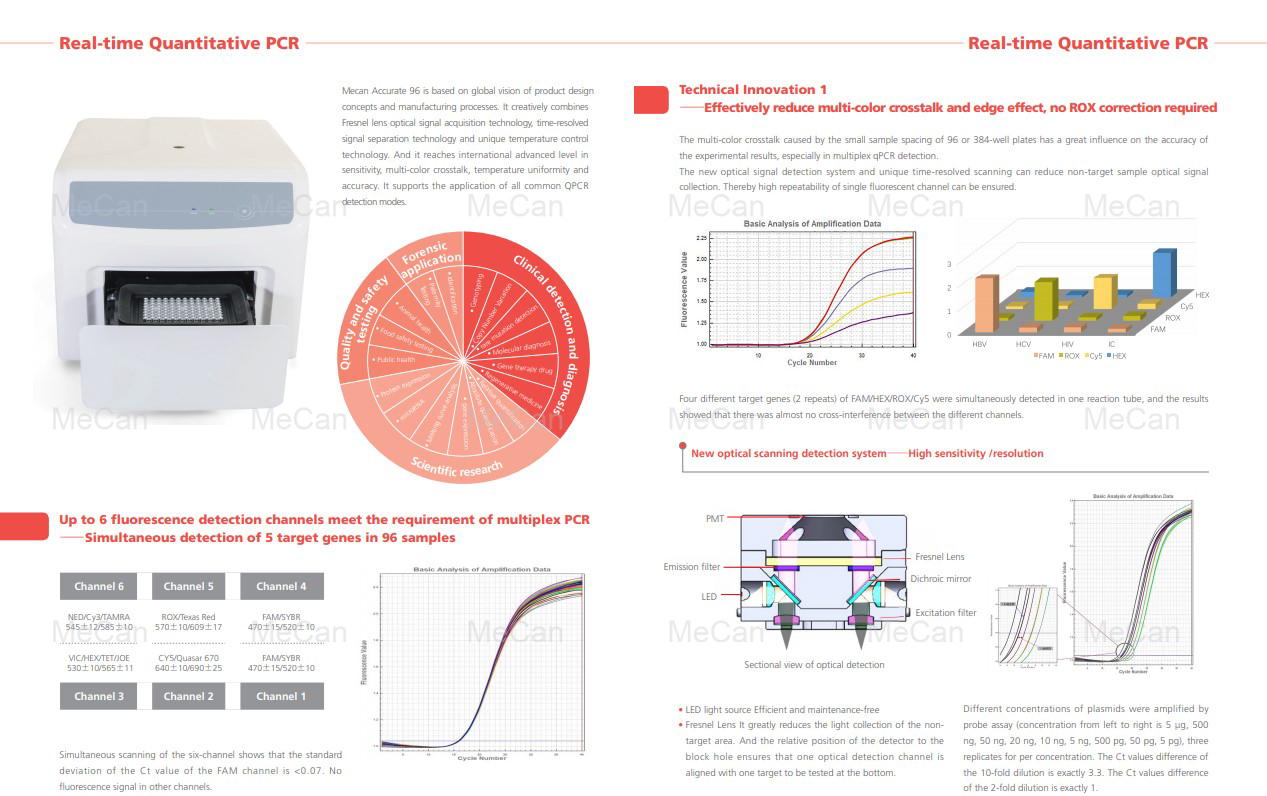

1.Up to 6 fluorescence detection channels allowing multiplex PCR.

2.Effectively reduce multi-color crosstalk and edge effect, no ROX correction required to reduce sample and reagent use

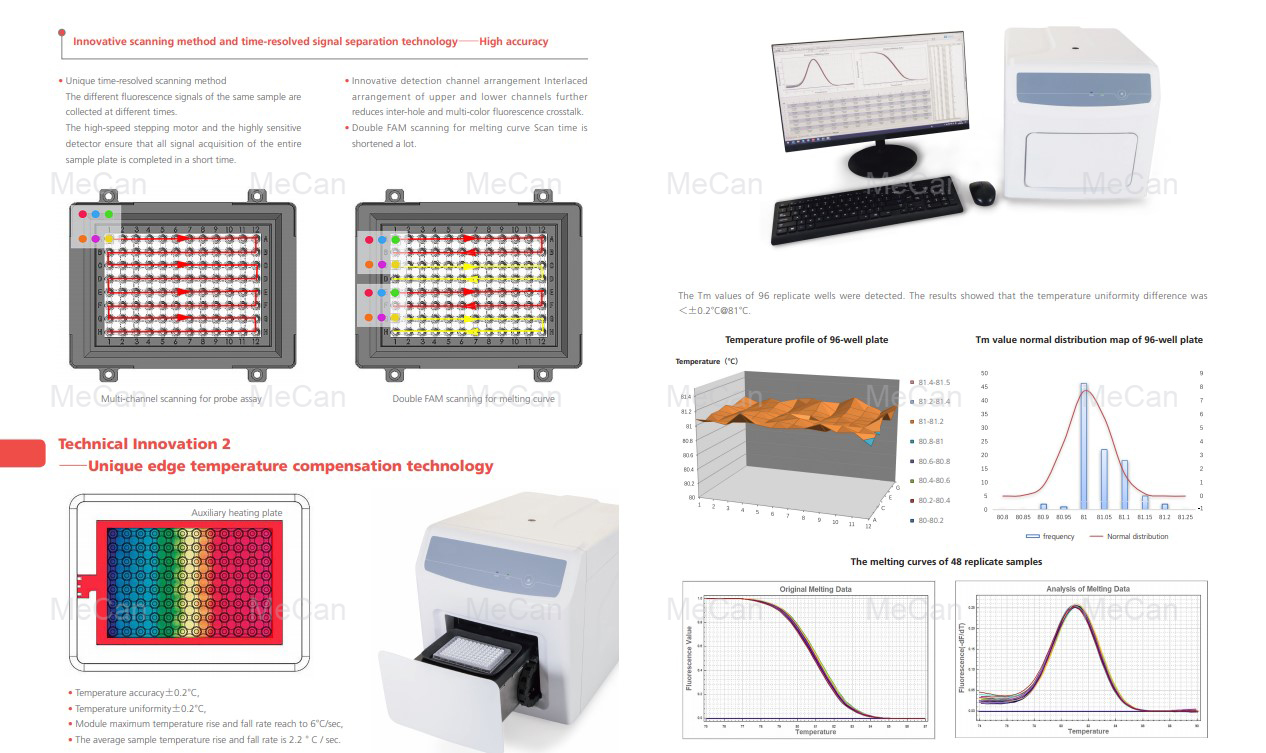

3.Innovative scanning method and time-resolved signal separation technology to improve detection sensitivity

4.Unique edge temperature compensation technology to minimize "edge effect"

5.User-friendly software

6.Innovative technology with long-lastig LED light provides reliability results

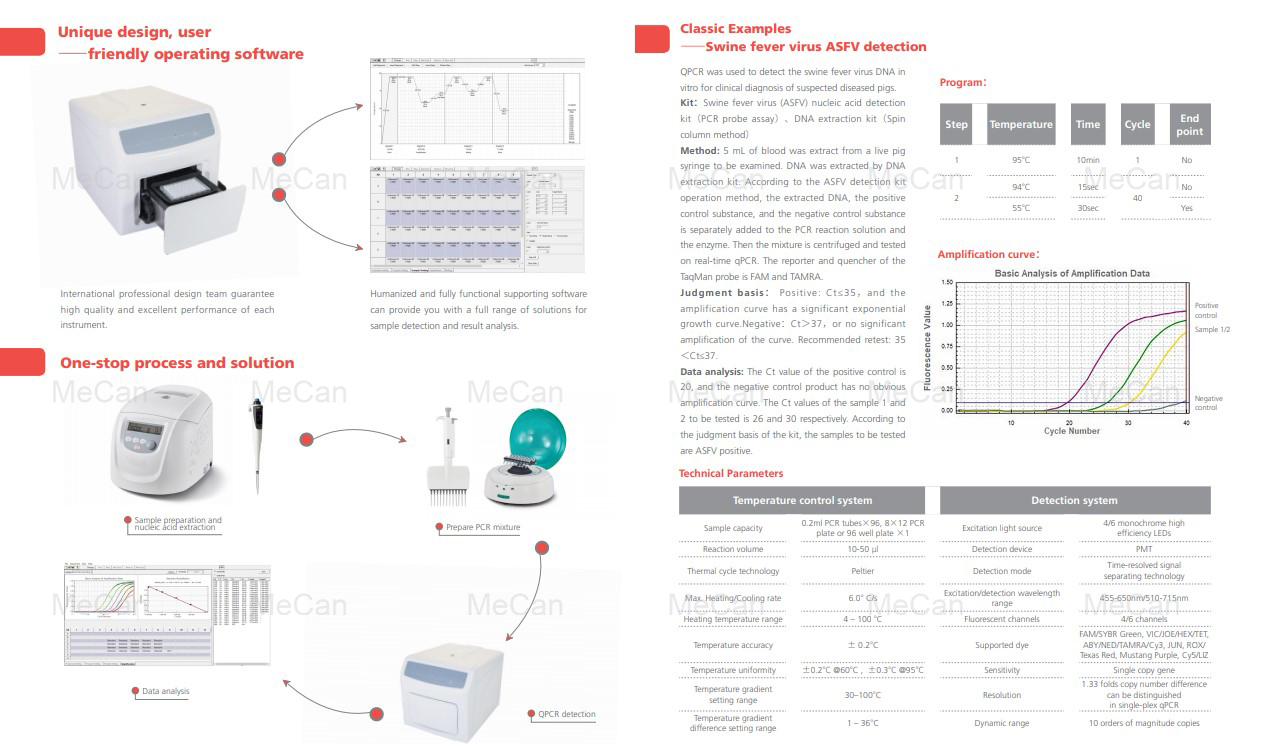

Temperature control system
Sample capacity
0.2ml PCR tubes×96, 8×12 PCR plate or 96 well plate ×1
Reaction volume
10-50 μl
Thermal cycle technology
Max. Heating/Cooling rate
6.0° C/s
Heating temperature range
4 – 100 °C
Temperature accuracy
± 0.2°C
Temperature uniformity
±0.2℃ @60℃ , ±0.2℃ @95℃
Temperature gradient setting range
30 - 100°C
Temperature gradient difference
1 - 36 °C
Detection system
Excitation light source
4/6 monochrome high efficiency LEDs
Detection device
Detection mode
Time-resolved signal separating technology

Excitation/detection wavelength

Fluorescent channels
4/6 channels
Supported dye
FAM/SYBR Green, VIC/JOE/HEX/TET, ABY/NED/TAMRA/Cy3, JUN, ROX/Texas Red, Mustang Purple, Cy5/LIZ
Single copy gene
1.33 folds copy number difference can be distinguished in single-plex qPCR
Dynamic range
10 orders of magnitude copies

more details of our PCR Machine:


1.Technology R & D
We have a professional R&D team that continuously upgrades and innovates products.
2.What is your after-sales service?
We provide technical support through operating manual and video; Once you have questions, you can get our engineer's prompt response by email,phone call,or training in factory. If it's hardware problem, within the warranty period, we will send you spare parts for free, or you send it back then we repair for you freely.
3.What is your warranty for the products?
One year for free


1.More than 20000 customers choose MeCan.
2.MeCan Focus on medical equipments over 15 years since 2006.
3.OEM/ODM, customized according to your requirements.
4.MeCan provide one-stop solutions for new hospitals,clinics,labs and universities,has helped 270 hospitals,540 clinics,190 vet clinics to set up in Malaysia,Africa,Europe,etc.we can save your time,energy and money.
