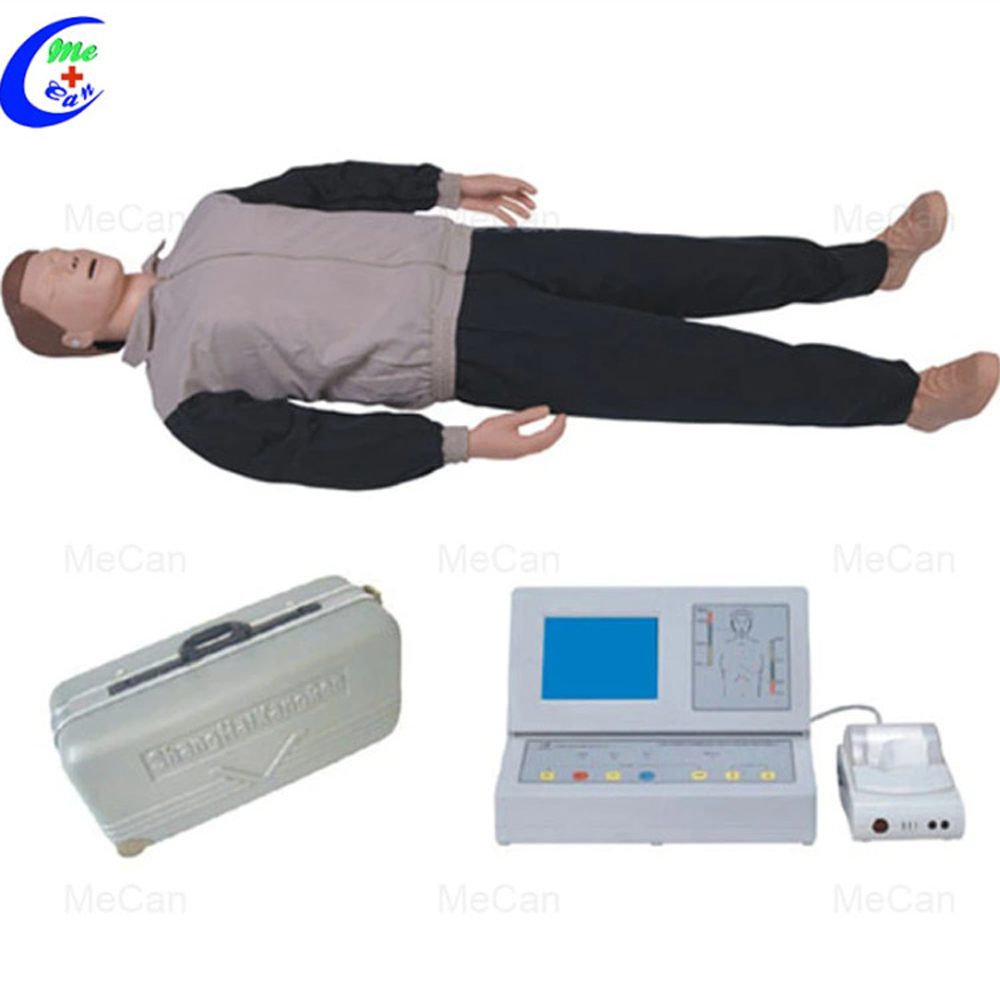

Medicine First Aid Dummy Simulator CPR Equipment
Model: MCT-CPR400S-A
Features:
1. Simulate standard open airway and sound prompting
2. External breast compression: indicator light display, digital counter display and sound prompting
a) Indicator light display of correct and wrong compression position; digital counter display; sound prompting of wrong compression.
b) Display of correct (at least 5cm) and wrong (less than5cm) compression intensity; digital strip indicator light (yellow, green, red) shows compression depth; counter display; sound prompting of wrong operation.
3. Artificial respiration (Inhalation) indicator light display, digital counter display and sound prompting:
a) Inhalation is ≤500ml/600ml-1000≤, strip indicator light shows inhalation volume; counter display of correct and wrong operations, and sound prompting of wrong operation.
b) Inhalation too quickly or too much result in air entering into stomach; indicator light display; digital counter display; sound prompting.
4. Ratio of compression and artificial respiration: 30:2 (one or two person)
5. Operating cycle: one cycle includes five times of 30:2 ratio of compression and artificial respiration.
6. Operation frequency: at least 100 times per minute
7. Operation methods: exercise operation; examine operation
8. Operation time: counting down device
9. Sound prompting device: volume control; turning on or turning off sound prompting device
10. Print: print operation result
11. Examination of pupil response: mydriasis and myosis
12. Examination of carotid response: simulate spontaneous carotid pulse in compression process
13. Working conditions: Working conditions: Input power is 110-240V or adopts direct current of eight No.1 batteries.
Standard components:
1. Full body manikin (1)
2. Monitor (1)
3. Portable plastic box (1)
4. Temperature sensing printer (1)
5. CPR operation pad (1)
6. CPR face shield sheet (50pcs/box)
7. Exchangeable lung bag (5)
8. Exchangeable face skin (1)
9. Temperature sensing print paper (2 roll)
10. Guide manual (1)
PACKAGE SIZE: 97*33*58cm
G.W.: 22KGS
Ohter models of CPR Medicine Manikin

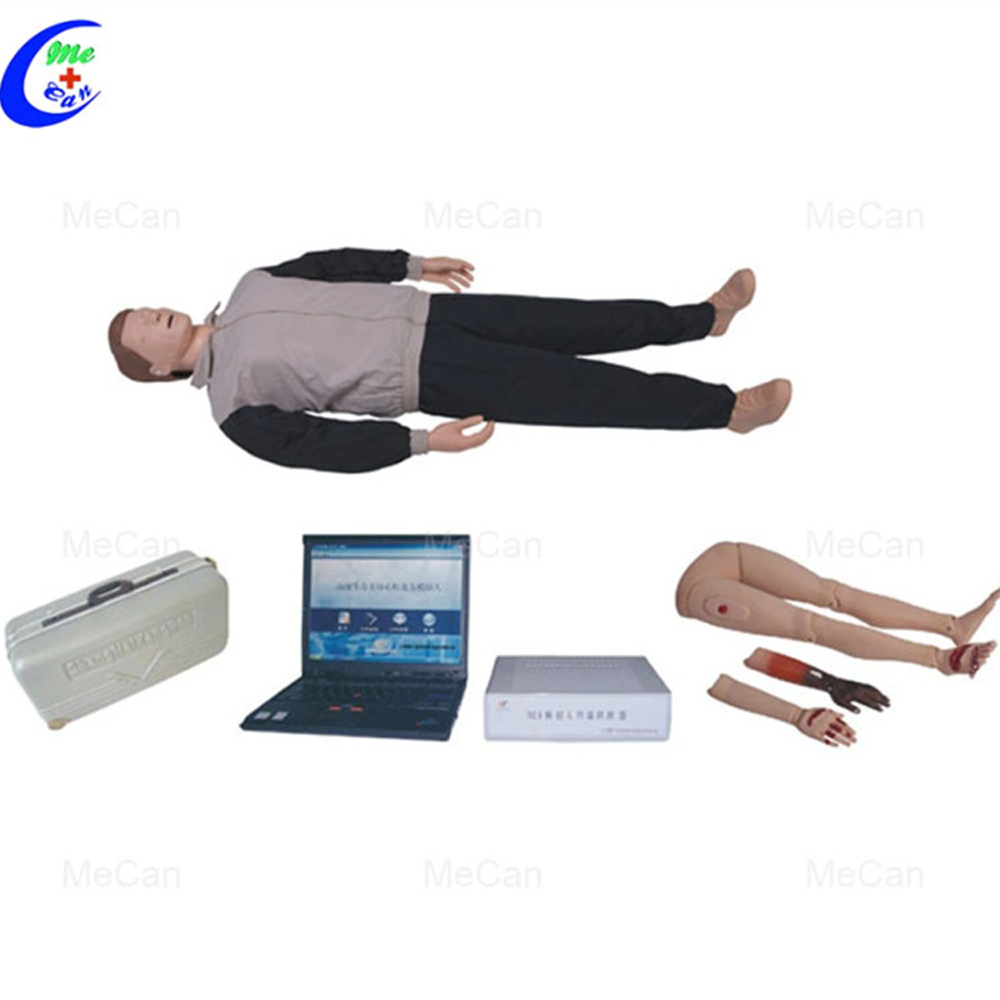

Model: MCT-CPR400S-C
Features:
1. With all functions of MCT-CPR400S
2. Student IC card: IC card can record all the operation and assessment information; can also be used for exam process playback, result evaluation, student documents management
3. Equipped with trauma limbs, can replace the original limbs to act wound washing, stop bleeding, bandaging, fixation, carrying.
Main Components:
1. Full body manikin (1)
2. Trauma limbs (1set)
3. Monitor (1)
4. Card reader (1)
5. IC card (20pcs /set)
6. Manage software (1)
7. Portable plastic box (1)
8. Temperature sensing printer (1)
7. CPR operation pad (1)
8. CPR face shield sheet (50pcs/box)
9. Exchangeable lung bag (5)
10. Exchangeable face skin (1)
11. Temperature sensing print paper (2 roll)
12. Guide manual (1)
PACKAGE SIZE: 97*33*58cm+80*30*40cm
G.W.: 30.2KGS

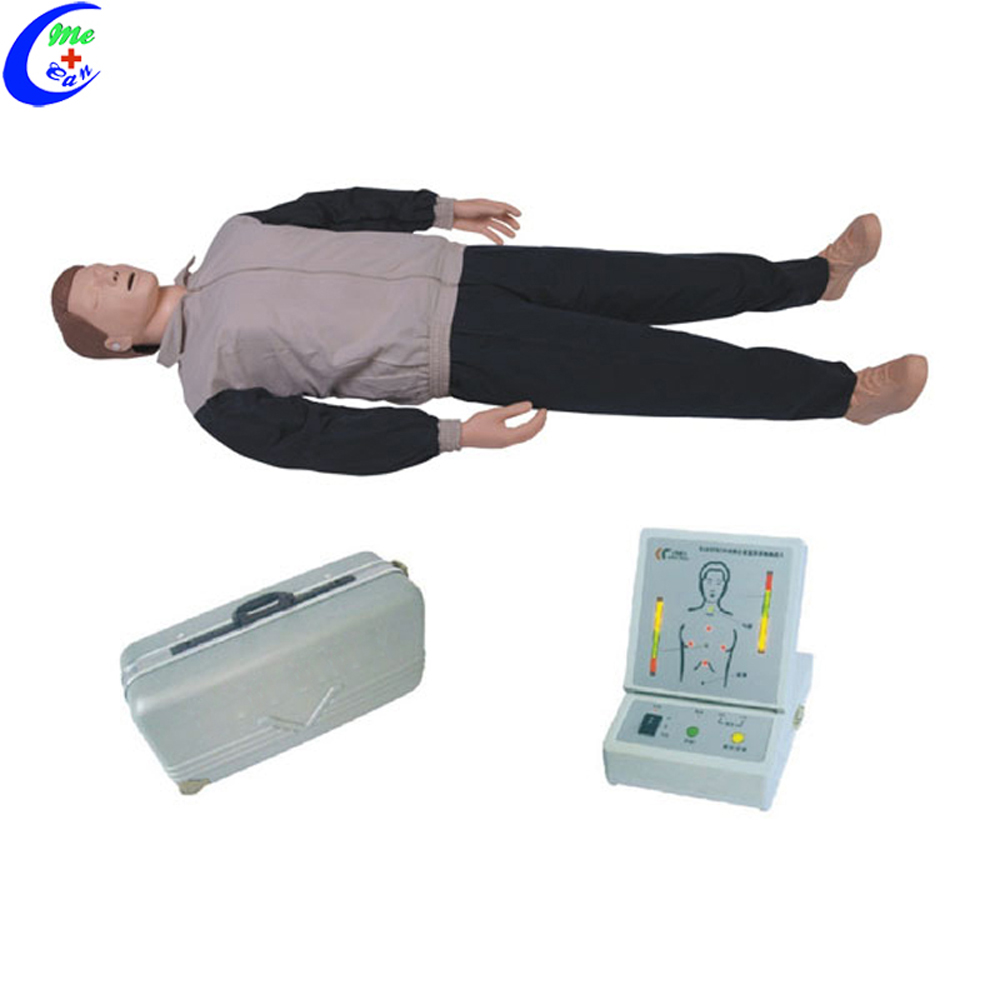

MC-CPR300S CPR Medicine Manikin
Features:
1. Simulate standard open airway and sound prompting
2. External breast compression: indicator light display, digital counter display and sound prompting
a) Indicator light display of correct and wrong compression position; digital counter display; sound prompting of wrong compression.
b) Display of correct (at least 5cm) and wrong (less than 5cm) compression intensity; digital strip indicator light (yellow, green, red) shows compression depth; counter display; sound prompting of wrong operation.
3. Artificial respiration (Inhalation) indicator light display, digital counter display and sound prompting:
a) Inhalation is ≤500ml/600ml-1000ml≤, strip indicator light shows inhalation volume; counter display of correct and wrong operations, and sound prompting of wrong operation.
b) Inhalation too quickly or too much result in air entering into stomach, counter display and sound prompting of wrong operation.
4. Ratio of compression and artificial respiration: 30:2 (one or two person)
5. Operating cycle: one cycle includes five times of 30:2 ratio of compression and artificial respiration.
6. Operation frequency: at least 100 times per minute
7. Operation methods: exercise operation; examine operation
8. Operation time: counting down device
9. Print: print operation result
10. Examination of pupil response: mydriasis and myosis
11. Examination of carotid response: simulate spontaneous carotid pulse in compression process
12. Working conditions: Input power is 110-240V
Main Components:
1. Full body manikin (1)
2. Monitor (1)
3. Portable plastic box (1)
4. CPR operation pad (1)
5. CPR face shield sheet (50pcs/box)
6. Exchangeable lung bag (5)
7. Exchangeable face skin (1)
8. Temperature sensing print paper (2 roll)
9. Guide manual (1)
Optional function:
1. Endotracheal intubation
2. Gastrolavage
3. Trauma limbs
PACKAGE SIZE: 97*33*58cm
G.W.: 22KGS

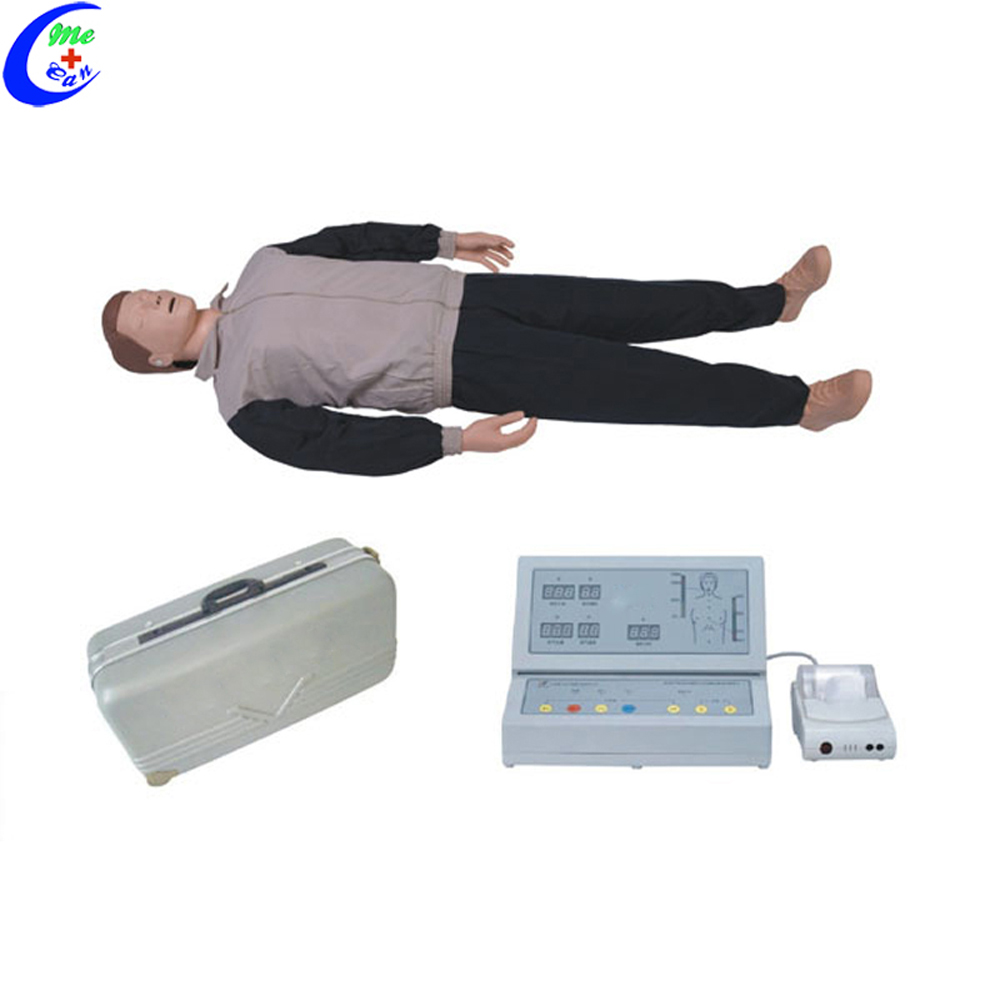

MCT-CPR300S-A CPR Medicine Manikin
Features:
1. Simulate standard open airway and sound prompting
2. External breast compression: indicator light display, digital counter display and sound prompting
a) Indicator light display of correct and wrong compression position; digital counter display; sound prompting of wrong compression.
b) Display of correct (at least 5cm) and wrong (less than 5cm) compression intensity; digital strip indicator light (yellow, green, red) shows compression depth; counter display; sound prompting of wrong operation.
3. Artificial respiration (Inhalation) indicator light display, digital counter display and sound prompting:
a) Inhalation is ≤500ml/600ml-1000ml≤, strip indicator light shows inhalation volume; counter display of correct and wrong operations, and sound prompting of wrong operation.
b) Inhalation too quickly or too much result in air entering into stomach, counter display and sound prompting of wrong operation.
4. Ratio of compression and artificial respiration: 30:2 (one or two person)
5. Operating cycle: one cycle includes five times of 30:2 ratio of compression and artificial respiration.
6. Operation frequency: at least 100 times per minute
7. Operation methods: exercise operation; examine operation
8. Operation time: counting down device
9. Print: print operation result
10. Examination of pupil response: mydriasis and myosis
11. Examination of carotid response: simulate spontaneous carotid pulse in compression process
12. Working conditions: Input power is 110-240V or adopts direct current of eight No.1 batteries.
Standard components:
1. Full body manikin (1)
2. Monitor (1)
3. Portable plastic box (1)
4. Temperature sensing printer (1)
5. CPR operation pad (1)
6. CPR face shield sheet (50pcs/box)
7. Exchangeable lung bag (5)
8. Exchangeable face skin (1)
9. Temperature sensing print paper (2 roll)
10. Guide manual (1)
PACKAGE SIZE: 97*33*58cm
G.W.: 22KGS

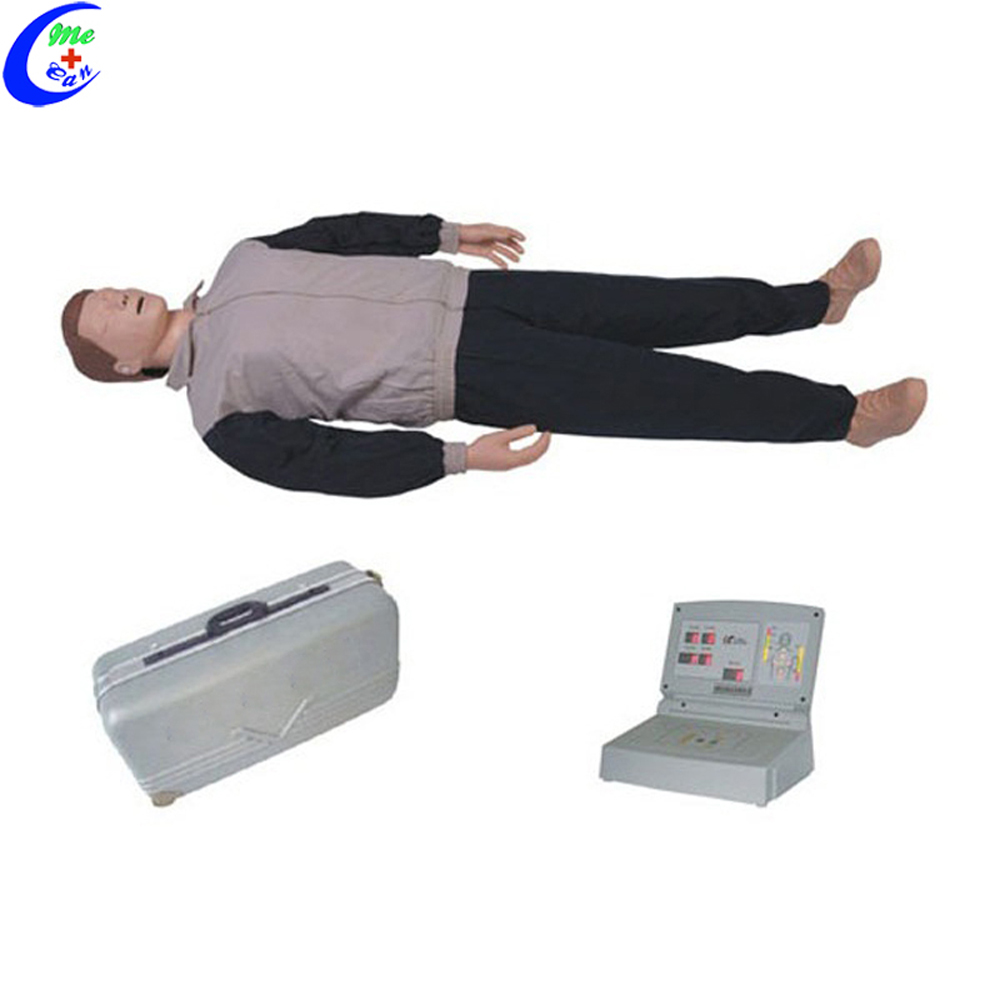

MCT-CPR230S CPR Medicine Manikin
Features:
1. Simulate standard open airway
2. External breast compression: display device and alarm device
1) Indicator light display of correct and wrong compression; alarm of wrong compression;
2) Intensity display of correct (at least 5cm) and wrong (less than 5cm) compression; alarm of wrong compression. Digital strip indicator light (yellow, green, red) shows compression depth;
3. Artificial respiration (Inhalation): display device and alarm device
1) Display of inhalation (≤500ml-600ml≤), strip indicator light shows inhalation volume; alarm of wrong operation
2) Inhalation too quickly or too much result in air entering into stomach; indicator light display and alarm prompting.
4. Ratio of compression and artificial respiration: 30:2 (one or two person)
5. Operating cycle: 2times correct respiration, one cycle includes five times of 30:2 (one or two person)
6. Operation frequency: at least 100 times per minute
7. Operation methods: exercise operation
8. Examination of pupil response: mydriasis and myosis
9. Examination of carotid response: pinch the pressure ball by hand and simulate carotid pulse
10. Working conditions: Input power is 110-240V
PACKAGE SIZE: 97*33*58cm
G.W.: 19.5KGS
Model: MCT-KE-008 CPR Medicine Manikin
Features
1. The screen LCD display artificial respiration, external breast compression and pulse reaction
2. Simulate standard open airway and sound prompting
3. External breast compression: indicator light display, LCD counter display and sound prompting
a) Indicator light display of correct and wrong compression position; LCD counter display; sound prompting of wrong compression.
b) Display of correct (at least 5cm) and wrong (less than 5cm) compression intensity; digital strip indicator light (yellow, green, red) shows compression depth; counter display; sound prompting of wrong operation
4. Artificial respiration (Inhalation) indicator light display, LCD counter display and sound prompting:
a) Inhalation is ≤500ml/600ml-1000ml≤, strip indicator light shows inhalation volume; counter display of correct and wrong operations, and sound prompting of wrong operation.
b) Inhalation too quickly or too much result in air entering into stomach; indicator light display; digital counter display; sound prompting.
5. Ratio of compression and artificial respiration: 30:2 (one or two person)
6. Operating cycle: one cycle includes five times of 30:2 ratio of compression and artificial respiration
7. Operation frequency: at least 100 times per minute
8. Operation methods: exercise operation; examine operation
9. Operation time: counting down device
10. Sound prompting device: volume control; turning on or turning off sound prompting device
11. Print: print operation result
12. Examination of pupil response: mydriasis and myosis
13. Examination of carotid response: simulate spontaneous carotid pulse in compression process
14. Working conditions: Input power is 110-240V
Standard components
1. Full body manikin (1)
2. Big screen LCD (1)
3. Portable plastic box (1)
4. Temperature sensing printer (1)
5. CPR operation pad (1)
6. CPR face shield sheet (50pcs/box)
7. Artificial respiration face mask (1)
8. Exchangeable lung bag (5)
9. Exchangeable face skin (1)
10. Temperature sensing print paper (2 roll)
11. Guide manual (1)
PACKAGE SIZE: 97*33*58cm
G.W.: 24KGS
Model: MCT-KE-009 CPR Medicine Manikin
Features
1. With all functions of MCT-KE-008
2. Student IC card: IC card can record all the operation and assessment information; can also be used for exam process playback, result evaluation, student documents management
3. Equipped with trauma limbs, can replace the original limbs to act wound washing, stop bleeding, bandaging, fixation, carrying.
Standard components
1. Full body manikin (1)
2. Trauma limbs (1set)
3. Big screen LCD (1)
4. Card reader LCD (1)
5. IC card (20pcs /set)
6. Manage software (1)
7. Portable plastic box (1)
8. Portable bag for trauma limbs (1)
9. CPR operation pad (1)
10. CPR face shield sheet (50pcs/box)
11. Exchangeable lung bag (5)
12. Exchangeable face skin (1)
13. Temperature sensing print paper (2 roll)
14. Guide manual (1)
PACKAGE SIZE: 97*33*58cm+80*30*40cm
G.W.: 32KGS
Other Medicine Manikin
During the production of MeCan Medical , workers are required to wear anti-static clothing and wrist straps to protect the chips from the damage of static.
FAQ
1.What is your warranty for the products?
One year for free
2.What is your lead time of the products?
40% of our products is in stock,50% of the products need 3-10 days to produce,10%of the products need 15-30 days to produce.
3.Technology R & D
We have a professional R&D team that continuously upgrades and innovates products.
Advantages
1.MeCan Focus on medical equipments over 15 years since 2006.
2.OEM/ODM, customized according to your requirements.
3.Every equipments from MeCan gets passed strict quality inspection,and final passed yield is 100%.
4.More than 20000 customers choose MeCan.
About MeCan Medical
Guangzhou MeCan Medical Limited is a professional medical and laboratory equipment manufacturer and supplier. For more than ten years, we engage in supplying competitive price and quality products to many hospitals and clinics, research institutions and universities. We satisfy our customers by offering comprehensive support, purchase convenience and in time after sale service. Our main products include Ultrasound Machine, Hearing Aid, CPR Manikins, X-ray Machine and Accessories, Fiber and Video Endoscopy, ECG&EEG Machines, Anesthesia Machines, Ventilators, Hospital furniture, Electric Surgical Unit, Operating Table, Surgical Lights, Dental Chairs and Equipment, Ophthalmology and ENT Equipment, First Aid Equipment, Mortuary Refrigeration Units, Medical Veterinary Equipment.
