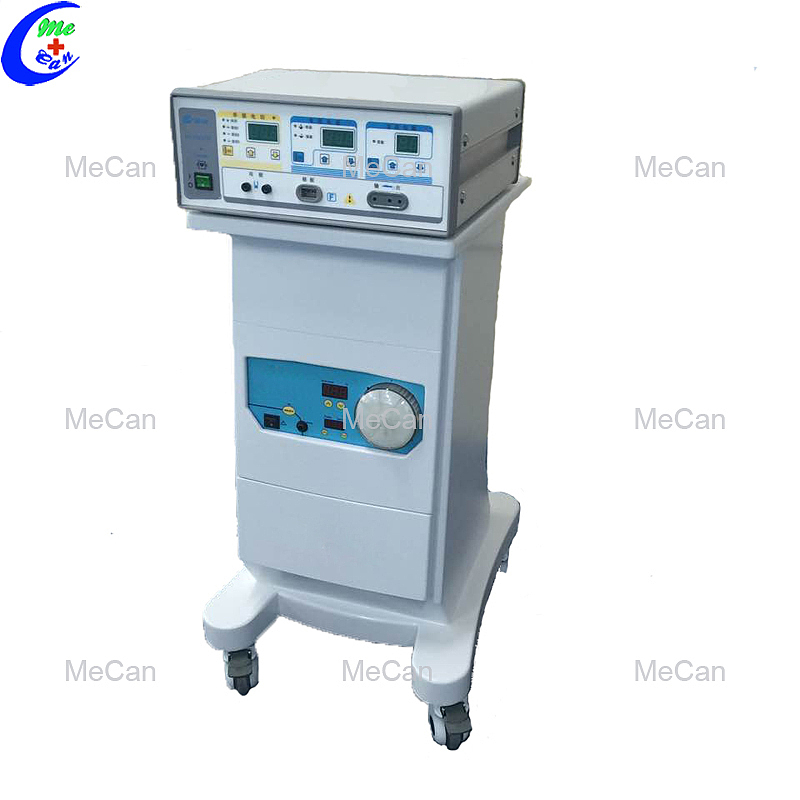

Surgical LEEP Electrosurgical Generator
(Seven working modes)
Parameters of the Surgical LEEP Electrosurgical Generator:
1. Highest power: 200W
2. Seven working modes: pure cut, blend1, blend2, blend3, spray coag, forced coag, bipolar coag.
3. Microcomputer control, three-way power output, with different audible and visual indication during the process of outputting.
4. 2000(LEEP) generator adopts LEEP which specializing in gynecological intrauterine event, increasing the accuracy, controllability, security of the surgery.
5. Dealing with some kinds of pathological changes in obstetric and gynecology, for example, cutting, electrocoagulation, cervical erosion, and some kinds of surgery that fit in peritoneoscope.
6. Different electrodes have different effects in coagulation.
7. An optional smoke evacuation system is available.
8. Particular illuminating ESU pencil can increase the clarity of wound healing.
Technical Specifications of the MCS-ECU34 Surgical LEEP Electrosurgical Generator:
Power: 220V±22V, 50Hz±1Hz(110V±11V,50/60Hz)
Operating frequency: 512KHz
Power rating: 880VA±10%
Seven working modes of the Surgical LEEP Electrosurgical Generator:
Monopolar Cut:
a) Cut1 (pure cut): 1W~200W( Load 800Ω)
b) Cut2 (Blend1): 1W~150W(Load 800Ω)
c) Cut3 (Blend2): 1W~100W (Load 800Ω)
d) Cut4 (Blend3): 1W~80W(Load 800Ω)
Monopolar Coag:
d) Coagulation1(Spray Coag): 1W~120W( Load 800Ω)
e) Coagulation2(Forced Coag): 1W~80W( Load 800Ω)
Bipolar:
f) Bipolar coagulation: 1W~50W ( Load 100Ω)
Power Consumption of the Surgical LEEP Electrosurgical Generator:
Less than 880VA(Cutting function 200W)
Surgical Smoke Evacuation Parameter
blowing rate: 100 l/min @ 6mm tube
Noise:<60dB(A)
Start Control: Manus/Foot/Synchronize
Suction Adjust: 10%-100%
Stop delay time: 0-60s
AC Power: AC90~250V, 50Hz
Power consumption: < 350W
Filter Characteristics: 99.999% @ 0.1-0.2μm
Active Carbon: 97% @ 1 year
Packing List
Illuminating ESU Pencil: 5pcs
Electrosurgical Pad: 10pcs
Electrosurgical pad cable: 1pc
Footswitch: 1set
Bipolar Forceps and cable: 1set
Vaginaldilator: 1pc
Electrodes: 10pcs
