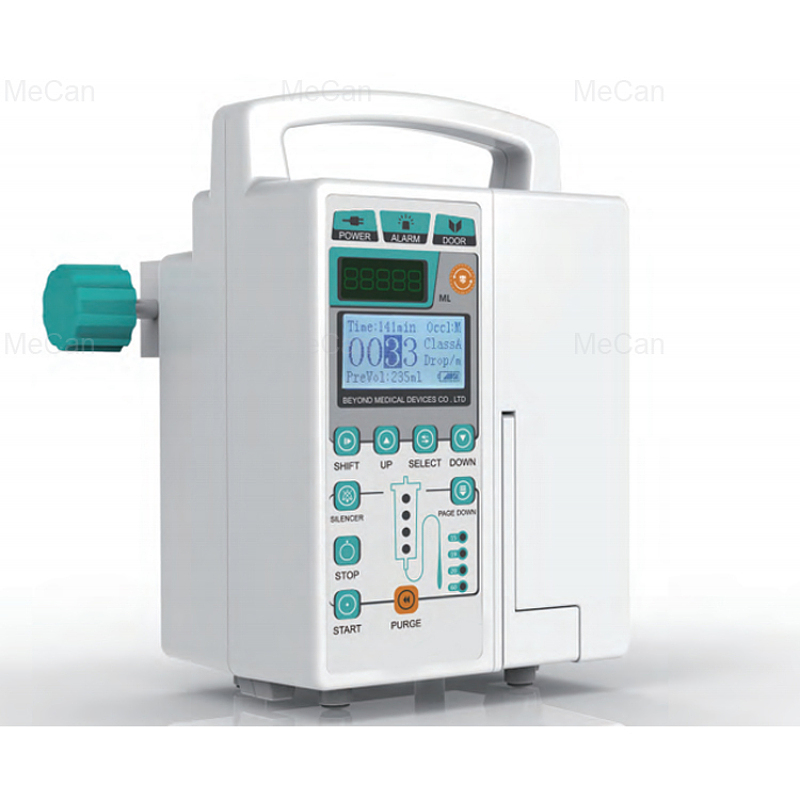

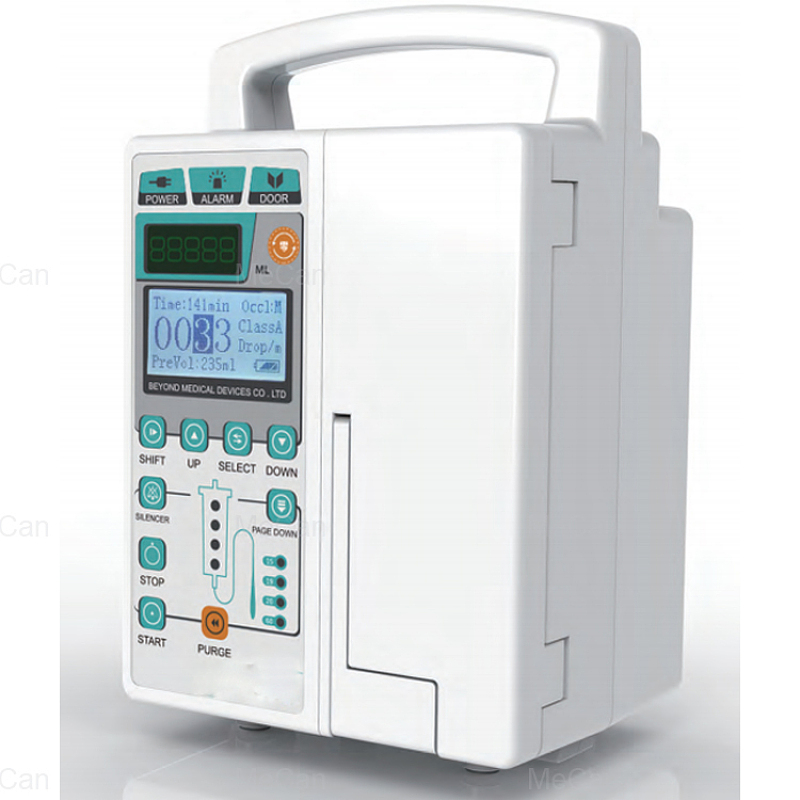

Model:MC-820
| Rate | 1ml/h~1200ml/h |
| Flow Rate Accuracy | Within ±5% (after correct calibration) |
| Mechanical precision | Within ±2% |
| Purge Rate | 100ml/h ~1,200ml/h (100 ml/h step) |
| Infusion Volume | 1ml~9999ml |
| Total Infusion Volume | 0ml~9999.9ml |
| KVO rate | 1ml/h~5 ml/h (1ml/h step) |
| Occlusion | High: 800mmHg ±200mmHg (106.7kPa±26.7kPa) Medium: 500mmHg ±100mmHg(66.7kPa±13.3kPa) Low: 300mmHg ±100mmHg (40.7kPa±13.3kPa ) |
| Unique audible and visible alarm | Human voice alarm for End of injection, occlusion, door open, bubbles in the tube,wrong setting, low battery, AC power pulled out etc. |
| Power Source | AC 100V~240V, 50/60Hz; Internal rechargeable Li battery, capacity≥1,600mAh,4 hours internal battery backup |
| Bubble detector | Ultrasonic wave detector; detection sensitivity ≥25μL |
| Power Consumption | 30VA |
| Operating Condition | Ambient temperature: +5℃~+40℃; Relative humidity: 20~90% Atmospheric pressure: 86.0kpa~106.0kpa |
| Transport & Storage Condition | Ambient temperature: -20℃~+55℃ Relative humidity: ≤93% |
| Equipment Classification | Class II, internal power supply, Type-CF |
| Dimension | 140mm (L) × 157mm (W) × 220mm (H) |
| Weight | 1.8kg (net weight) |
