Quality Medical Digital Mobile C-Arm X-ray Machine Manufacturer | MeCan Medical

Medical Digital Mobile C-Arm X-ray Machine  compared with similar products on the market, it has incomparable outstanding advantages in terms of performance, quality, appearance, etc., and enjoys a good reputation in the market.MeCan Medical summarizes the defects of past products, and continuously improves them. MCX-C01 uses imported large-size flat panel detector, a larger field of view, access to high-definition distortion-free images to ensure accurate and reliable image information to meet a variety of clinical special surgical needs.


Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Product Details
Company Profile

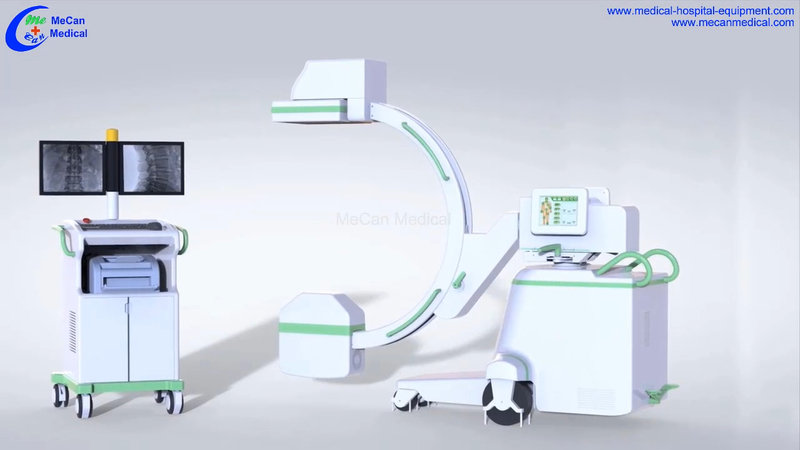

Digital Mobile C-arm X-ray Machine

Model: MCX-C01


I. Performance characteristics

MCX-C01 uses imported large-size flat panel detector, a larger field of view, access to high-definition distortion-free images to ensure accurate and reliable image information to meet a variety of clinical special surgical needs.


Product Features:

1. High dynamic display range, can achieve the best human soft tissue and bone tissue imaging.

2. Cesium iodide amorphous silicon dynamic flat panel detector, the limit spatial resolution of2.7LP / mm, gray 16bit.

3. A complete image processing system, with extraordinary processing power, to ensure that you are thinking that your income.

4. Built-in automatic optimization of advanced image processing, enhanced module, real-time display automatically optimized after a clear clinical image.

5. Real-time histogram equalization and real-time dynamic Gamma correction through real-time Laplacian pyramid enhancement.

6. Real-time window width and window adjustment, real-time arbitrary angle rotation, real-time zoom, pan, point of interest, reverse  phase, noise reduction, smoothing, sharpening and other rich and powerful image processing function gives you a stronger diagnostic confidence.

7. Dedicated high-definition medical LCD display system, presented to you with high brightness, high contrast to the clinical image; contrast to nature, useful for diagnosis of the image details show clearer, more richer level.

8. The perfect digital image chain, to ensure that you can easily deal with multiple sections of a variety of conventional surgery.

9. Leading digital pulse dose intelligentized control technology, indeed real time high mA continuous pulsed fluoroscopy application, which achieving multi frequency intelligentized regulation and supplying high quality images for accurate     diagnosis while ensure low dose.


II. Application

It can be used for orthopedics, general surgery, orthopedics, traumatic surgery, urology, spinal surgery, pain surgery, cardiology, gastroenterology, gynecology and operating rooms.


III. Technical specification

1. High frequency high voltage generator

1. 1   Power output:25kW

1.2   Inverter Frequency:60kHz

1.3   Continuous fluoroscopy(Manual, Auto)

1.3. 1  Tube voltage:40kV~125kV,continuous adjustable

1.3.2  Tube current:0.3mA~5mA,continuous adjustable

1.4   Enhance fluoroscopy (Manual, Auto)

1.5   Tube voltage:40kV~125kV,continuous adjustable

1.5. 1Tube Current:0.3mA~10mA,continuous adjustable

1.6   Pulse fluoroscopy

1.6. 1 Tube voltage:40kV~125kV,continuous adjustable

1.6.2  Tube current:0.3mA~100mA,continuous adjustable

1.6.3  Pulse frequency:0. 1~12.5 frame per second, continuous adjustable

1.7   Radiography tube voltage:40kV~125kV

1.8   Radiography tube current:70mA~200mA

1.9   Radiography mAs:0. 1mAs~320mAs


2.X-ray tube assembly

2.1.1 Dual focuses X-ray tube: 0.6 / 1.3, rotating anode heat capacity:80kJ

2.1 Heat capacity:1000KJ


3.Digital imaging system

3.1 Flat panel detector

3.1.1 Model: THALES Pixium Surgical 2630

3.1.2 Effective area size is:28.7cm×26.5cm

3.1.3 Maximum pixel size:1560×1440

3.1.4 Pixel size:0. 184mm

3.1.5 16-bit analog-to-digital converter

3.2 Display: 21-inch 2M gray-scale medical liquid crystal display

3.3 Digital image processing system

3.3. 1 Image acquisition module: real-time zoom, real-time rotation of any angle, vertical / horizontal mirror, real-time enhanced

processing, sub-window display, single frame / sequence image storage and echo

3.3.2 Image processing module: For the images that have been collected or saved, the images can be processed in this module: labeling, zooming, measuring, window display, 90 ° rotation, horizontal mirror and vertical mirror.

3.3.3 Report module: provide a variety of diagnostic terms can be modified to facilitate the user to write a report to provide the report print function

3.3.4 Film print module: complies with the DICOM standard medical film typesetting and printing functions




4. Structural performance

4.1 Focus - Image receiver distance: 955~1155mm

4.2 Flat panel detector up and down, adjustable SID: 955~ 1155 mm

4.3 C arm Slide angle along the rail arc: ≥120°

4.4 C arm Rotate along the horizontal axis: ±180°

4.5 C arm swing left to right: ±15°

4.6 Forward and backward: 200mm

4.7 Upward and downward: 400mm

4.8 C arm opening: 744~944mm

4.9 C arm depth:8 26mm

4.10 Guide Wheels can be rotated in any direction,main wheel 110~90°



5.Power conditions

5. 1 Power supply voltage: 220V ± 22V

5.2 Power frequency: 50Hz ± 1Hz


Images for cervical spine, thoracic, lumbar spine, knee joint, pelvis, femur of our MCX-C01 C-Arm.


The product runs stably and reliably. It is not prone to the effects of sudden surges, susceptibility driven, gaps, interruptions, and voltage variations.

FAQ

1.What is the delivery time?
We have shipping agent, we can deliver the products to you by express, air freight, sea. Below is some delivery time for your reference: Express: UPS, DHL, TNT, ect (door to door)  United States(3 days),Ghana(7 days), Uganda(7-10 days), Kenya(7-10 days), Nigeria(3-9 days) Hand carry Send to your hotel, your friends, your forwarder,your sea port or your warehouse in China. Air freight(from airport to airport)  Los Angeles(2-7 days), Accra(7-10 days), Kampala(3-5 days), Lagos(3-5 days), Asuncion(3-10 days)...
2.What is your warranty for the products?
One year for free
3.What is your lead time of the products?
40% of our products is in stock, 50% of the products need 3-10 days to produce, 10% of the products need 15-30 days to produce.

Advantages

1.OEM/ODM, customized according to your requirements.
2.MeCan Focus on medical equipments over 15 years since 2006.
3.Every equipments from MeCan gets passed strict quality inspection,and final passed yield is 100%.
4.More than 20000 customers choose MeCan.

About MeCan Medical

Guangzhou MeCan Medical Limited is a professional medical and laboratory equipment manufacturer and supplier. For more than ten years, we engage in supplying competitive price and quality products to many hospitals and clinics, research institutions and universities. We satisfy our customers by offering comprehensive support, purchase convenience and in time after sale service. Our main products include Ultrasound Machine, Hearing Aid, CPR Manikins, X-ray Machine and Accessories, Fiber and Video Endoscopy, ECG&EEG Machines, Anesthesia Machines, Ventilators, Hospital furniture, Electric Surgical Unit, Operating Table, Surgical Lights, Dental Chairs and Equipment, Ophthalmology and ENT Equipment, First Aid Equipment, Mortuary Refrigeration Units, Medical Veterinary Equipment.
Basic Information
  • Year Established
    2006
  • Business Type
    Manufacturing Industry
  • Country / Region
    CHINA
  • Main Industry
    Ward Nursing Equipments
  • Main Products
    Ultrasound Machine, X-ray Machine, Hospital furniture, Operation Equipment, Education Equipment, Laboratory Equipment
  • Enterprise Legal Person
    Andy Miao
  • Total Employees
    101~200 people
  • Annual Output Value
    100,000,000 USD
  • Export Market
    Chinese Mainland,European Union,Middle East,Eastern Europe,Latin America,Africa,Oceania,Hong Kong and Macao and Taiwan,Japan,Southeast Asia,America,Others
  • Cooperated Customers
    MeCan Medical has helped 270 hospitals,540 clinics,190 vet clinics to set up in Spain, Brazil, United Kingdom, France, UAE, Asia, Africa, Latin America, etc.
Company Profile
Guangzhou MeCan Medical Limited is a professional medical and laboratory equipment manufacturer and supplier.
For more than ten years, we engage in supplying competitive price and quality products to many hospitals and clinics, research institutions and universities. We satisfy our customers by offering comprehensive support, purchase convenience and in time after sale service.
Our main products include Ultrasound Machine, Hearing Aid, CPR Manikins, X-ray Machine and Accessories, Fiber and Video Endoscopy, ECG&EEG Machines, Anesthesia Machines, Ventilators, Hospital furniture, Electric Surgical Unit, Operating Table, Surgical Lights, Dental Chairs and Equipment, Ophthalmology and ENT Equipment, First Aid Equipment, Mortuary Refrigeration Units, Medical Veterinary Equipment.
Company Video
Certifications

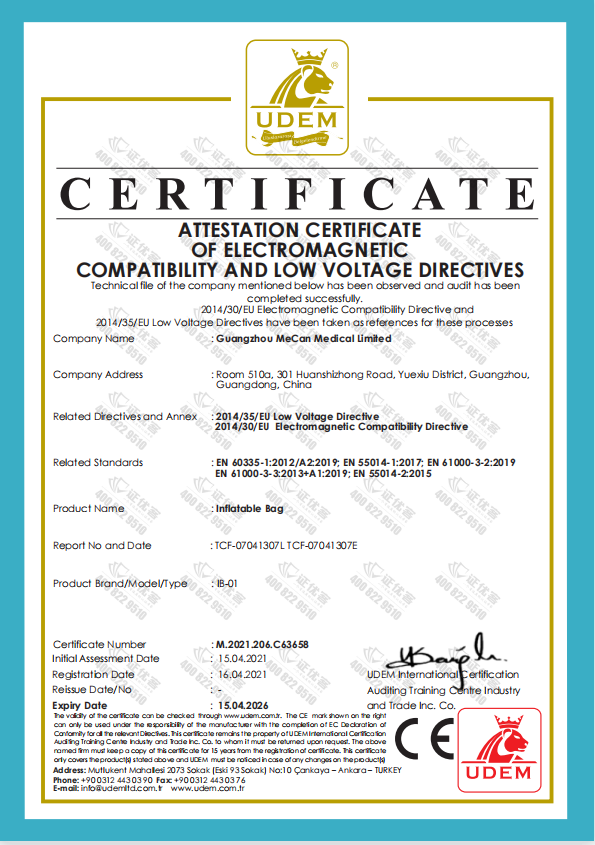

CE Certification
Issue by:UDEM International Certification

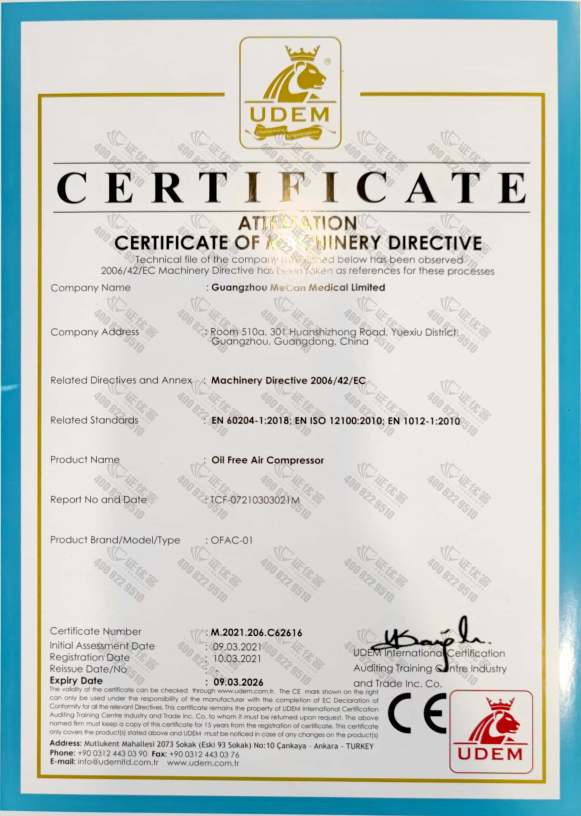

CE Certification
Issue by:UDEM International Certification

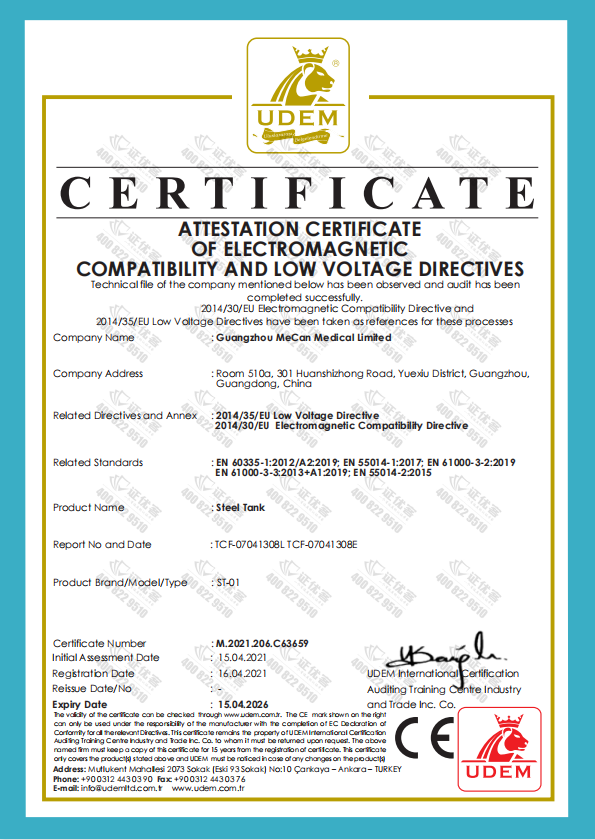

CE Certification
Issue by:UDEM International Certification

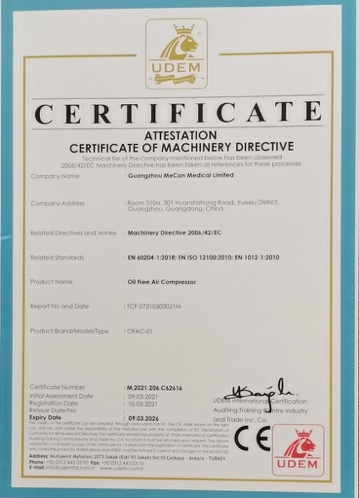

CE Certification
