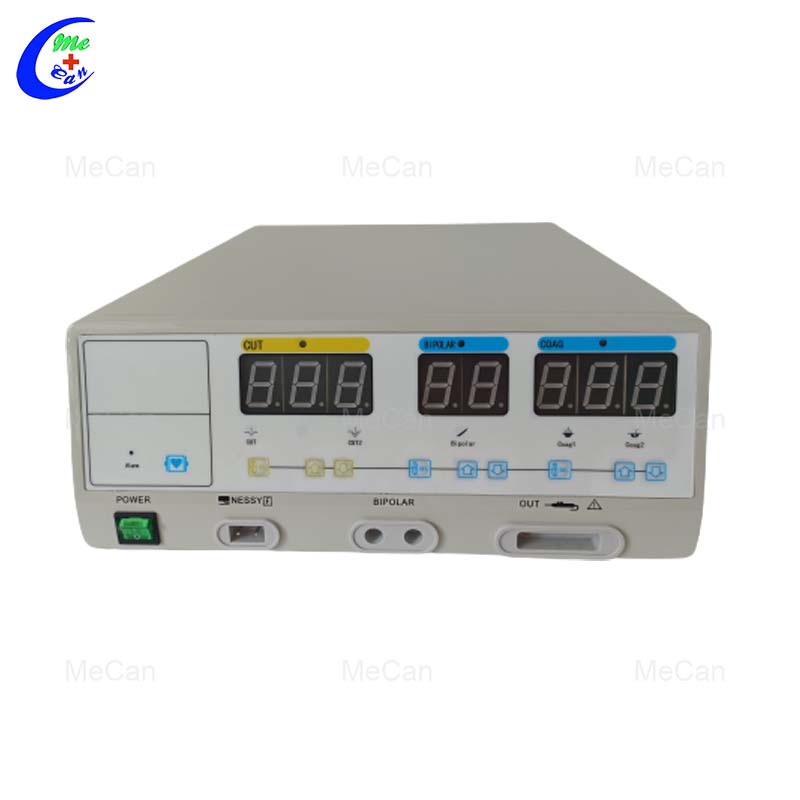

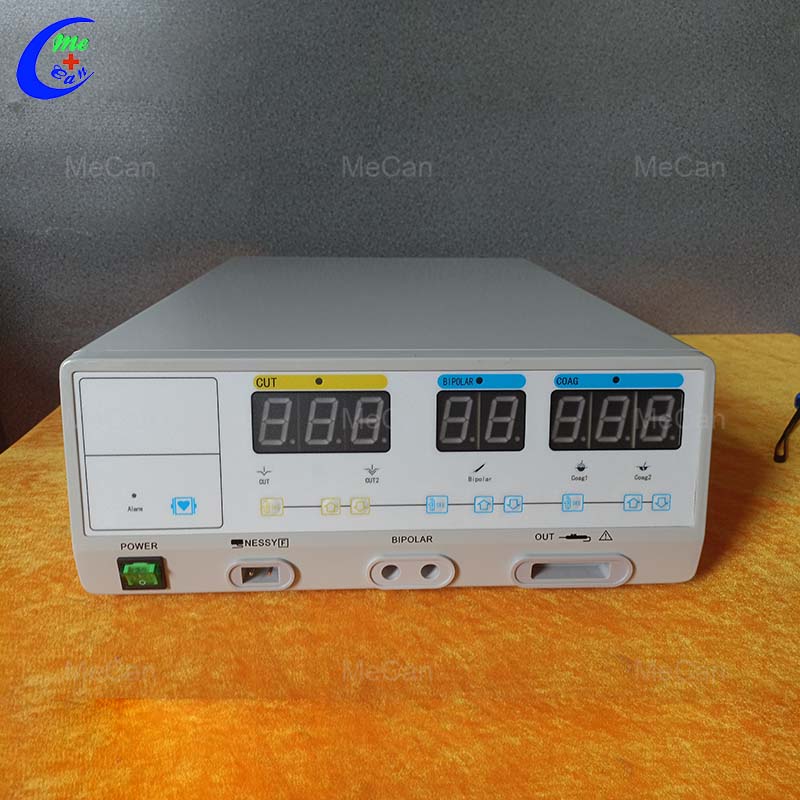

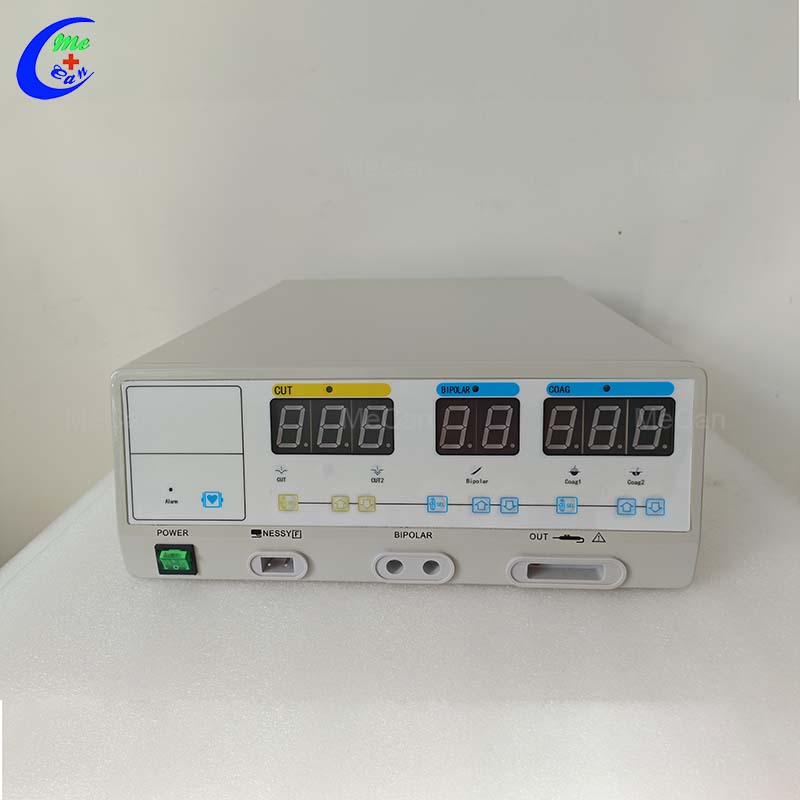

Next-gen electrosurgery: Independent endoscope port, auto-mode switching, precise power control, error monitoring, and waterproof panel. Optimal safety, efficiency, and versatility in a single unit.
Electrosurgical Unit is suitable for various surgeries on cutting or coagulation, including general surgery, heart, gynecology, anorectal surgery, orthopedics,thoracic surgery, tumor, etc.
Electrosurgical Unit also used with surgeries of endoscope, hysteroscope, laparoscope ENT endoscope, etc. Bipolar can be used in the fine surgeries of microsurgery, neurology, ENT and ophthalmology, hand surgery, etc.
1. Independent output port of endoscope and intelligent conversion key, which can enter endoscopic mode automatically after start-up.
2. Microcomputer control system,power-off protection, and memory function of keeping last usage data after a restart.
3. Automatic adjustment on output power. It can be adjusted automatically according to the change in the density of the tissue. Stable output power to keep the minimum wastage
4. Automatic conversion on monopolar and bipolar
5. Automatic monitoring of on-off, automatic detection, and error prompts in work.
6. The monitoring circuit system on contact quality of neutral electrodes can test and evaluate the safety and effectiveness of the contact area between the electrode plate and skin.
7. The system can cut off output automatically and give an alarm, in case of finds that the contact area is at a dangerous level. It can test and use a negative plate of monopolar or bipolar effectively.
8. Operating panel with keys, high definition, and large digital. It has different sound and light indicators during operation. Waterproof operating keys are easy to clean and maintain.
9. Independent three-way power output. This increases the convenience and security of operations.
10. It can be operated and performed well underwater even when dissecting and removal of fat tissue.
11. Fully suspended power output. There are two independent and isolated application sections to prevent defibrillation interference (monopolar and bipolar).
Mono Cut | Cutting: 400W | Blend: 150W |
Mono Coag | Soft Coag: 100W | Strong Coag: 80W |
Bip olar | Bipolar Coag: 50W |
Ambient temperature range | 10℃~40℃ |
Relative humidity range | 30%~75% |
Atmospheric pressure range | 700hpa~1060hpa |
Power supply | 220V/110V,50Hz |
Working frequency | 360kHz~460kHz |
Type of equipment | CF |
The power consumpton of the whole device is less than 1000VA.(Cutting function:400W) |

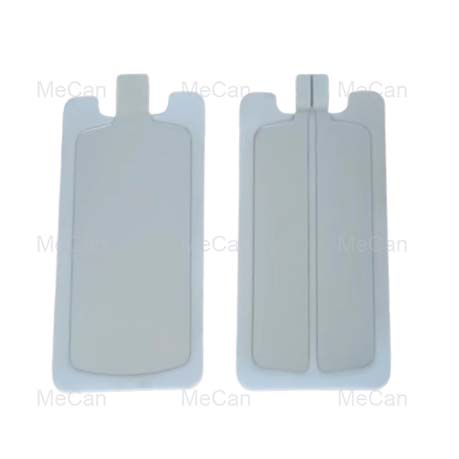

Neutral Electrode

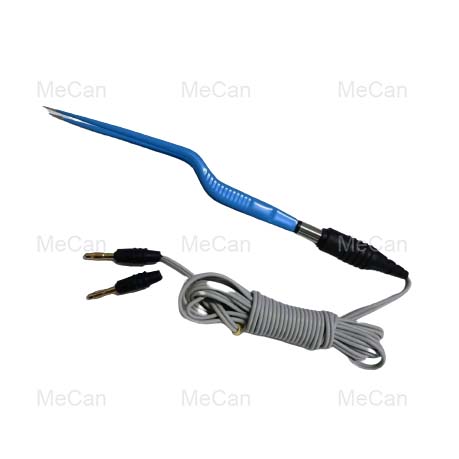

Bipolar Electrocoagulation Tweezers

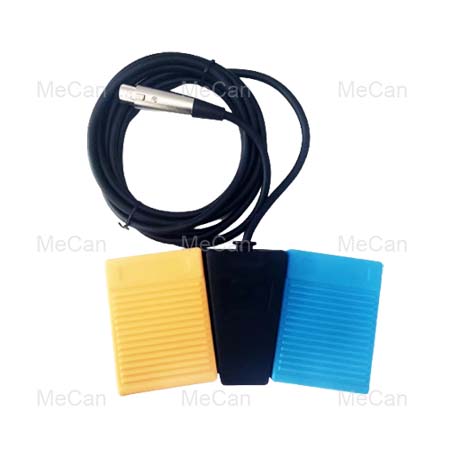

Bipolar Foot Switch

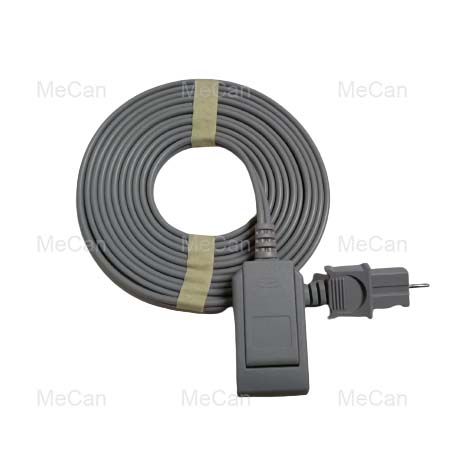

Monopolar Cable

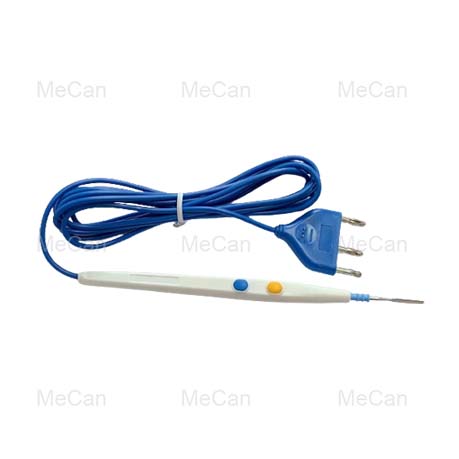

Electrosurgical Pencil
The intelligent conversion key is designed to automatically enter the endoscopic mode upon startup, providing seamless transition and convenience during procedures.
The microcomputer control system offers power-off protection and memory function, ensuring that the unit retains the last usage data even after a restart. This feature enables continuity and ease of operation.
The unit employs automatic adjustment of output power based on changes in tissue density. By adapting the power output accordingly, it maintains stable power levels and minimizes wastage, promoting efficiency.
